D40 Troubleshooting Code Name (Main Page 16 AUX OUTPUT KO 12 17 LOGIC FAILURE #3 13 18 LOGIC FAILURE #2 14 19 LOGIC FAILURE #1 15

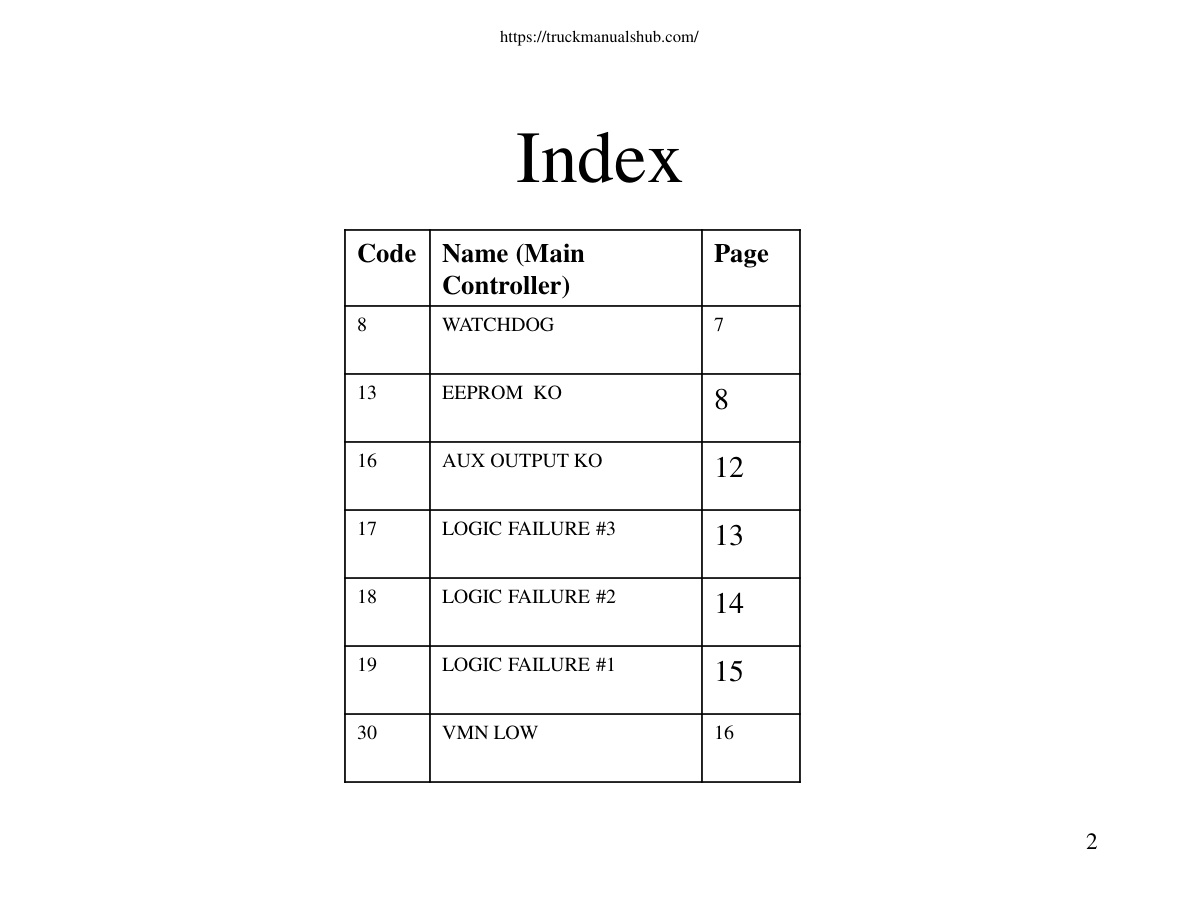

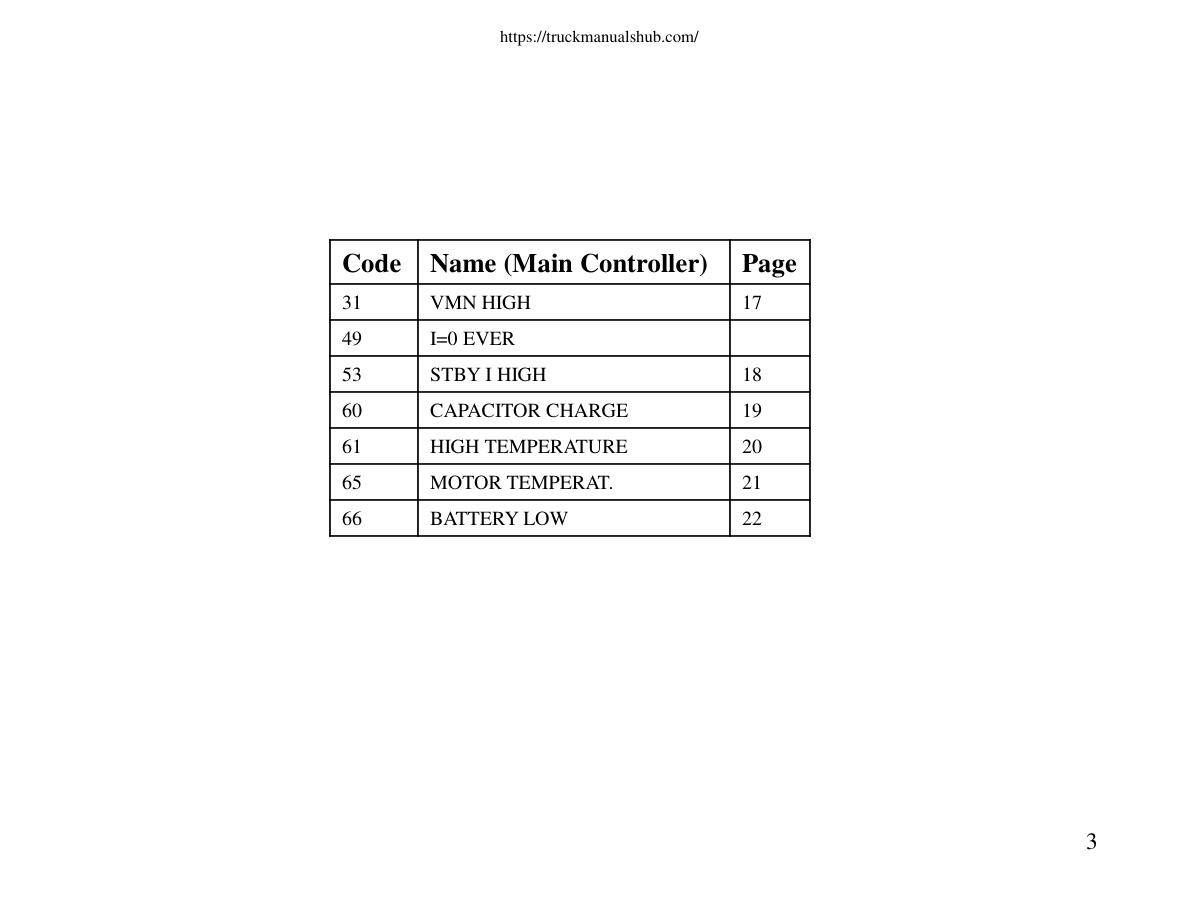

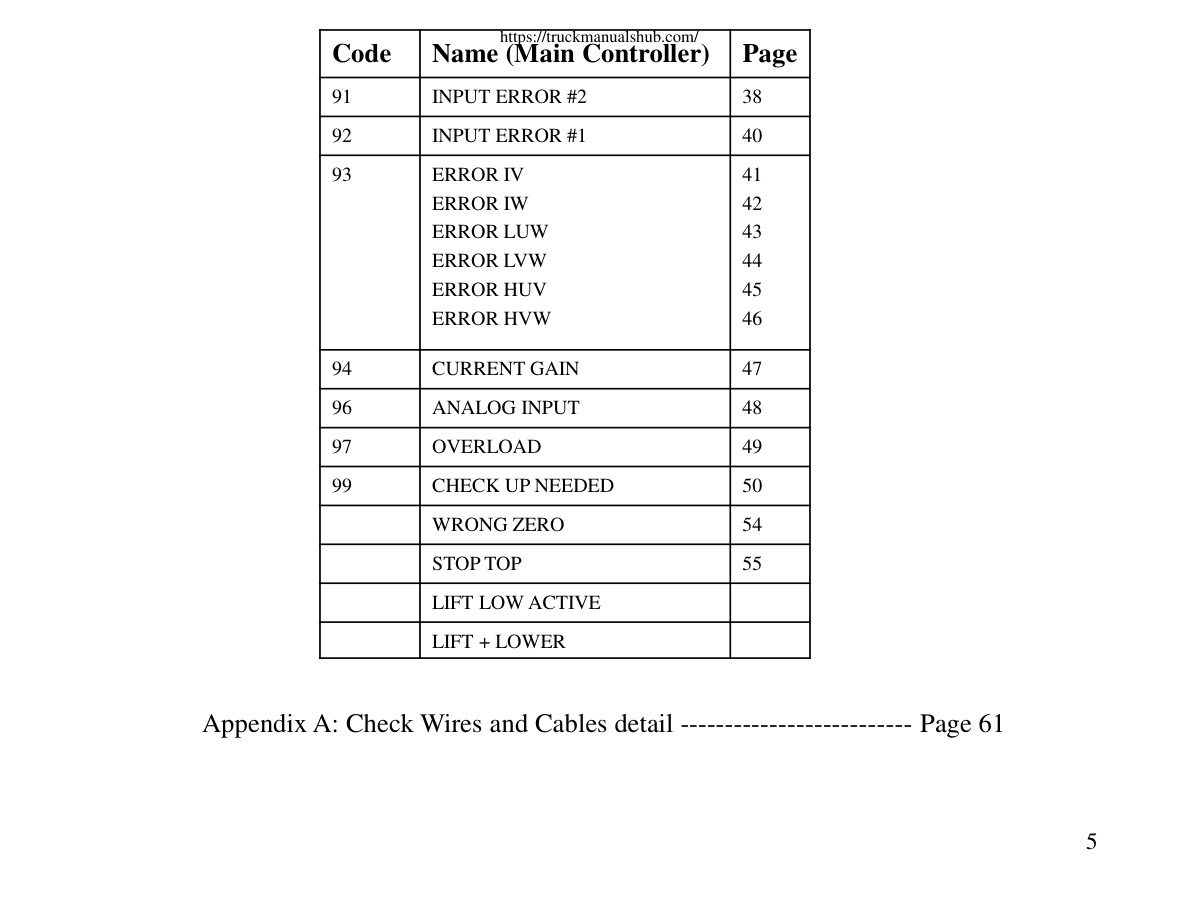

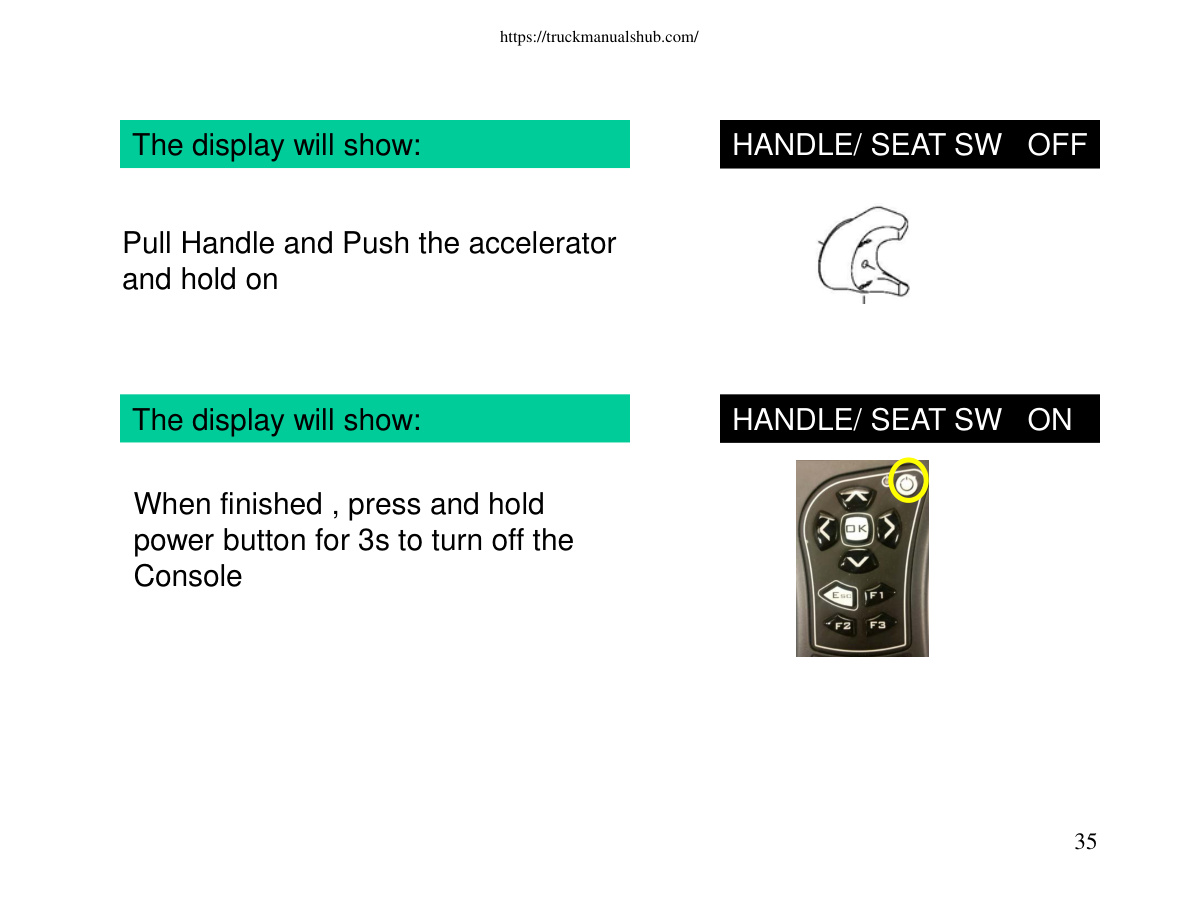

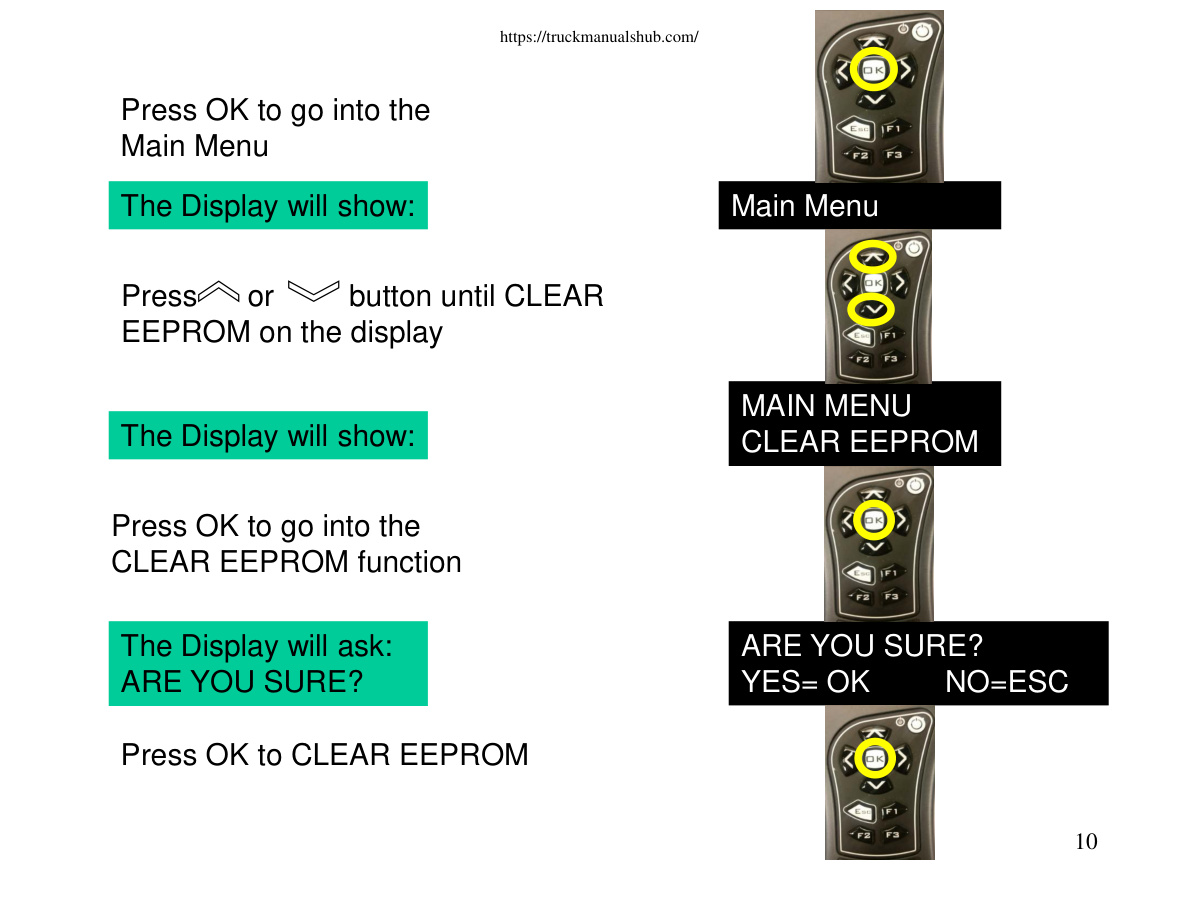

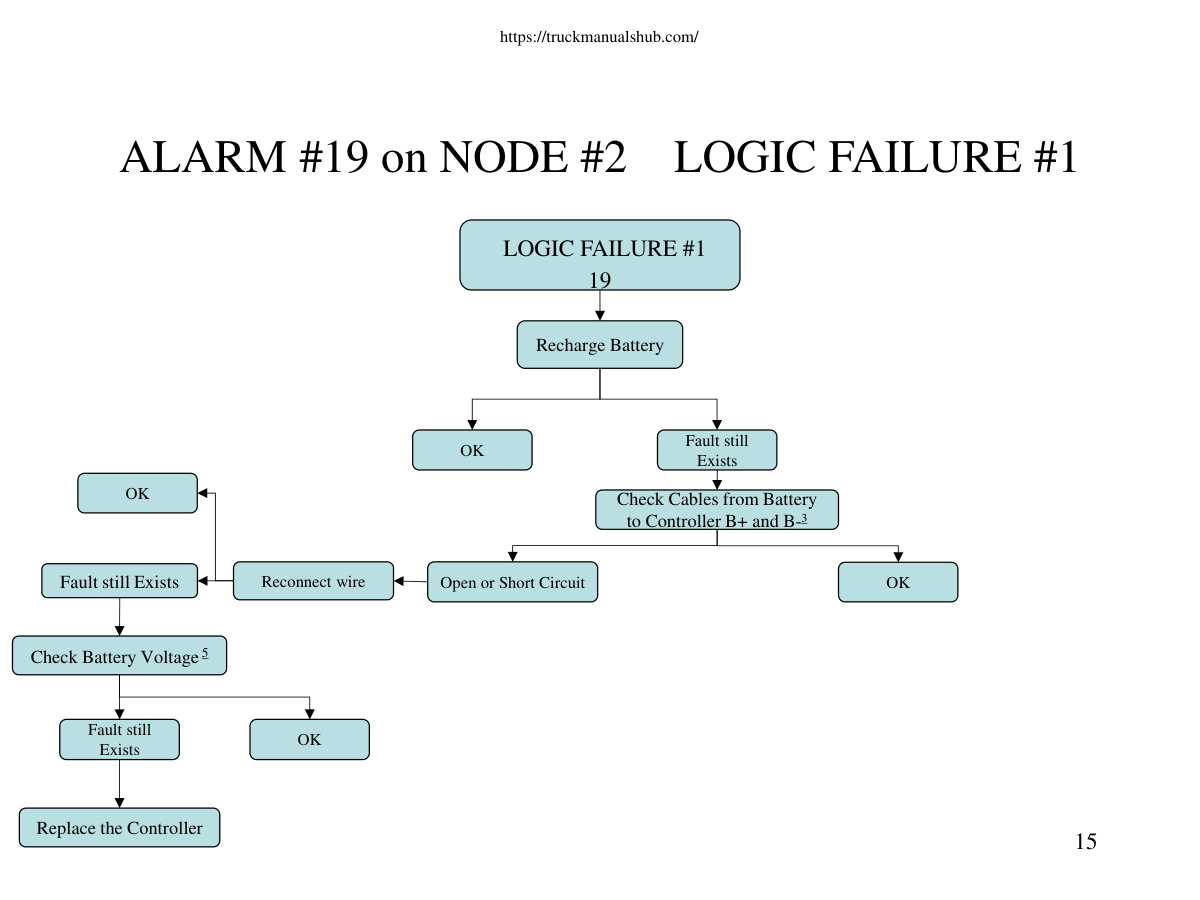

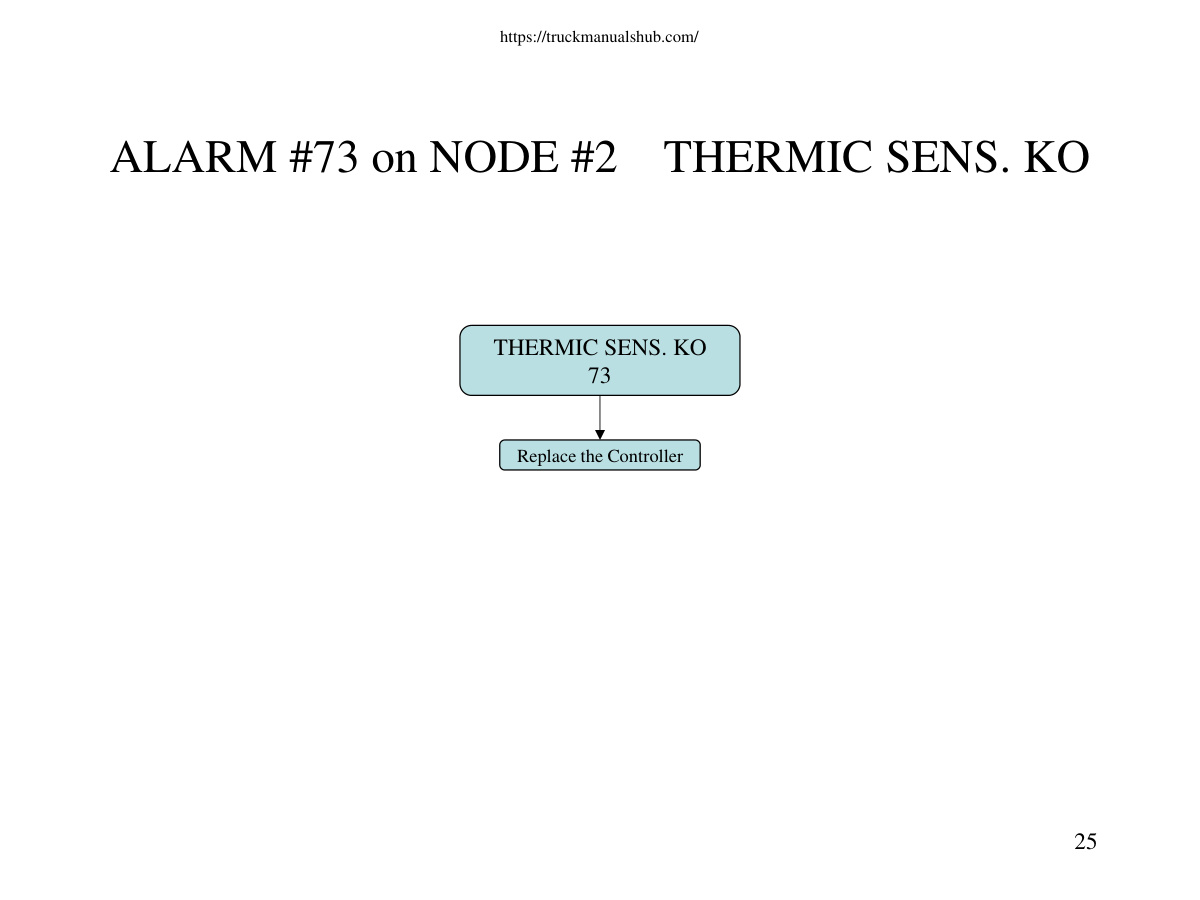

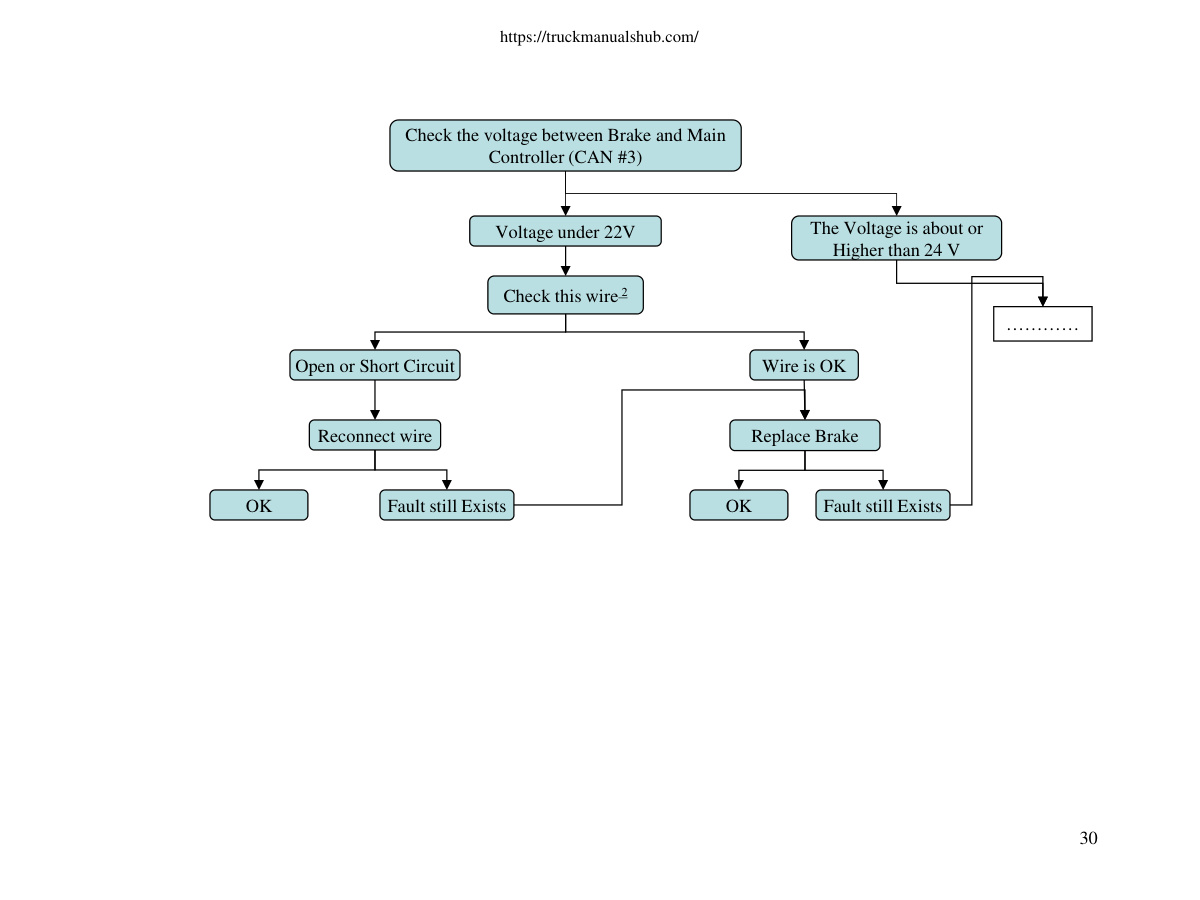

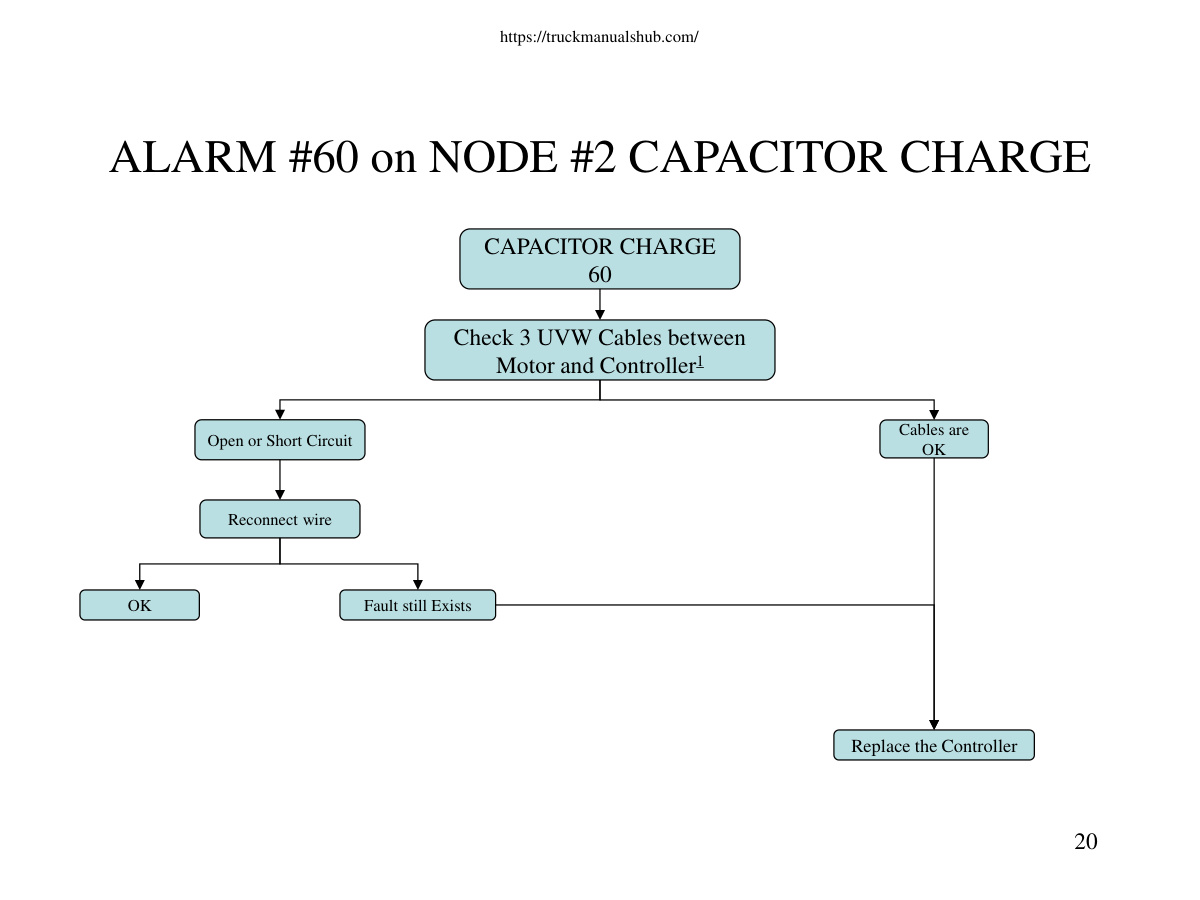

https://truckmanualshub.com/ D40 Troubleshooting 1 https://truckmanualshub.com/ Index Code Name (Main Page Controller) 8 WATCHDOG 7 13 EEPROM KO 8 16 AUX OUTPUT KO 12 17 LOGIC FAILURE #3 13 18 LOGIC FAILURE #2 14 19 LOGIC FAILURE #1 15 30 VMN LOW 16 2 https://truckmanualshub.com/ Code Name (Main Controller) Page 31 VMN HIGH 17 49 I=0 EVER 53 STBY I HIGH 18 60 CAPACITOR CHARGE 19 61 HIGH TEMPERATURE 20 65 MOTOR TEMPERAT. 21 66 BATTERY LOW 22 3 https://truckmanualshub.com/ Code Name (Main Controller) Page 72 SENSOR COILS KO 23 73 THERMIC SENS KO 24 74 DRIVER SHORTED 25 75 CONTACTOR DRIVER 26 76 COIL SHORTED 27 78 VACC NOT OK 30 79 INCORRECT START 31 80 FORW + BACK 35 4 https://truckmanualshub.com/ Code Name (Main Controller) Page 91 INPUT ERROR #2 38 92 INPUT ERROR #1 40 93 ERROR IV 41 ERROR IW 42 ERROR LUW 43 ERROR LVW 44 ERROR HUV 45 ERROR HVW 46 94 CURRENT GAIN 47 96 ANALOG INPUT 48 97 OVERLOAD 49 99 CHECK UP NEEDED 50 WRONG ZERO 54 STOP TOP 55 LIFT LOW ACTIVE LIFT + LOWER Appendix A: Check Wires and Cables detail -------------------------- Page 61 5 https://truckmanualshub.com/ Main Controller 6 https://truckmanualshub.com/ ALARM #8 on NODE #2 WATCH DOG WATCH DOG 8 Check the 3…
