J1 Troubleshooting Code Name (Main Controller) Page Name (eps Controller) Page 6 SERIAL ERR#1 66 13 EEPROM KO 10 EEPROM KO 67 16 LOGIC FAILURE #4 68 17 LOGIC FAILURE #3 15 LOGIC FAILURE #3 69 18 LOGIC FAILURE #2 16 LOGIC FAILURE #2 70 19 LOGIC FAILURE #1 17 LOGIC FAILURE #1 71

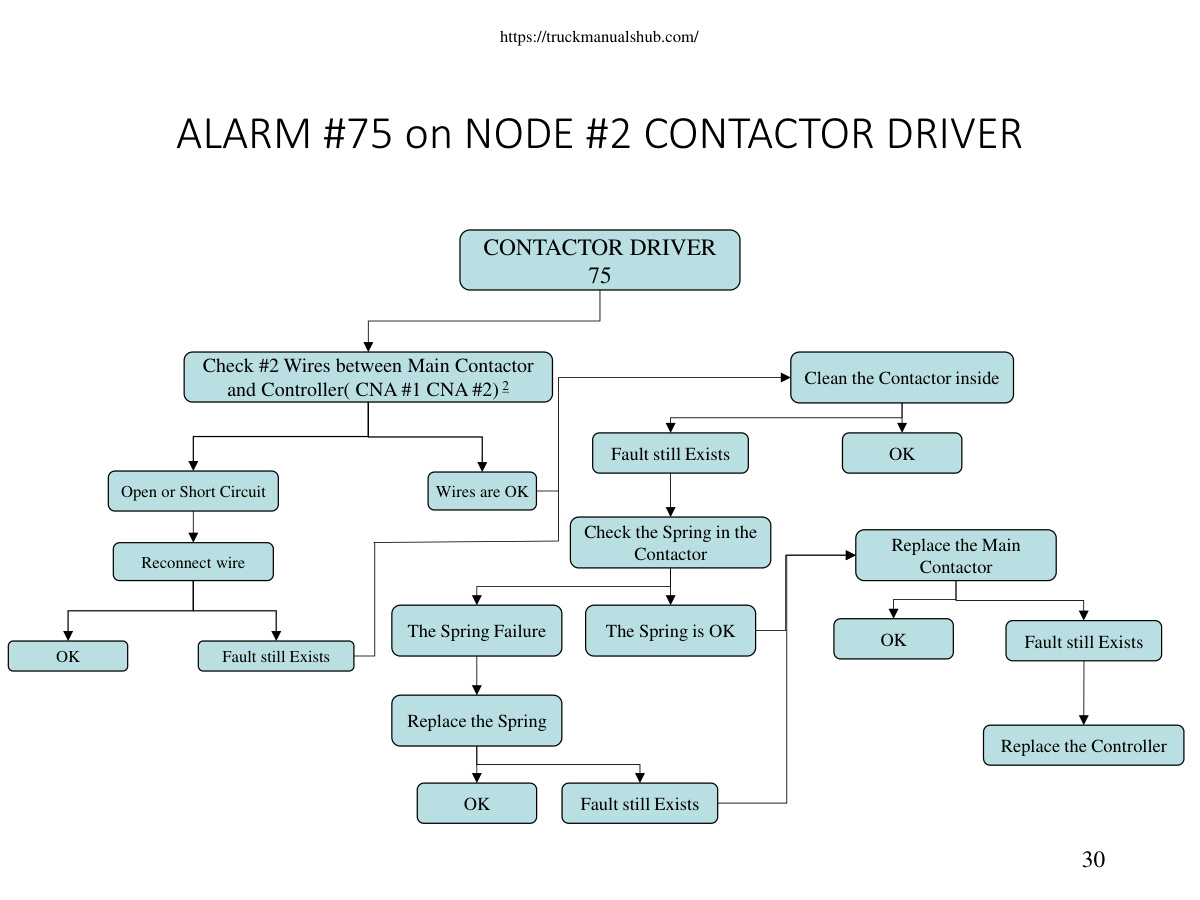

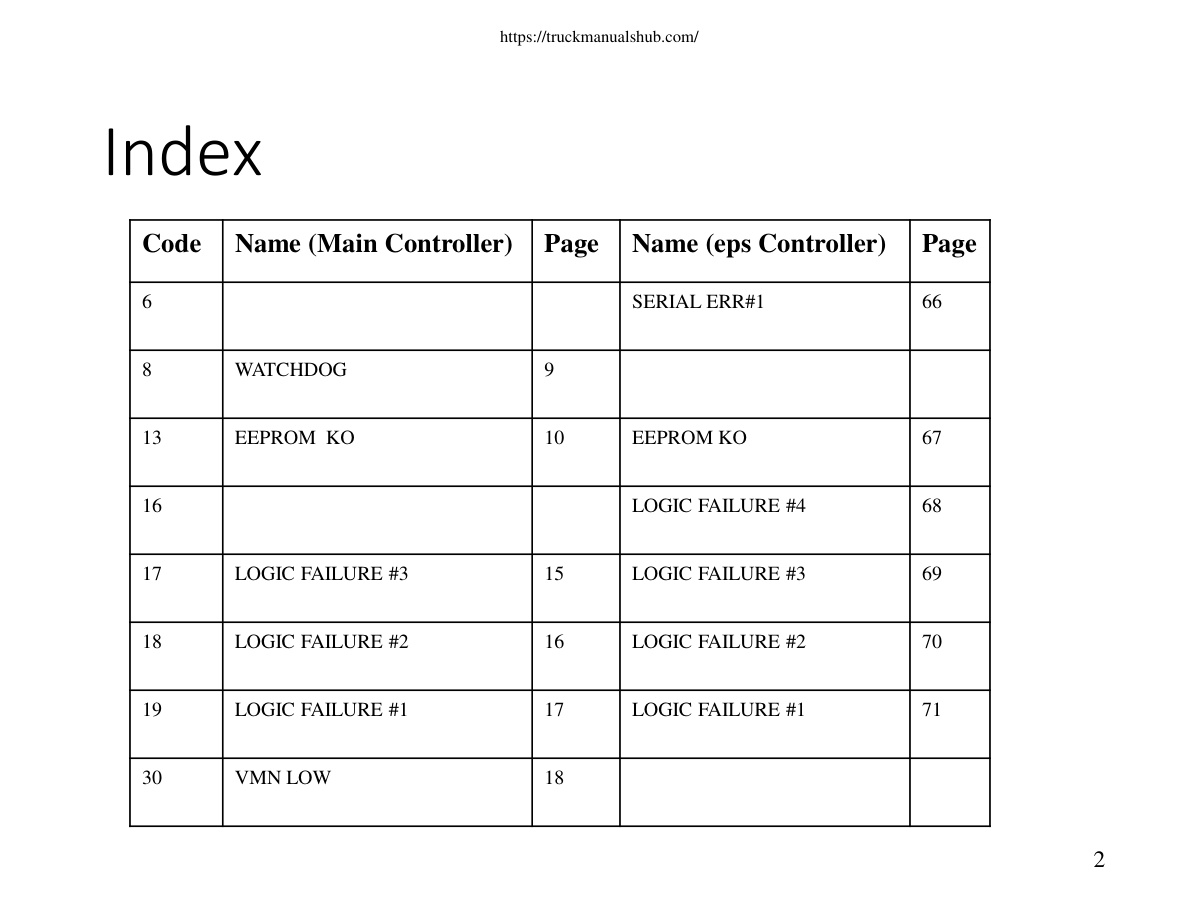

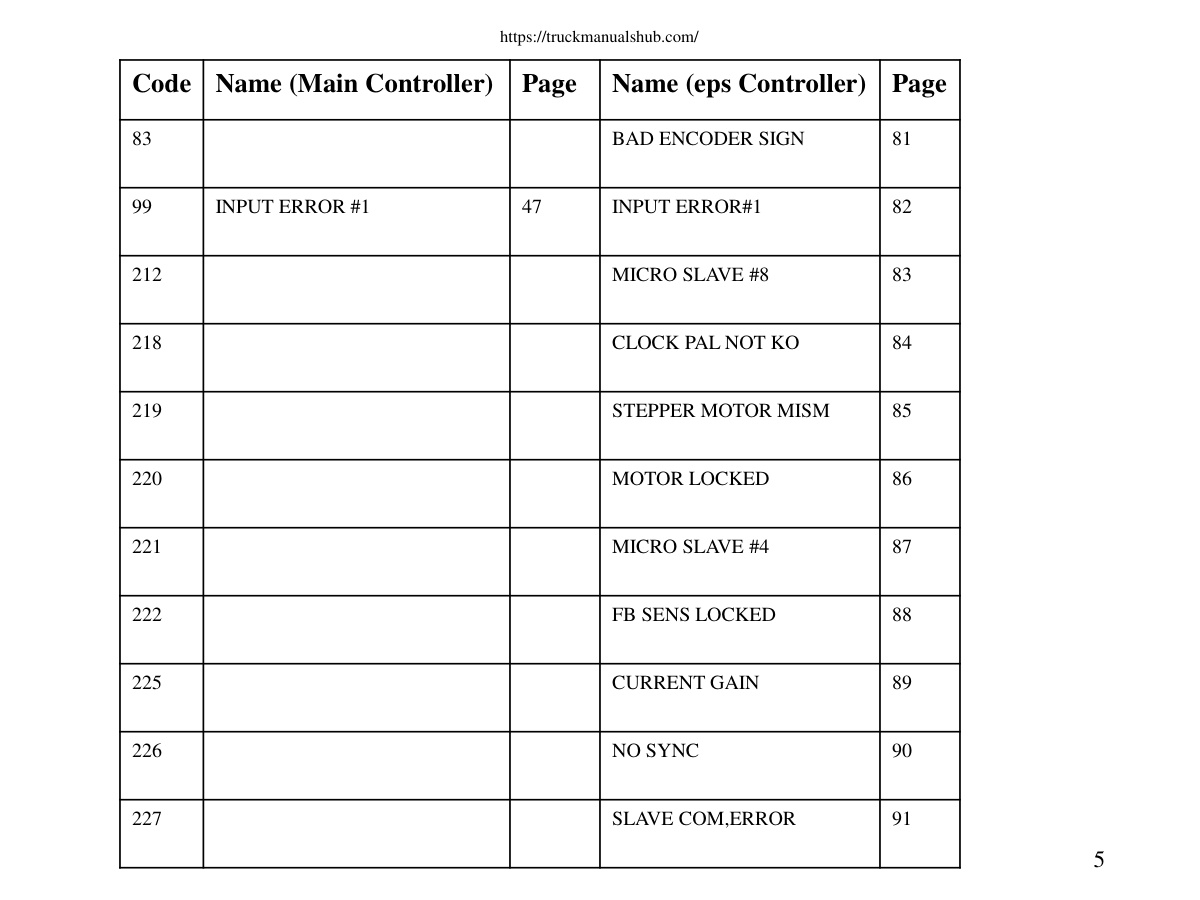

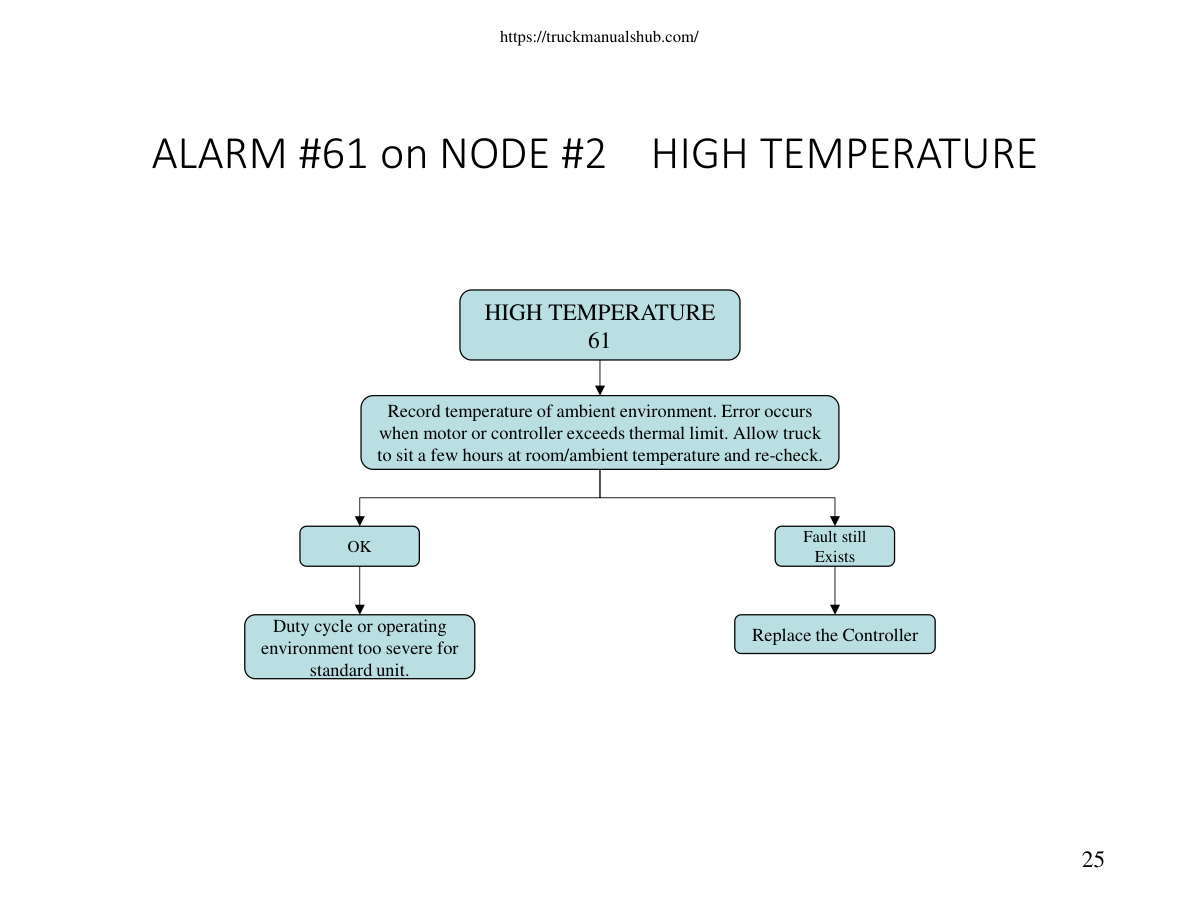

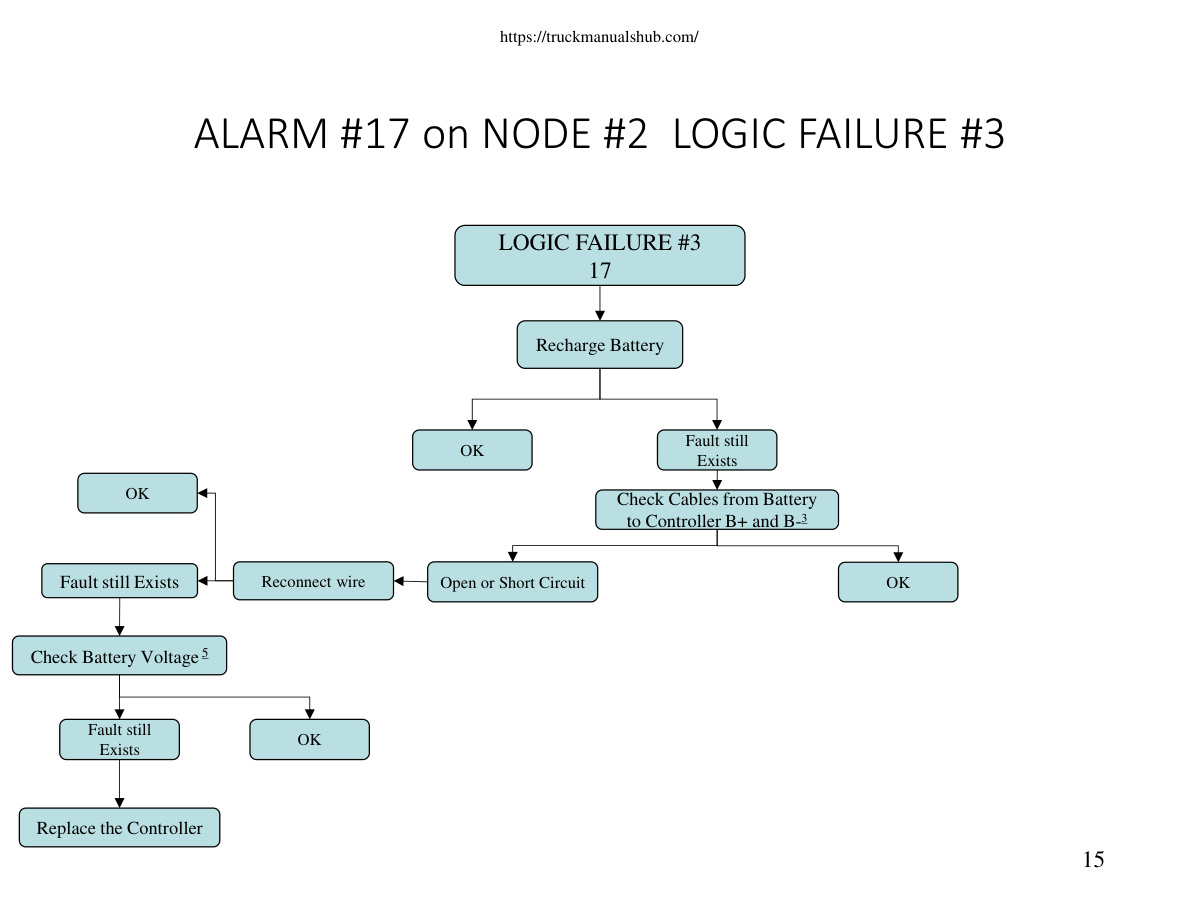

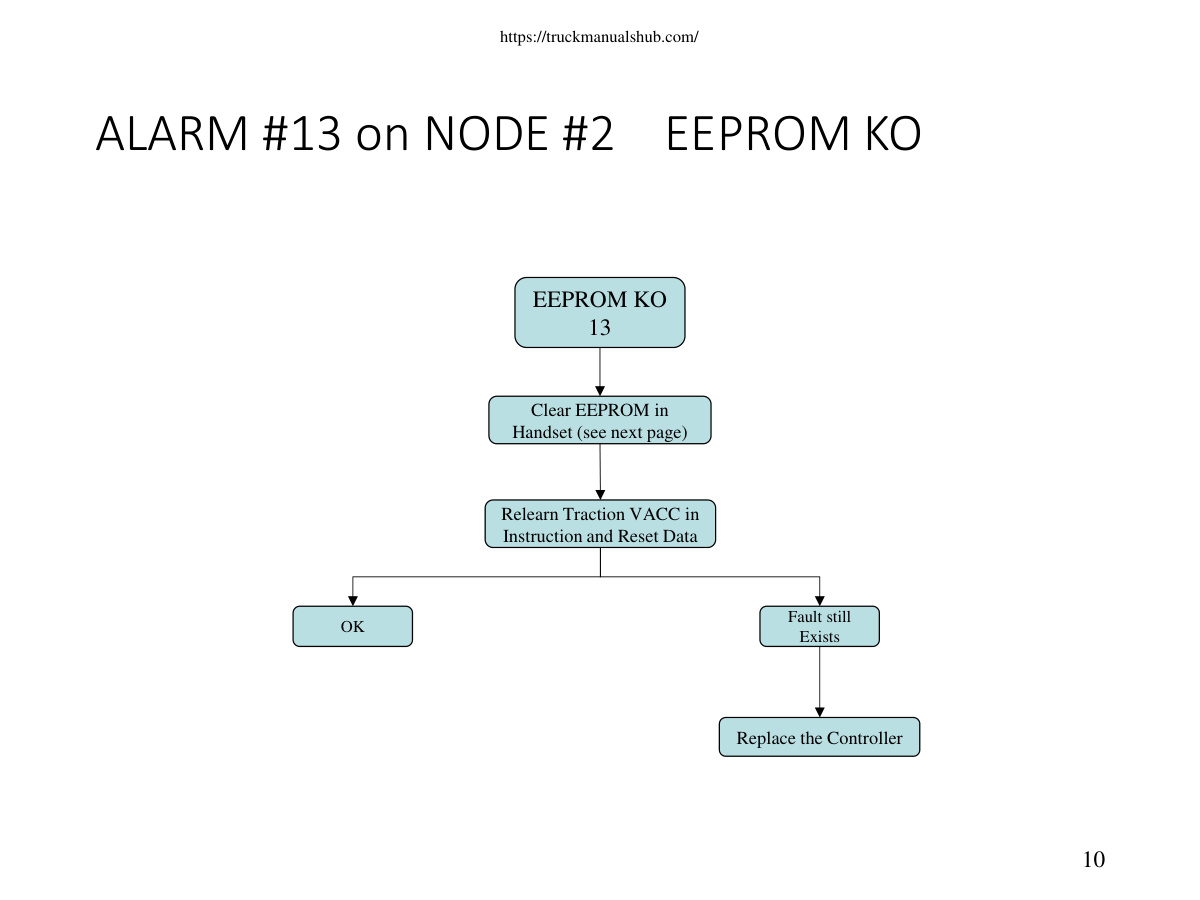

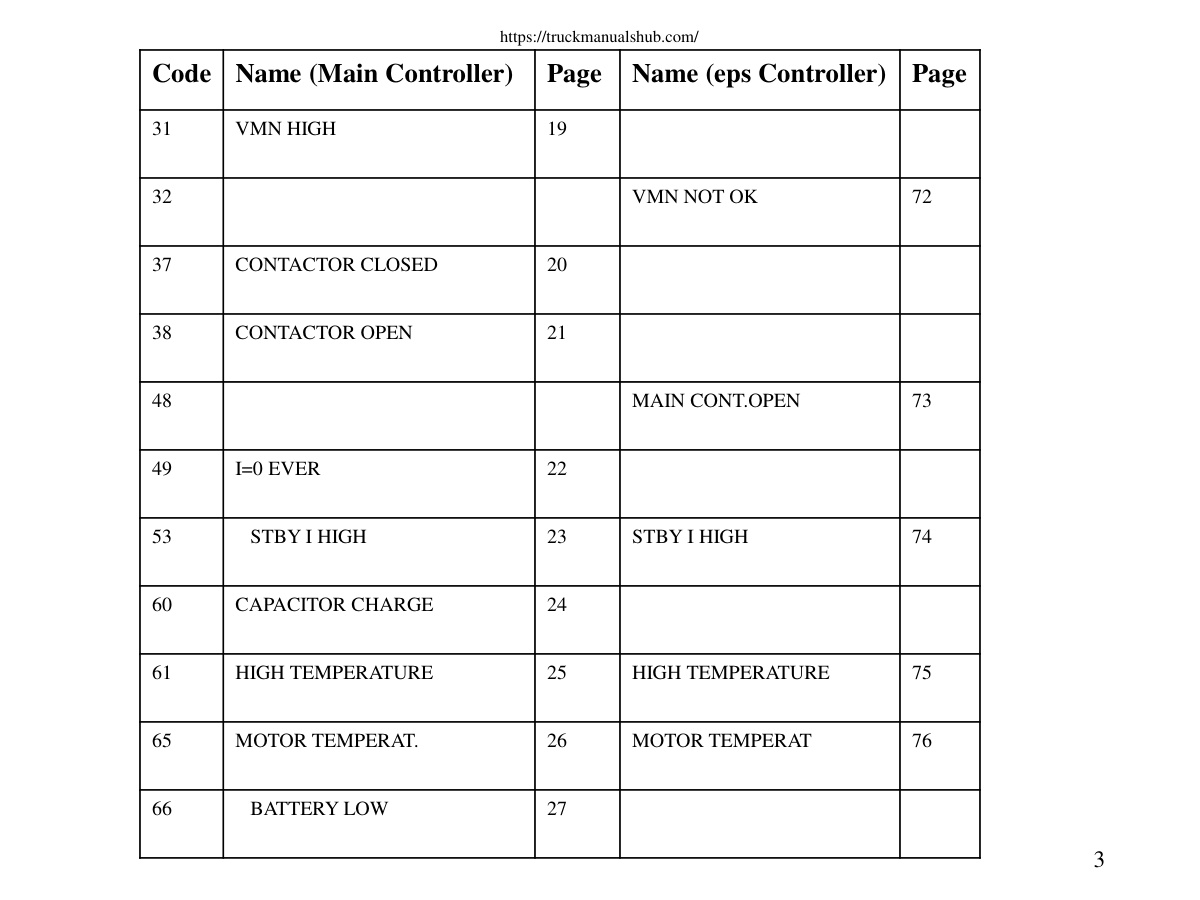

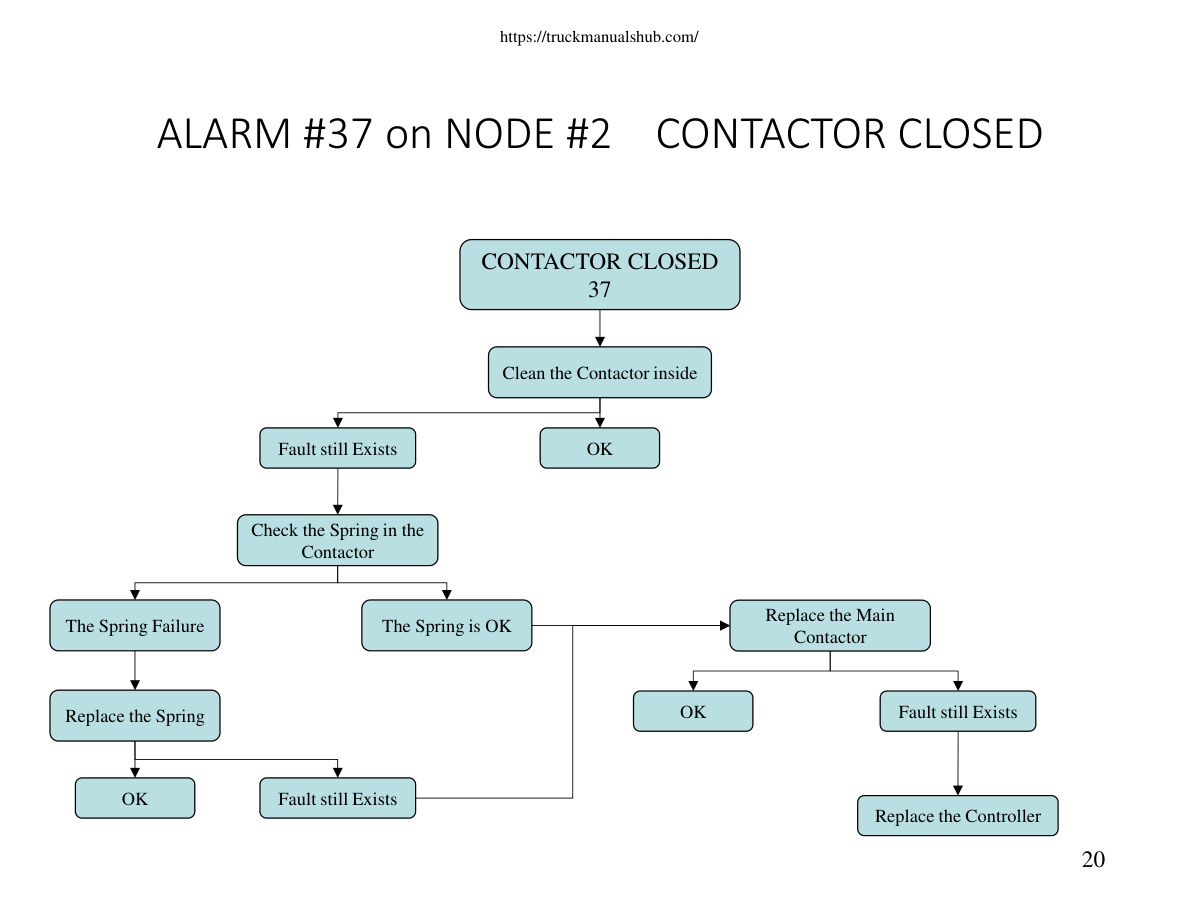

https://truckmanualshub.com/ J1 Troubleshooting 1 https://truckmanualshub.com/ Index Code Name (Main Controller) Page Name (eps Controller) Page 6 SERIAL ERR#1 66 8 WATCHDOG 9 13 EEPROM KO 10 EEPROM KO 67 16 LOGIC FAILURE #4 68 17 LOGIC FAILURE #3 15 LOGIC FAILURE #3 69 18 LOGIC FAILURE #2 16 LOGIC FAILURE #2 70 19 LOGIC FAILURE #1 17 LOGIC FAILURE #1 71 30 VMN LOW 18 2 https://truckmanualshub.com/ Code Name (Main Controller) Page Name (eps Controller) Page 31 VMN HIGH 19 32 VMN NOT OK 72 37 CONTACTOR CLOSED 20 38 CONTACTOR OPEN 21 48 MAIN CONT.OPEN 73 49 I=0 EVER 22 53 STBY I HIGH 23 STBY I HIGH 74 60 CAPACITOR CHARGE 24 61 HIGH TEMPERATURE 25 HIGH TEMPERATURE 75 65 MOTOR TEMPERAT. 26 MOTOR TEMPERAT 76 66 BATTERY LOW 27 3 https://truckmanualshub.com/ Code Name (Main Controller) Page Name (eps Controller) Page 69 CURRENT SENS. KO 28 70 HIGH CURRENT 77 71 POWER FAILURE #3 78 72 POWER FAILURE #2 79 73 POWER FAILURE #1 80 74 DRIVER SHORTED 29 75 CONTACTOR DRIVER 30 76 COIL SHORTED 31 78 VACC NOT OK 36 79 INCORRECT START 37 80 FORW + BACK 42 4 https://truckmanualshub.com/ Code Name (Main Controller) Page Name (eps Controller) Page 83 BAD ENCODER SIGN 81 99 INPUT ERROR #1 47 INPUT…
