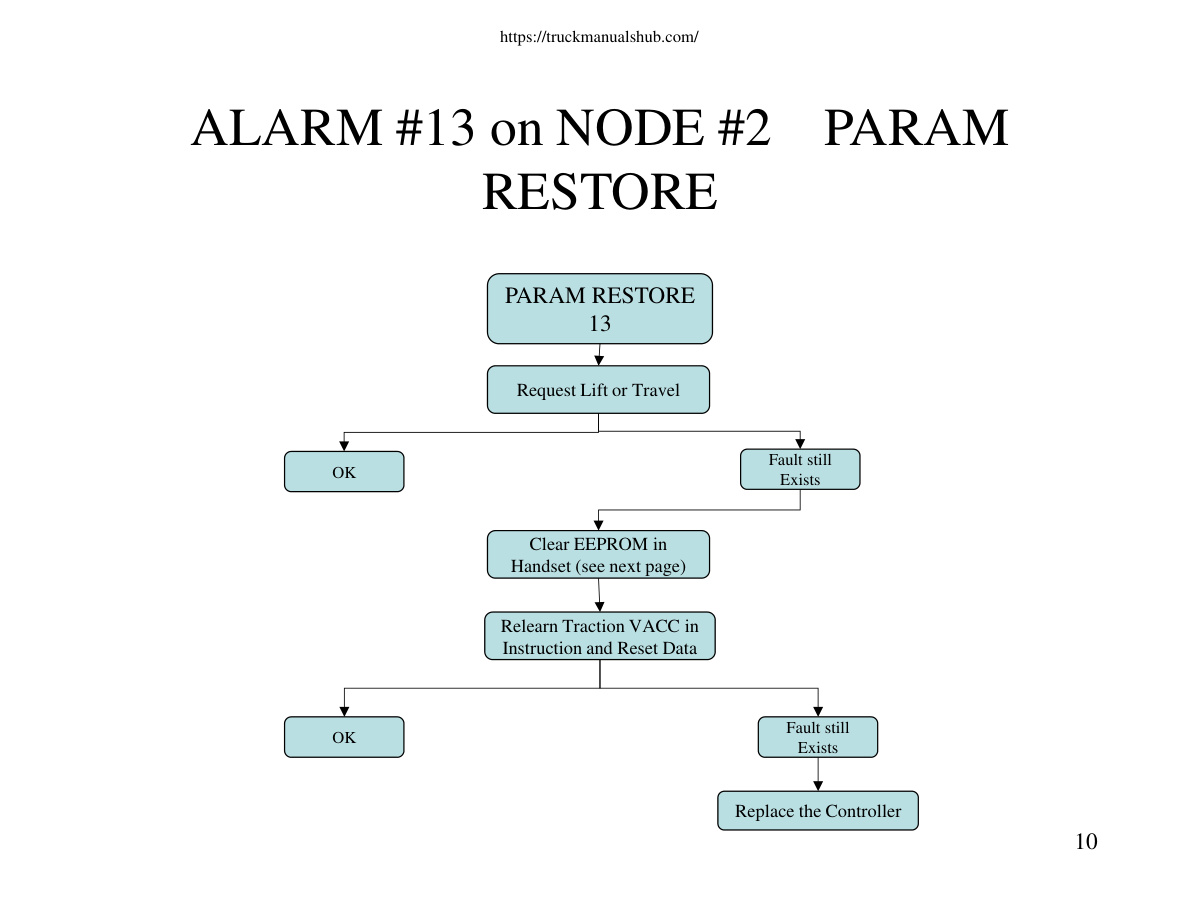

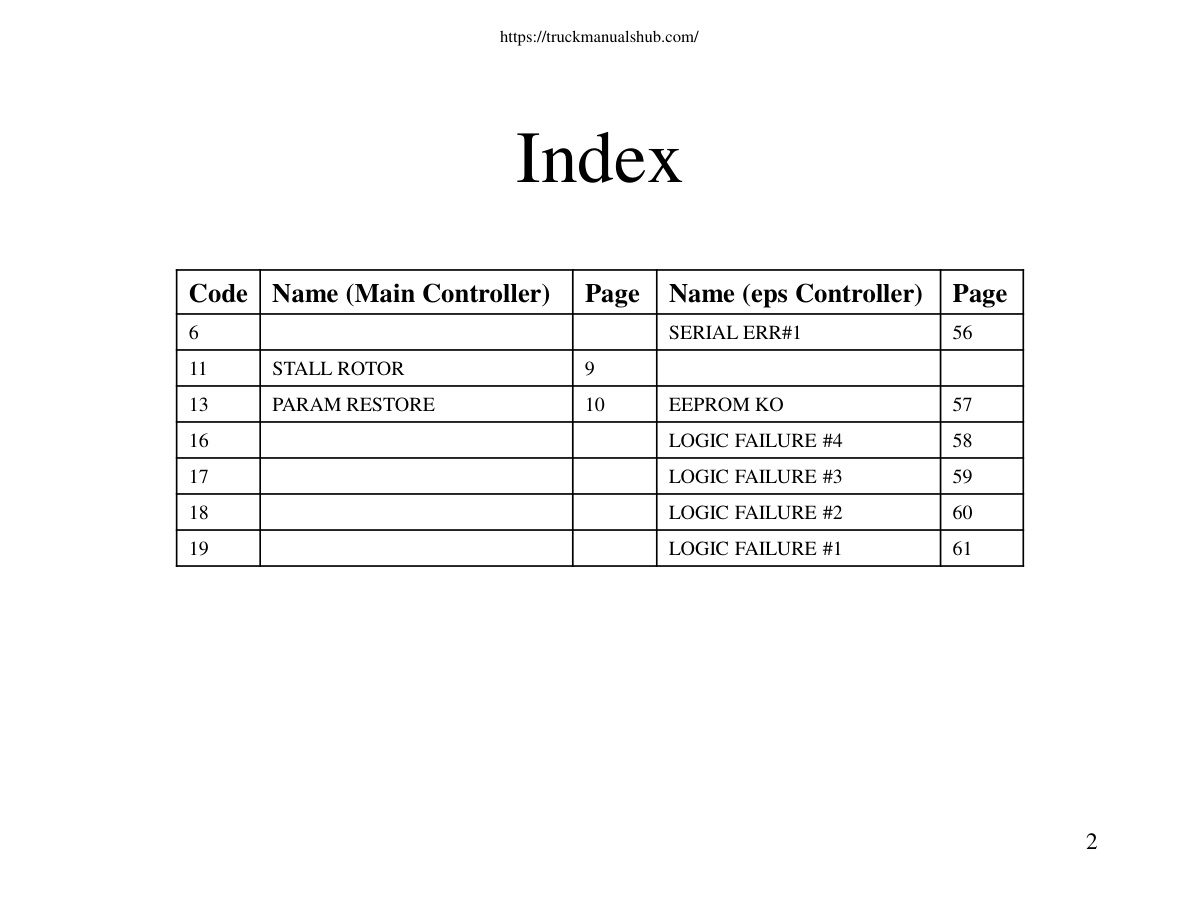

J2 Troubleshooting Code Name (Main Controller) Page Name (eps Controller) Page 6 SERIAL ERR#1 56 11 STALL ROTOR 9 13 PARAM RESTORE 10 EEPROM KO 57 16 LOGIC FAILURE #4 58 17 LOGIC FAILURE #3 59 18 LOGIC FAILURE #2 60 19 LOGIC FAILURE #1 61

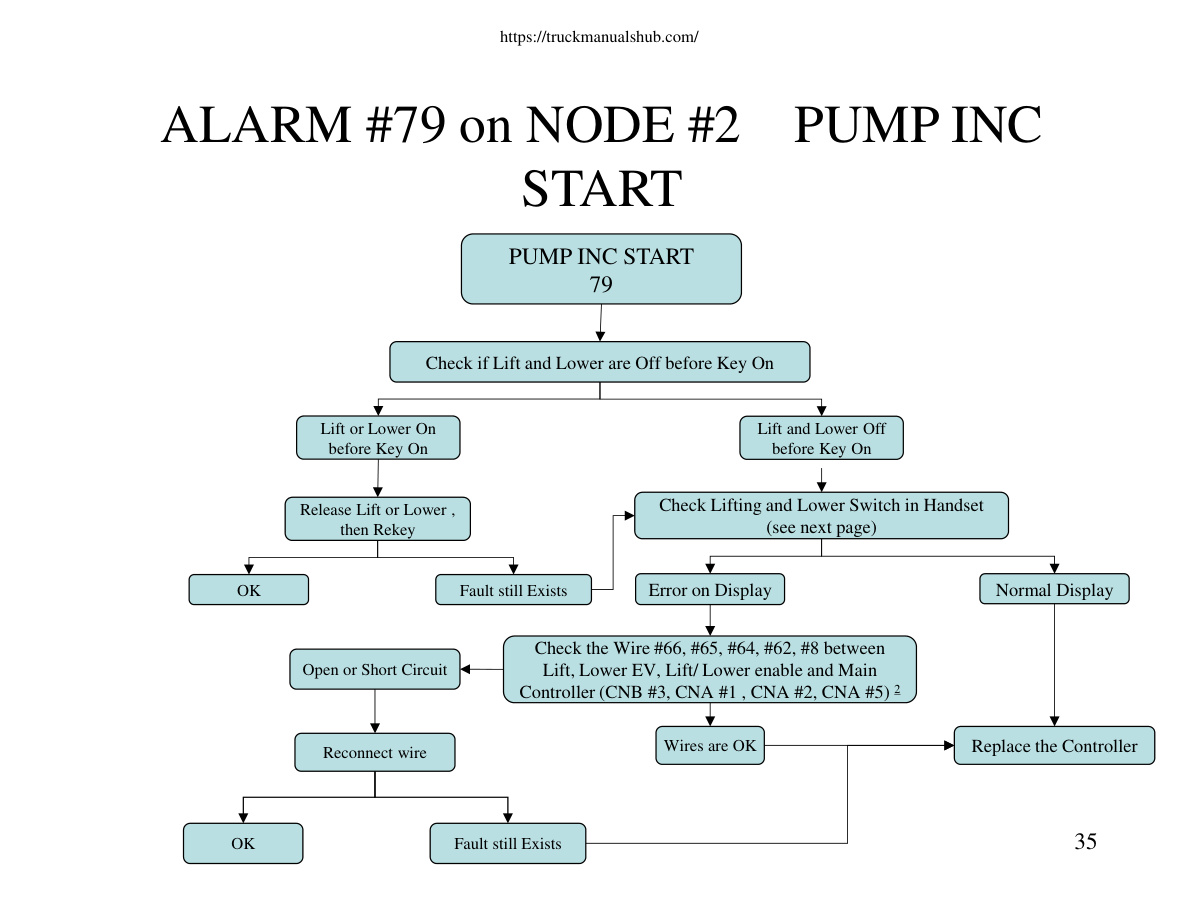

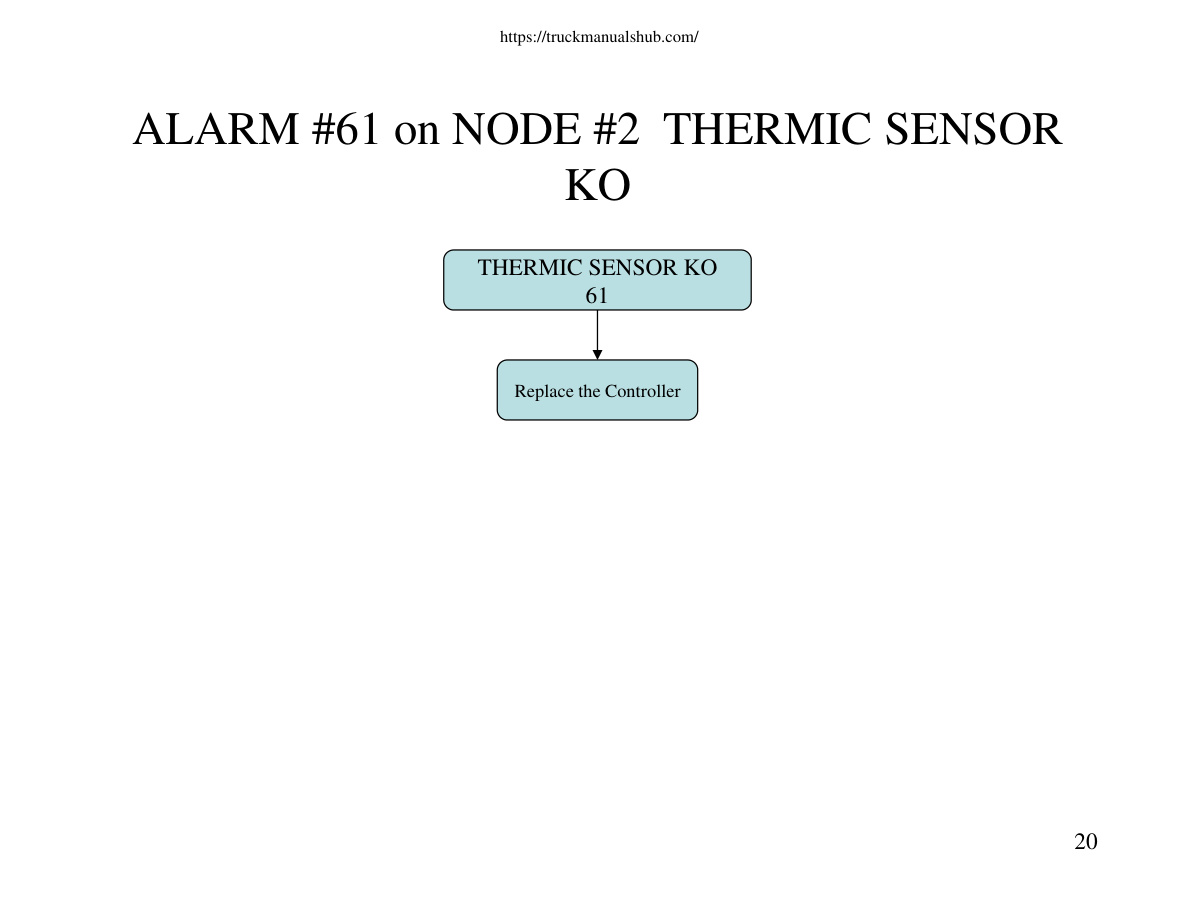

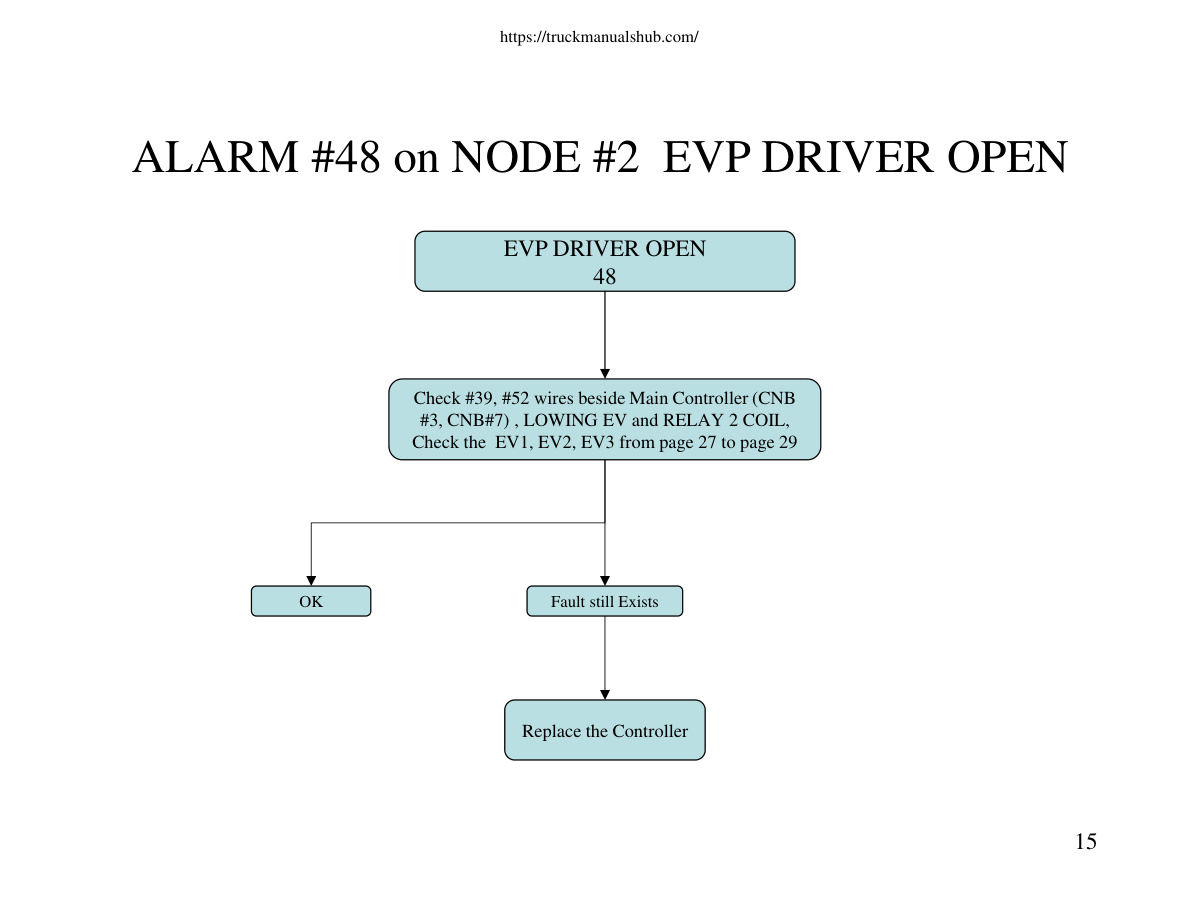

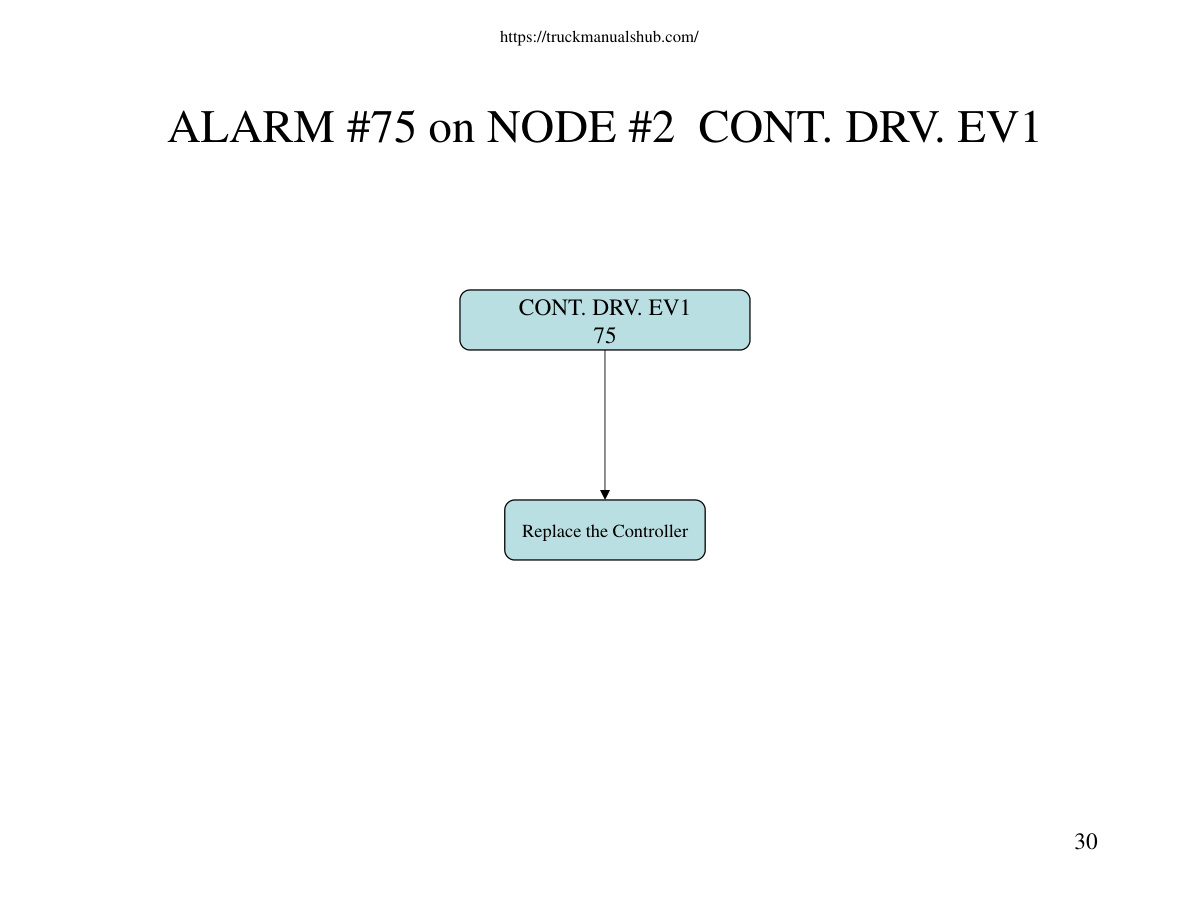

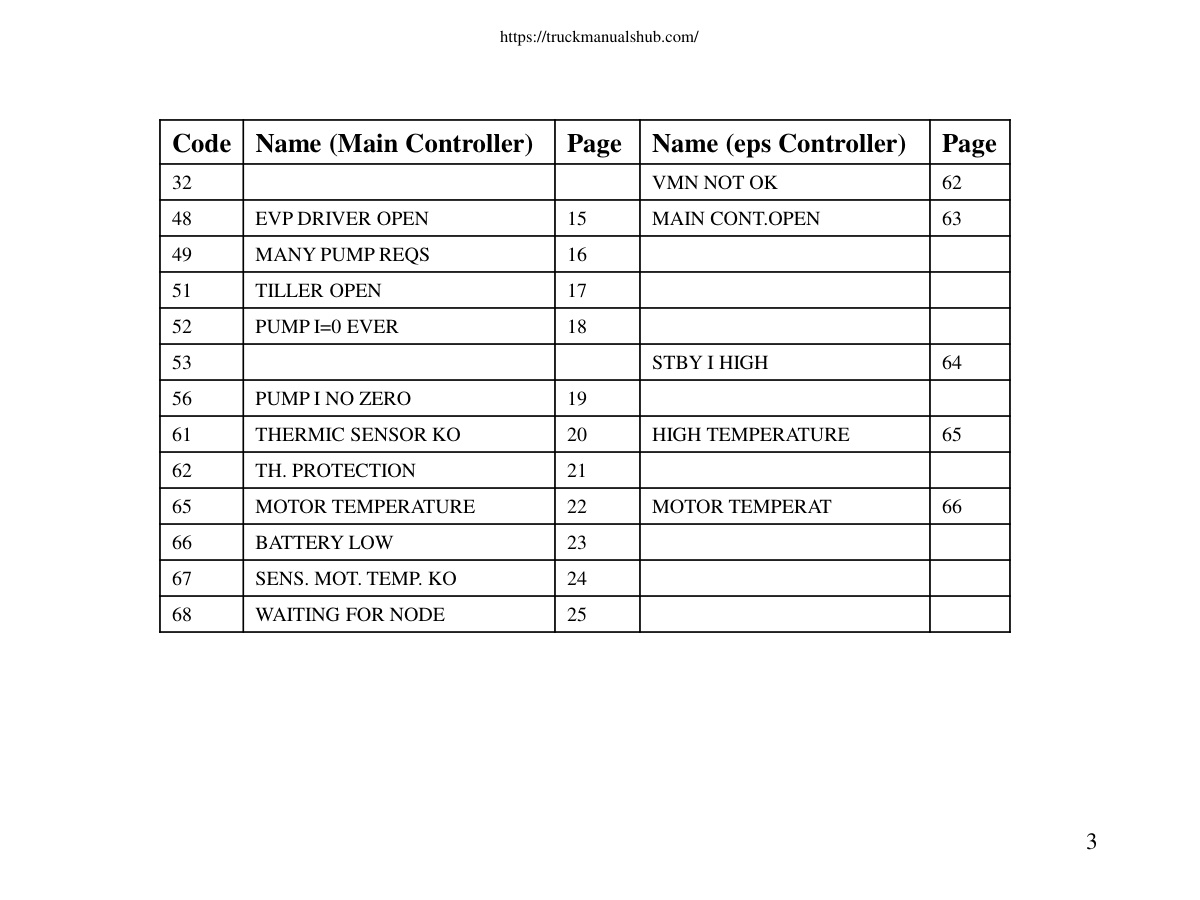

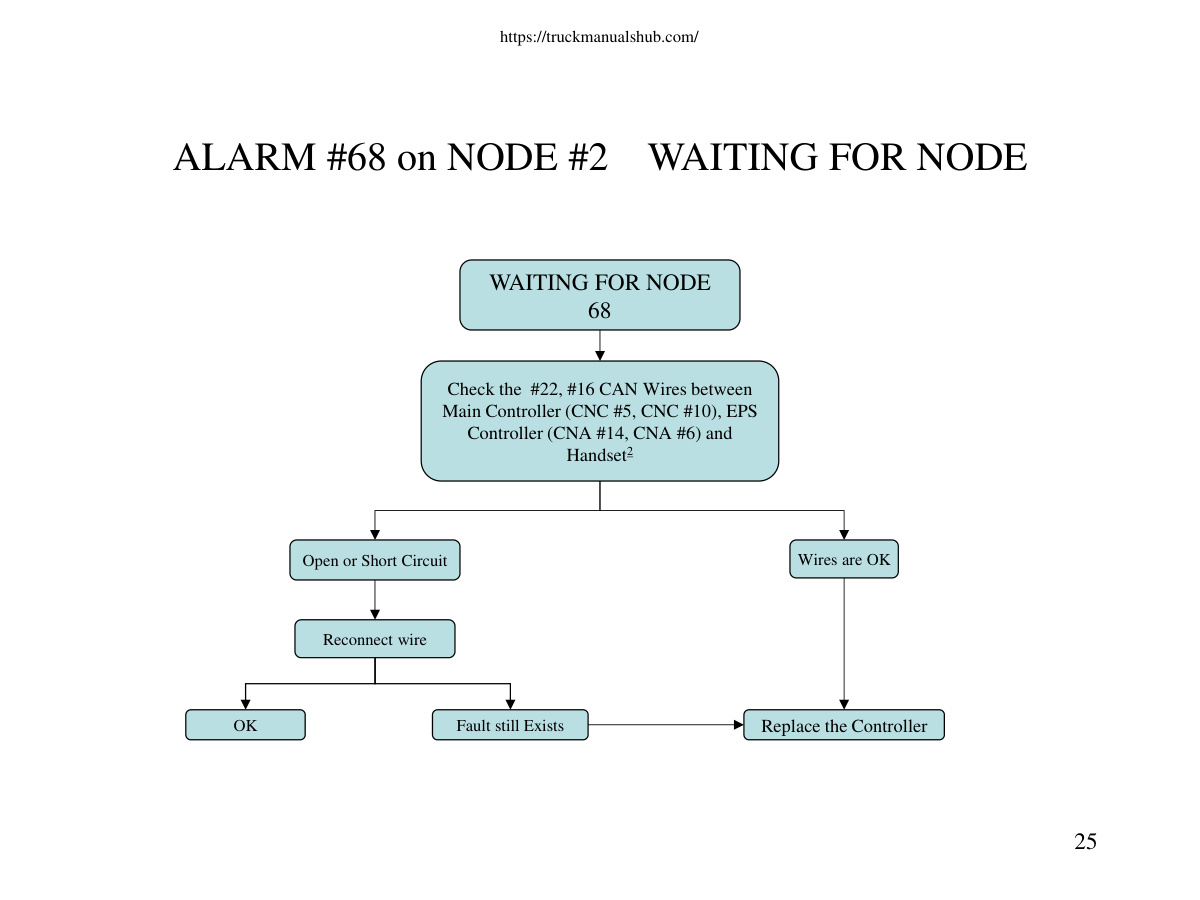

https://truckmanualshub.com/ J2 Troubleshooting 1 https://truckmanualshub.com/ Index Code Name (Main Controller) Page Name (eps Controller) Page 6 SERIAL ERR#1 56 11 STALL ROTOR 9 13 PARAM RESTORE 10 EEPROM KO 57 16 LOGIC FAILURE #4 58 17 LOGIC FAILURE #3 59 18 LOGIC FAILURE #2 60 19 LOGIC FAILURE #1 61 2 https://truckmanualshub.com/ Code Name (Main Controller) Page Name (eps Controller) Page 32 VMN NOT OK 62 48 EVP DRIVER OPEN 15 MAIN CONT.OPEN 63 49 MANY PUMP REQS 16 51 TILLER OPEN 17 52 PUMP I=0 EVER 18 53 STBY I HIGH 64 56 PUMP I NO ZERO 19 61 THERMIC SENSOR KO 20 HIGH TEMPERATURE 65 62 TH. PROTECTION 21 65 MOTOR TEMPERATURE 22 MOTOR TEMPERAT 66 66 BATTERY LOW 23 67 SENS. MOT. TEMP. KO 24 68 WAITING FOR NODE 25 3 https://truckmanualshub.com/ Code Name (Main Controller) Page Name (eps Controller) Page 70 HIGH CURRENT 67 71 EEPROM KO 26 POWER FAILURE #3 68 72 POWER FAILURE #2 69 73 POWER FAILURE #1 70 74 EV1 DRIVER SHORTED 27 EV2 DRIVER SHORTED 28 EV3 DRIVER SHORTED 29 75 CONTACT. DRV. EV1 30 CONTACT. DRV. EV2 31 CONTACT. DRV. EV3 32 76 VALVE COIL SHORTED 33 78 VACC NOT OK 34 79 PUMP INC START 35 INCORRECT START 40 80 FORW + BACK 45 4 https://truckmanualshub.com/ Code Name (Main…
