PDCM

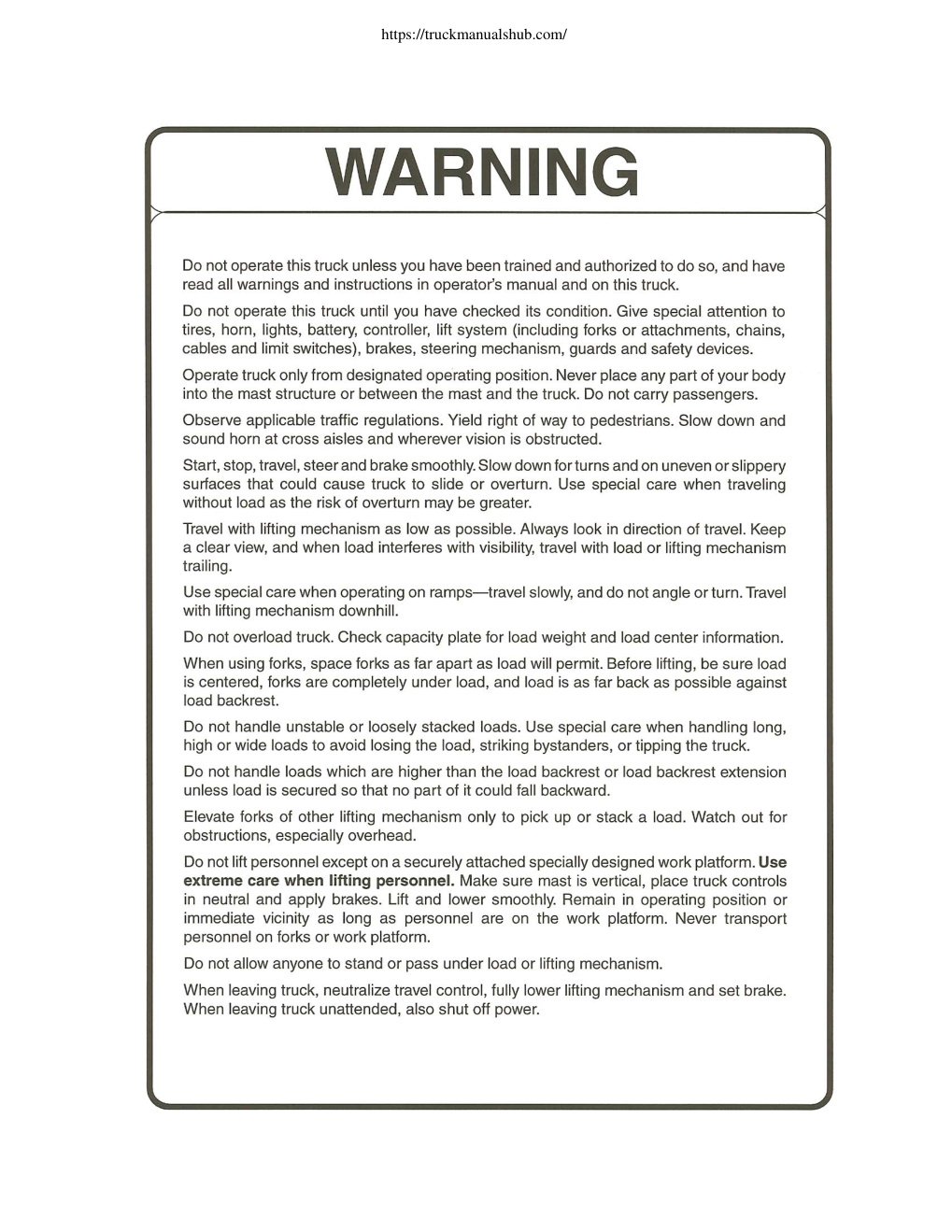

Manual Price $35.00 POWER DRIVE COUNTERBALANCED Serial Number 333032 and Higher Repair Parts List Big Joe Manufacturing Company • Des Plaines, IL 60018 MANUAL NO. 904160 Do not operate this truck unless you have been trained and authorized to do so, and have read all warnings and instructions in operator’s manual and on this truck. Do not operate this truck until you have checked its condition. Give special attention to tires, horn, lights, battery, controller, lift system (including forks or attachments, chains, cables and limit switches), brakes, steering mechanism, guards and safety devices. Operate truck only from designated operating position. Never place any part of your body into the mast structure or between the mast and the truck. Do not carry passengers. Observe applicable traffic regulations. Yield right of way to pedestrians. Slow down and sound horn at cross aisles and where

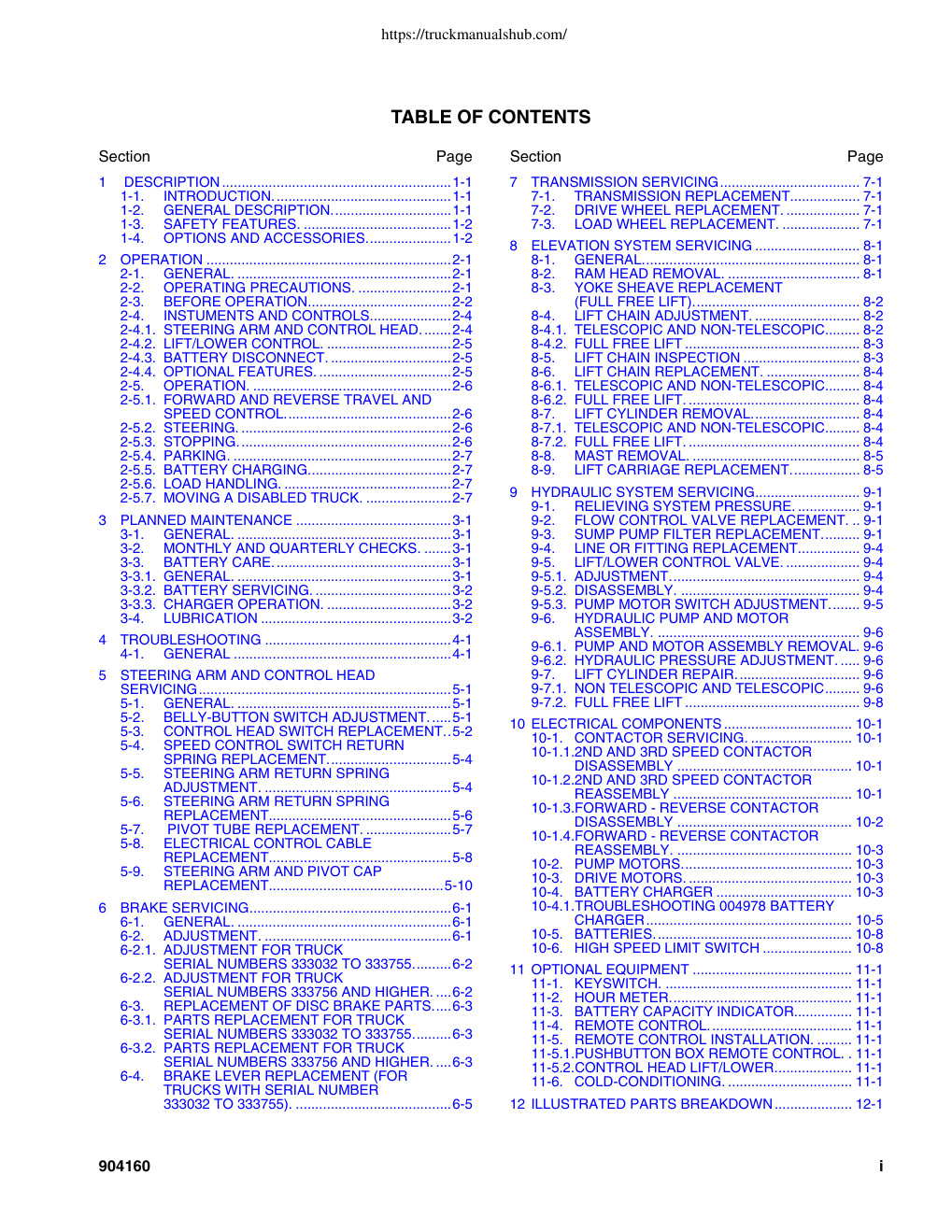

https://truckmanualshub.com/ Manual Price $35.00 PDCM SERIES POWER DRIVE COUNTERBALANCED LIFT TRUCK Serial Number 333032 and Higher Operation Maintenance Repair Parts List Big Joe Manufacturing Company • Des Plaines, IL 60018 MANUAL NO. 904160 REV B 7/11/06 https://truckmanualshub.com/ https://truckmanualshub.com/ TABLE OF CONTENTS Section Page Section Page 1 DESCRIPTION...........................................................1-1 7 TRANSMISSION SERVICING.................................... 7-1 1-1. INTRODUCTION..............................................1-1 7-1. TRANSMISSION REPLACEMENT.................. 7-1 1-2. GENERAL DESCRIPTION...............................1-1 7-2. DRIVE WHEEL REPLACEMENT. ................... 7-1 1-3. SAFETY FEATURES. ......................................1-2 7-3. LOAD WHEEL REPLACEMENT. .................... 7-1 1-4. OPTIONS AND ACCESSORIES......................1-2 8 ELEVATION SYSTEM SERVICING ........................... 8-1 2 OPERATION ...............................................................2-1 8-1. GENERAL........................................................ 8-1 2-1. GENERAL. .......................................................2-1 8-2. RAM…
