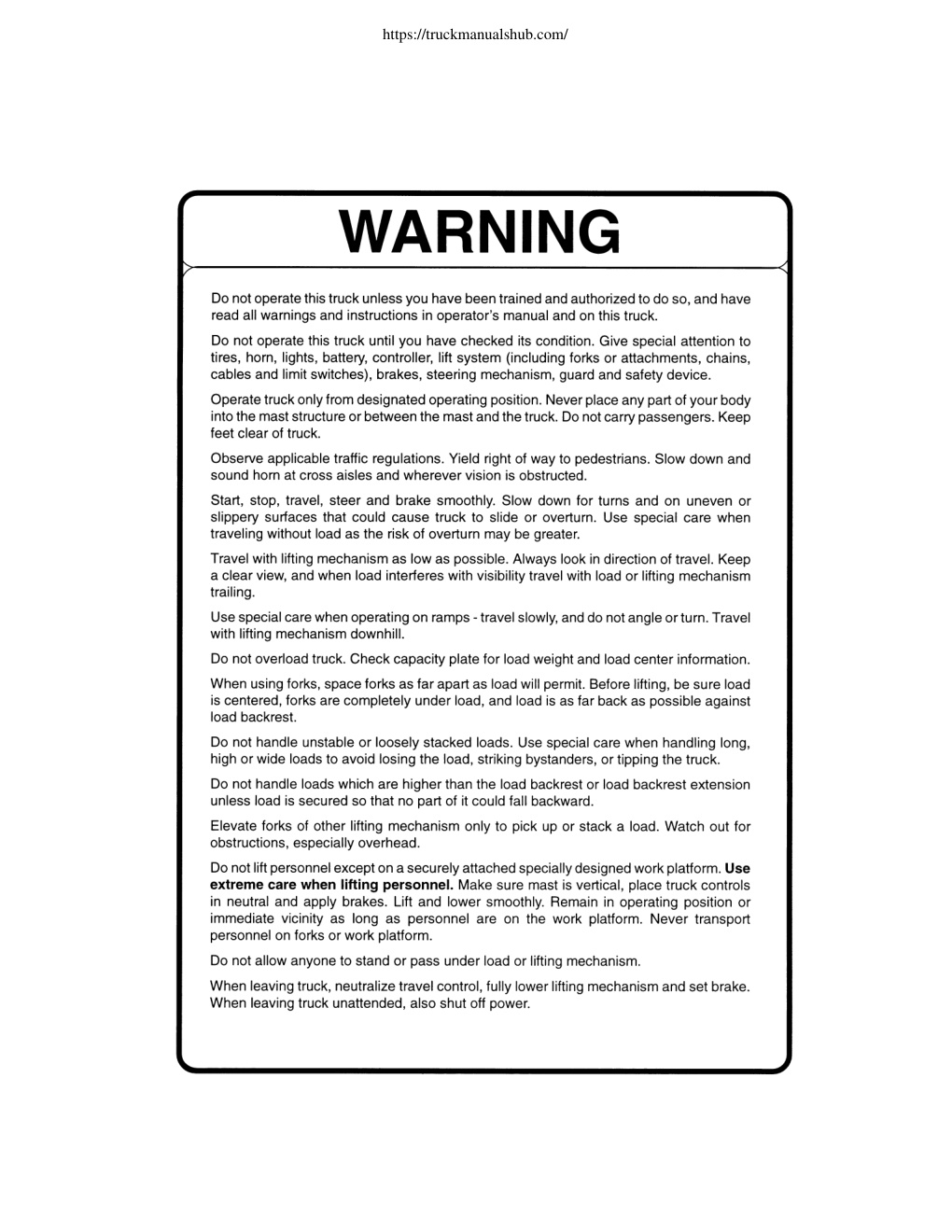

POWER DRIVE REACH Repair Parts List Big Lift LLC MANUAL NO. BL-PDSR 30-0319 - 03-07-2019 Do not operate this truck unless you have been trained and authorized to do so, and have read all warnings and instructions in operators manual and on this truck. Do not operate this truck until you have checked its condition. Give special attention to tires, horn, lights, battery, controller, lift system (including forks or attachments, chains, cables and limit switches), brakes, steering mechanism, guard and safety device. Operate truck only from designated operating position. Never place any part of your body into the mast structure or between the mast and the truck. Do not carry passengers. Keep feet clear of truck. Observe applicable traffic regulations. Yield right of way to pedestrians. Slow down and sound horn at cross aisles and wherever vision is obstructed. Start, stop, travel, steer and b

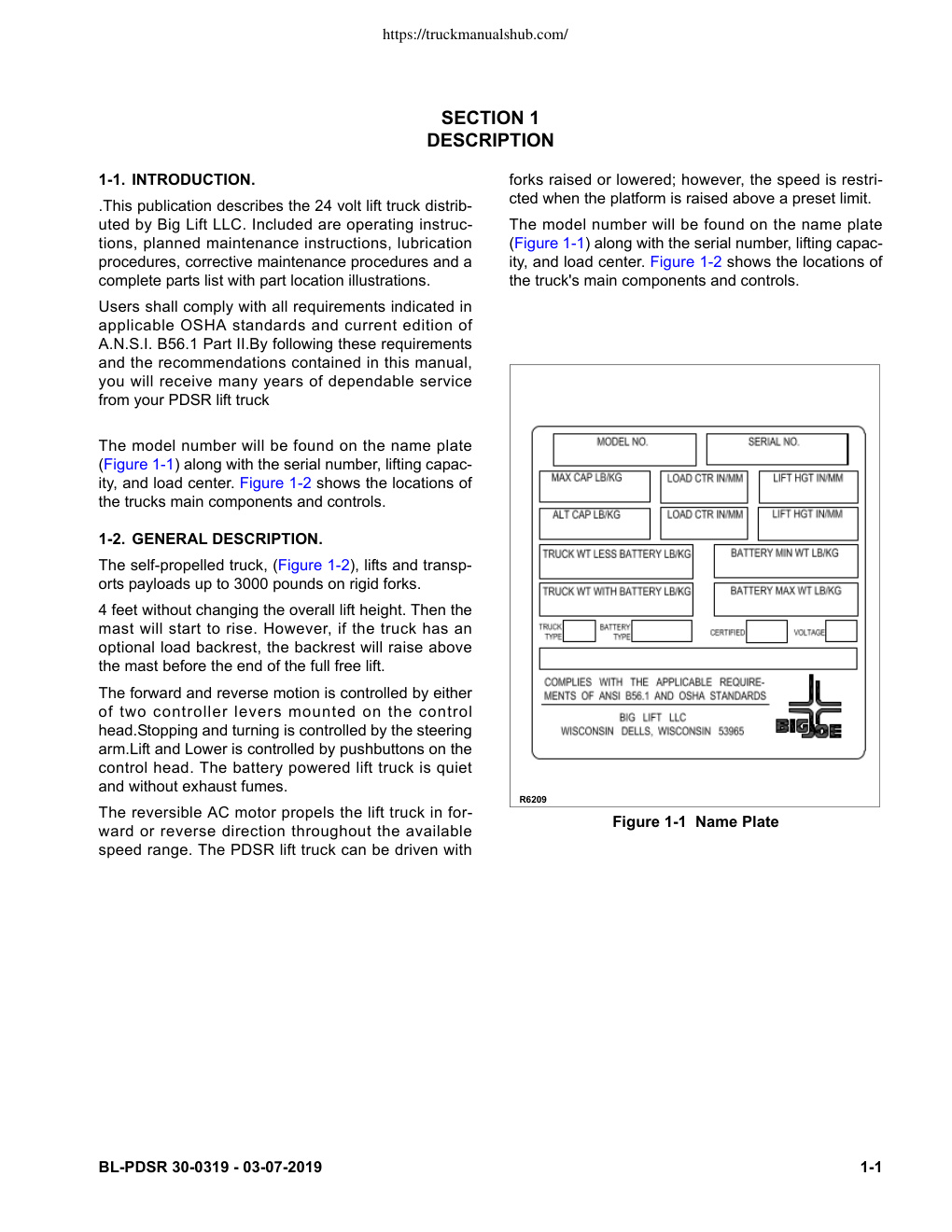

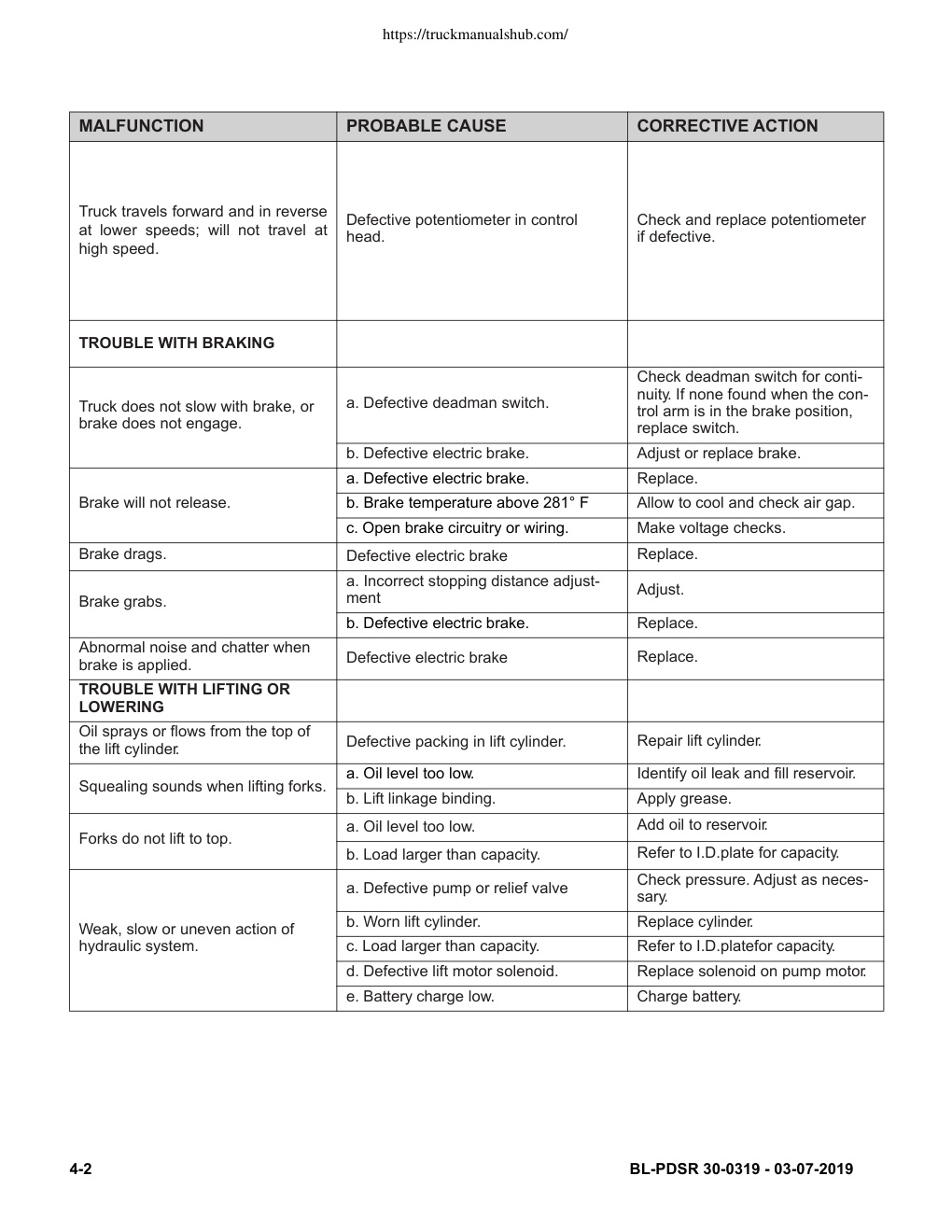

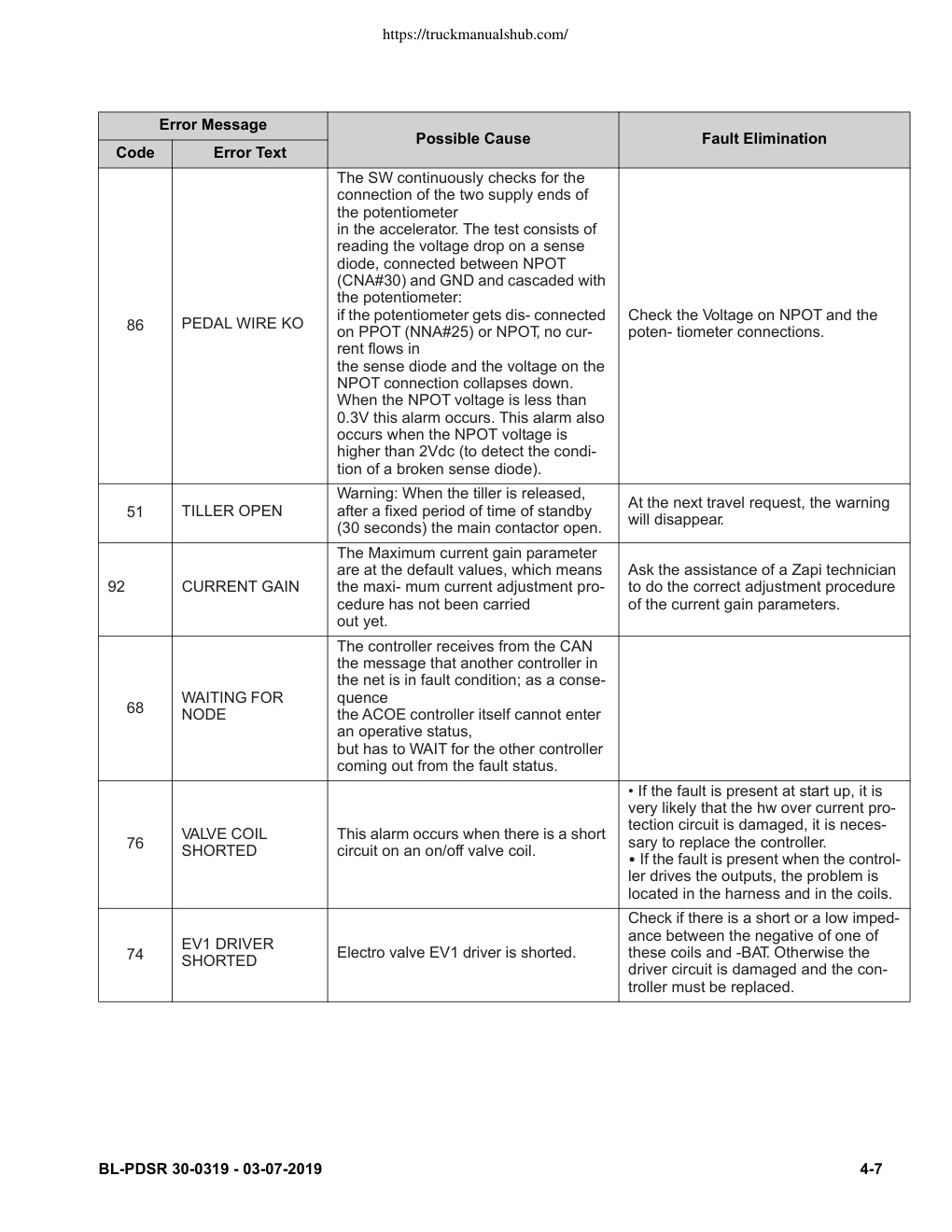

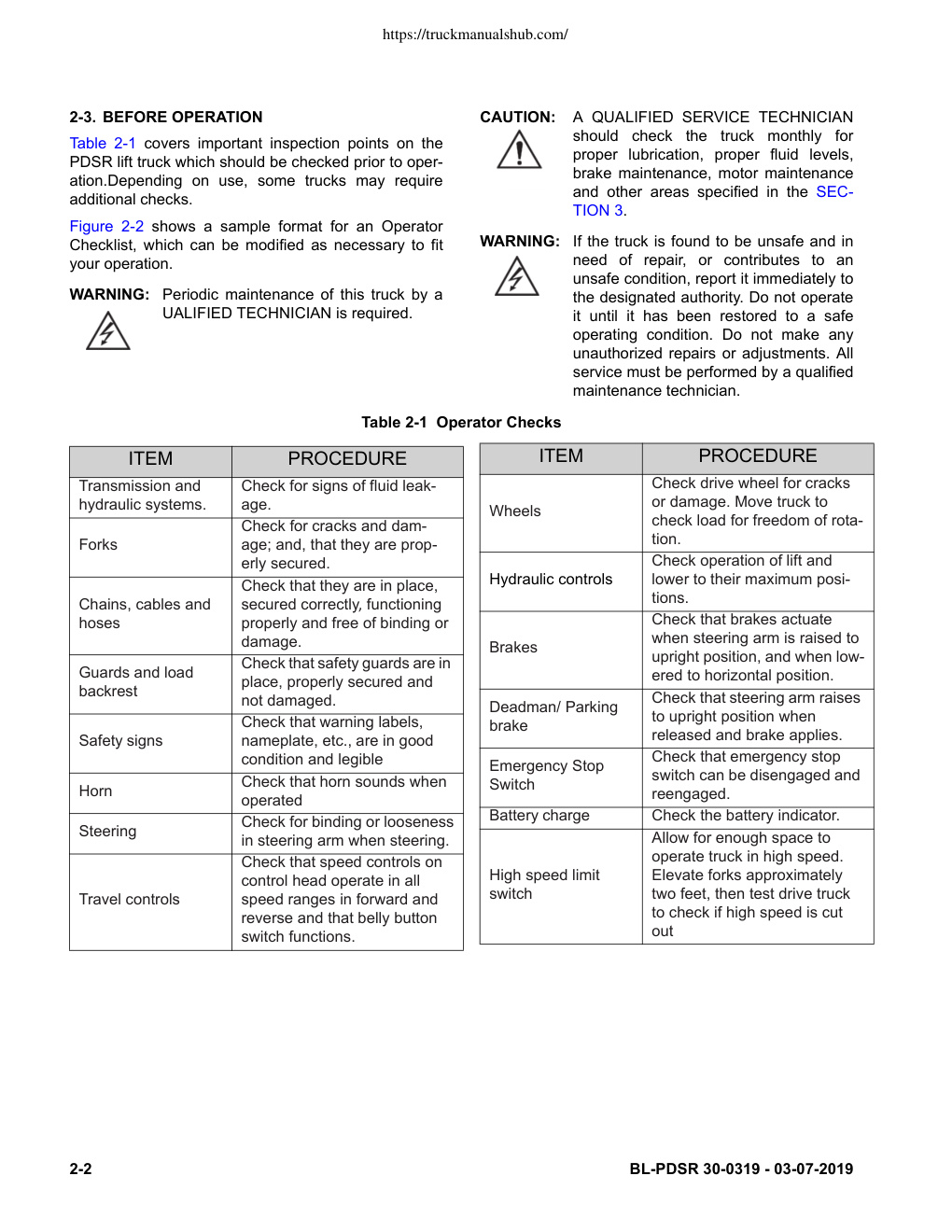

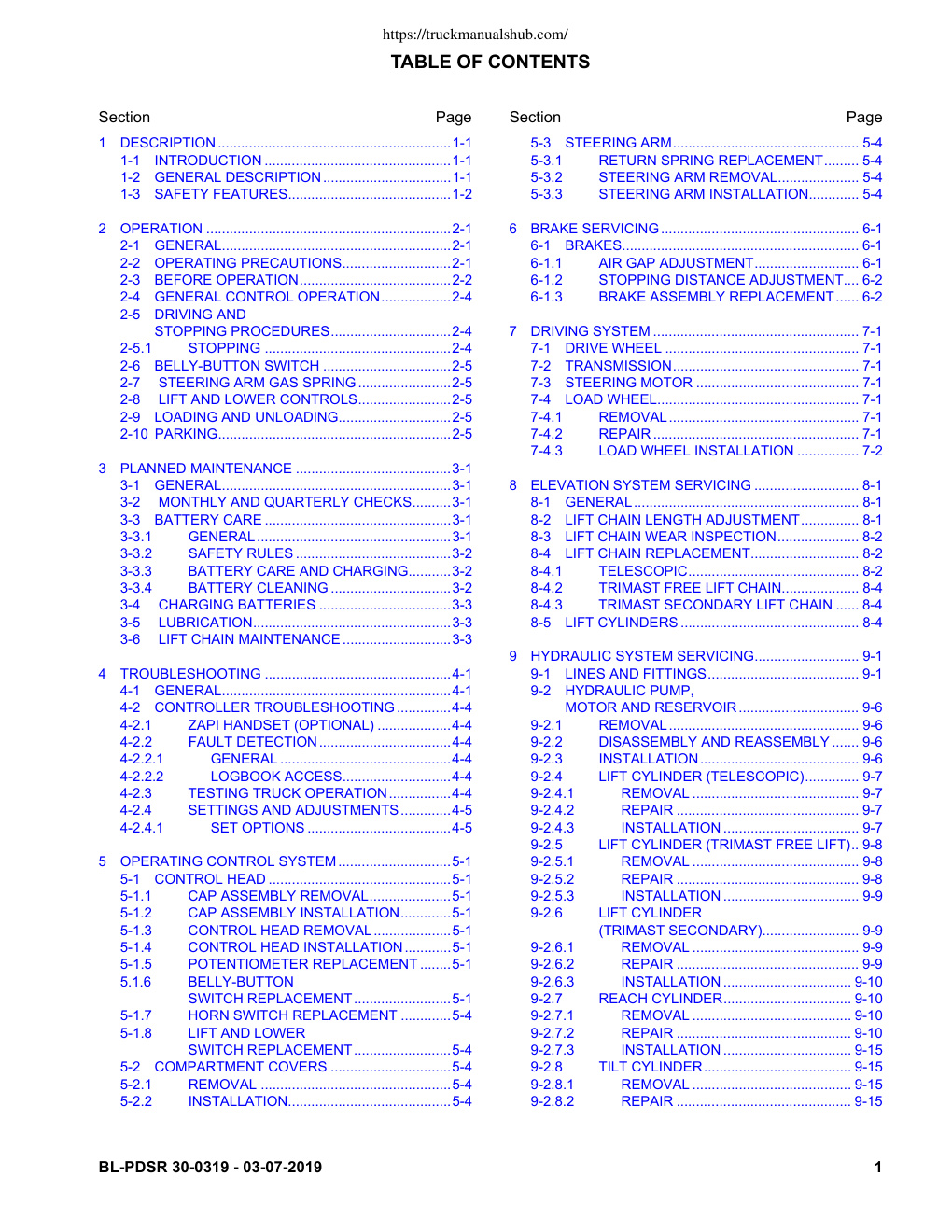

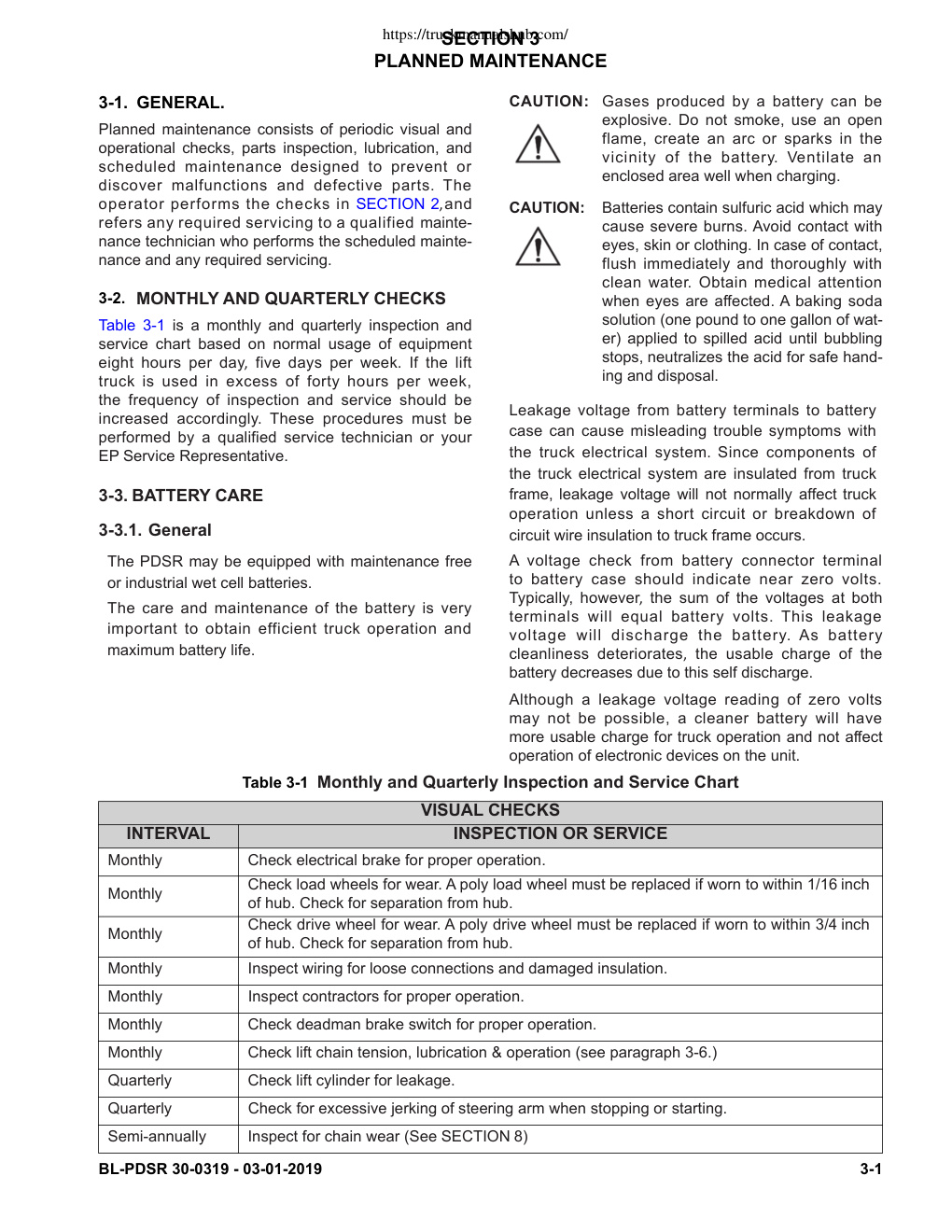

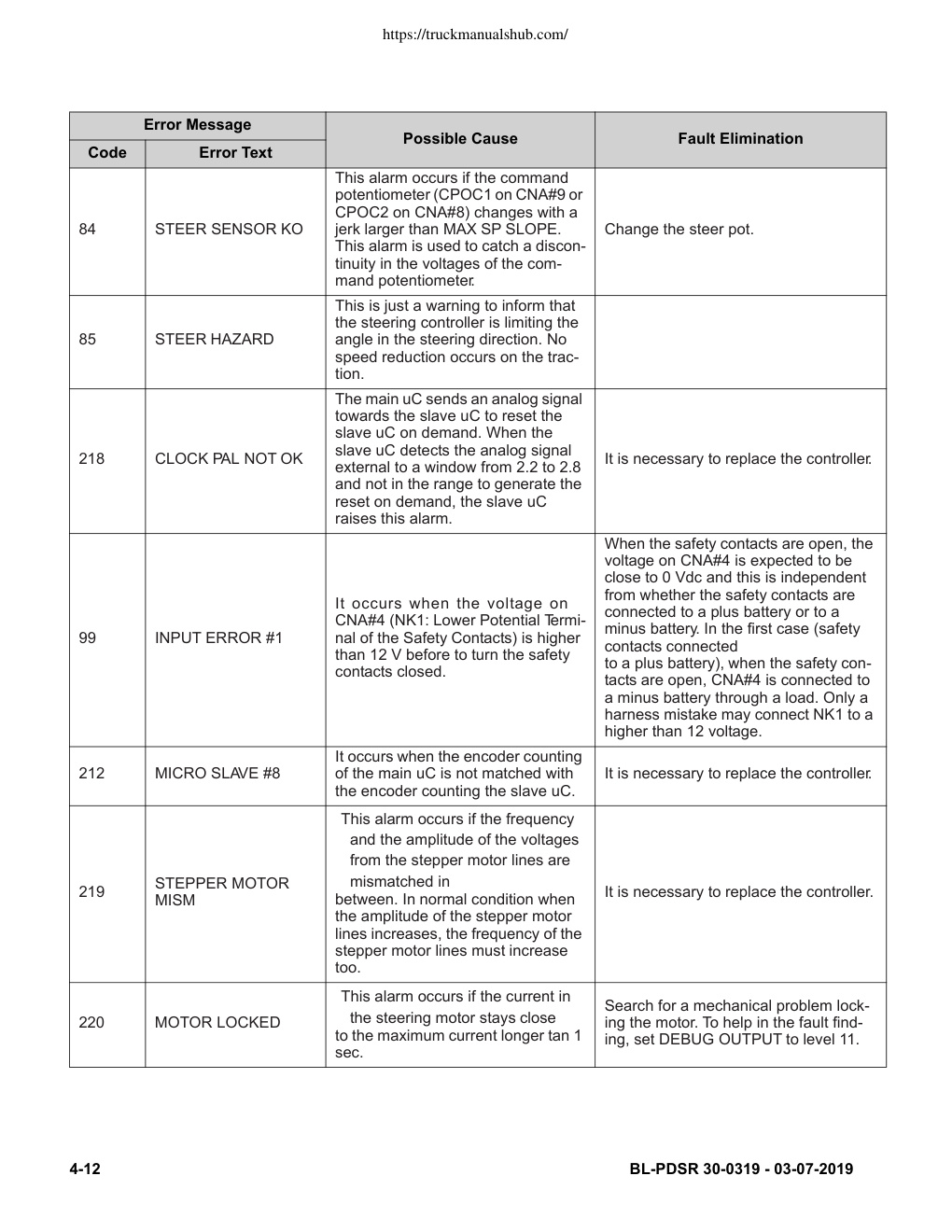

https://truckmanualshub.com/ PDSR 30 POWER DRIVE REACH LIFT TRUCK Operation Maintenance Repair Parts List Big Lift LLC MANUAL NO. BL-PDSR 30-0319 - 03-07-2019 www.bigjoeforklifts.com https://truckmanualshub.com/ https://truckmanualshub.com/ TABLE OF CONTENTS Section Page Section Page 1 DESCRIPTION............................................................1-1 5-3 STEERING ARM................................................ 5-4 1-1 INTRODUCTION ................................................1-1 5-3.1 RETURN SPRING REPLACEMENT......... 5-4 1-2 GENERAL DESCRIPTION.................................1-1 5-3.2 STEERING ARM REMOVAL..................... 5-4 1-3 SAFETY FEATURES..........................................1-2 5-3.3 STEERING ARM INSTALLATION............. 5-4 2 OPERATION ...............................................................2-1 6 BRAKE SERVICING................................................... 6-1 2-1 GENERAL...........................................................2-1 6-1 BRAKES............................................................. 6-1 2-2 OPERATING PRECAUTIONS............................2-1 6-1.1 AIR GAP ADJUSTMENT........................... 6-1 2-3 BEFORE…
