PPT 45 Lift

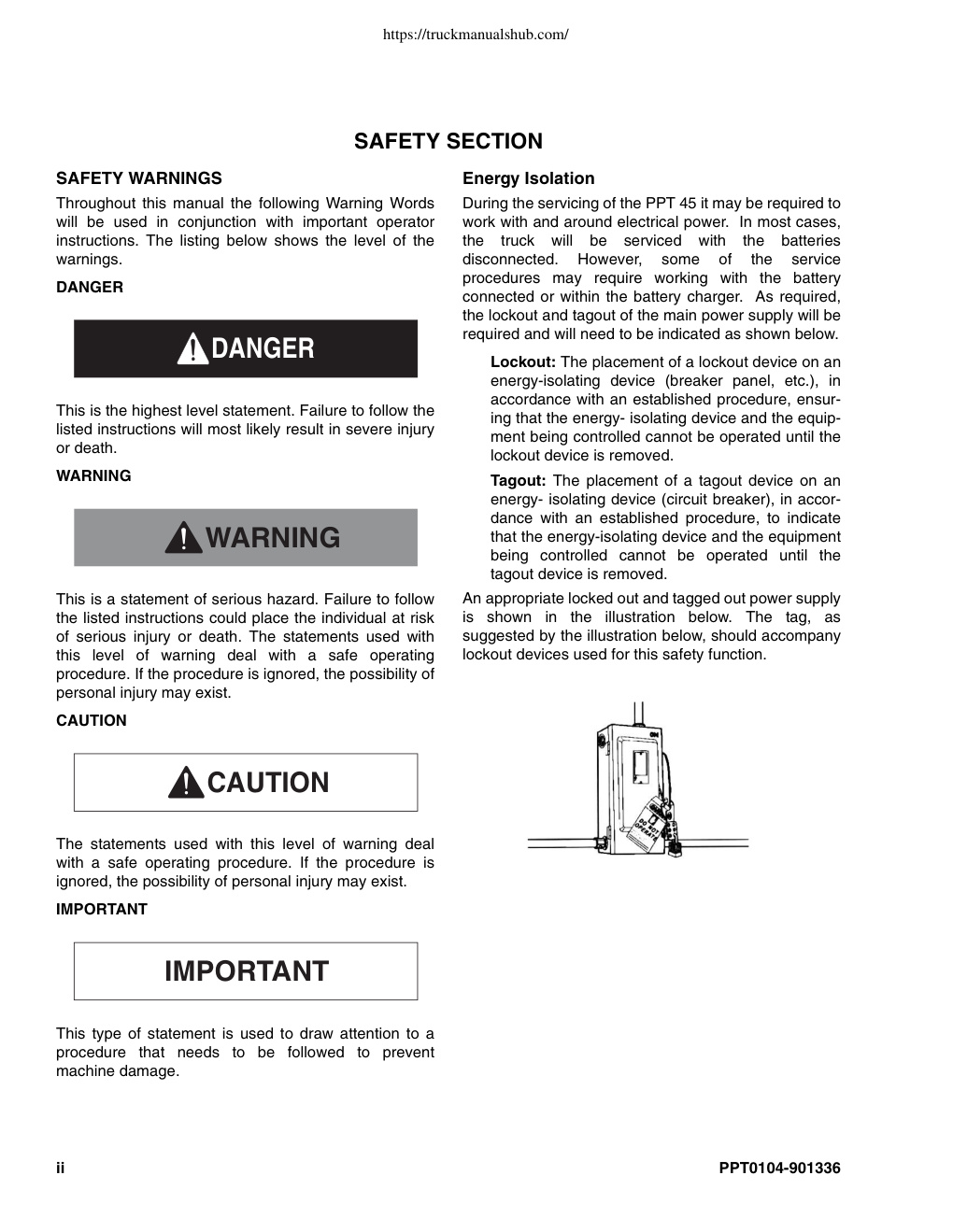

Self-Propelled, Pallet Lift Truck Serial Numbers 373323 Repair Parts List PPT0104-901336Manual No. 901336 i SAFETY WARNINGS Energy Isolation Throughout this manual the following Warning Words During the servicing of the PPT 45 it may be required to will be used in conjunction with important operator work with and around electrical power. In most cases, instructions. The listing below shows the level of the the truck will be serviced with the batteries warnings. disconnected. However, some of the service procedures may require working with the battery connected or within the battery charger. As required, the lockout and tagout of the main power supply will be required and will need to be indicated as shown below. DANGER Lockout: The placement of a lockout device on an energy-isolating device (breaker panel, etc.), in accordance with an established procedure, ensur- This is the highest lev

https://truckmanualshub.com/ PPT 45 Series Self-Propelled, Pallet Lift Truck Serial Numbers 373323 through 374781 Operation Maintenance Repair Parts List PPT0104-901336Manual No. 901336 i https://truckmanualshub.com/ SAFETY SECTION SAFETY WARNINGS Energy Isolation Throughout this manual the following Warning Words During the servicing of the PPT 45 it may be required to will be used in conjunction with important operator work with and around electrical power. In most cases, instructions. The listing below shows the level of the the truck will be serviced with the batteries warnings. disconnected. However, some of the service procedures may require working with the battery DANGER connected or within the battery charger. As required, the lockout and tagout of the main power supply will be required and will need to be indicated as shown below. DANGER Lockout: The placement of a lockout device on an energy-isolating device (breaker panel, etc.), in accordance with an established procedure, ensur- This is the highest level statement. Failure to follow the ing that the energy- isolating device and the equip- listed instructions will most likely result in severe injury ment being…
