COMPACT EXCAVATORS

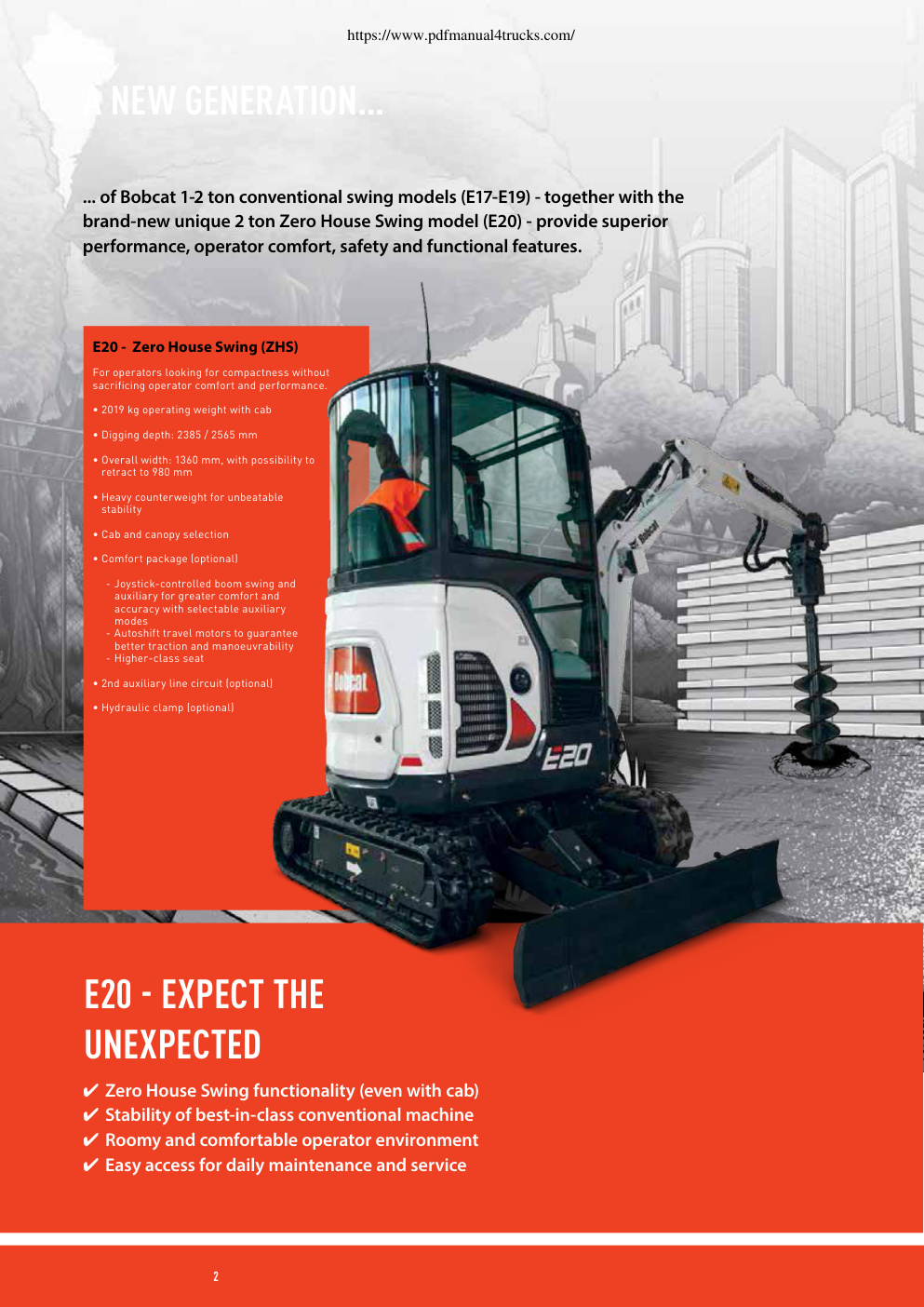

One Tough Animal. A NEW GENERATION...... of Bobcat 1-2 ton conventional swing models (E17-E19) - together with the brand-new unique 2 ton Zero House Swing model (E20) - provide superior performance, operator comfort, safety and functional features. E20 - Zero House Swing (ZHS) For operators looking for compactness without sacrificing operator comfort and performance. • 2019 kg operating weight with cab • Digging depth: 2385 / 2565 mm • Overall width: 1360 mm, with possibility to retract to 980 mm • Heavy counterweight for unbeatable • Cab and canopy selection • Comfort package (optional) -- Joystick-controlled boom swing and auxiliary for greater comfort and accuracy with selectable auxiliary -- Autoshift travel motors to guarantee better traction and manoeuvrability -- Higher-class seat • 2nd auxiliary line circuit (optional) • Hydraulic clamp (optional) E20 - EXPECT THE ✔Zero✔ House S

https://www.pdfmanual4trucks.com/ COMPACT EXCAVATORS E17 E19 E20 https://www.pdfmanual4trucks.com/ A NEW GENERATION... ... of Bobcat 1-2 ton conventional swing models (E17-E19) - together with the brand-new unique 2 ton Zero House Swing model (E20) - provide superior performance, operator comfort, safety and functional features. E20 - Zero House Swing (ZHS) For operators looking for compactness without sacrificing operator comfort and performance. • 2019 kg operating weight with cab • Digging depth: 2385 / 2565 mm • Overall width: 1360 mm, with possibility to retract to 980 mm • Heavy counterweight for unbeatable stability • Cab and canopy selection • Comfort package (optional) -- Joystick-controlled boom swing and auxiliary for greater comfort and accuracy with selectable auxiliary modes -- Autoshift travel motors to guarantee better traction and manoeuvrability -- Higher-class seat • 2nd auxiliary line circuit (optional) • Hydraulic clamp (optional) E20 - EXPECT THE UNEXPECTED ✔Zero✔ House Swing functionality (even with cab) ✔Stability✔ of best-in-class conventional machine ✔Roomy✔ and comfortable operator environment ✔Easy✔ access for daily maintenance and service 2…
