S/N 5277 11001 & Above S/N 5278 11001 & Above BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) (IR) Bobcat 6902913(2-04) Printed in U.S.A. Bobcat Company 2004 MAIN FRAME 11-42 MAINTENANCE ITEMS 11-12 MAINTENANCE SCHEDULE ITEMS 13-20 MAIN FRAME 21-22 OPERATOR CAB 23-26 SEAT & SEAT BAR 27-28 REAR DOOR 33-34 LIFT ARMS & BOBTACH 35-36 FUEL SYSTEM 39-42 DRIVE TRAIN 43-52 DRIVE TRAIN 43-44 TRACK TENSIONER 45-46 FRONT IDLER 47-48 REAR IDLER 49-50 TRACK ROLLER 51-52 HYDRAULIC SYSTEM 53-82 HYDRAULIC CIRCUITRY 53-60 MANUAL LIFT RELEASE SYSTEM 61-62 AUXILIARY HYDRAULICS 63-64 TILT CYLINDER 65-66 LIFT CYLINDER 67-68 CONTROL PEDALS 69-70 HYDRAULIC CONTROL VALVE 71-78 BICS CONTROL VALVE 79-80 MANUAL LIFT RELEASE VALVE 81-82 HIGH FLOW HYDRAULICS 83-88 HIGH FLOW HYDRAULICS 83-88 HYDROSTATIC SYSTEM 89-122 HYDROSTATIC CIRCUITRY 89-96 HAND CONTROLS 97-100 HYDROSTATIC MOTOR 101 -108 HYDROSTATIC PUMP 109-116 GEAR PUM

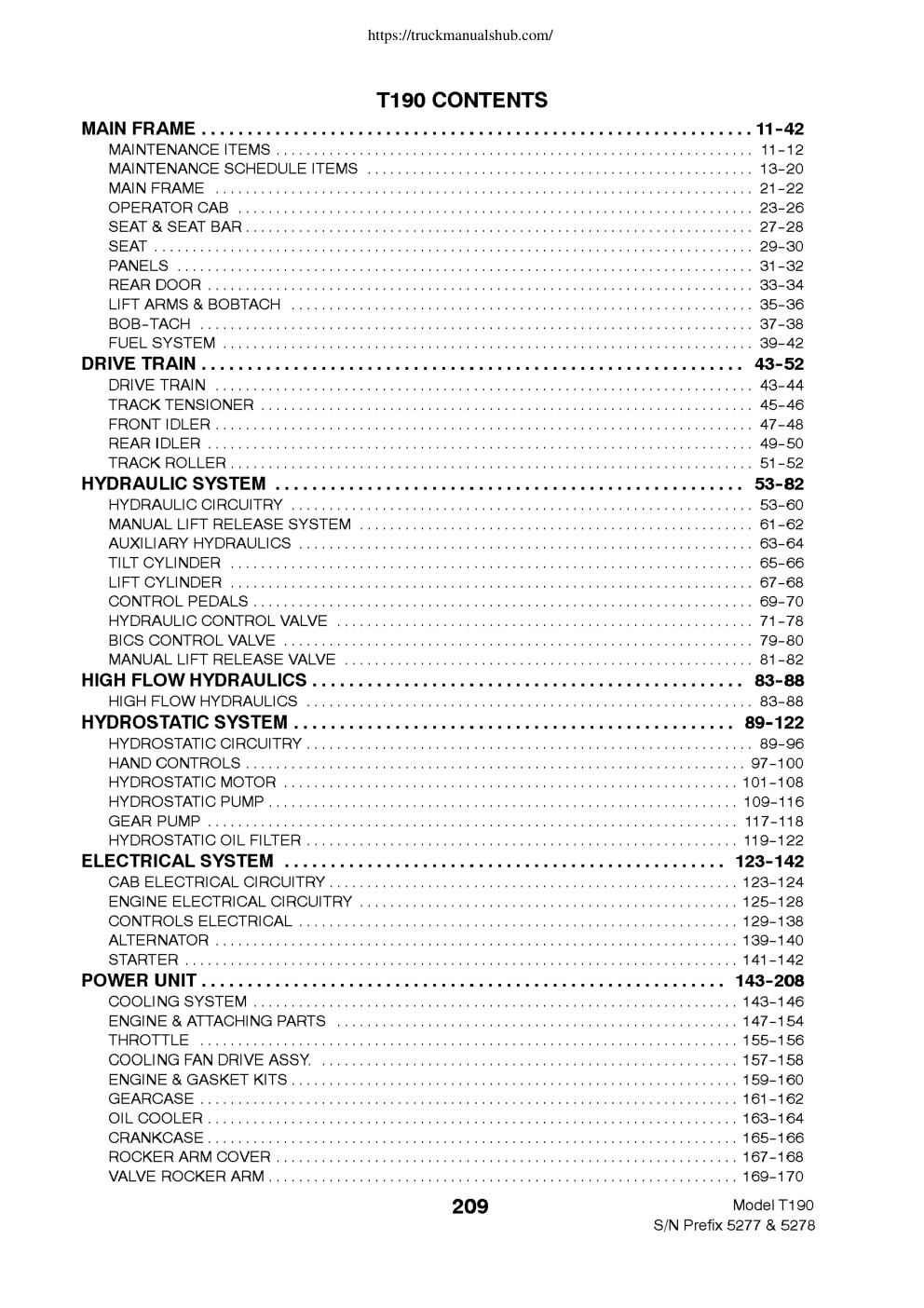

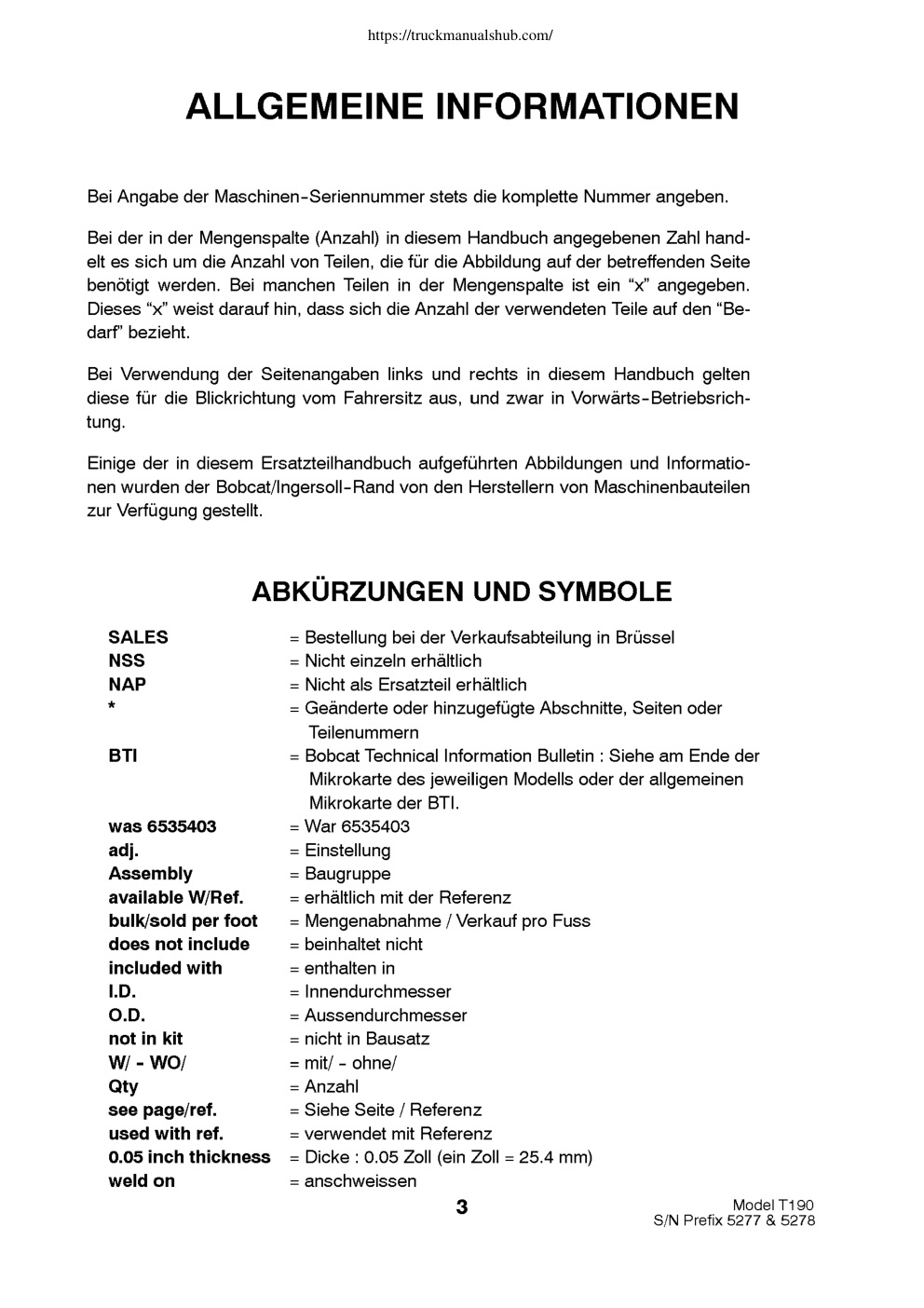

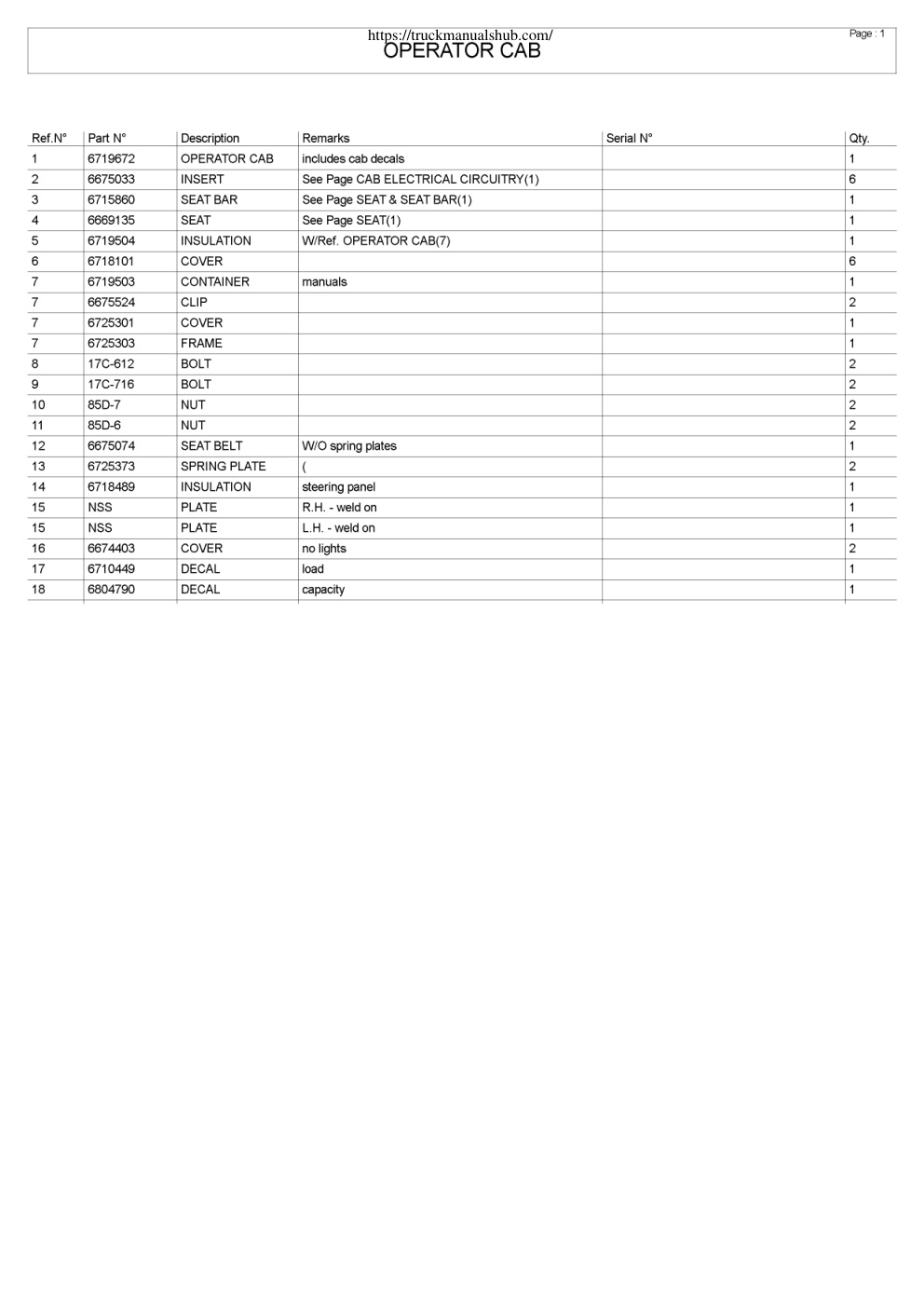

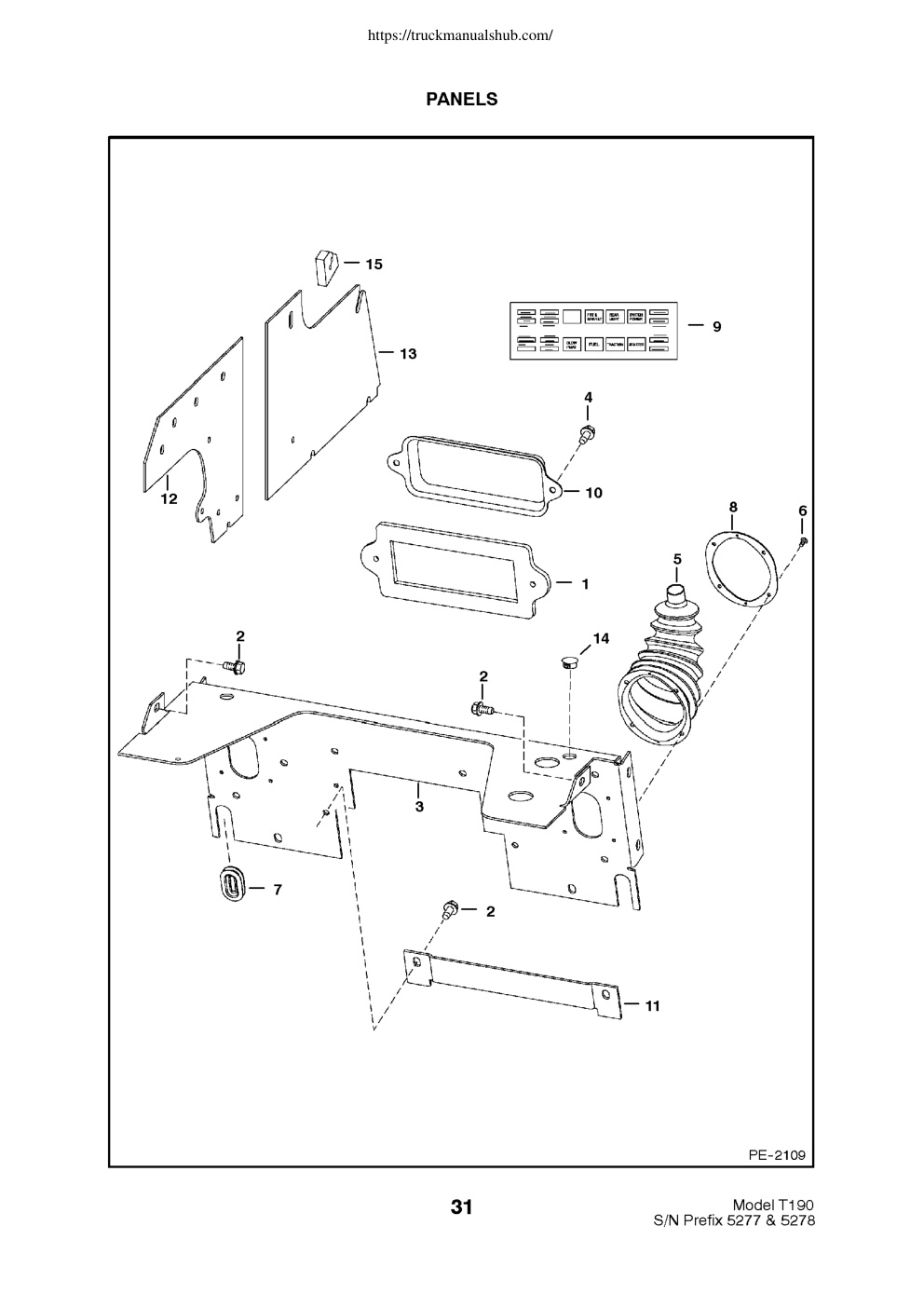

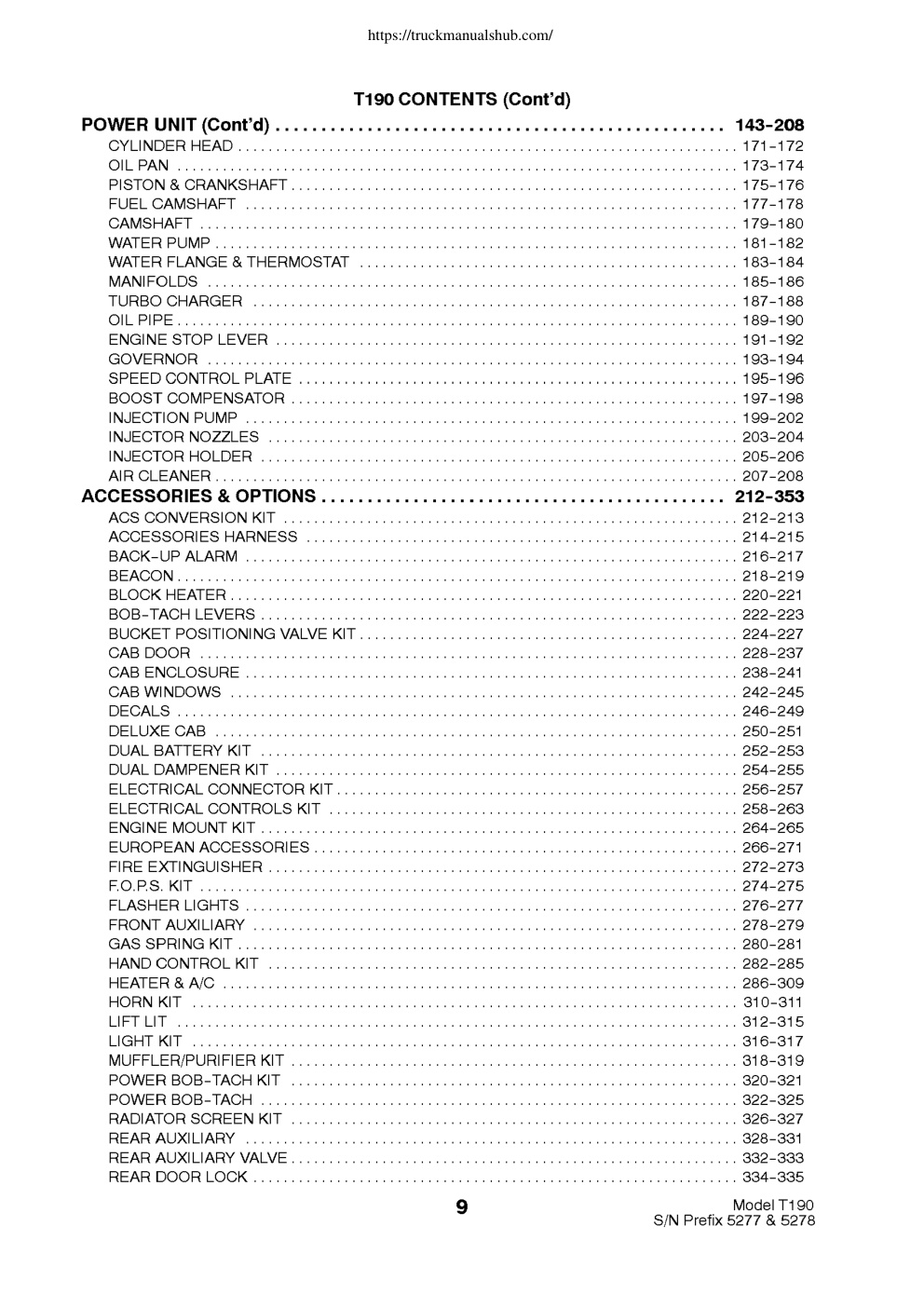

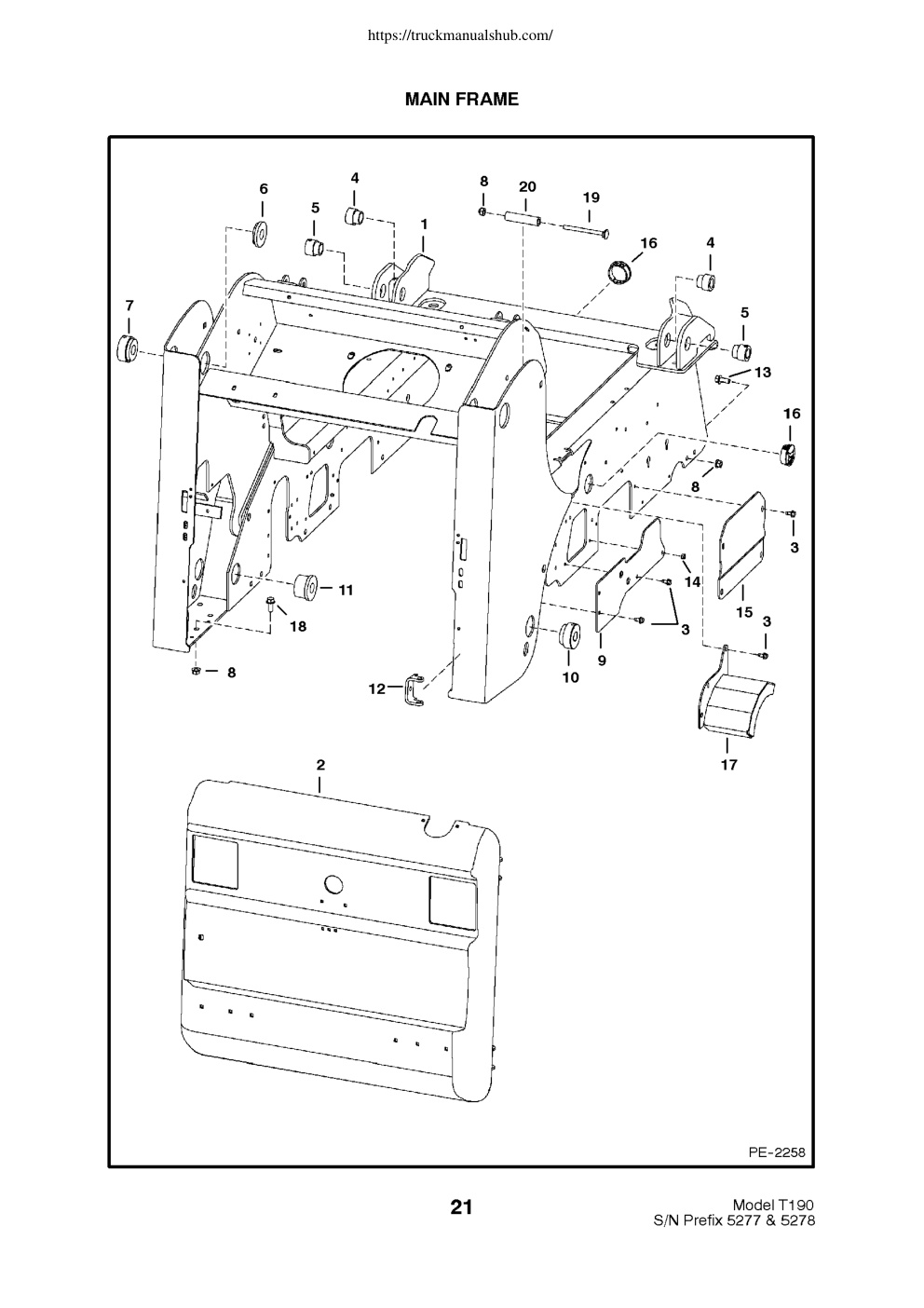

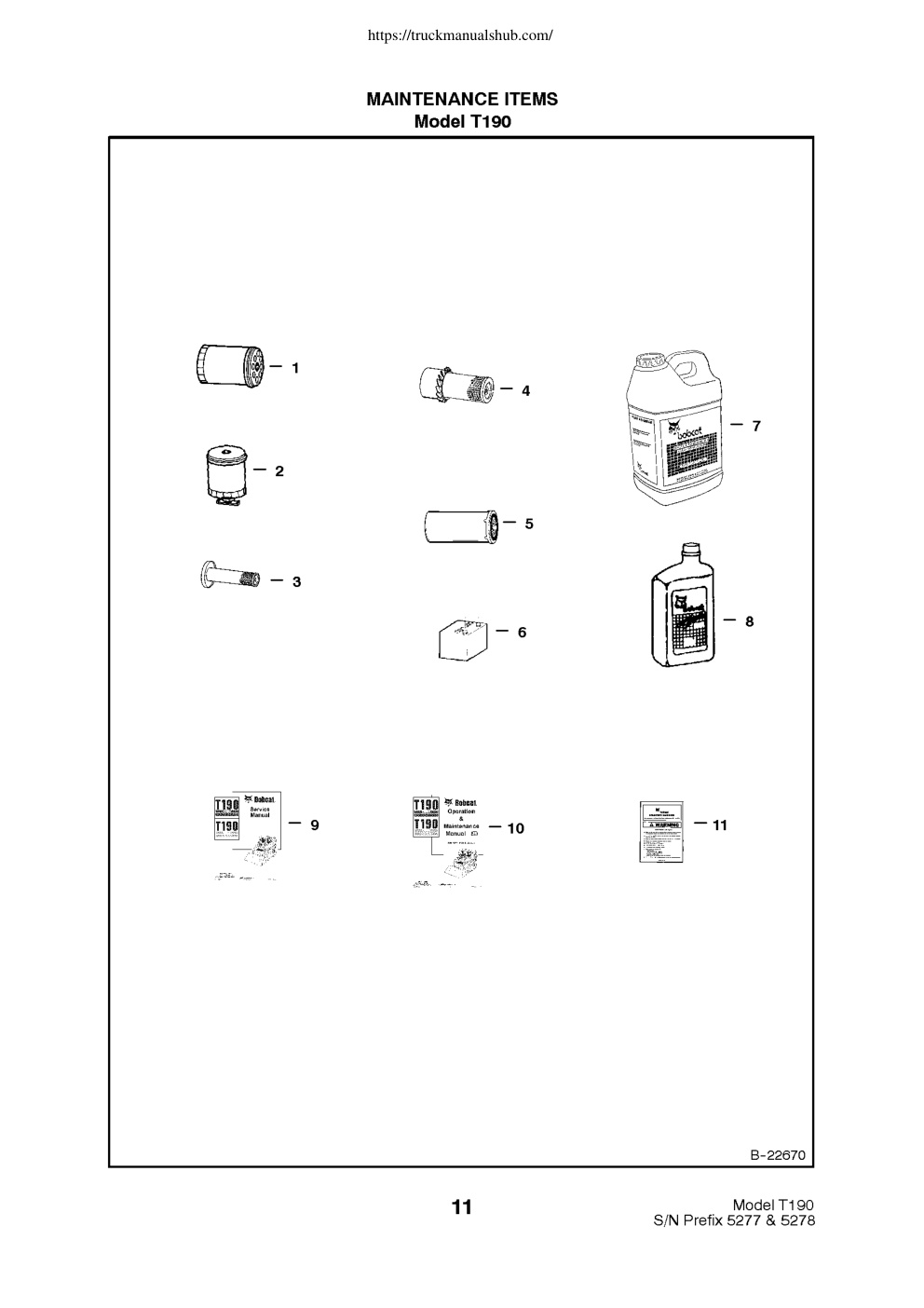

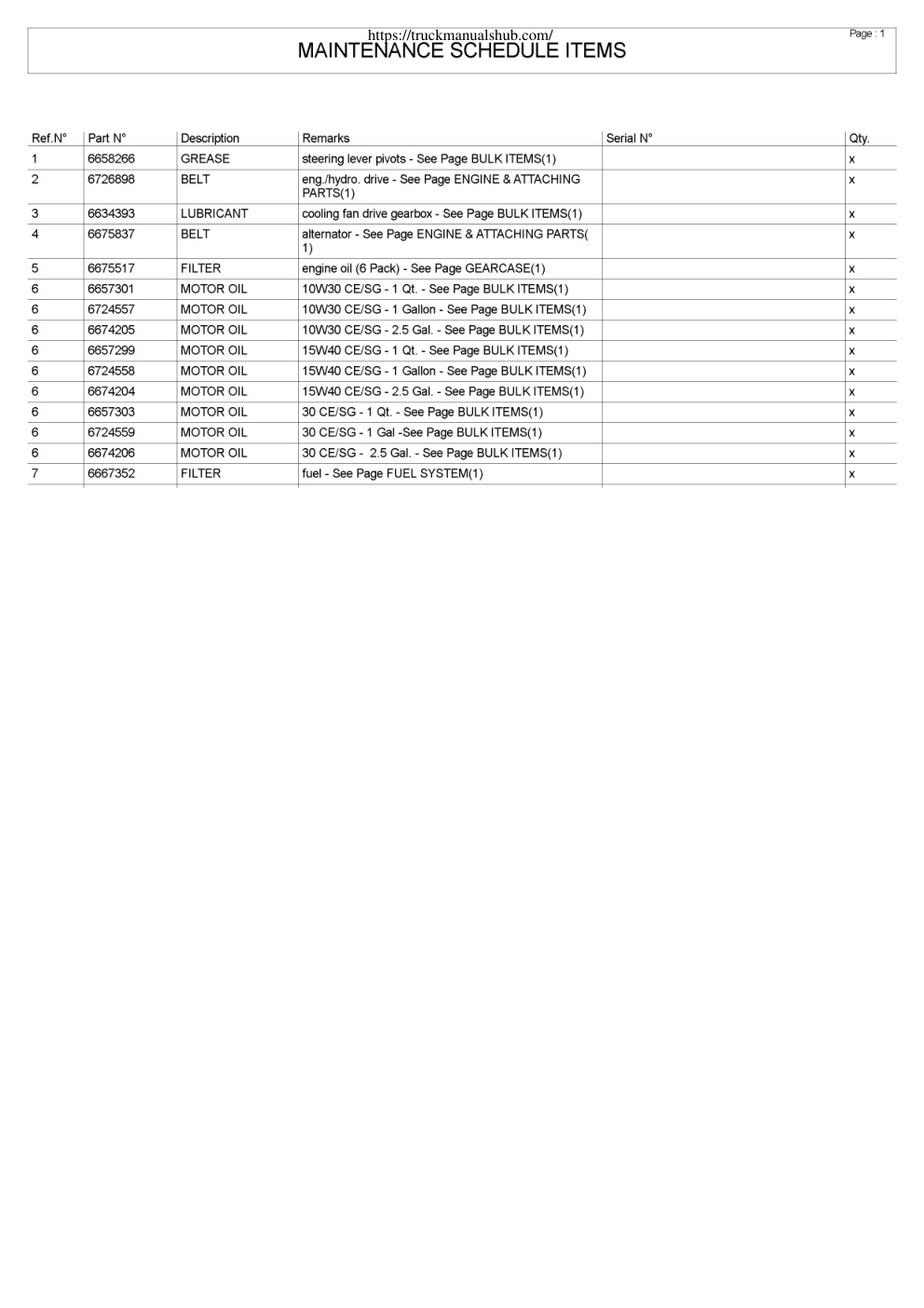

https://truckmanualshub.com/ SyT I f 1 T190 Parts Manual S/N 5277 11001 & Above S/N 5278 11001 & Above B-22862 EQUIPPED WITH BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) (IR) Bobcat 6902913(2-04) Printed in U.S.A. Bobcat Company 2004 https://truckmanualshub.com/ T190 CONTENTS MAIN FRAME 11-42 MAINTENANCE ITEMS 11-12 MAINTENANCE SCHEDULE ITEMS 13-20 MAIN FRAME 21-22 OPERATOR CAB 23-26 SEAT & SEAT BAR 27-28 SEAT 29-30 PANELS 31-32 REAR DOOR 33-34 LIFT ARMS & BOBTACH 35-36 BOB-TACH 37-38 FUEL SYSTEM 39-42 DRIVE TRAIN 43-52 DRIVE TRAIN 43-44 TRACK TENSIONER 45-46 FRONT IDLER 47-48 REAR IDLER 49-50 TRACK ROLLER 51-52 HYDRAULIC SYSTEM 53-82 HYDRAULIC CIRCUITRY 53-60 MANUAL LIFT RELEASE SYSTEM 61-62 AUXILIARY HYDRAULICS 63-64 TILT CYLINDER 65-66 LIFT CYLINDER 67-68 CONTROL PEDALS 69-70 HYDRAULIC CONTROL VALVE 71-78 BICS CONTROL VALVE 79-80 MANUAL LIFT RELEASE VALVE 81-82 HIGH FLOW HYDRAULICS 83-88 HIGH FLOW HYDRAULICS 83-88 HYDROSTATIC SYSTEM 89-122 HYDROSTATIC CIRCUITRY 89-96 HAND CONTROLS 97-100 HYDROSTATIC MOTOR 101 -108 HYDROSTATIC PUMP 109-116 GEAR PUMP 117-118 HYDROSTATIC OIL FILTER 119-122 ELECTRICAL SYSTEM 123-142 CAB ELECTRICAL CIRCUITRY 123-124 ENGINE ELECTRICAL CIRCUITRY 125-128…
