00892121_Fertiger_BF_600_C.bk

Service - Manual S/N 821 837 85... S/N 821 837 86... S/N 821 837 89... S/N 821 837 90... Catalogue number. 008 921 22 10/2012

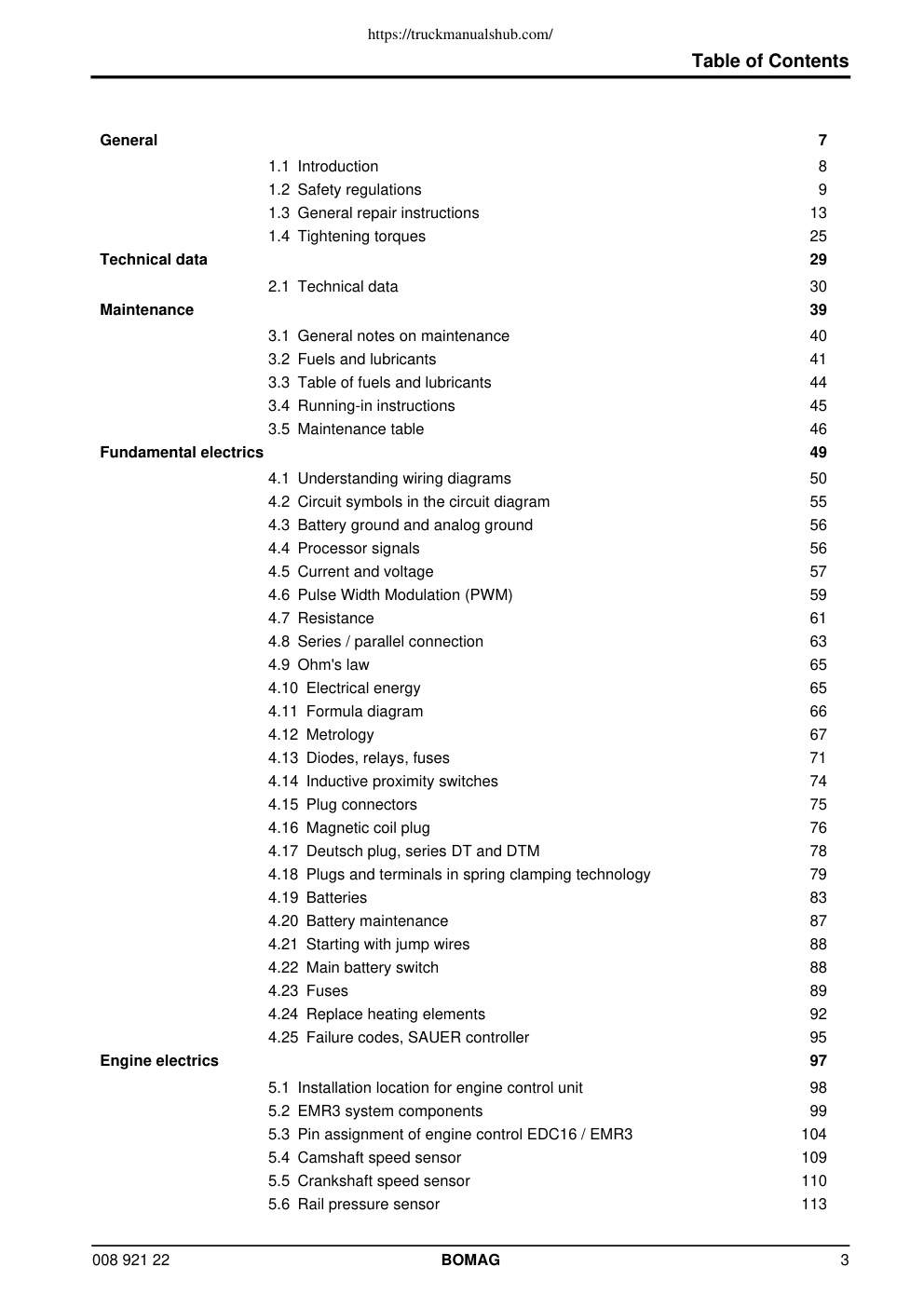

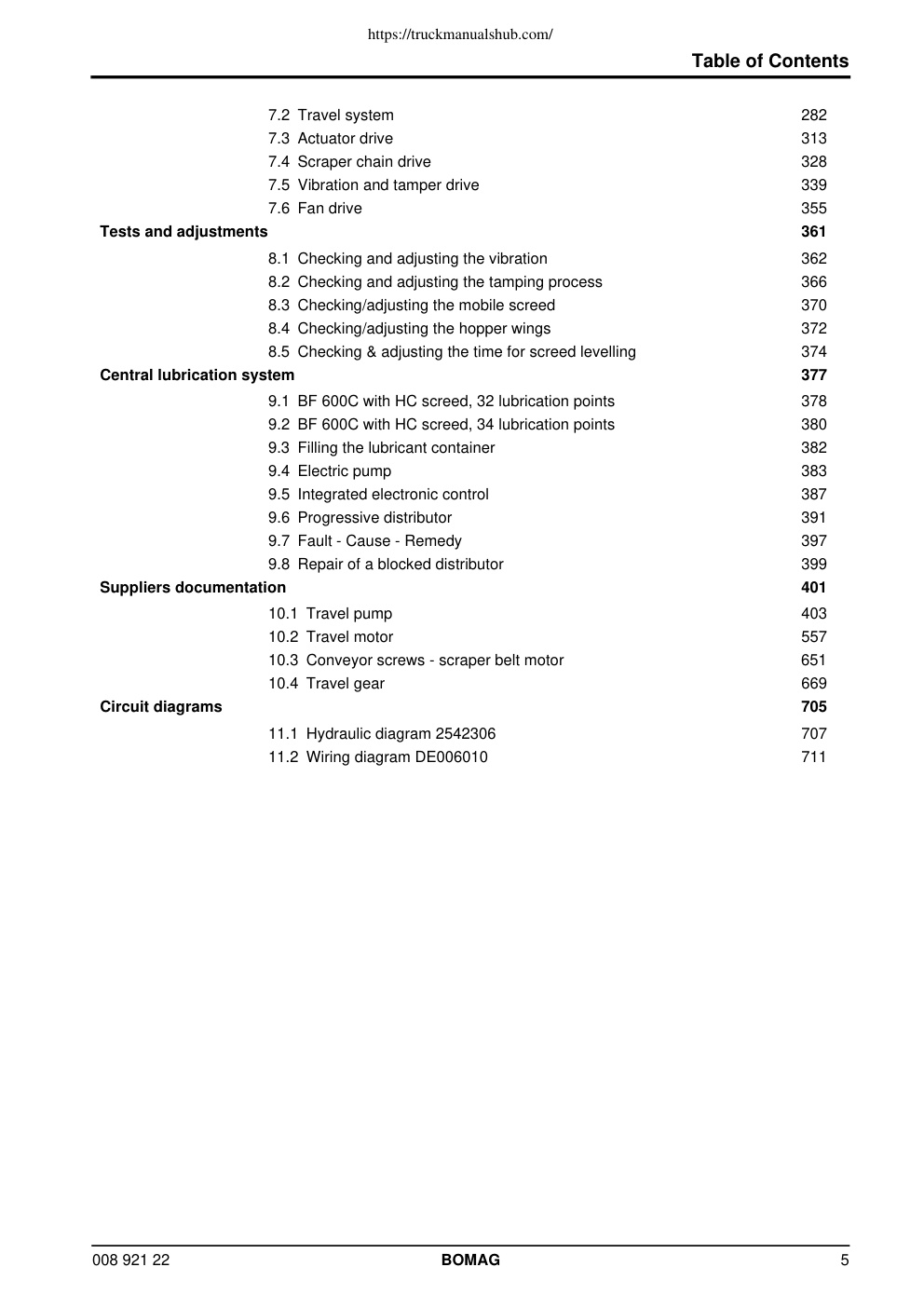

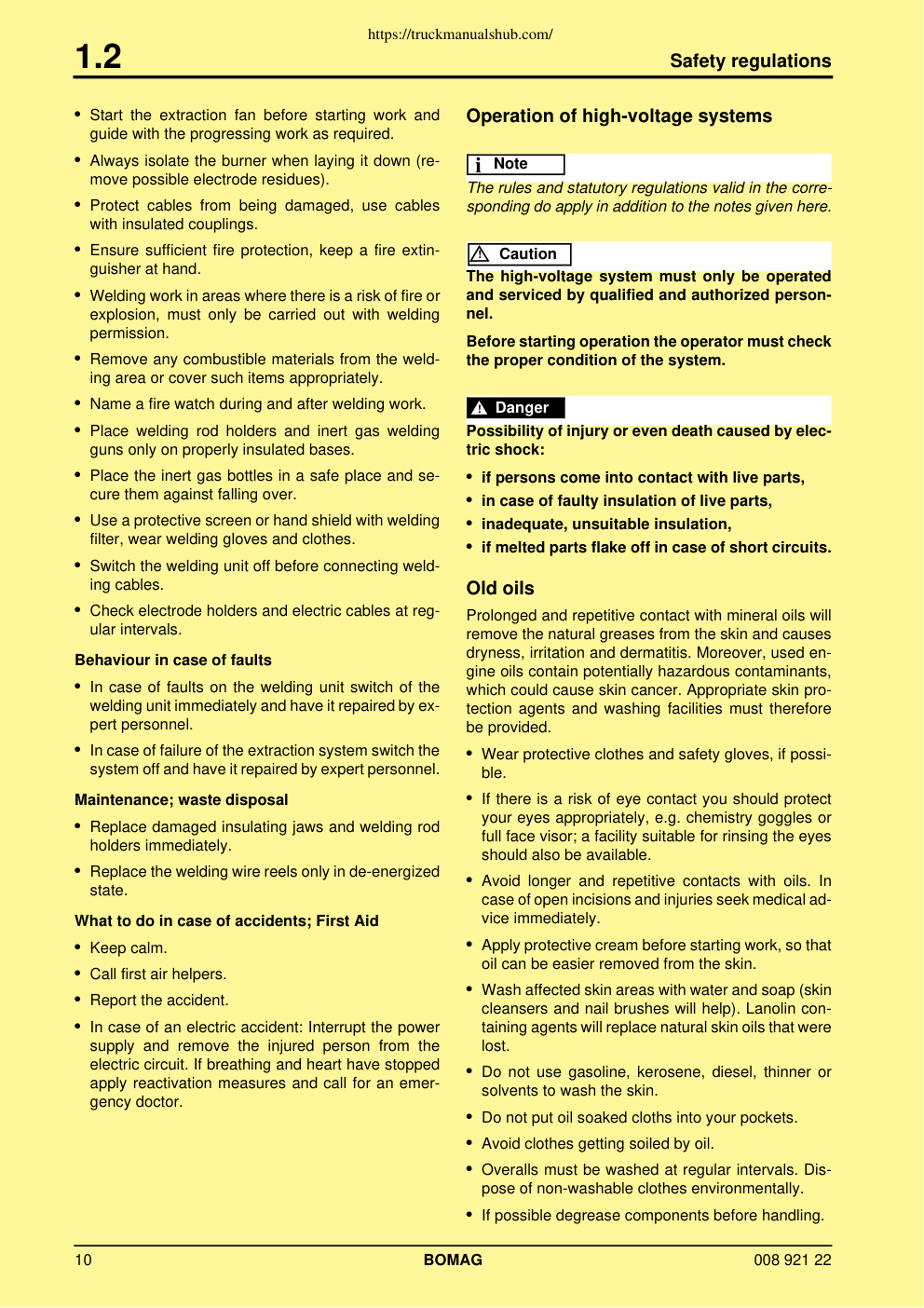

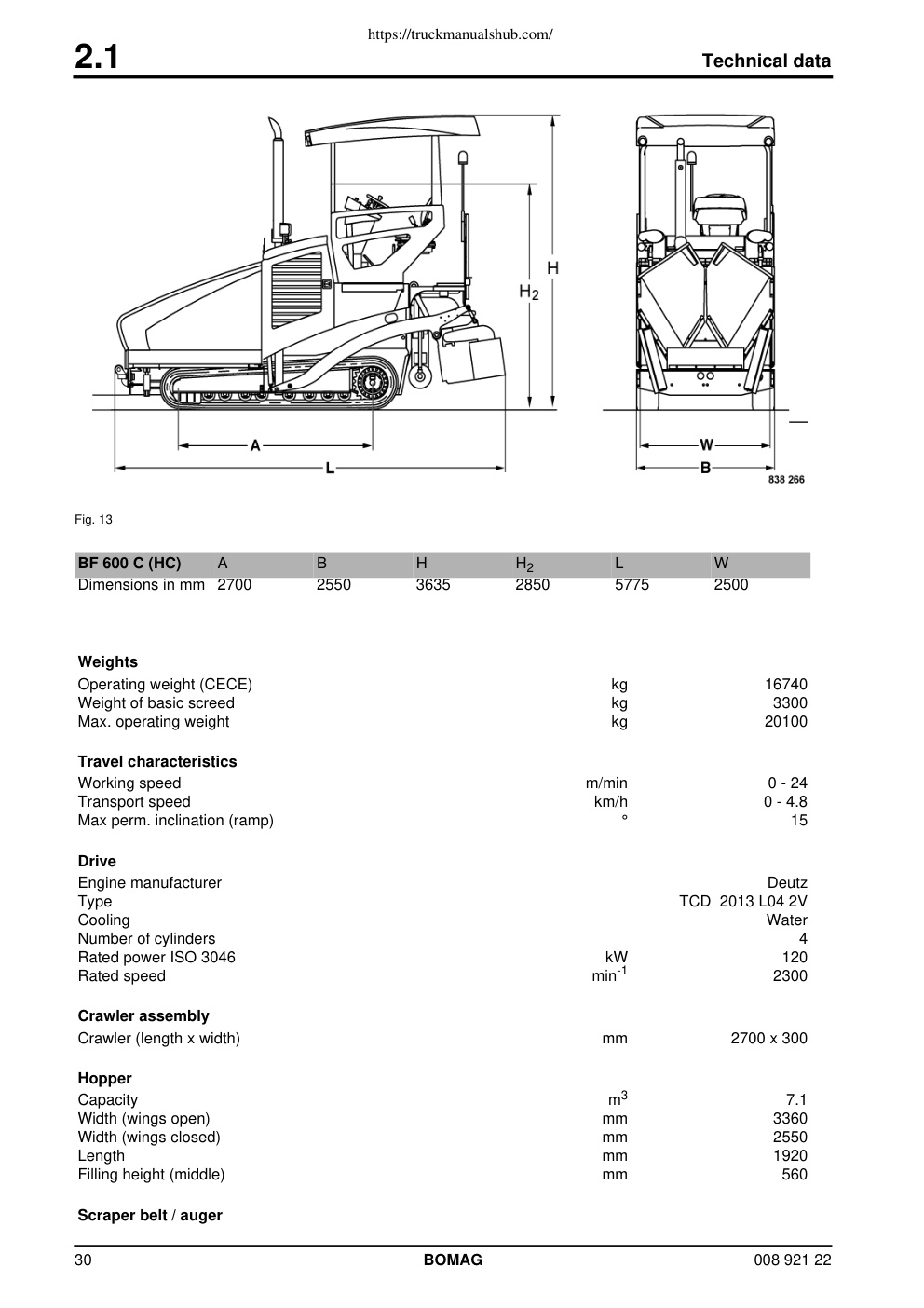

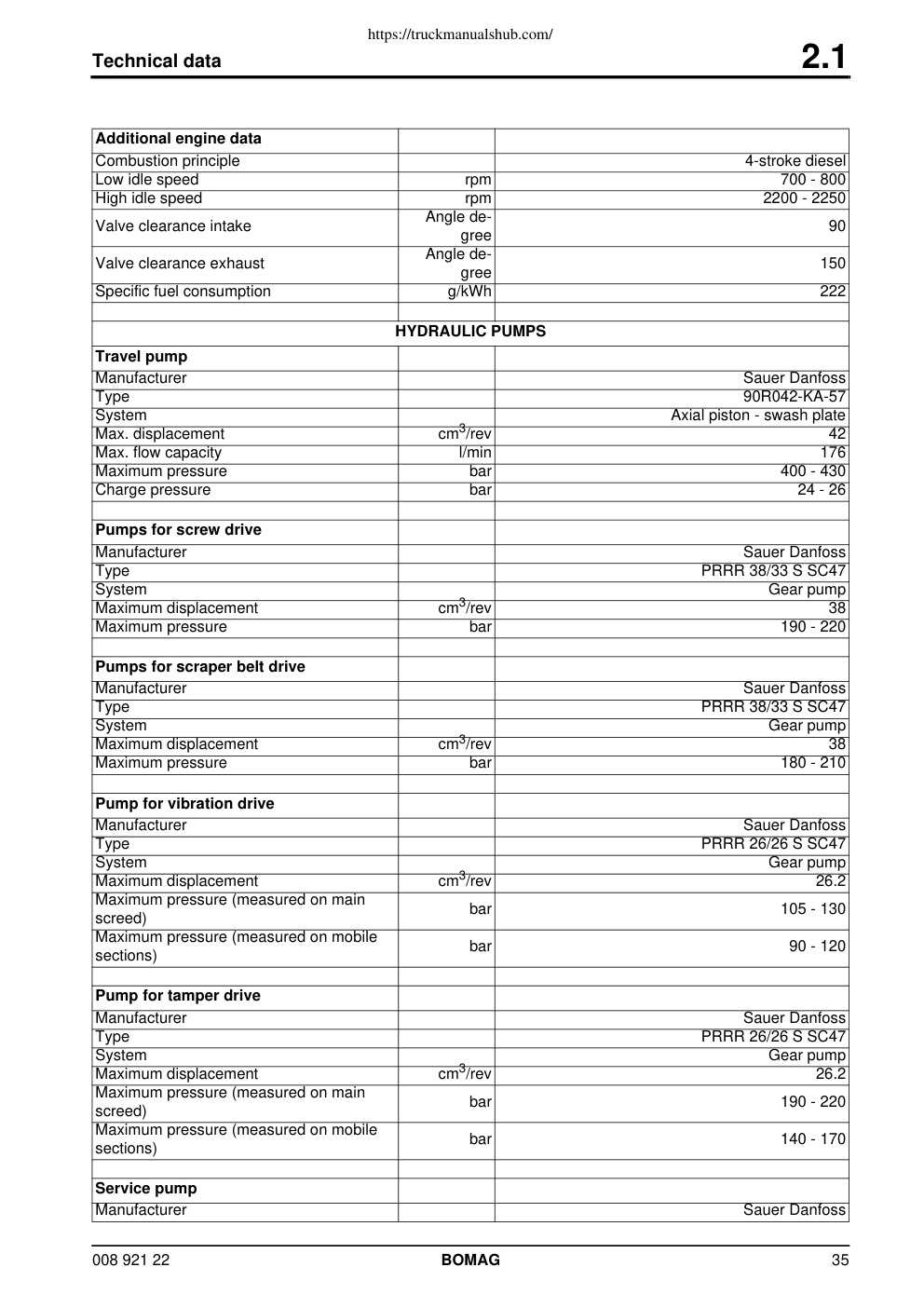

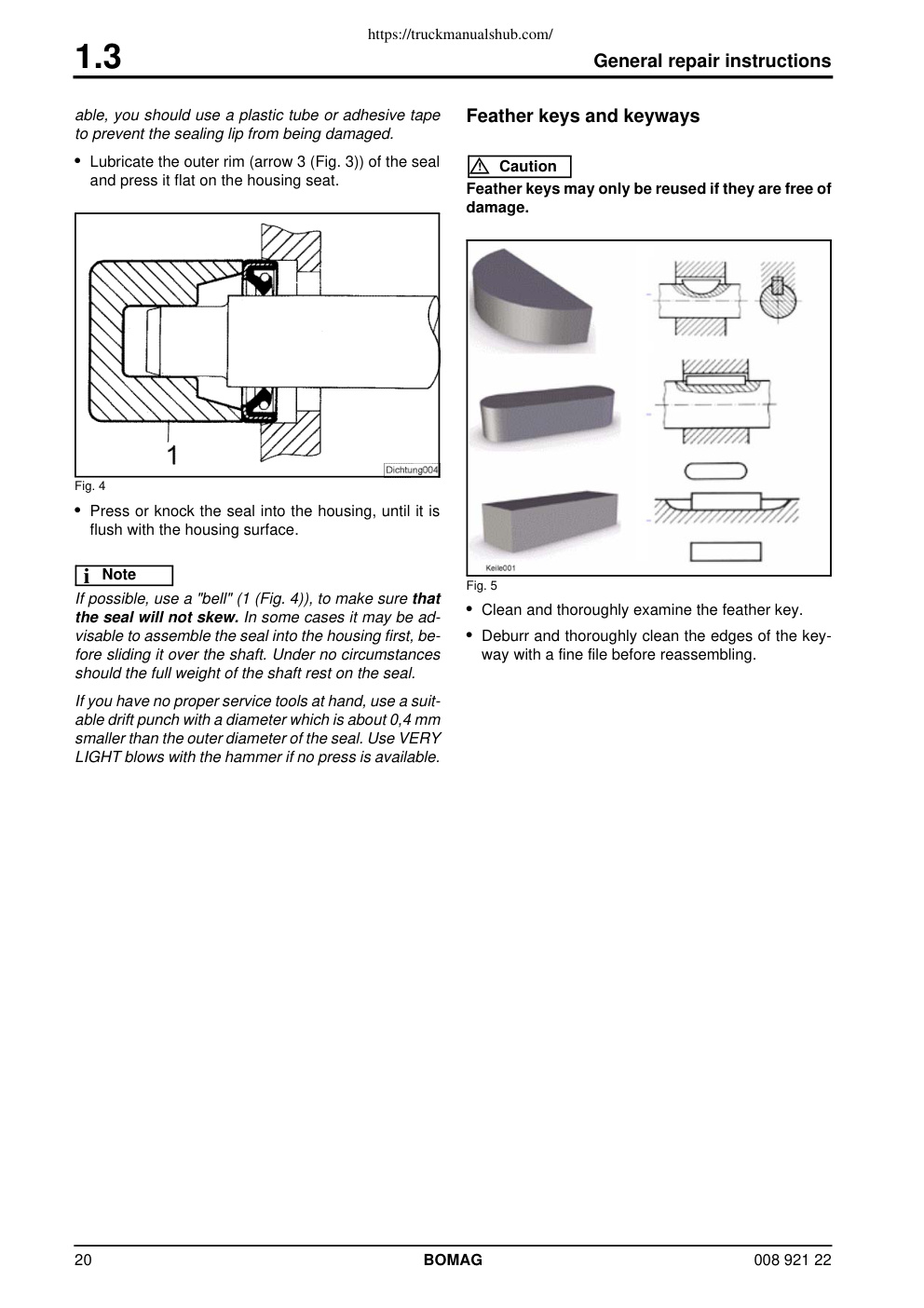

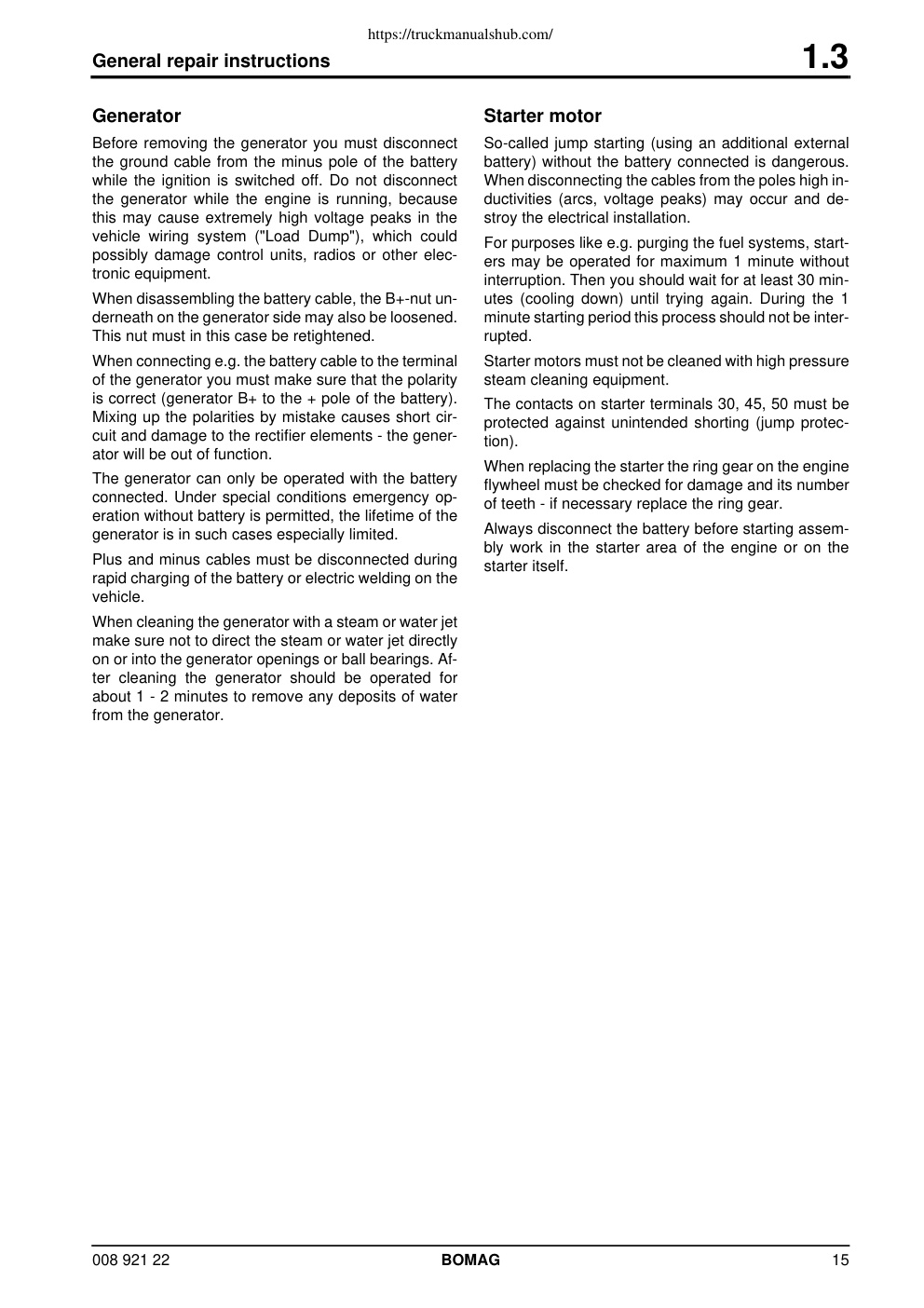

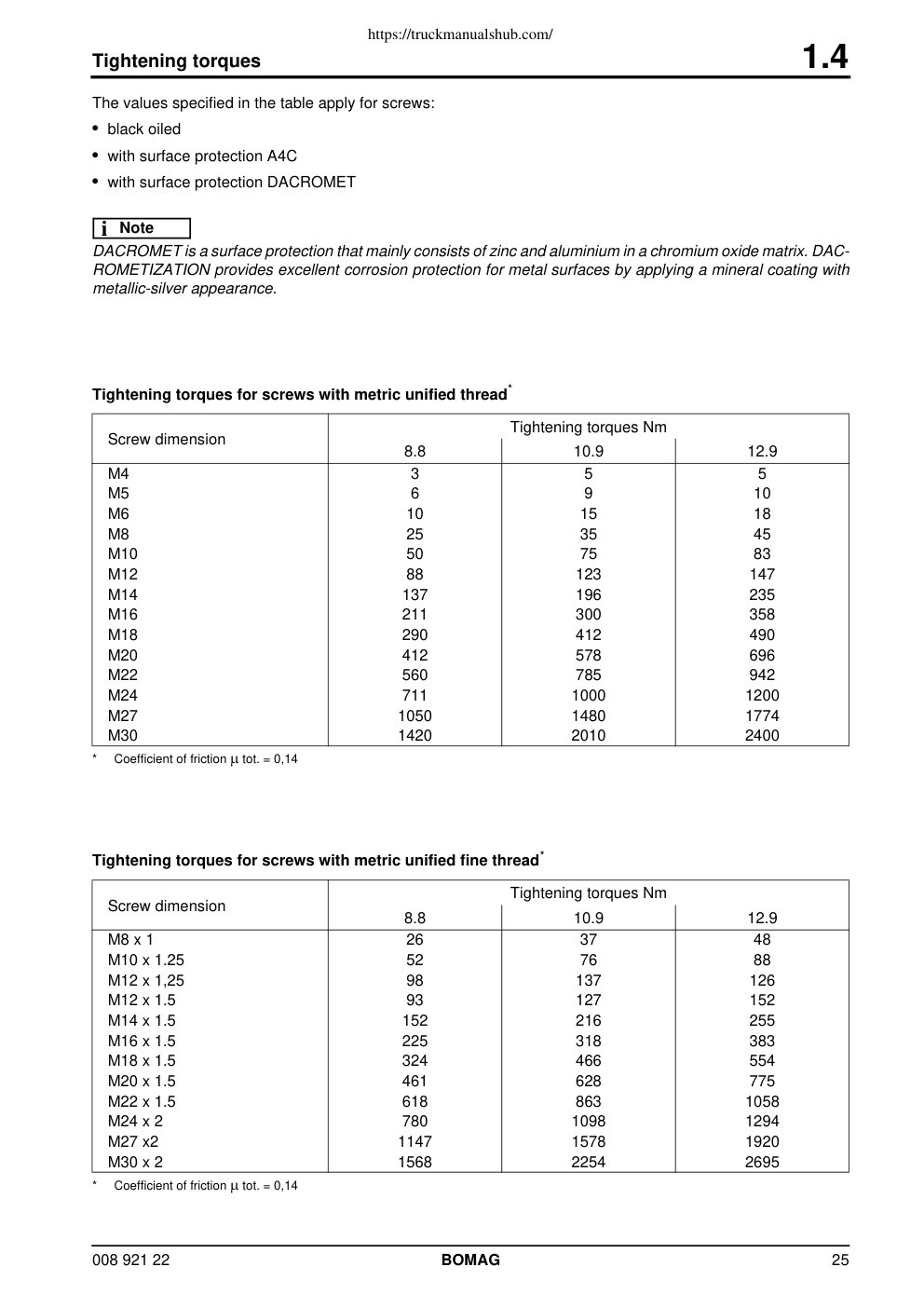

https://truckmanualshub.com/ Service - Manual BF 600 C - HSE BF 600 C - HCE S/N 821 837 85... S/N 821 837 86... S/N 821 837 89... S/N 821 837 90... Road Finisher Catalogue number. 008 921 22 10/2012 https://truckmanualshub.com/ https://truckmanualshub.com/ Table of Contents General 7 1.1 Introduction 8 1.2 Safety regulations 9 1.3 General repair instructions 13 1.4 Tightening torques 25 Technical data 29 2.1 Technical data 30 Maintenance 39 3.1 General notes on maintenance 40 3.2 Fuels and lubricants 41 3.3 Table of fuels and lubricants 44 3.4 Running-in instructions 45 3.5 Maintenance table 46 Fundamental electrics 49 4.1 Understanding wiring diagrams 50 4.2 Circuit symbols in the circuit diagram 55 4.3 Battery ground and analog ground 56 4.4 Processor signals 56 4.5 Current and voltage 57 4.6 Pulse Width Modulation (PWM) 59 4.7 Resistance 61 4.8 Series / parallel connection 63 4.9 Ohm's law 65 4.10 Electrical energy 65 4.11 Formula diagram 66 4.12 Metrology 67 4.13 Diodes, relays, fuses 71 4.14 Inductive proximity switches 74 4.15 Plug connectors 75 4.16 Magnetic coil plug 76 4.17 Deutsch plug, series DT and DTM 78 4.18 Plugs and terminals in spring clamping technology 79 4.19…
