TANDEM ROLLERS

DATA SHEET

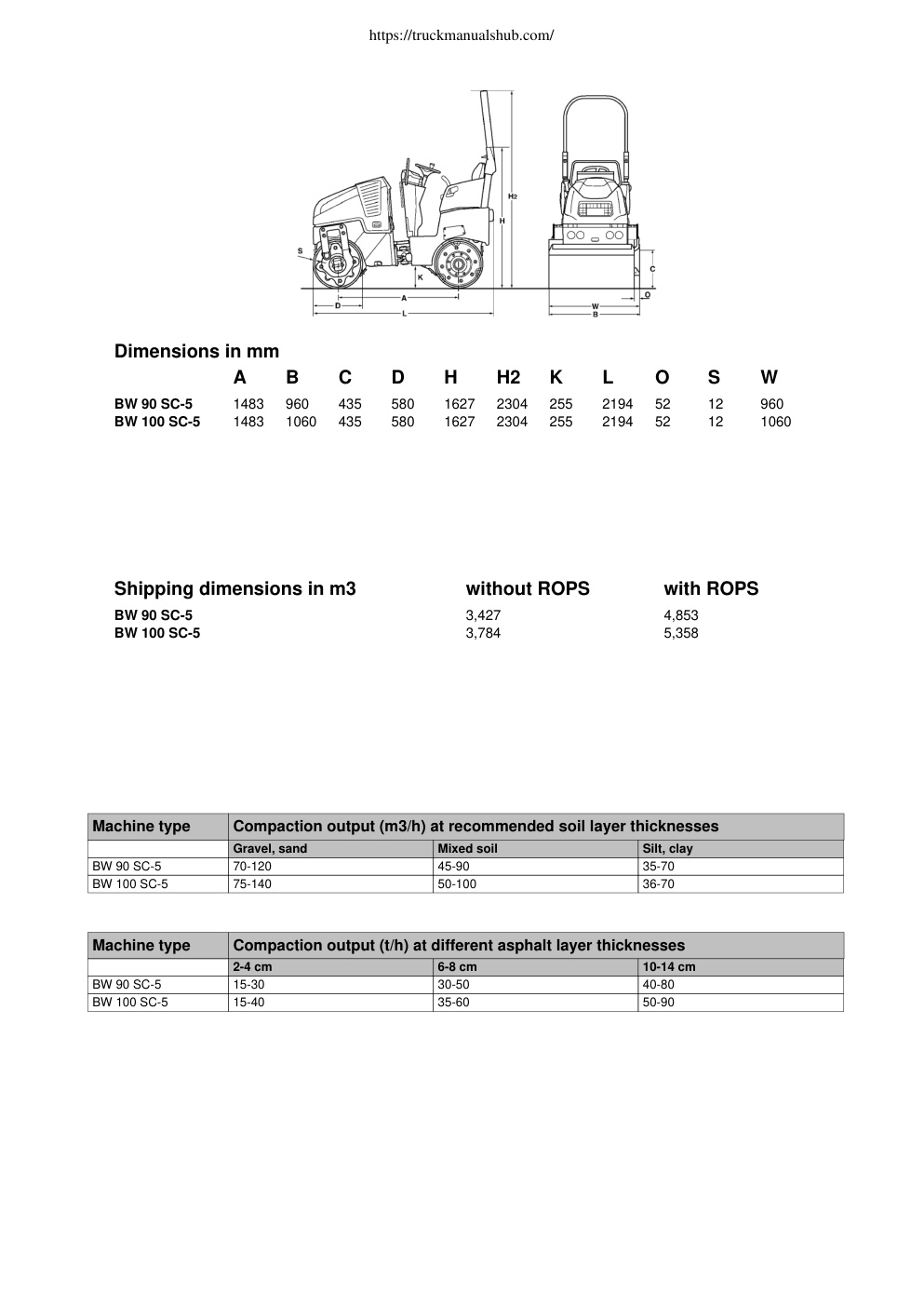

https://truckmanualshub.com/ TECHNICAL DATA TANDEM ROLLERS BW 90 SC-5, BW 100 SC-5 https://truckmanualshub.com/ Dimensions in mm A B C D H H2 K L O S W BW 90 SC-5 1483 960 435 580 1627 2304 255 2194 52 12 960 BW 100 SC-5 1483 1060 435 580 1627 2304 255 2194 52 12 1060 Shipping dimensions in m3 without ROPS with ROPS BW 90 SC-5 3,427 4,853 BW 100 SC-5 3,784 5,358 Machine type Compaction output (m3/h) at recommended soil layer thicknesses Gravel, sand Mixed soil Silt, clay BW 90 SC-5 70-120 45-90 35-70 BW 100 SC-5 75-140 50-100 36-70 Machine type Compaction output (t/h) at different asphalt layer thicknesses 2-4 cm 6-8 cm 10-14 cm BW 90 SC-5 15-30 30-50 40-80 BW 100 SC-5 15-40 35-60 50-90 https://truckmanualshub.com/ Technical Data BOMAG BOMAG BW 90 SC-5 BW 100 SC-5 Weights Operating weight CECE ........................................... kg 1.650 1.700 Average static linear load CECE .............................. kg/cm 9,2 8,5 Grossweight ............................................................. kg 1.900 1.900 Dimensions Working width .......................................................... mm 960 1.060 Track radius, inner ...................................................…
