9380 CASE IH 4WD TRACTOR (6/95-8/00)

1-01 9370, 9380 AND 9390 TRACTOR 9370, 9380, and 9390 Tractor The 9370 and 9380 units first became available June, 1995. The 9390 unit first became available January, 1997. 7 Copyright © 1998 Case Corporation Bur 7-1252 CASE and CASE IH are registered trademarks of Case Corporation Issued December, 1998 1-01 9370, 9380 AND 9390 TRACTOR cbinka Homep getanu Kon-B0

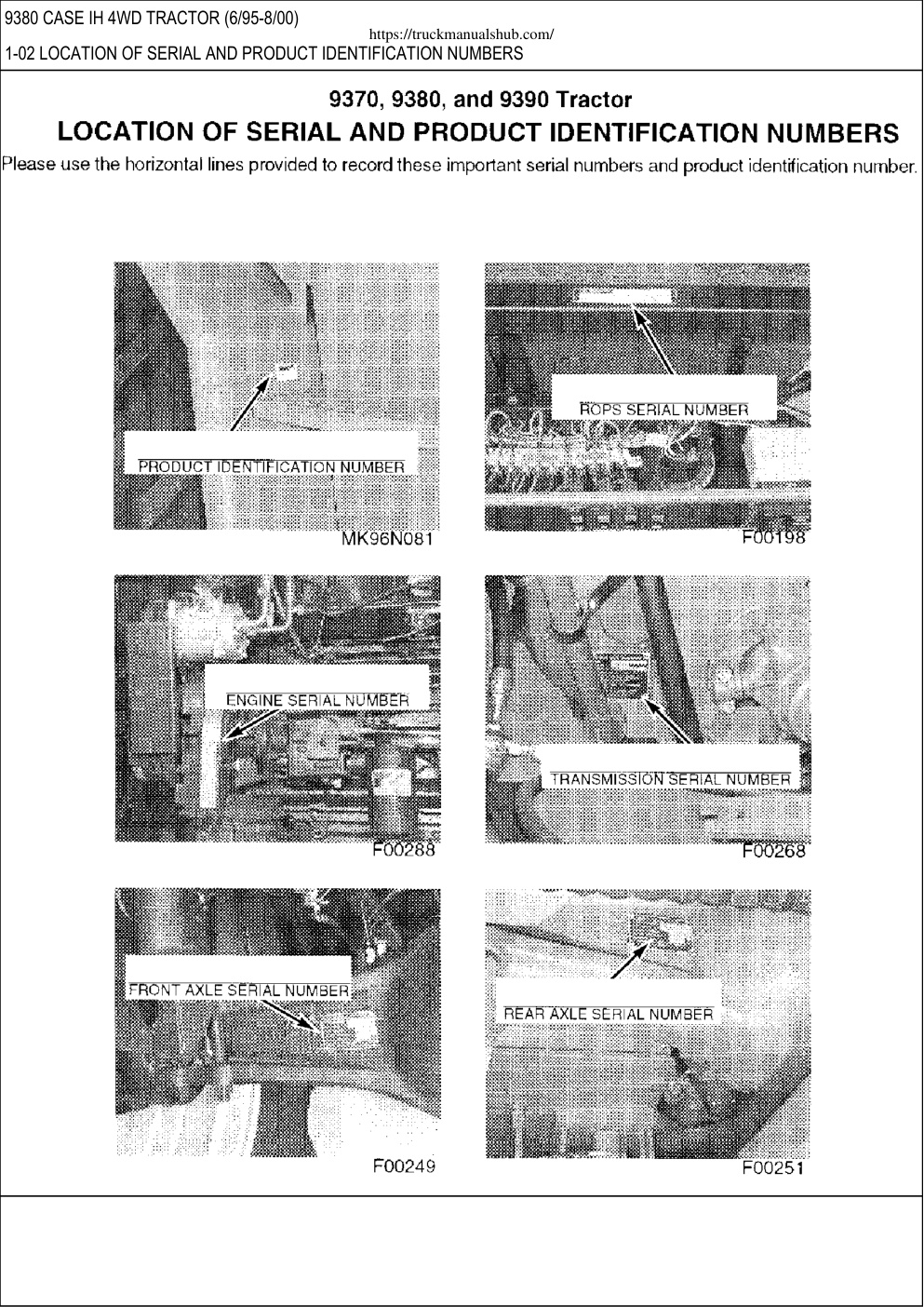

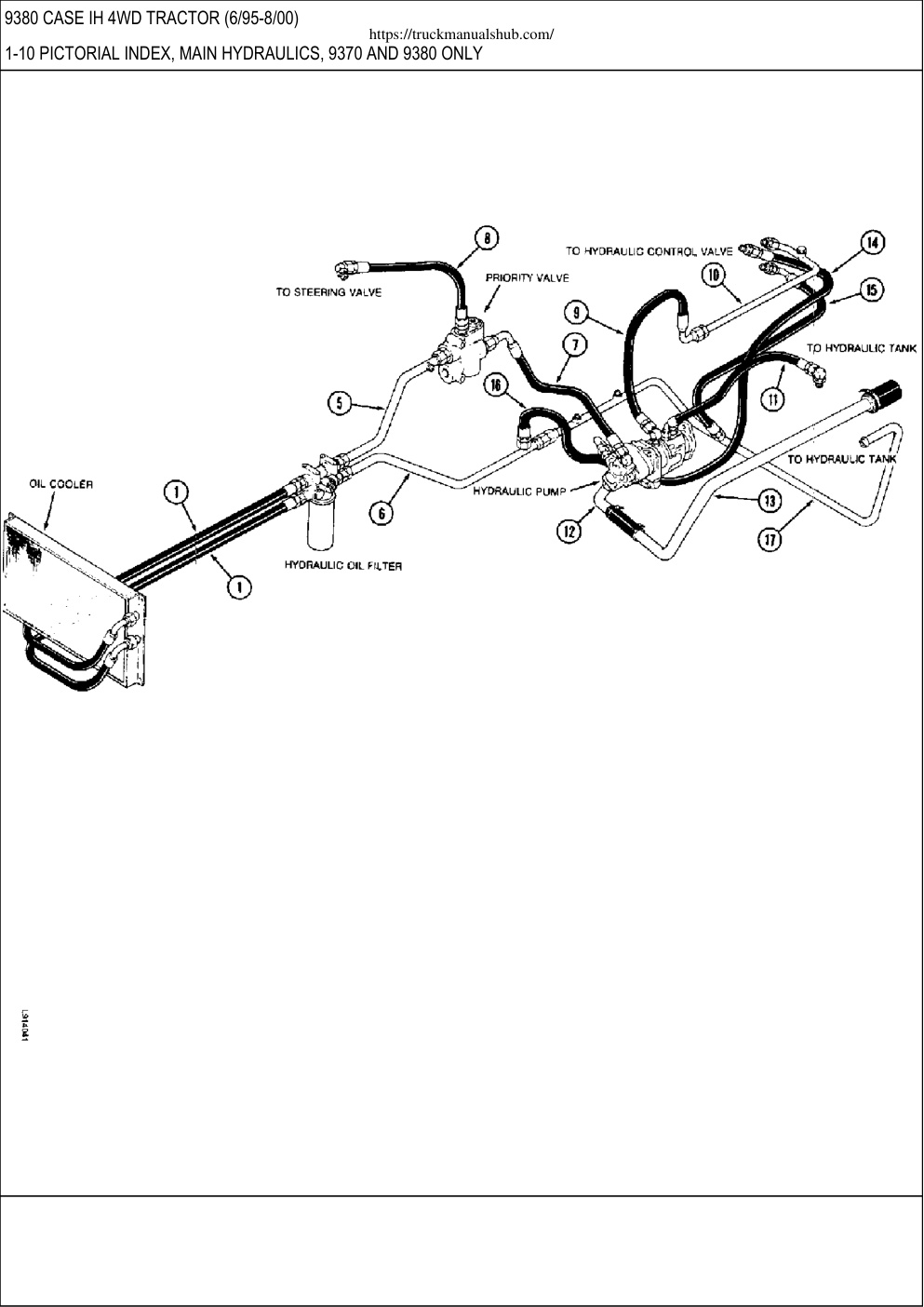

9380 CASE IH 4WD TRACTOR (6/95-8/00) https://truckmanualshub.com/ 1-01 9370, 9380 AND 9390 TRACTOR 9380 CASE IH 4WD TRACTOR (6/95-8/00) https://truckmanualshub.com/ 1-01 9370, 9380 AND 9390 TRACTOR Ссылка Номер детали Кол-во Описание 9380 CASE IH 4WD TRACTOR (6/95-8/00) https://truckmanualshub.com/ 1-02 LOCATION OF SERIAL AND PRODUCT IDENTIFICATION NUMBERS 9380 CASE IH 4WD TRACTOR (6/95-8/00) https://truckmanualshub.com/ 1-02 LOCATION OF SERIAL AND PRODUCT IDENTIFICATION NUMBERS Ссылка Номер детали Кол-во Описание 9380 CASE IH 4WD TRACTOR (6/95-8/00) https://truckmanualshub.com/ 1-10 PICTORIAL INDEX, MAIN HYDRAULICS, 9370 AND 9380 ONLY 9380 CASE IH 4WD TRACTOR (6/95-8/00) https://truckmanualshub.com/ 1-10 PICTORIAL INDEX, MAIN HYDRAULICS, 9370 AND 9380 ONLY Ссылка Номер детали Кол-во Описание 1 Oil Cooler to Filter Hose, 8-13 5 Hydraulic Pump Supply Tube, 8-13 6 Priority Valve to Filter Tube, 8-13 7 Gear Pump Outlet Hose, 8-5 8 Steering Sensing Hose, 8-5 9 Hydraulic Control Valve Supply Hose, 8-3 10 Hydraulic Control Valve Supply Tube, 8-3 11 Hydraulic Return Hose, 8-3 12 Gear Pump Inlet Elbow Tube, 8-5 13 Gear Pump Inlet Tube, 8-5 14 Hydraulic Pump Pressure Sensing Hose, 8-3 15…
