2388 CASE IH AXIAL-FLOW COMBINE (NA) BTW HAJ0292001 & HAJ0300000 (10/04-)

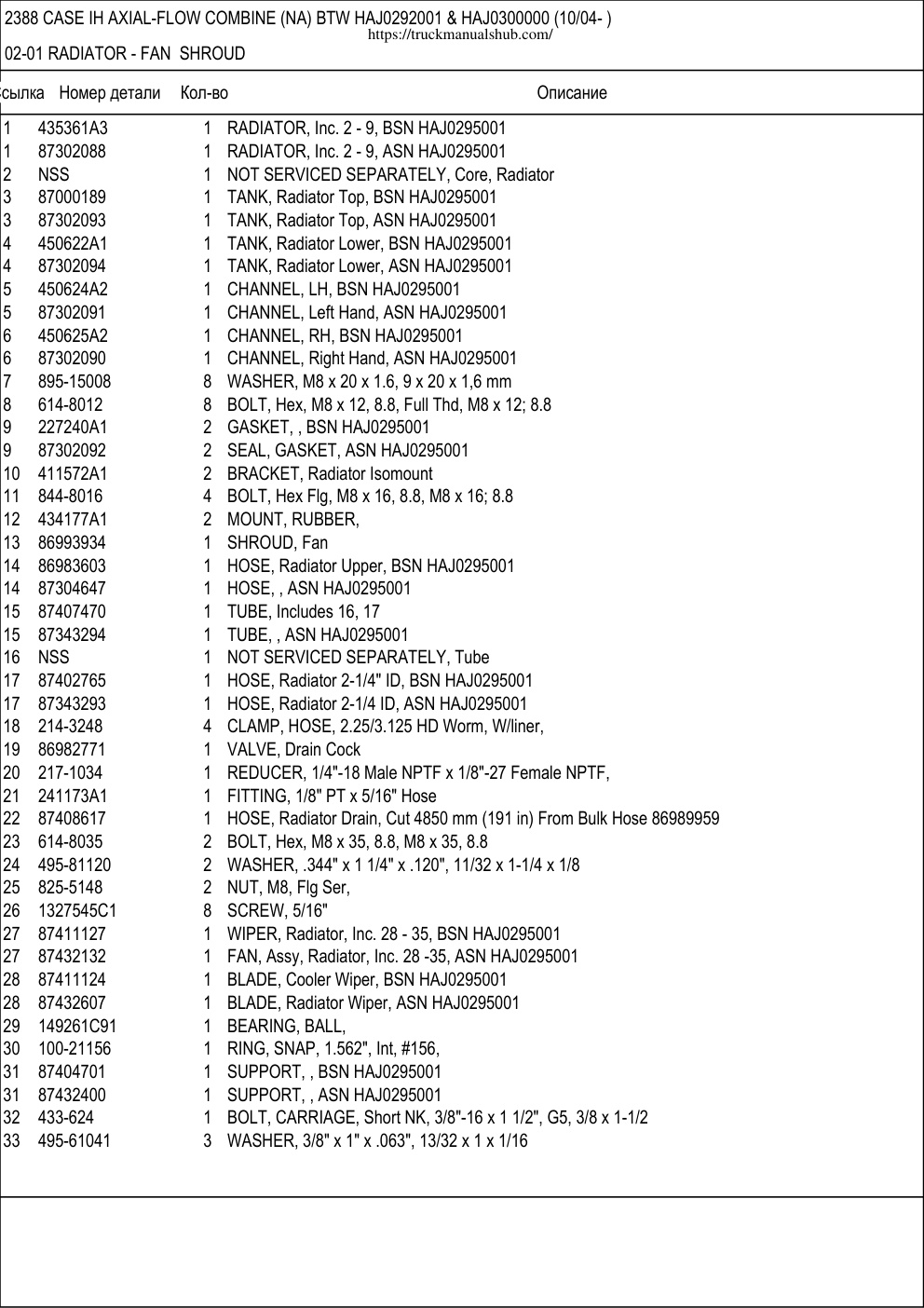

02-01 RADIATOR - FAN SHROUD 02-01 RADIATOR - FAN SHROUD Ссылка Номер детали Кол-во Описание 1 435361A3 1 RADIATOR, Inc. 2 - 9, BSN HAJ0295001 1 87302088 1 RADIATOR, Inc. 2 - 9, ASN HAJ0295001 2 NSS 1 NOT SERVICED SEPARATELY, Core, Radiator 3 87000189 1 TANK, Radiator Top, BSN HAJ0295001 3 87302093 1 TANK, Radiator Top, ASN HAJ0295001 4 450622A1 1 TANK, Radiator Lower, BSN HAJ0295001 4 87302094 1 TANK, Radiator Lower, ASN HAJ0295001 5 450624A2 1 CHANNEL, LH, BSN HAJ0295001 5 87302091 1 CHANNEL, Left Hand, ASN HAJ0295001 6 450625A2 1 CHANNEL, RH, BSN HAJ0295001 6 87302090 1 CHANNEL, Right Hand, ASN HAJ0295001 7 895-15008 8 WASHER, M8 x 20 x 1.6, 9 x 20 x 1,6 mm 8 614-8012 8 BOLT, Hex, M8 x 12, 8.8, Full Thd, M8 x 12; 8.8 9 227240A1 2 GASKET,, BSN HAJ0295001 9 87302092 2 SEAL, GASKET, ASN HAJ0295001 10 411572A1 2 BRACKET, Radiator Isomount 11 844-8016 4 BOLT, Hex Flg, M8 x 16, 8.8, M8 x 16

2388 CASE IH AXIAL-FLOW COMBINE (NA) BTW HAJ0292001 & HAJ0300000 (10/04- ) https://truckmanualshub.com/ 02-01 RADIATOR - FAN SHROUD 2388 CASE IH AXIAL-FLOW COMBINE (NA) BTW HAJ0292001 & HAJ0300000 (10/04- ) https://truckmanualshub.com/ 02-01 RADIATOR - FAN SHROUD Ссылка Номер детали Кол-во Описание 1 435361A3 1 RADIATOR, Inc. 2 - 9, BSN HAJ0295001 1 87302088 1 RADIATOR, Inc. 2 - 9, ASN HAJ0295001 2 NSS 1 NOT SERVICED SEPARATELY, Core, Radiator 3 87000189 1 TANK, Radiator Top, BSN HAJ0295001 3 87302093 1 TANK, Radiator Top, ASN HAJ0295001 4 450622A1 1 TANK, Radiator Lower, BSN HAJ0295001 4 87302094 1 TANK, Radiator Lower, ASN HAJ0295001 5 450624A2 1 CHANNEL, LH, BSN HAJ0295001 5 87302091 1 CHANNEL, Left Hand, ASN HAJ0295001 6 450625A2 1 CHANNEL, RH, BSN HAJ0295001 6 87302090 1 CHANNEL, Right Hand, ASN HAJ0295001 7 895-15008 8 WASHER, M8 x 20 x 1.6, 9 x 20 x 1,6 mm 8 614-8012 8 BOLT, Hex, M8 x 12, 8.8, Full Thd, M8 x 12; 8.8 9 227240A1 2 GASKET, , BSN HAJ0295001 9 87302092 2 SEAL, GASKET, ASN HAJ0295001 10 411572A1 2 BRACKET, Radiator Isomount 11 844-8016 4 BOLT, Hex Flg, M8 x 16, 8.8, M8 x 16; 8.8 12 434177A1 2 MOUNT, RUBBER, 13 86993934 1 SHROUD, Fan 14 86983603 1 HOSE, Radiator…
