2388 CASE IH AXIAL-FLOW COMBINE (RU) ASN HAJ0300001 (10/06-)

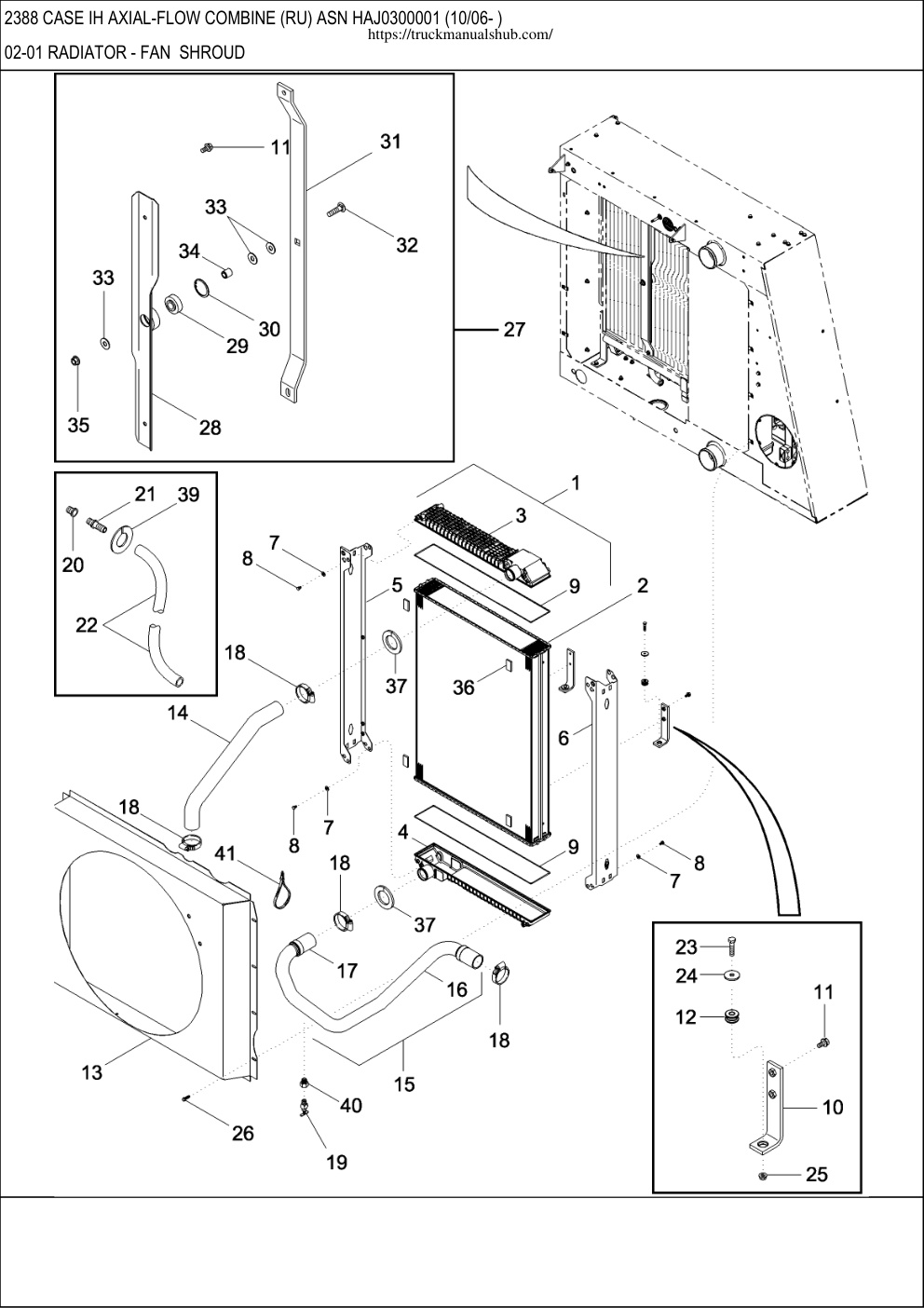

02-01 RADIATOR - FAN SHROUD

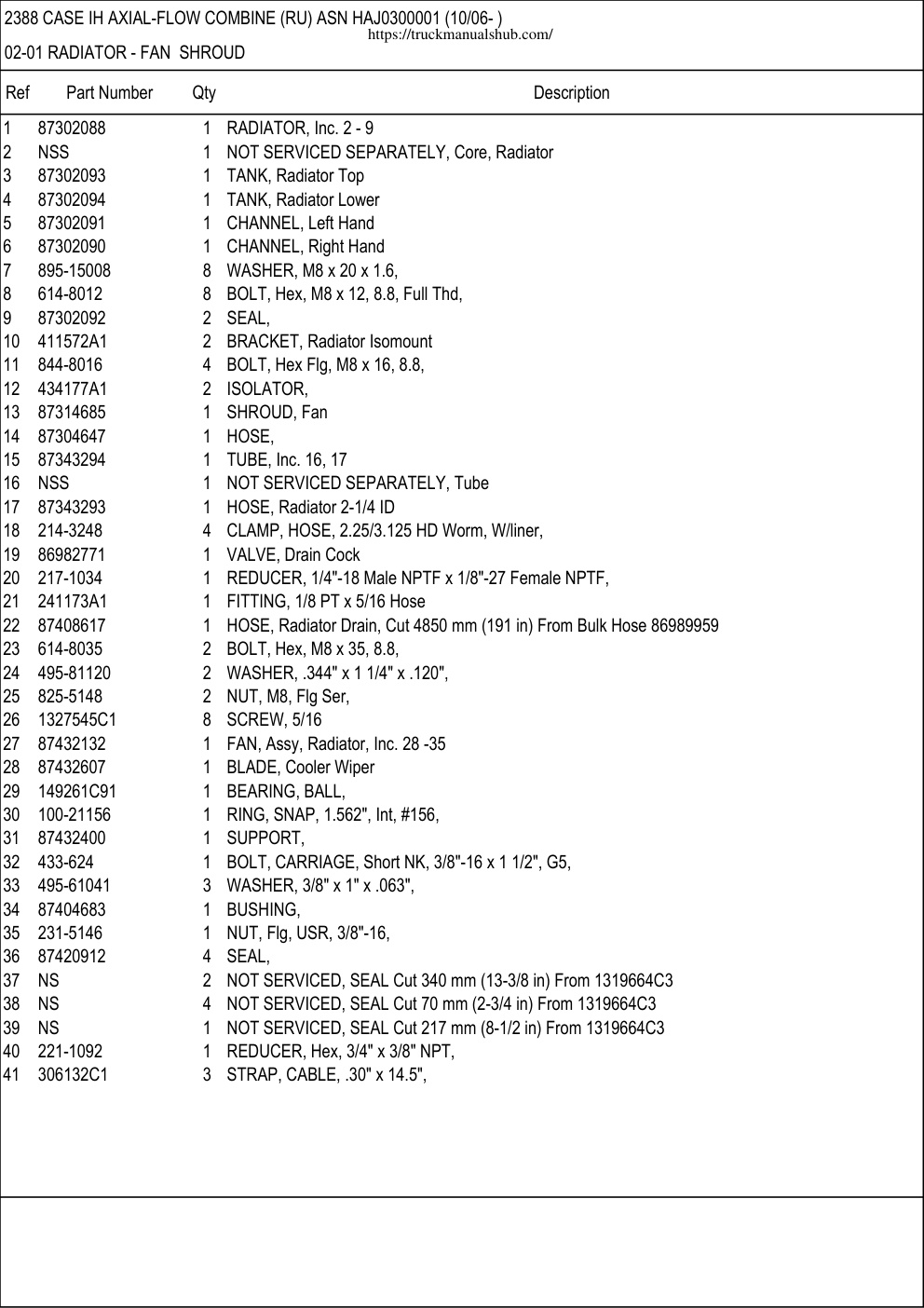

https://truckmanualshub.com/ Каталог Запчастей CASE 2388 2388 CASE IH AXIAL-FLOW COMBINE (RU) ASN HAJ0300001 (10/06- ) https://truckmanualshub.com/ 02-01 RADIATOR - FAN SHROUD 2388 CASE IH AXIAL-FLOW COMBINE (RU) ASN HAJ0300001 (10/06- ) https://truckmanualshub.com/ 02-01 RADIATOR - FAN SHROUD Ref Part Number Qty Description 1 87302088 1 RADIATOR, Inc. 2 - 9 2 NSS 1 NOT SERVICED SEPARATELY, Core, Radiator 3 87302093 1 TANK, Radiator Top 4 87302094 1 TANK, Radiator Lower 5 87302091 1 CHANNEL, Left Hand 6 87302090 1 CHANNEL, Right Hand 7 895-15008 8 WASHER, M8 x 20 x 1.6, 8 614-8012 8 BOLT, Hex, M8 x 12, 8.8, Full Thd, 9 87302092 2 SEAL, 10 411572A1 2 BRACKET, Radiator Isomount 11 844-8016 4 BOLT, Hex Flg, M8 x 16, 8.8, 12 434177A1 2 ISOLATOR, 13 87314685 1 SHROUD, Fan 14 87304647 1 HOSE, 15 87343294 1 TUBE, Inc. 16, 17 16 NSS 1 NOT SERVICED SEPARATELY, Tube 17 87343293 1 HOSE, Radiator 2-1/4 ID 18 214-3248 4 CLAMP, HOSE, 2.25/3.125 HD Worm, W/liner, 19 86982771 1 VALVE, Drain Cock 20 217-1034 1 REDUCER, 1/4"-18 Male NPTF x 1/8"-27 Female NPTF, 21 241173A1 1 FITTING, 1/8 PT x 5/16 Hose 22 87408617 1 HOSE, Radiator Drain, Cut 4850 mm (191 in) From Bulk Hose 86989959 23 614-8035 2…
