PARTS CATALOG

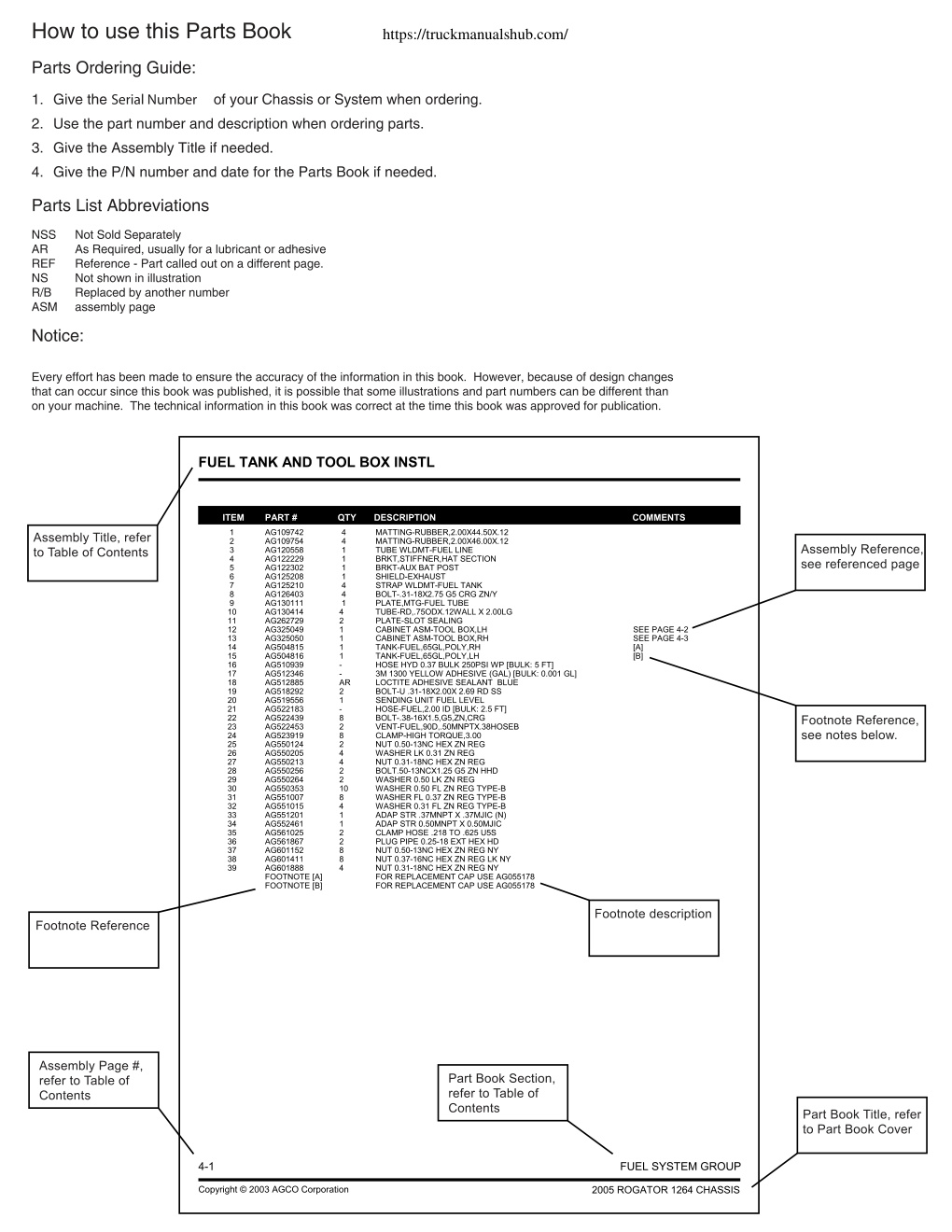

Row Crop System 874/1074/1274 ROGATOR LIQUID SYSTEM 2006 How to use this Parts Book Parts Ordering Guide: Give the Serial Number _ of your Chassis or System when ordering. Use the part number and description when ordering parts. Give the Assembly Title if needed. Give the P/N number and date for the Parts Book if needed. Parts List Abbreviations NSS Not Sold Separately AR As Required, usually for a lubricant or adhesive REF Reference - Part called out on a different page. NS Not shown in illustration R/B Replaced by another number ASM assembly page Every effort has been made to ensure the accuracy of the information in this book. However, because of design changes that can occur since this book was published, it is possible that some illustrations and part numbers can be different than on your machine. The technical information in this book was correct at the

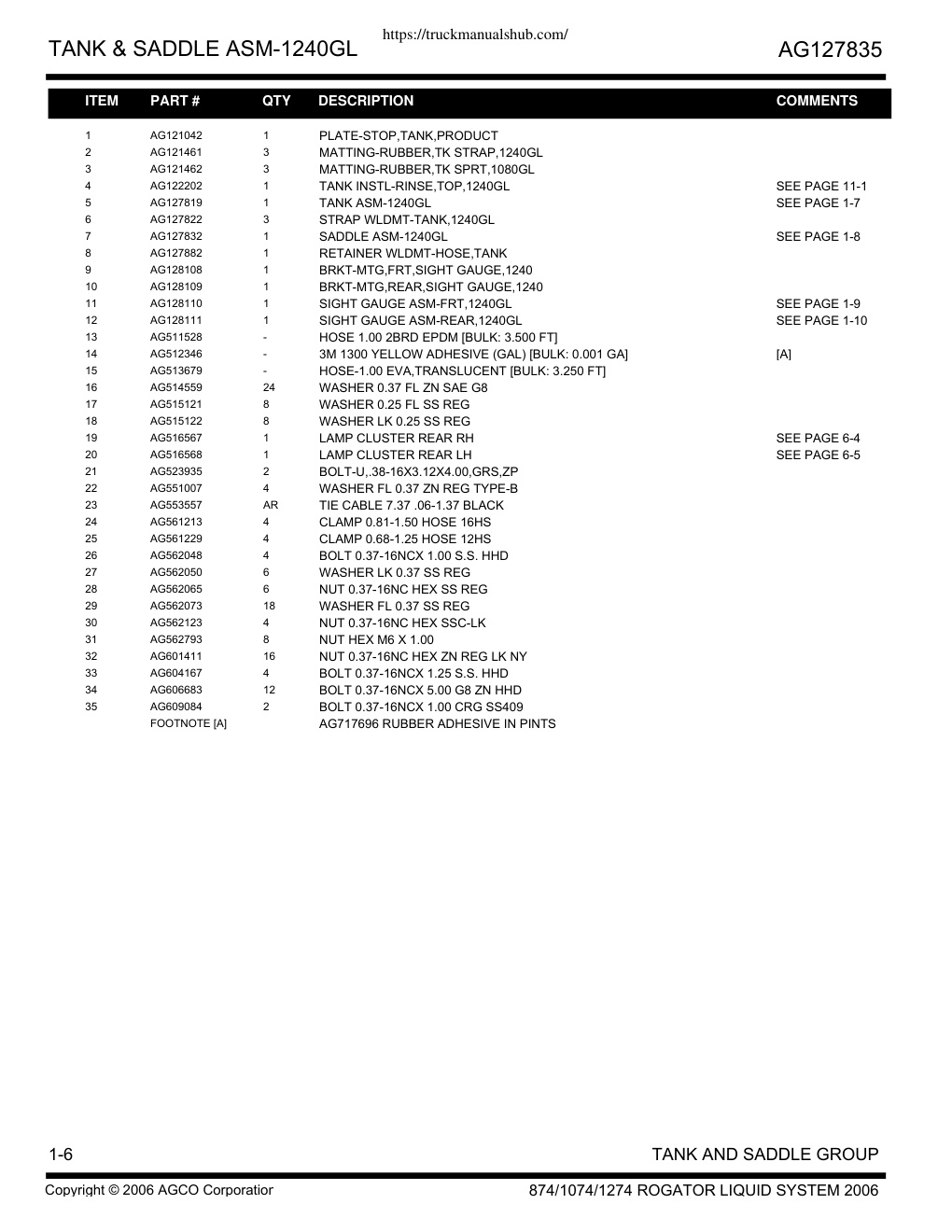

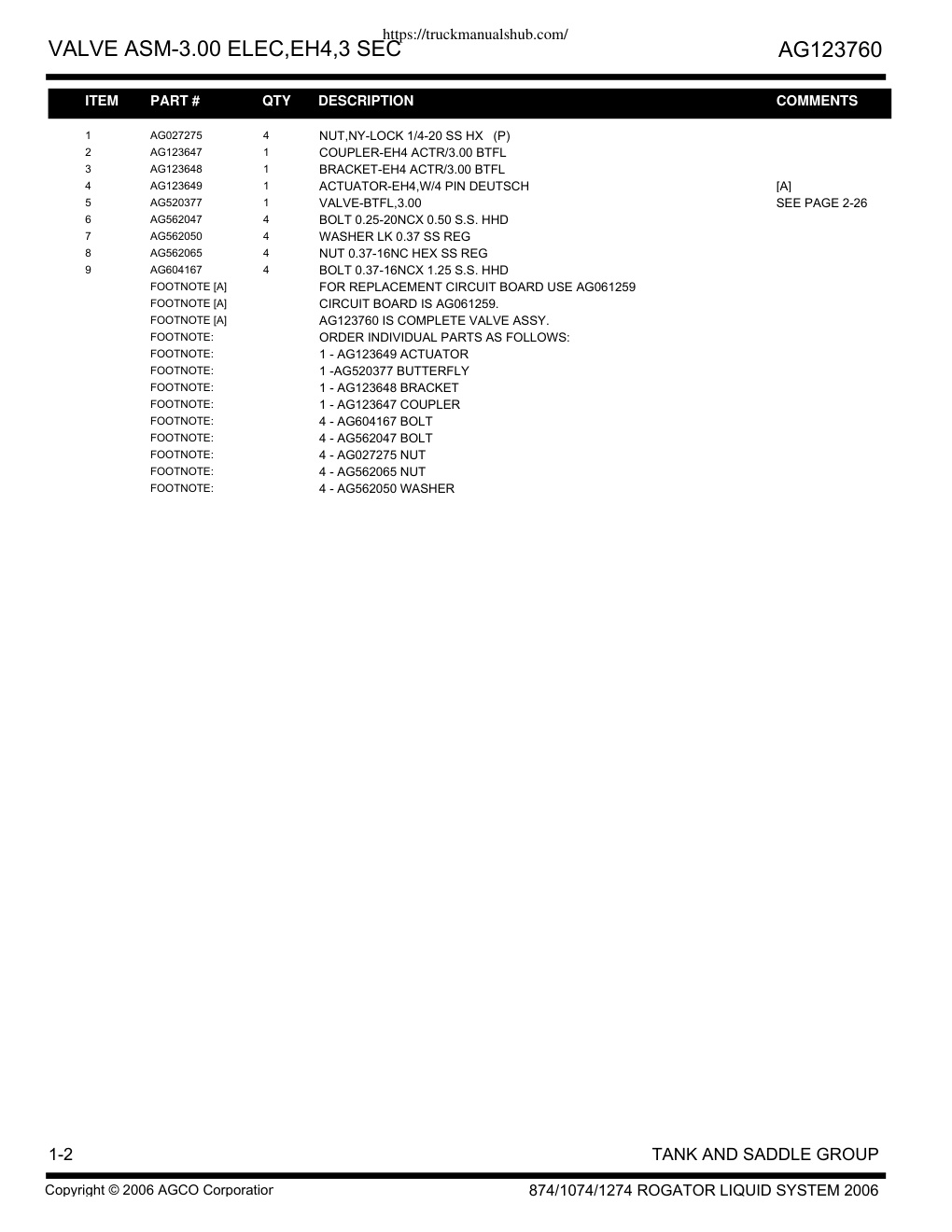

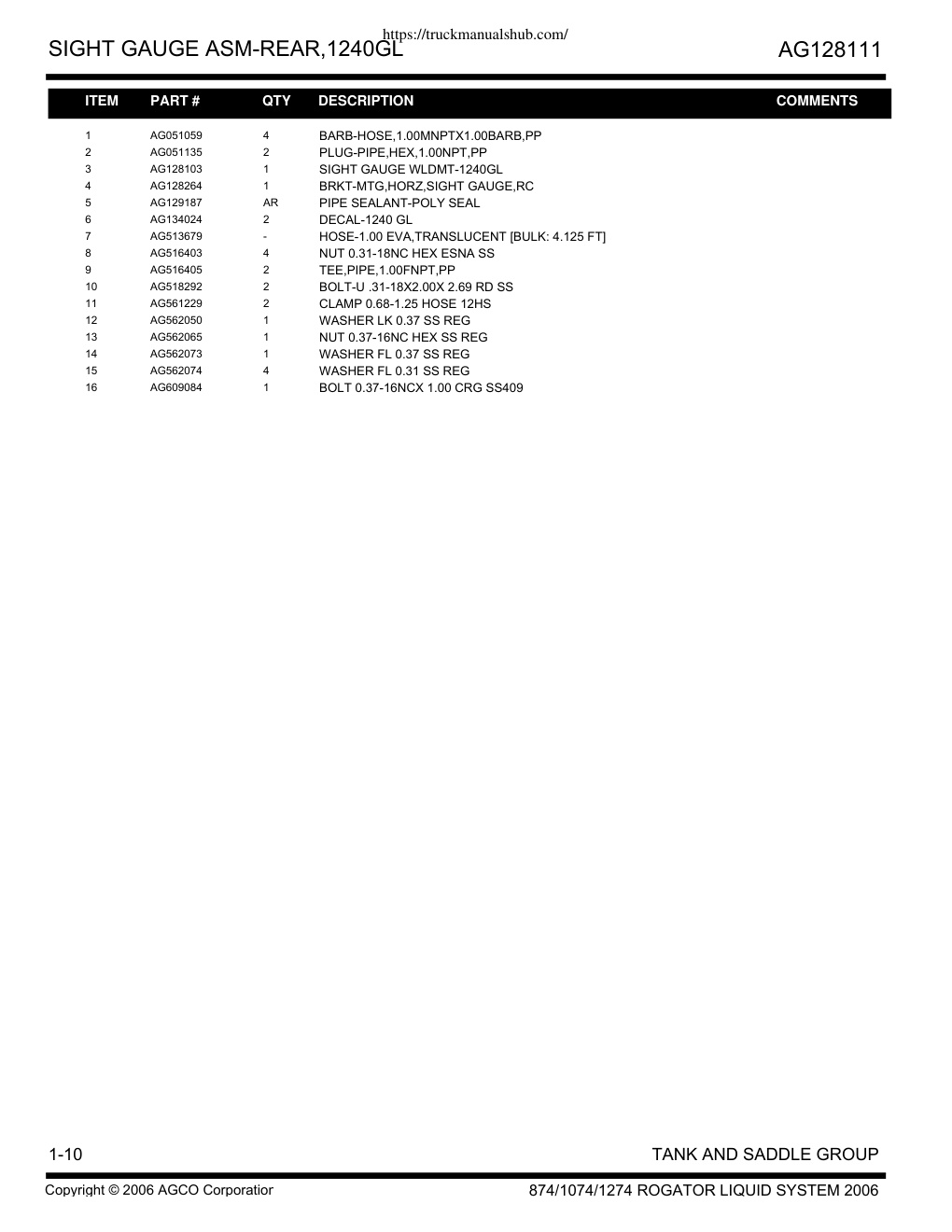

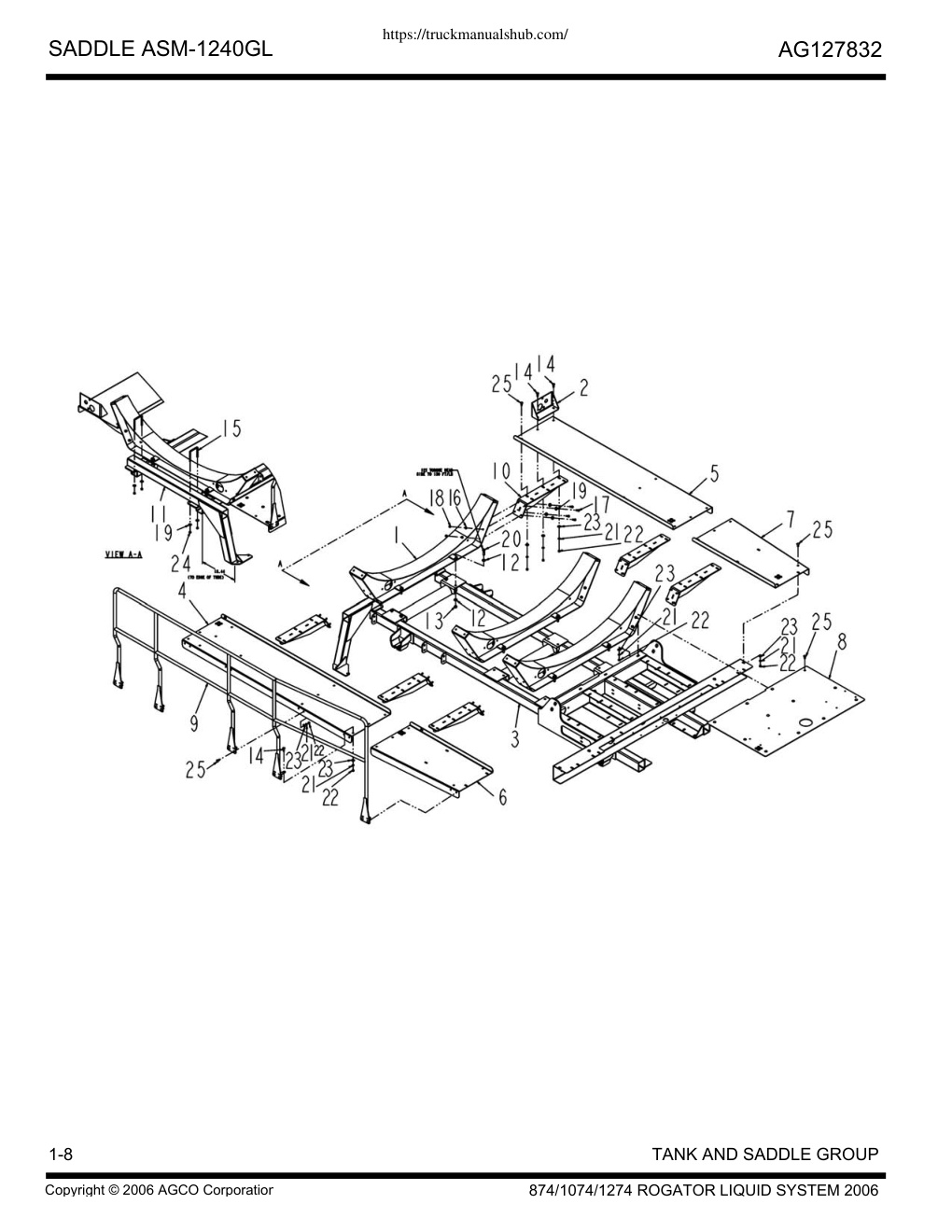

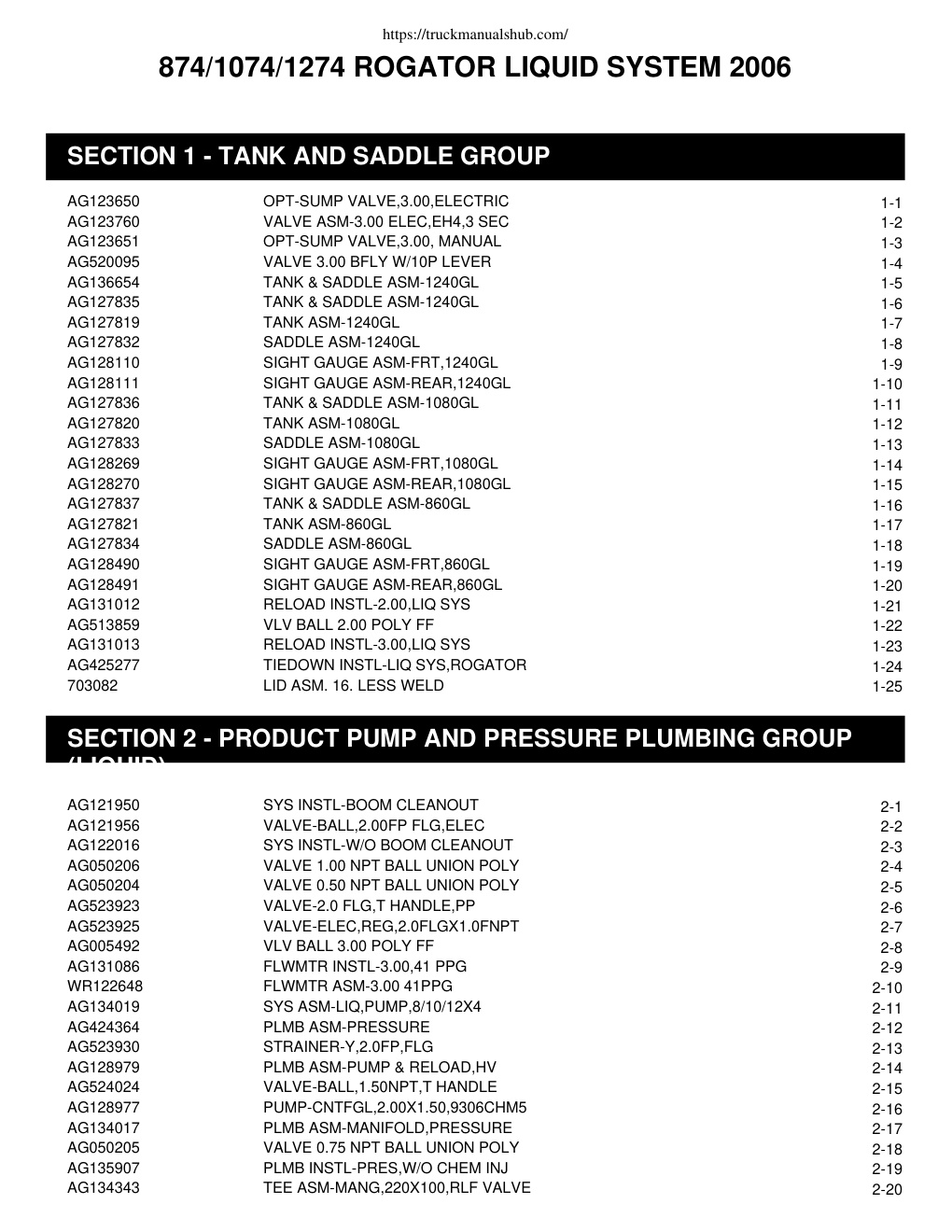

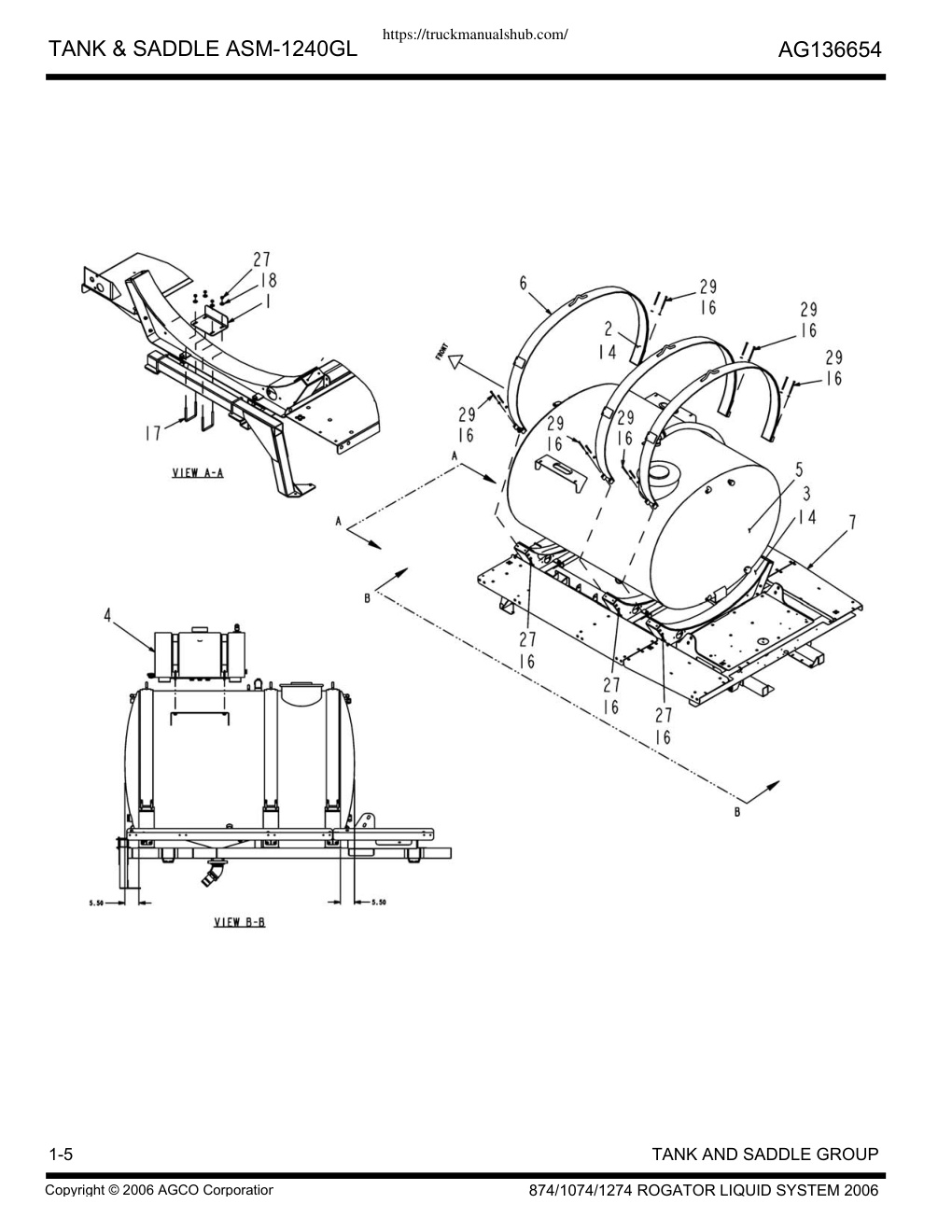

https://truckmanualshub.com/ Row Crop System PARTS CATALOG Ag-Chem 874/1074/1274 ROGATOR LIQUID SYSTEM 2006 AG135916 February 2006 https://truckmanualshub.com/ https://truckmanualshub.com/ 874/1074/1274 ROGATOR LIQUID SYSTEM 2006 SECTION 1 - TANK AND SADDLE GROUP AG123650 OPT-SUMP VALVE,3.00,ELECTRIC 1-1 AG123760 VALVE ASM-3.00 ELEC,EH4,3 SEC 1-2 AG123651 OPT-SUMP VALVE,3.00, MANUAL 1-3 AG520095 VALVE 3.00 BFLY W/10P LEVER 1-4 AG136654 TANK & SADDLE ASM-1240GL 1-5 AG127835 TANK & SADDLE ASM-1240GL 1-6 AG127819 TANK ASM-1240GL 1-7 AG127832 SADDLE ASM-1240GL 1-8 AG128110 SIGHT GAUGE ASM-FRT,1240GL 1-9 AG128111 SIGHT GAUGE ASM-REAR,1240GL 1-10 AG127836 TANK & SADDLE ASM-1080GL 1-11 AG127820 TANK ASM-1080GL 1-12 AG127833 SADDLE ASM-1080GL 1-13 AG128269 SIGHT GAUGE ASM-FRT,1080GL 1-14 AG128270 SIGHT GAUGE ASM-REAR,1080GL 1-15 AG127837 TANK & SADDLE ASM-860GL 1-16 AG127821 TANK ASM-860GL 1-17 AG127834 SADDLE ASM-860GL 1-18 AG128490 SIGHT GAUGE ASM-FRT,860GL 1-19 AG128491 SIGHT GAUGE ASM-REAR,860GL 1-20 AG131012 RELOAD INSTL-2.00,LIQ SYS 1-21 AG513859 VLV BALL 2.00 POLY FF 1-22 AG131013 RELOAD INSTL-3.00,LIQ SYS 1-23 AG425277 TIEDOWN INSTL-LIQ SYS,ROGATOR 1-24 703082 LID ASM. 16. LESS…
