PARTS CATALOG

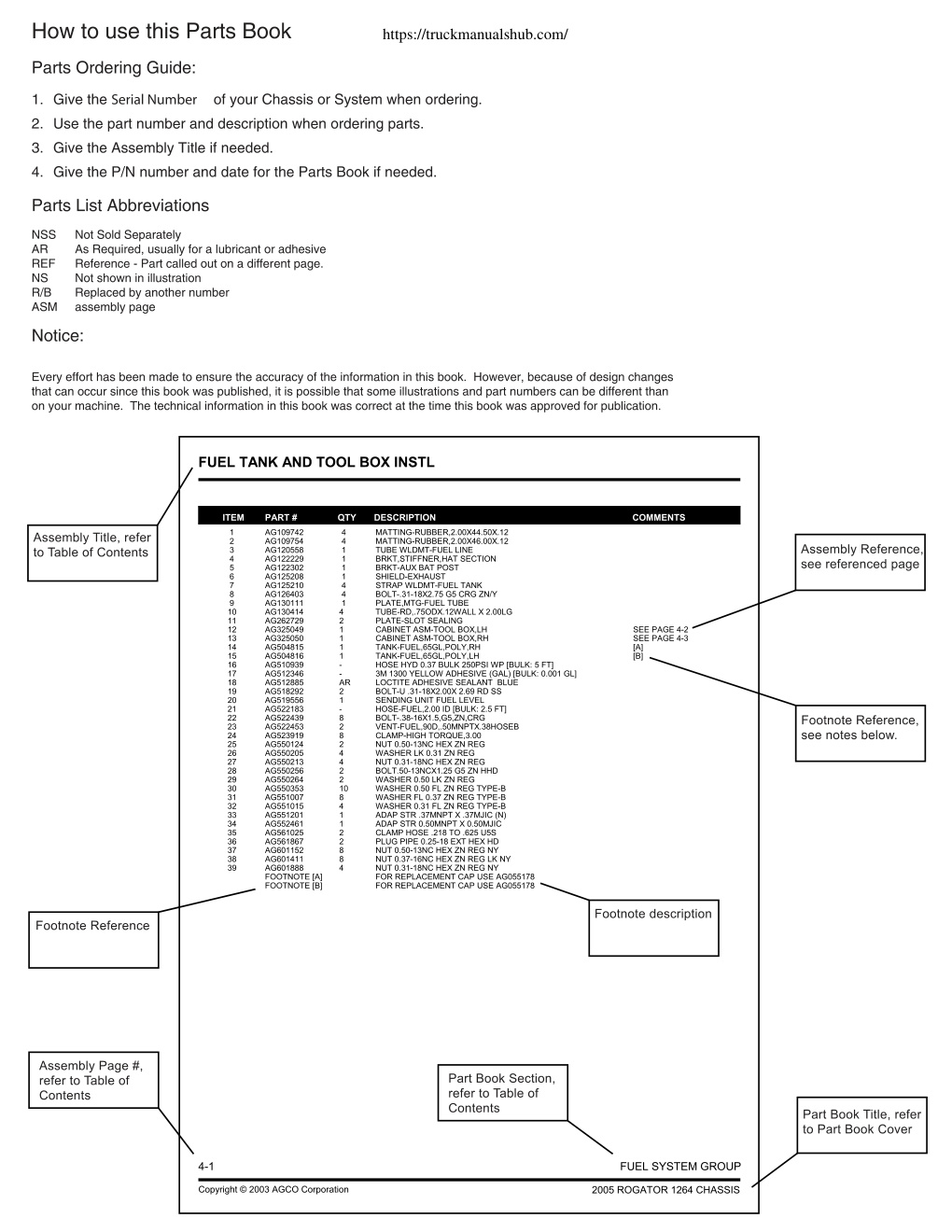

LIQUID SPRAYERS 7460 / 7660 SPRAYER CHASSIS (EFF S/N..Txx1001) How to use this Parts Book Parts Ordering Guide: Give the Serial Number _ of your Chassis or System when ordering. Use the part number and description when ordering parts. Give the Assembly Title if needed. Give the P/N number and date for the Parts Book if needed. Parts List Abbreviations NSS Not Sold Separately AR As Required, usually for a lubricant or adhesive REF Reference - Part called out on a different page. NS Not shown in illustration R/B Replaced by another number ASM assembly page Every effort has been made to ensure the accuracy of the information in this book. However, because of design changes that can occur since this book was published, it is possible that some illustrations and part numbers can be different than on your machine. The technical information in this book was correct

https://truckmanualshub.com/ LIQUID SPRAYERS PARTS CATALOG CHALLENGER 7460 / 7660 SPRAYER CHASSIS (EFF S/N ..Txx1001) 520030D1 B June 2008 https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ TABLE OF CONTENTS MAIN TOC ENGINE GROUP 1 TRANSMISSION GROUP 2 FRAME AND SUSPENSION GROUP 3 AXLE AND STEERING GROUP 4 FUEL SYSTEM GROUP 5 HYDRAULIC GROUP 6 CAB GROUP 7 ELECTRICAL GROUP 8 LIGHTING GROUP 9 APPEARANCE GROUP 10 TIRE AND WHEEL GROUP 11 DECAL GROUP 12 GUIDANCE GROUP 13 CONTROLLER GROUP 14 OPTIONS GROUP 15 https://truckmanualshub.com/ https://truckmanualshub.com/ TABLE OF CONTENTS ENGINE GROUP ENGINE INSTALL-7X60,CHALLENGER 1-1 ENGINE INSTALL-7X60,CHALLENGER 1-2 ENGINE-CAT C6.6,174HP T3 1-3 FAN GUARD INSTALL 1-4 FAN GUARD INSTALL 1-5 AIR INTAKE GROUP 1-6 EXHAUST SYSTEM GROUP 1-7 COOLING PKG GROUP 1-8 COOLING PKG GROUP 1-9 https://truckmanualshub.com/ https://truckmanualshub.com/ ENGINE INSTALL-7X60,CHALLENGER 513027D1-03-T101-01.TIF 1-1 ENGINE GROUP Copyright © 2008 AGCO Corporation 7460 / 7660 SPRAYER CHASSIS (EFF S/N ..TXX1001) https://truckmanualshub.com/ ENGINE INSTALL-7X60,CHALLENGER ITEM PART # QTY DESCRIPTION COMMENTS 2 WR55261 1 SCREW-HEX…
