PARTS CATALOG

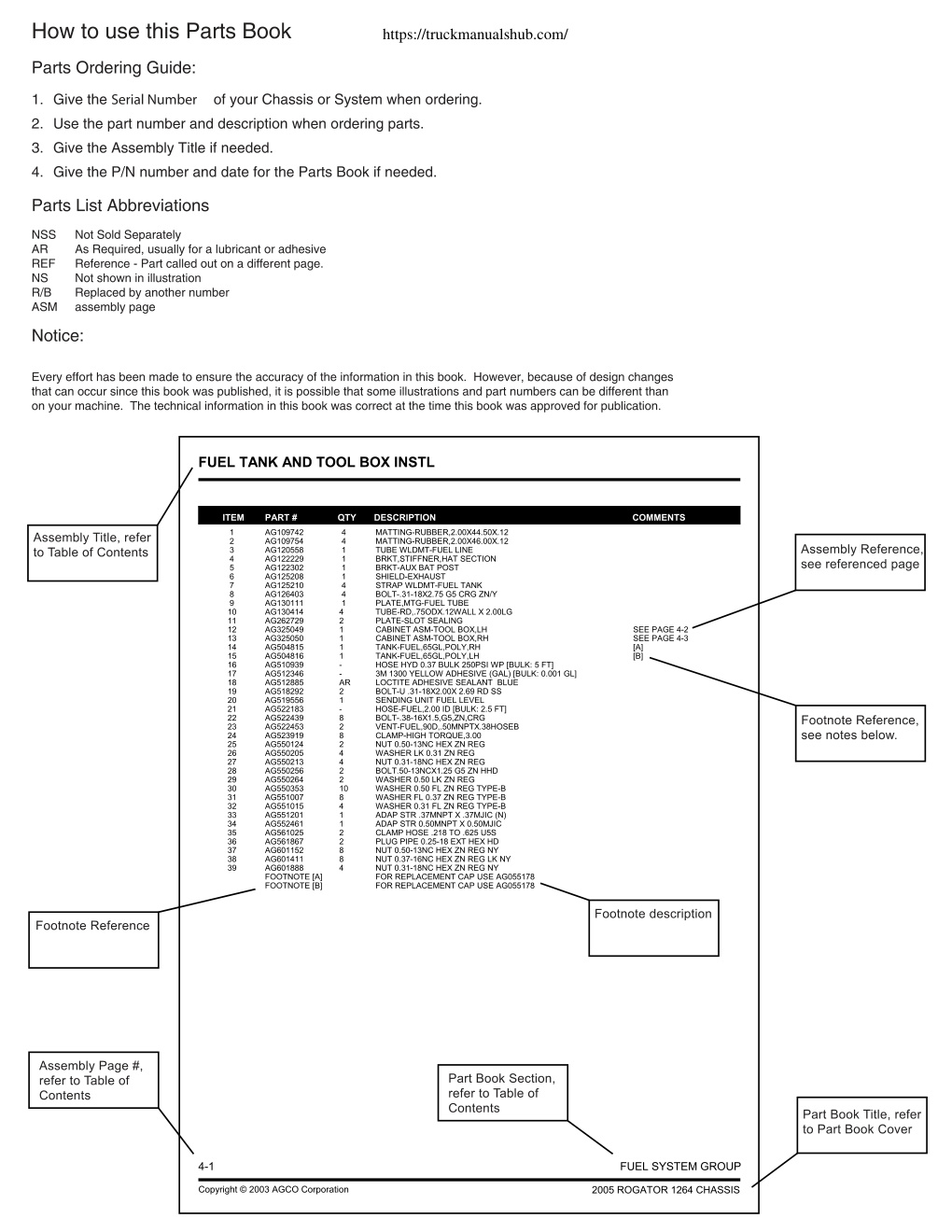

ROW CROP SYSTEM 874 / 1074 / 1274 / 1286C / SS / SSc ROGATOR LIQUID SYSTEM (EFF S/N..Txx1001) How to use this Parts Book Parts Ordering Guide: Give the Serial Number _ of your Chassis or System when ordering. Use the part number and description when ordering parts. Give the Assembly Title if needed. Give the P/N number and date for the Parts Book if needed. Parts List Abbreviations NSS Not Sold Separately AR As Required, usually for a lubricant or adhesive REF Reference - Part called out on a different page. NS Not shown in illustration R/B Replaced by another number ASM assembly page Every effort has been made to ensure the accuracy of the information in this book. However, because of design changes that can occur since this book was published, it is possible that some illustrations and part numbers can be different than on your machine. The technical infor

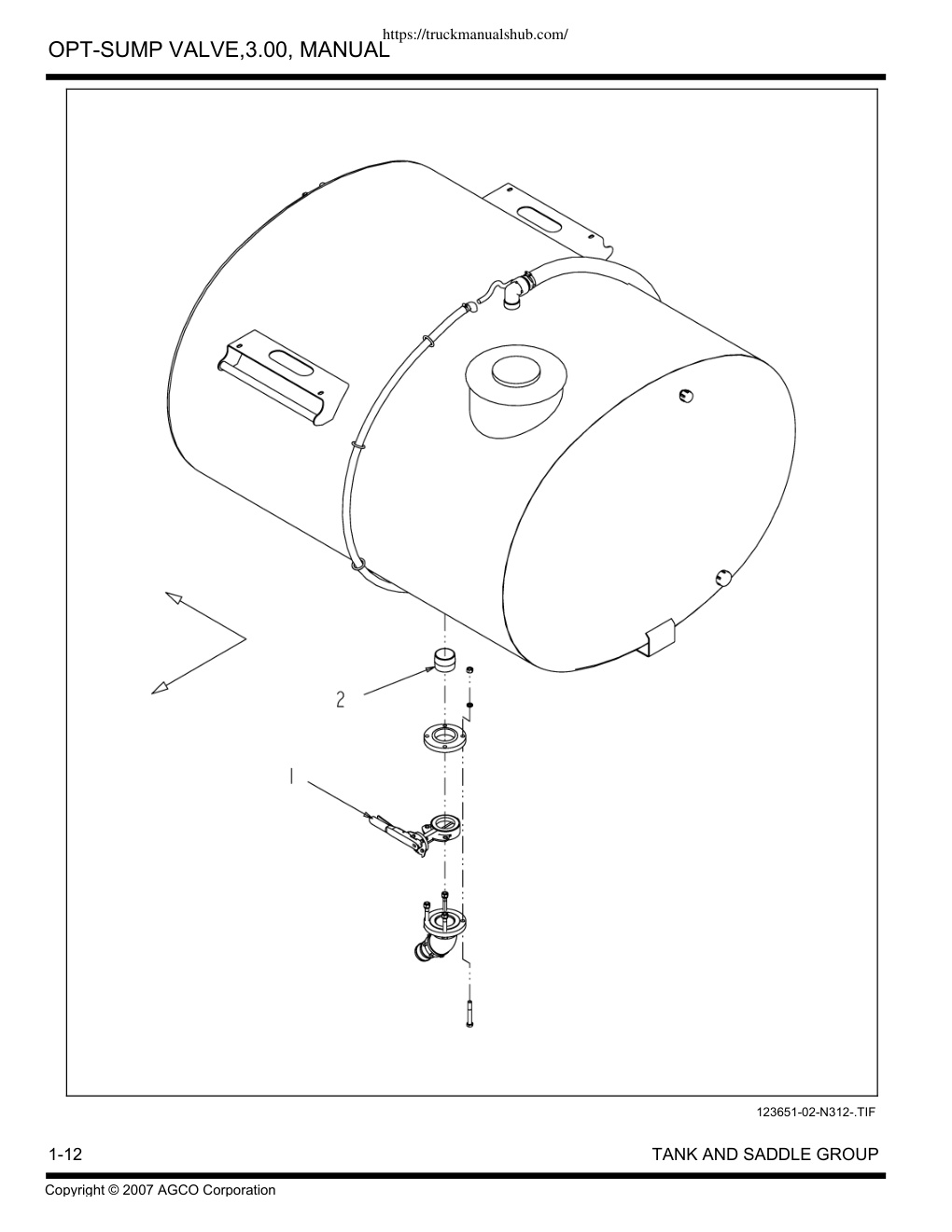

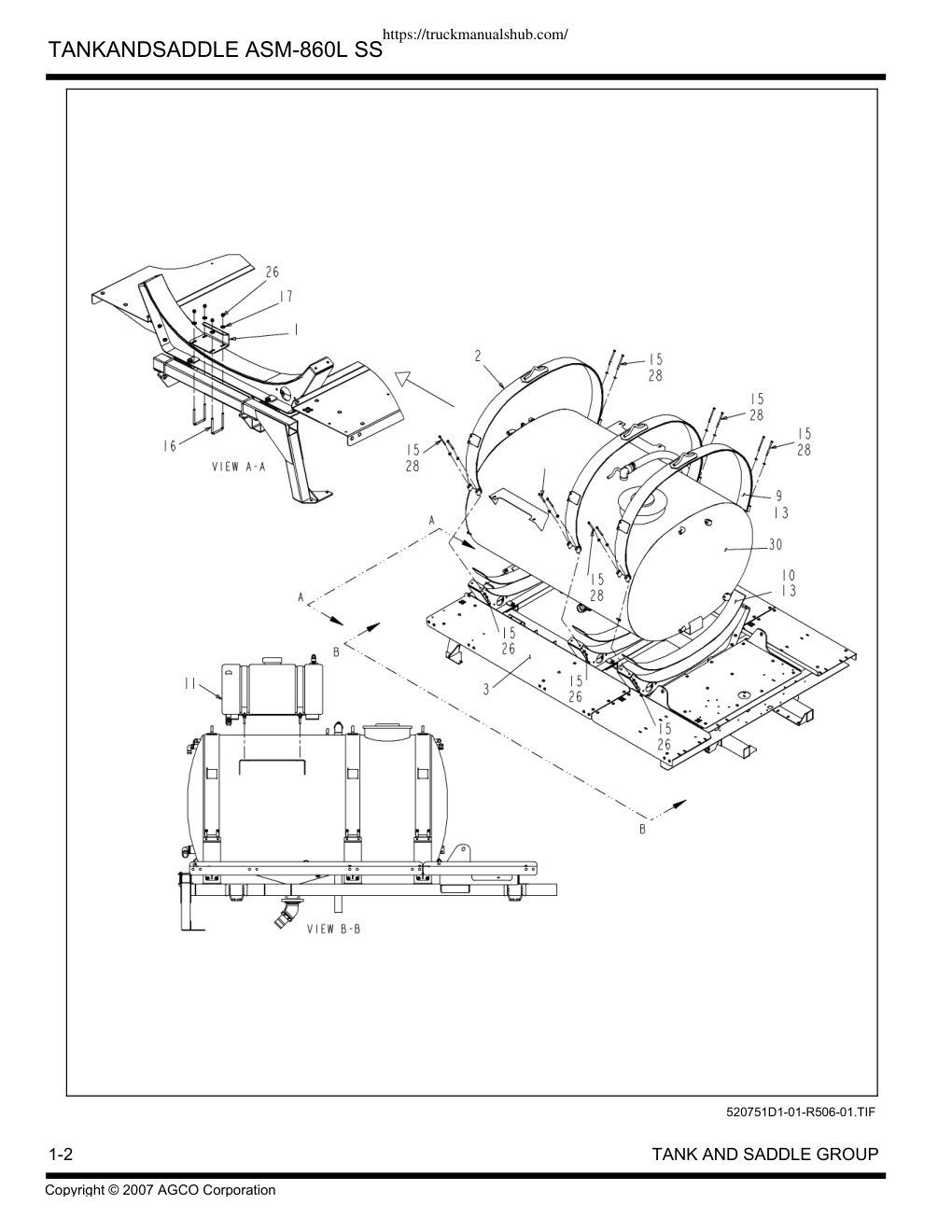

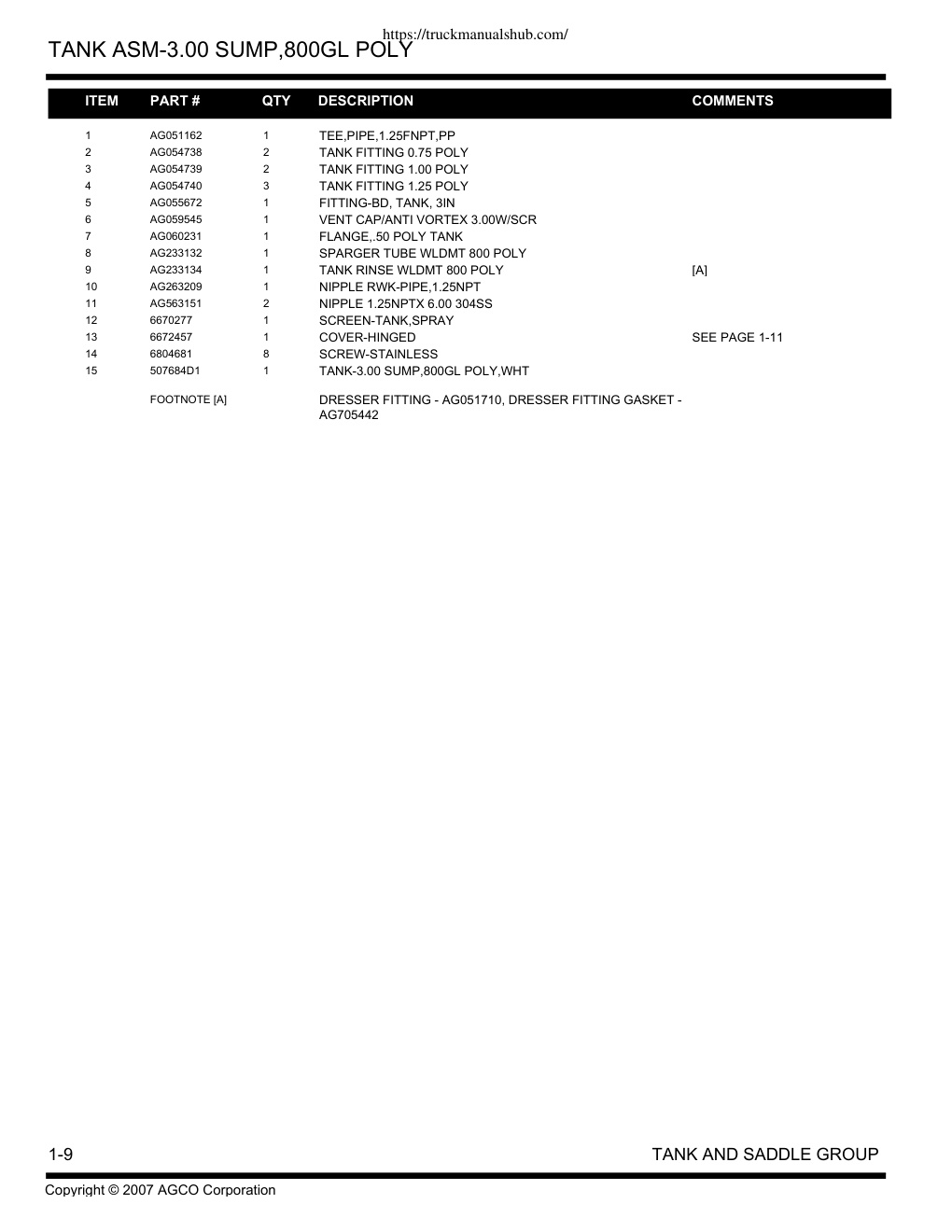

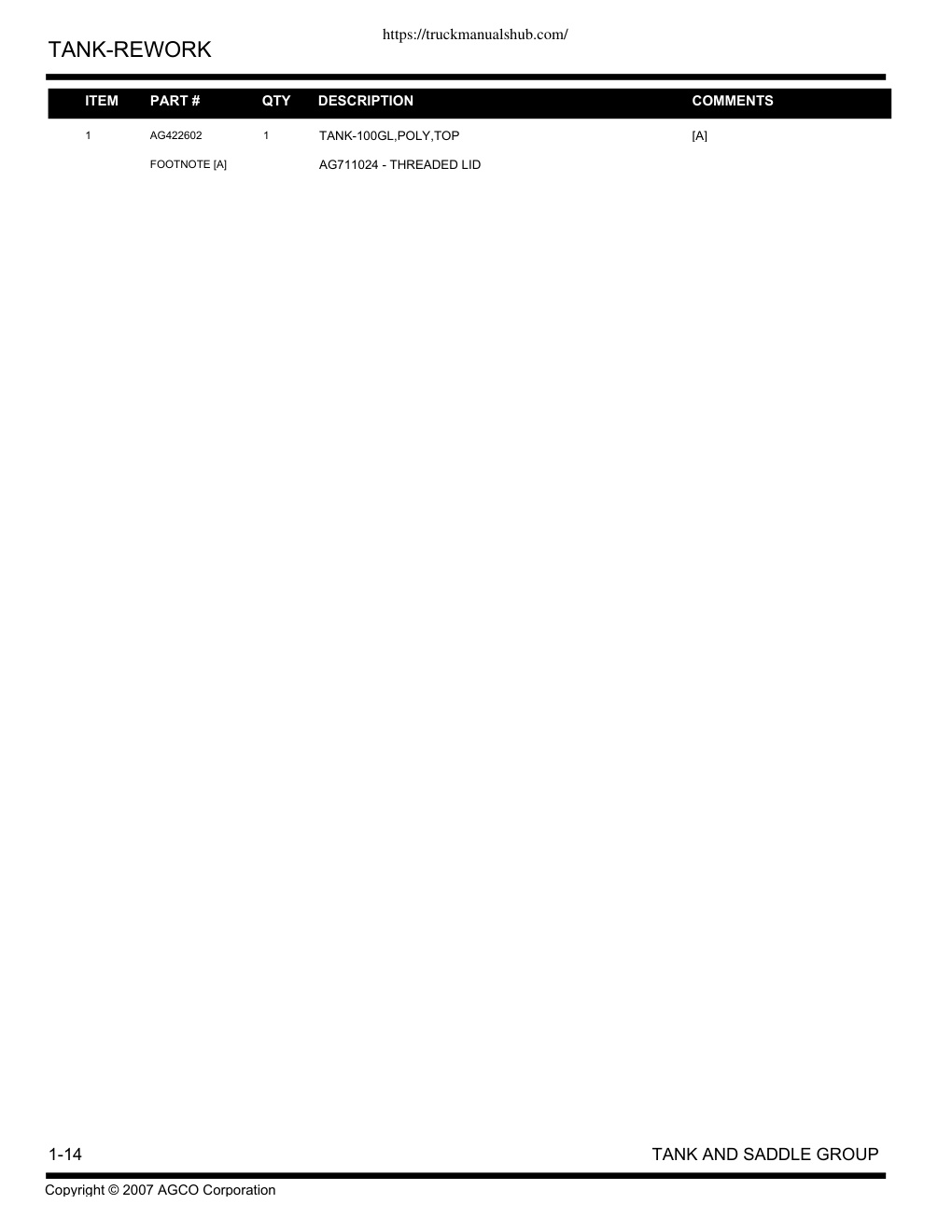

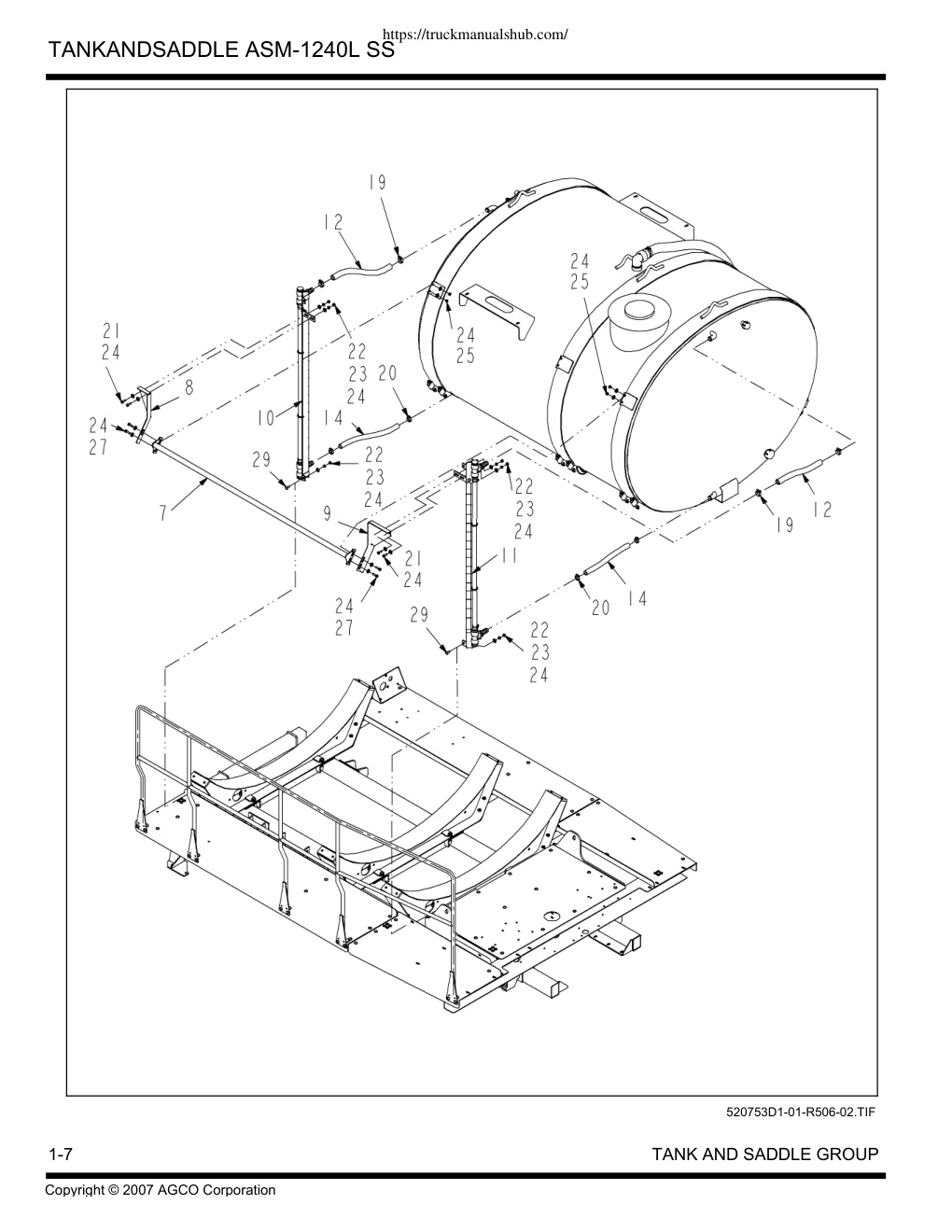

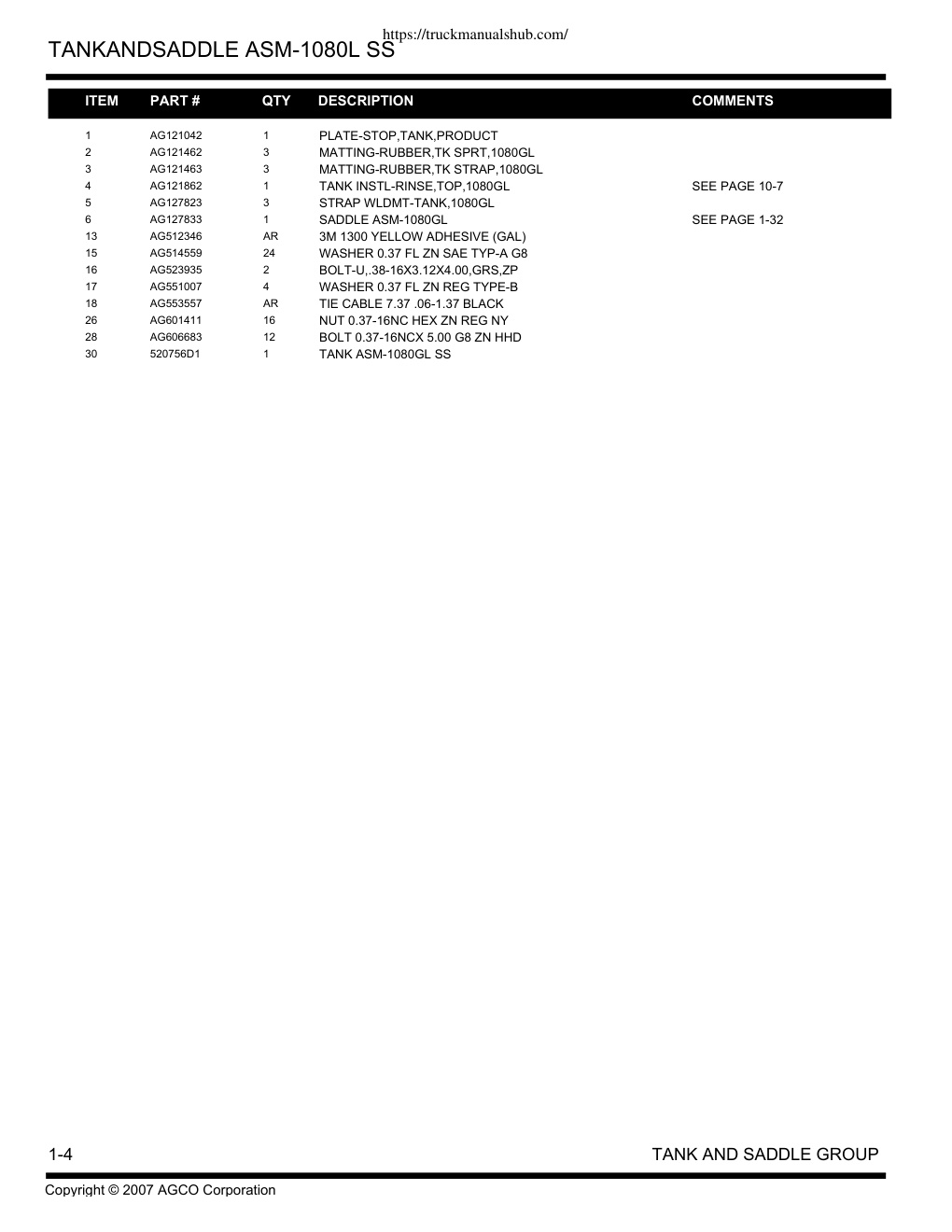

https://truckmanualshub.com/ ROW CROP SYSTEM PARTS CATALOG AG-CHEM 874 / 1074 / 1274 / 1286C / SS / SSc ROGATOR LIQUID SYSTEM (EFF S/N ..Txx1001) 514904D1 A August 2007 https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ TABLE OF CONTENTS MAIN TOC TANK AND SADDLE GROUP 1 PRODUCT PUMP AND PRESSURE PLUMBING GROUP 2 BOOM GROUP 3 BOOM PLUMBING GROUP 4 HYDRAULIC GROUP 5 ELECTRICAL GROUP 6 AIR SYSTEM GROUP 7 FOAM MARKER GROUP 8 DECAL GROUP 9 PRESSURE WASHER AND HEAD RINSE GROUP 10 OPTION GROUP 11 https://truckmanualshub.com/ https://truckmanualshub.com/ TABLE OF CONTENTS TANK AND SADDLE GROUP TANKANDSADDLE ASM-800GL POLY,WHT 1-1 TANKANDSADDLE ASM-860L SS 1-2 TANKANDSADDLE ASM-860L SS 1-3 TANKANDSADDLE ASM-1080L SS 1-4 TANKANDSADDLE ASM-1080L SS 1-5 TANKANDSADDLE ASM-1240L SS 1-6 TANKANDSADDLE ASM-1240L SS 1-7 FTG ASM-TANK,800GL POLY 1-8 TANK ASM-3.00 SUMP,800GL POLY 1-9 ASM 10" LID 1-10 COVER-HINGED 1-11 OPT-SUMP VALVE,3.00, MANUAL 1-12 VALVE 3.00 BFLY W/10P LEVER 1-13 TANK-REWORK 1-14 SADDLE ASM-800GL POLY 1-15 VALVE ASM-3.00 ELEC,EH4,3 SEC 1-16 TANK ASM-40GL W/O AG 1-17 VENT ASM-TANK 1-18 TANK-ASM-20GL W/O AG 1-19 RELOAD INSTL-2.00,LIQ SYS 1-20 VLV…
