PARTS CATALOG

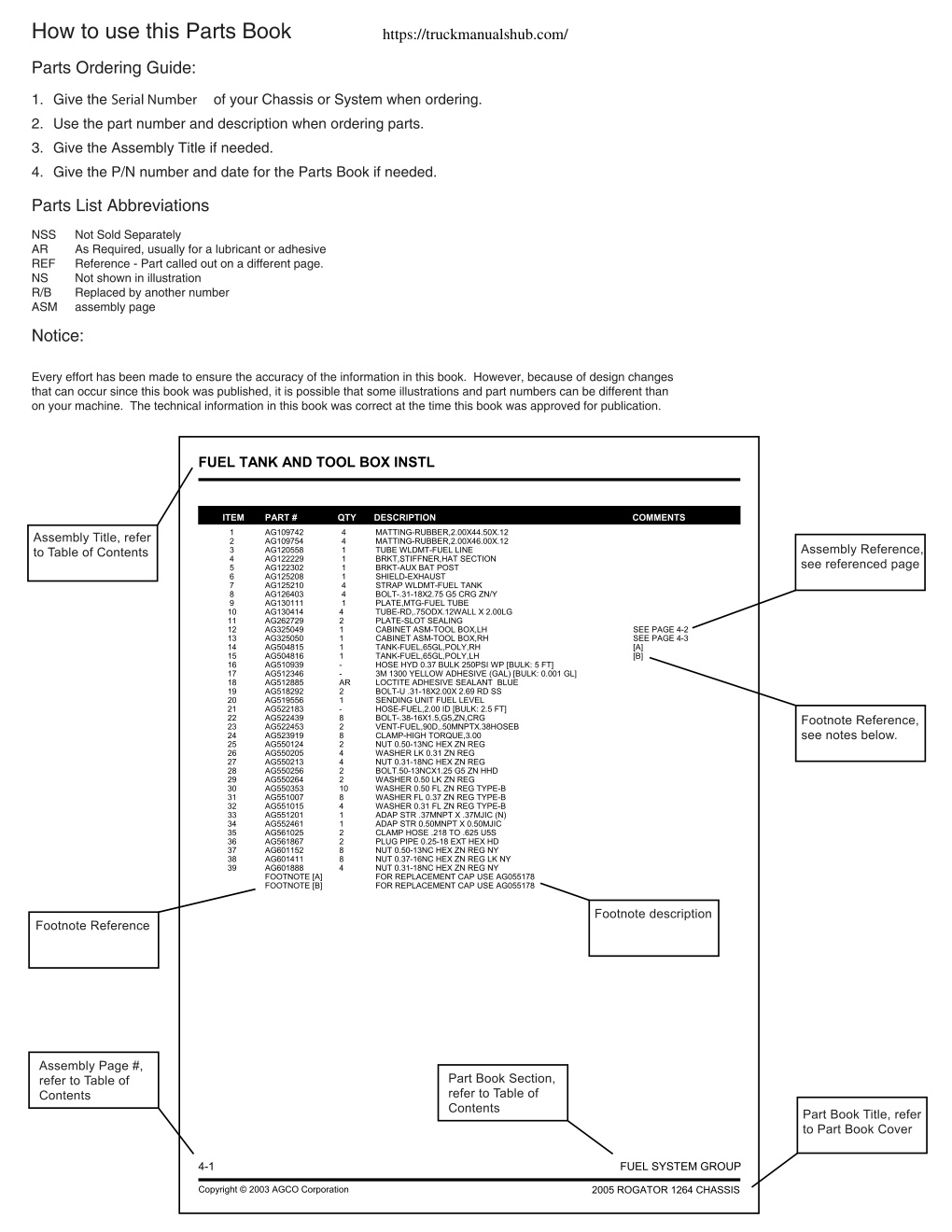

Row Crop Chassis 1074C ROGATOR CHASSIS 2006 How to use this Parts Book Parts Ordering Guide: Give the Serial Number _ of your Chassis or System when ordering. Use the part number and description when ordering parts. Give the Assembly Title if needed. Give the P/N number and date for the Parts Book if needed. Parts List Abbreviations NSS Not Sold Separately AR As Required, usually for a lubricant or adhesive REF Reference - Part called out on a different page. NS Not shown in illustration R/B Replaced by another number ASM assembly page Every effort has been made to ensure the accuracy of the information in this book. However, because of design changes that can occur since this book was published, it is possible that some illustrations and part numbers can be different than on your machine. The technical information in this book was correct at the time this bo

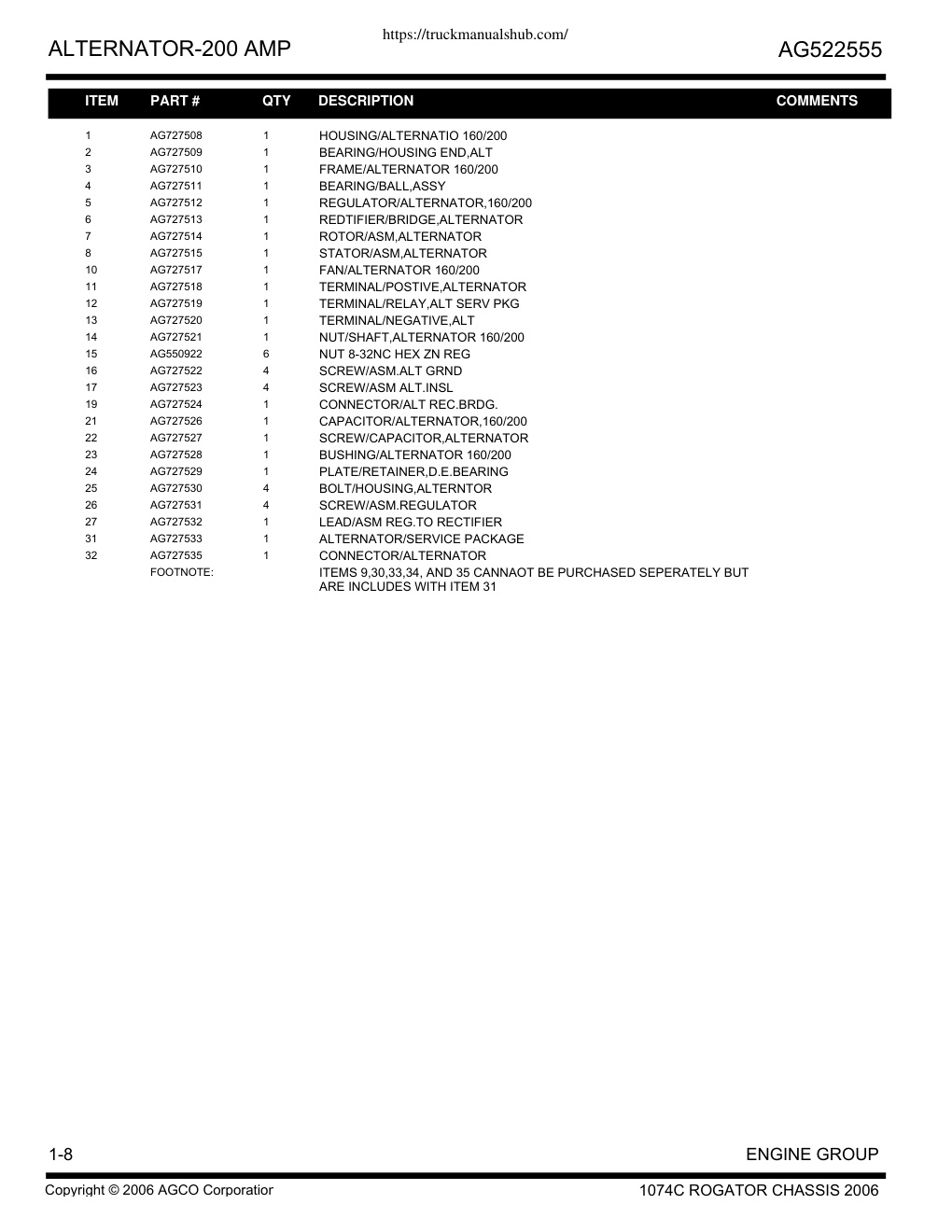

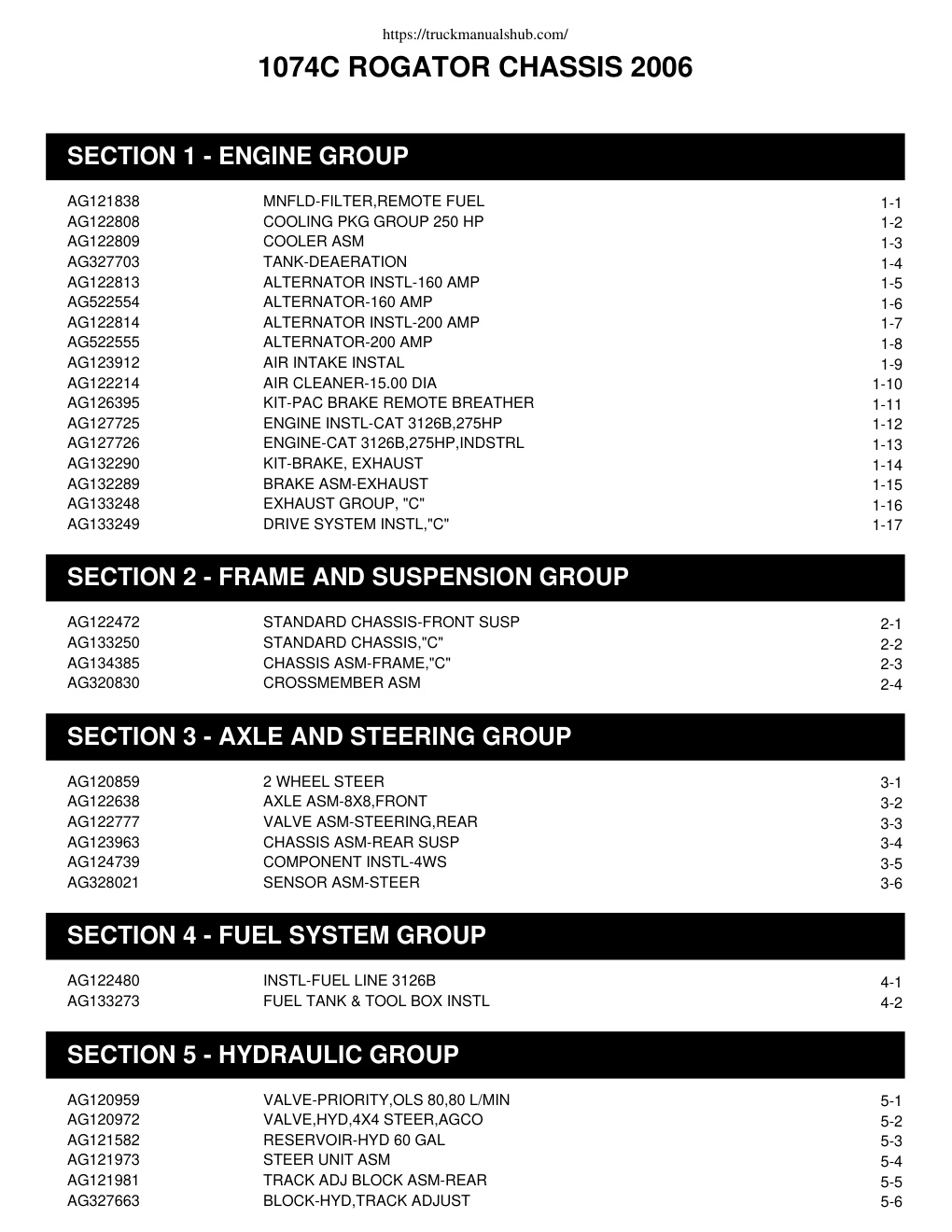

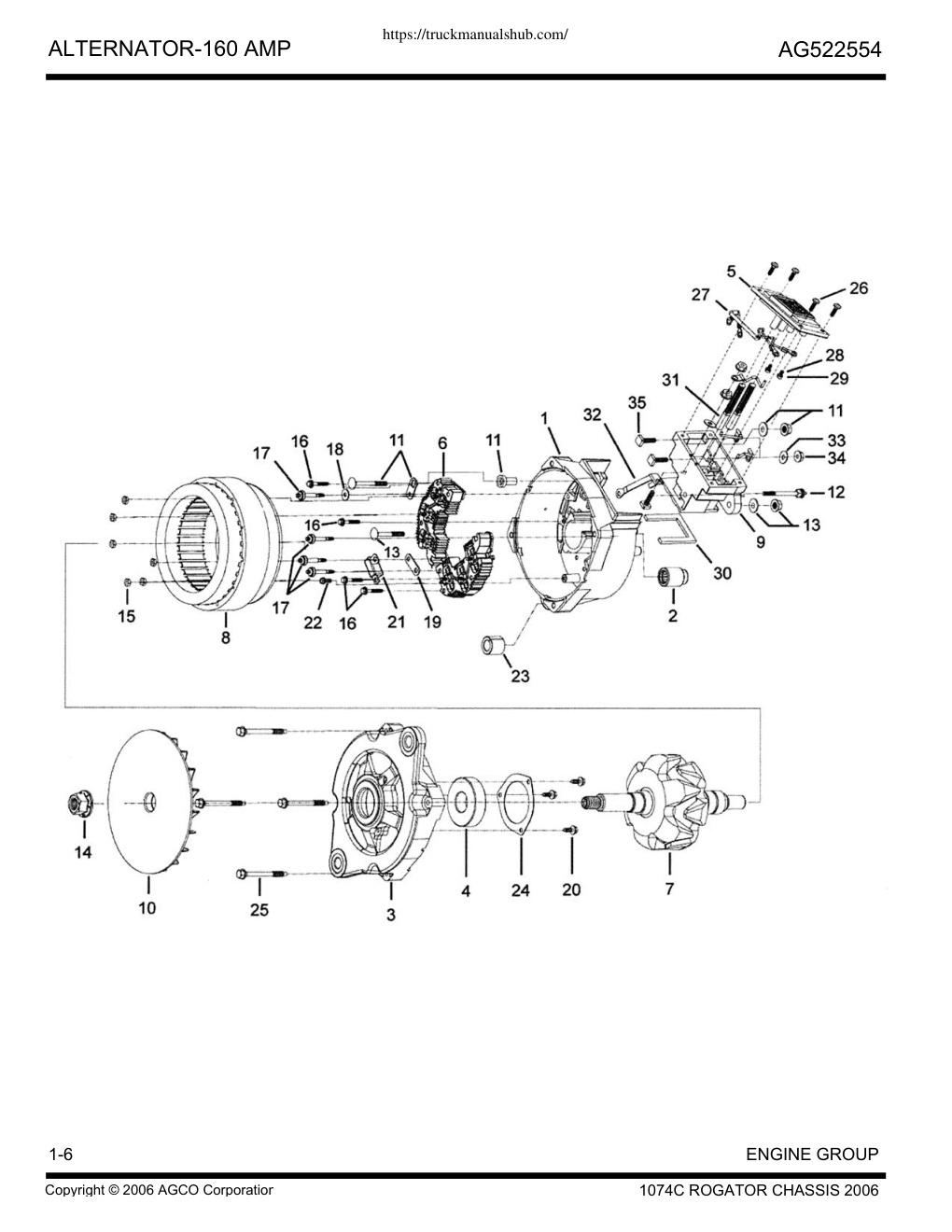

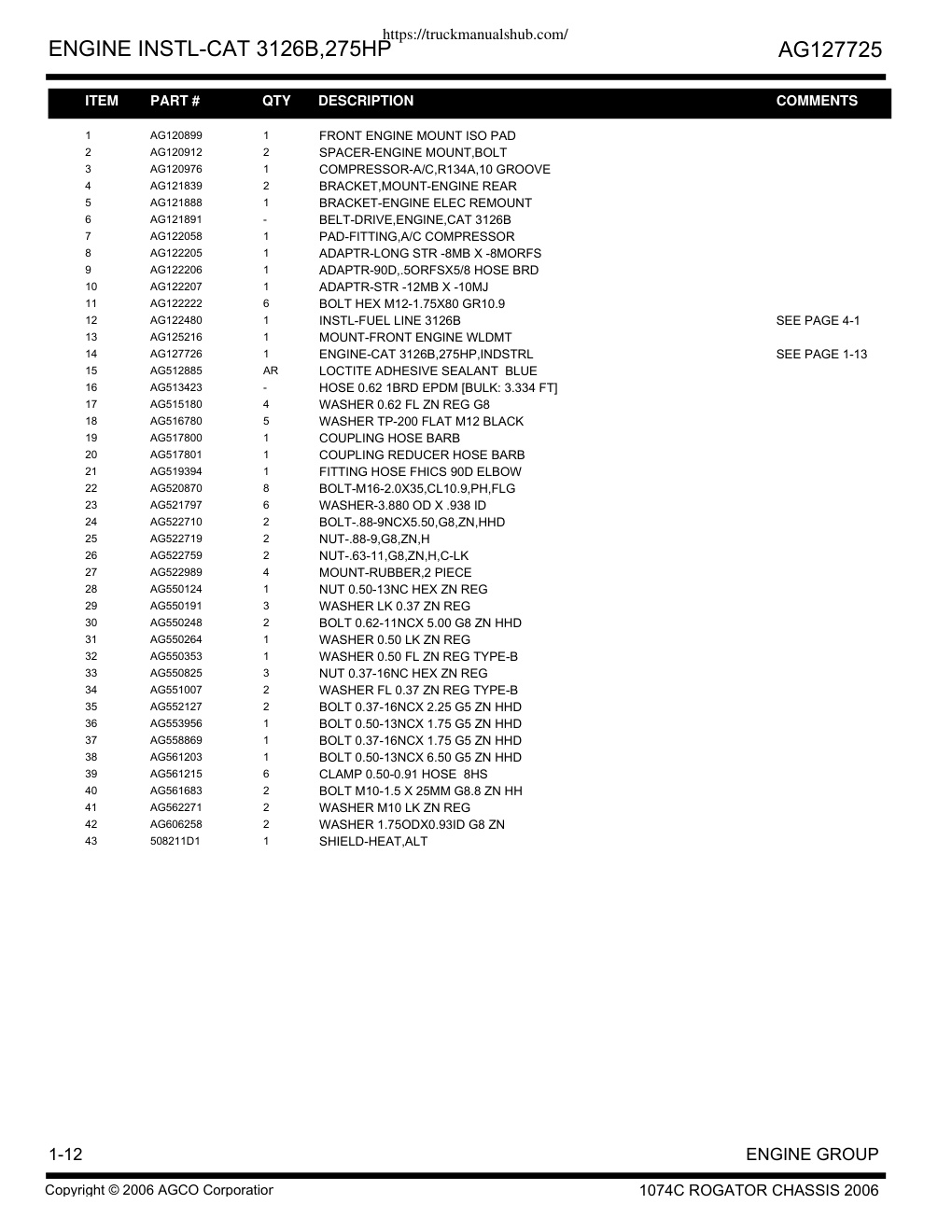

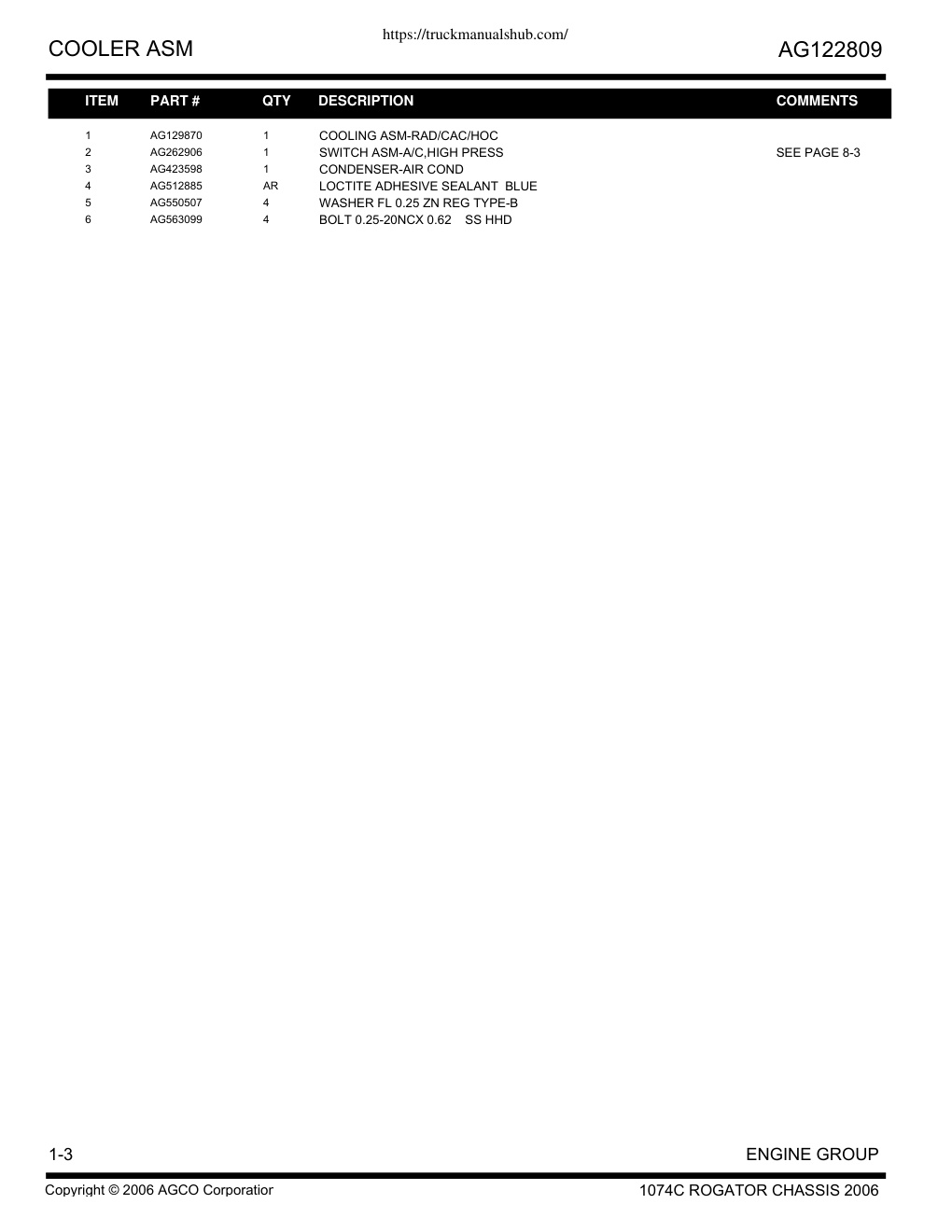

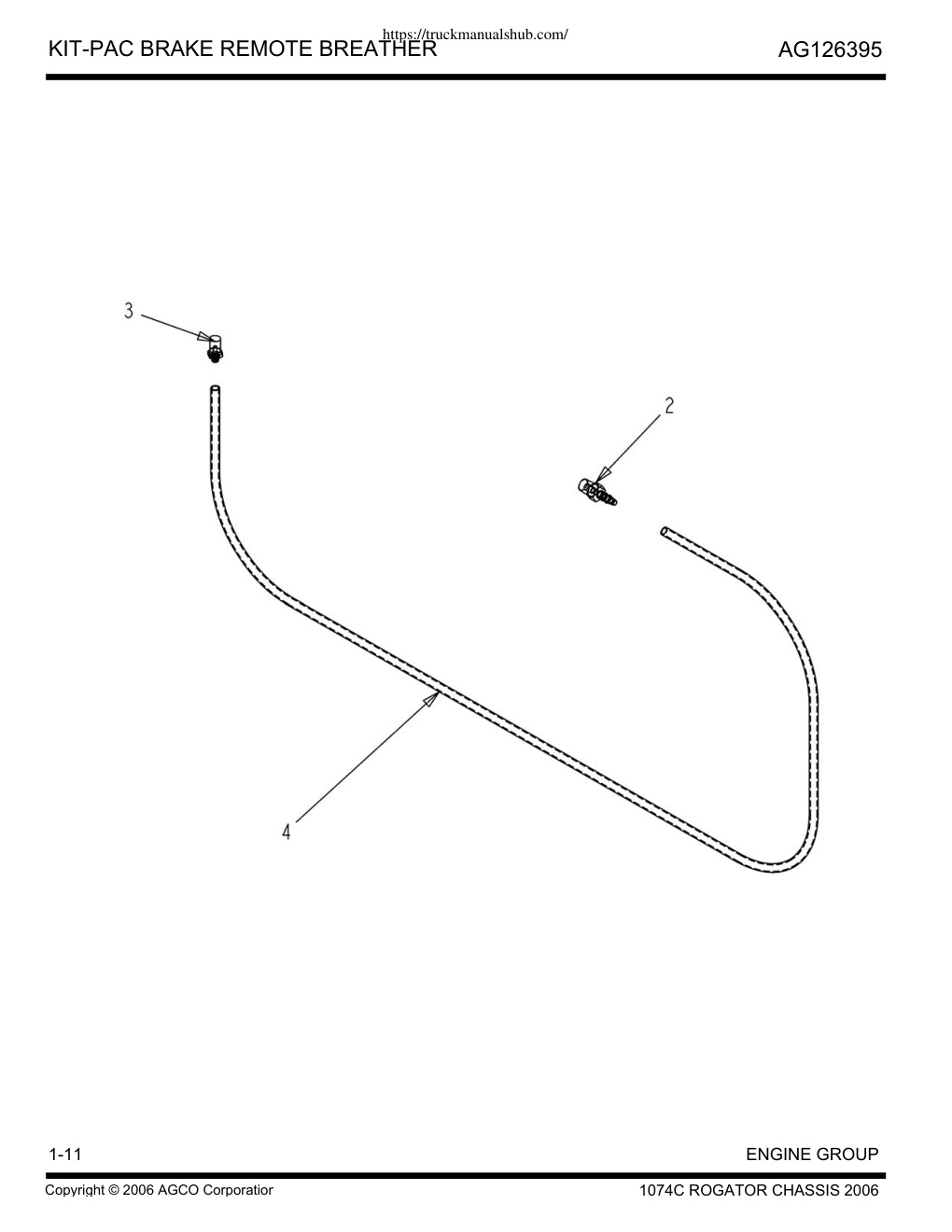

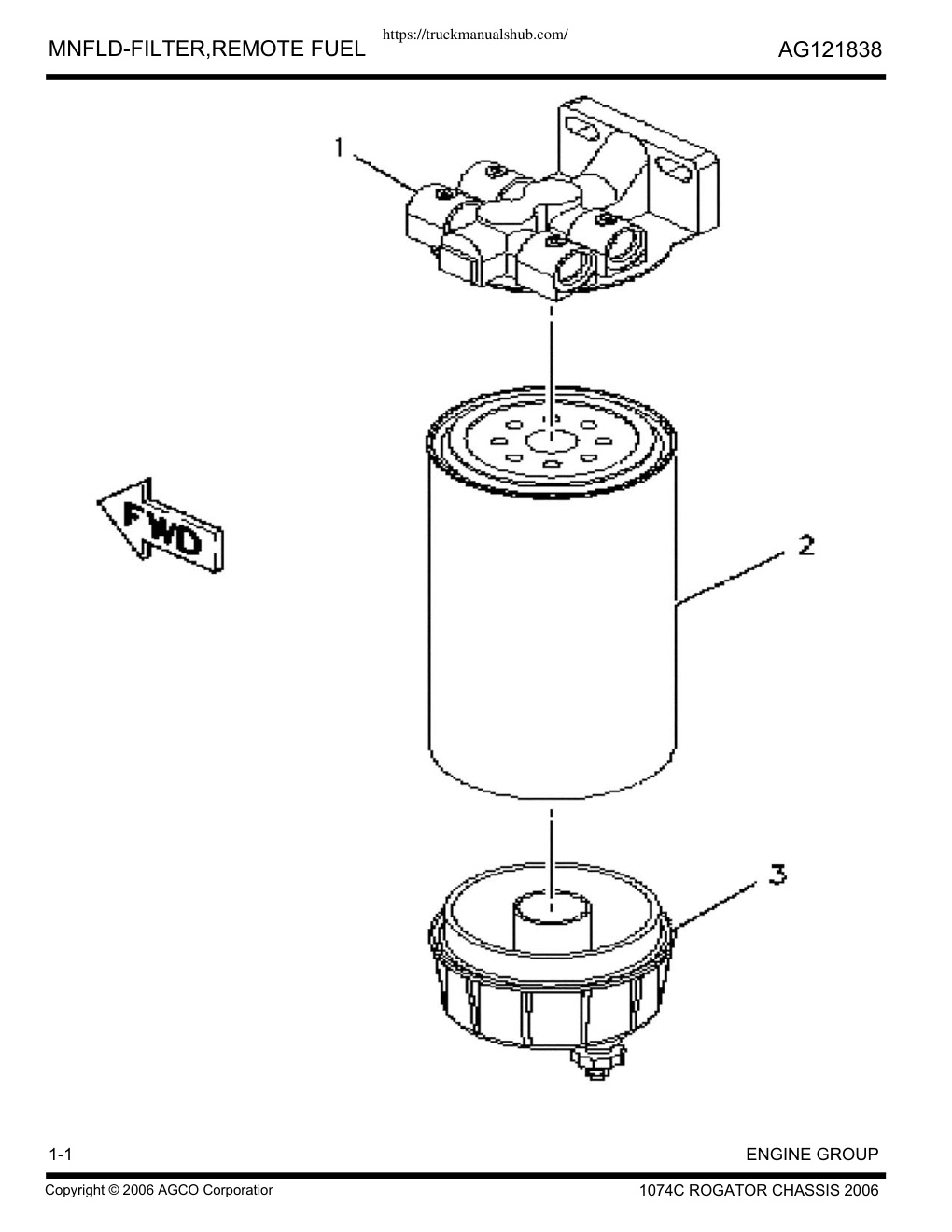

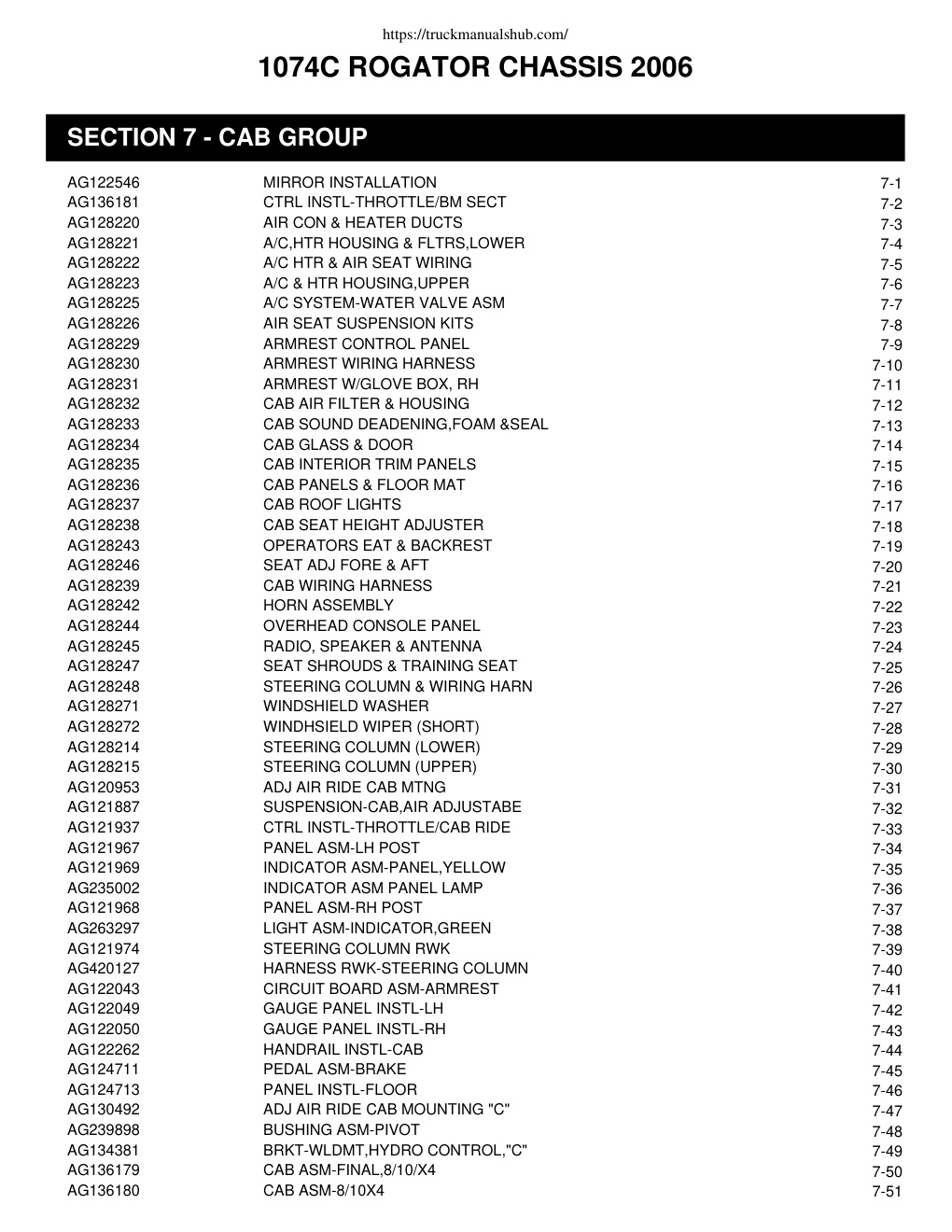

https://truckmanualshub.com/ Row Crop Chassis PARTS CATALOG Ag-Chem 1074C ROGATOR CHASSIS 2006 AG134944 February 2006 https://truckmanualshub.com/ https://truckmanualshub.com/ 1074C ROGATOR CHASSIS 2006 SECTION 1 - ENGINE GROUP AG121838 MNFLD-FILTER,REMOTE FUEL 1-1 AG122808 COOLING PKG GROUP 250 HP 1-2 AG122809 COOLER ASM 1-3 AG327703 TANK-DEAERATION 1-4 AG122813 ALTERNATOR INSTL-160 AMP 1-5 AG522554 ALTERNATOR-160 AMP 1-6 AG122814 ALTERNATOR INSTL-200 AMP 1-7 AG522555 ALTERNATOR-200 AMP 1-8 AG123912 AIR INTAKE INSTAL 1-9 AG122214 AIR CLEANER-15.00 DIA 1-10 AG126395 KIT-PAC BRAKE REMOTE BREATHER 1-11 AG127725 ENGINE INSTL-CAT 3126B,275HP 1-12 AG127726 ENGINE-CAT 3126B,275HP,INDSTRL 1-13 AG132290 KIT-BRAKE, EXHAUST 1-14 AG132289 BRAKE ASM-EXHAUST 1-15 AG133248 EXHAUST GROUP, "C" 1-16 AG133249 DRIVE SYSTEM INSTL,"C" 1-17 SECTION 2 - FRAME AND SUSPENSION GROUP AG122472 STANDARD CHASSIS-FRONT SUSP 2-1 AG133250 STANDARD CHASSIS,"C" 2-2 AG134385 CHASSIS ASM-FRAME,"C" 2-3 AG320830 CROSSMEMBER ASM 2-4 SECTION 3 - AXLE AND STEERING GROUP AG120859 2 WHEEL STEER 3-1 AG122638 AXLE ASM-8X8,FRONT 3-2 AG122777 VALVE ASM-STEERING,REAR 3-3 AG123963 CHASSIS ASM-REAR SUSP 3-4 AG124739 COMPONENT…
