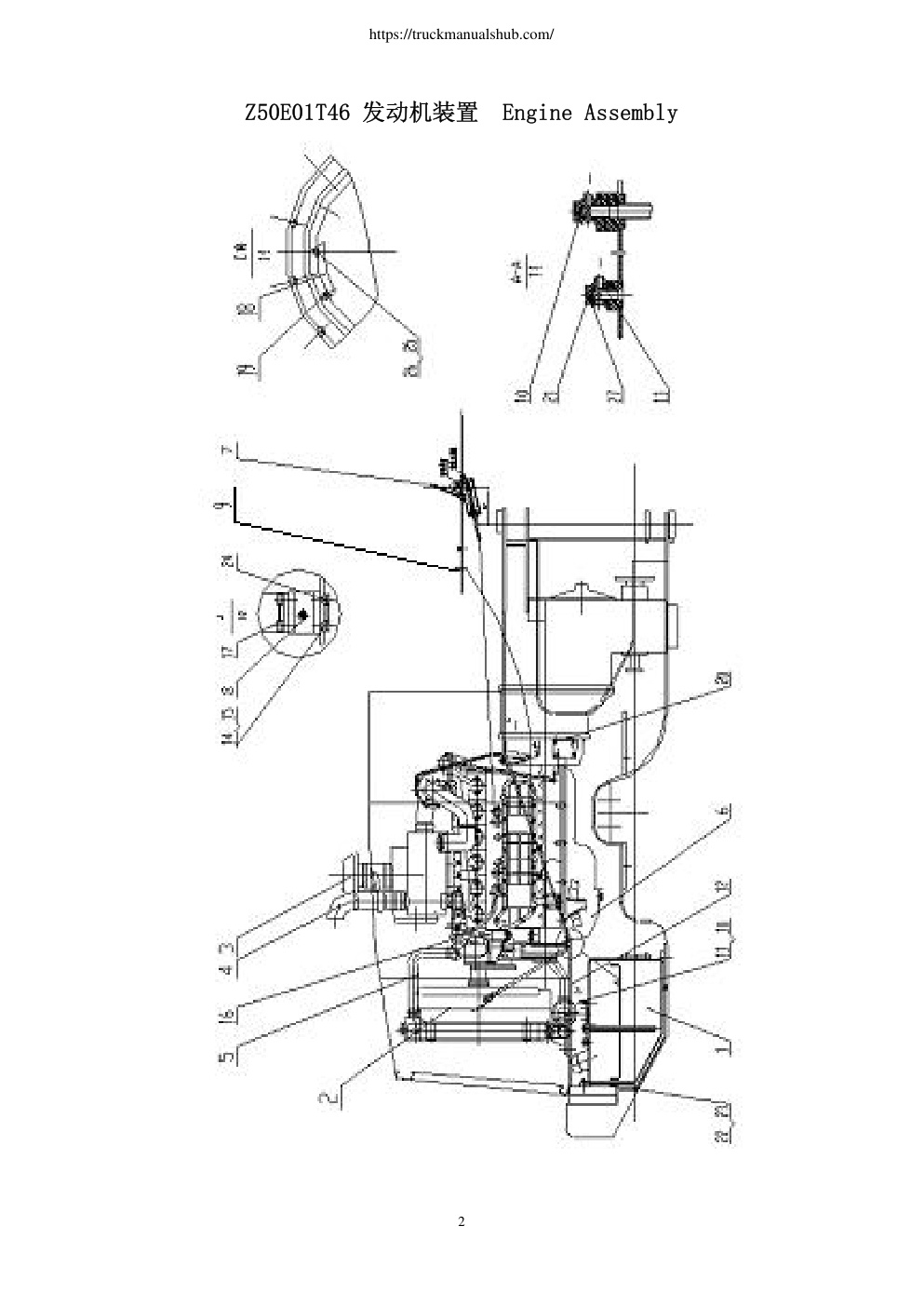

Engine Assembly Z50E01T46 ARByPlL4#B Engine Assembly

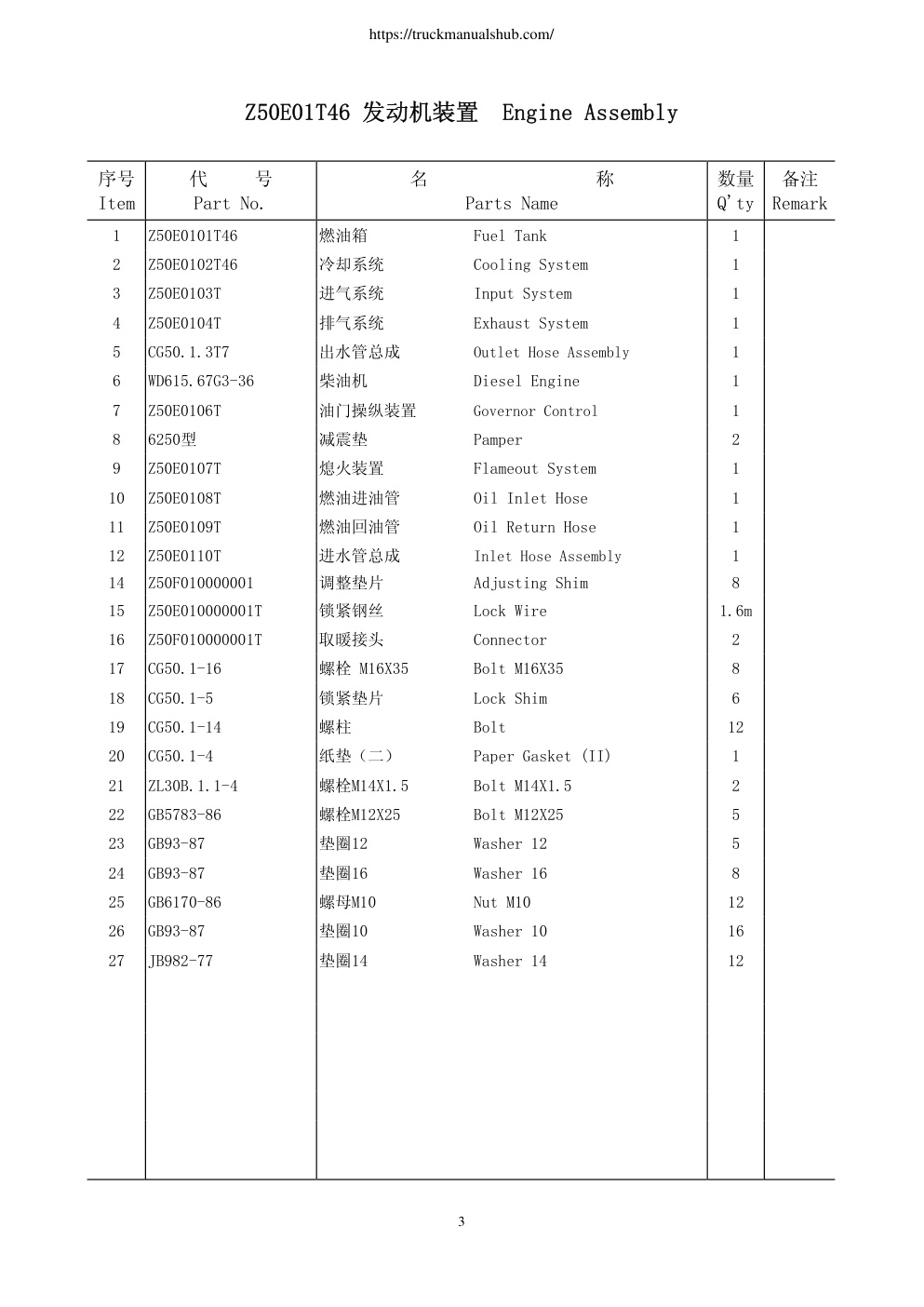

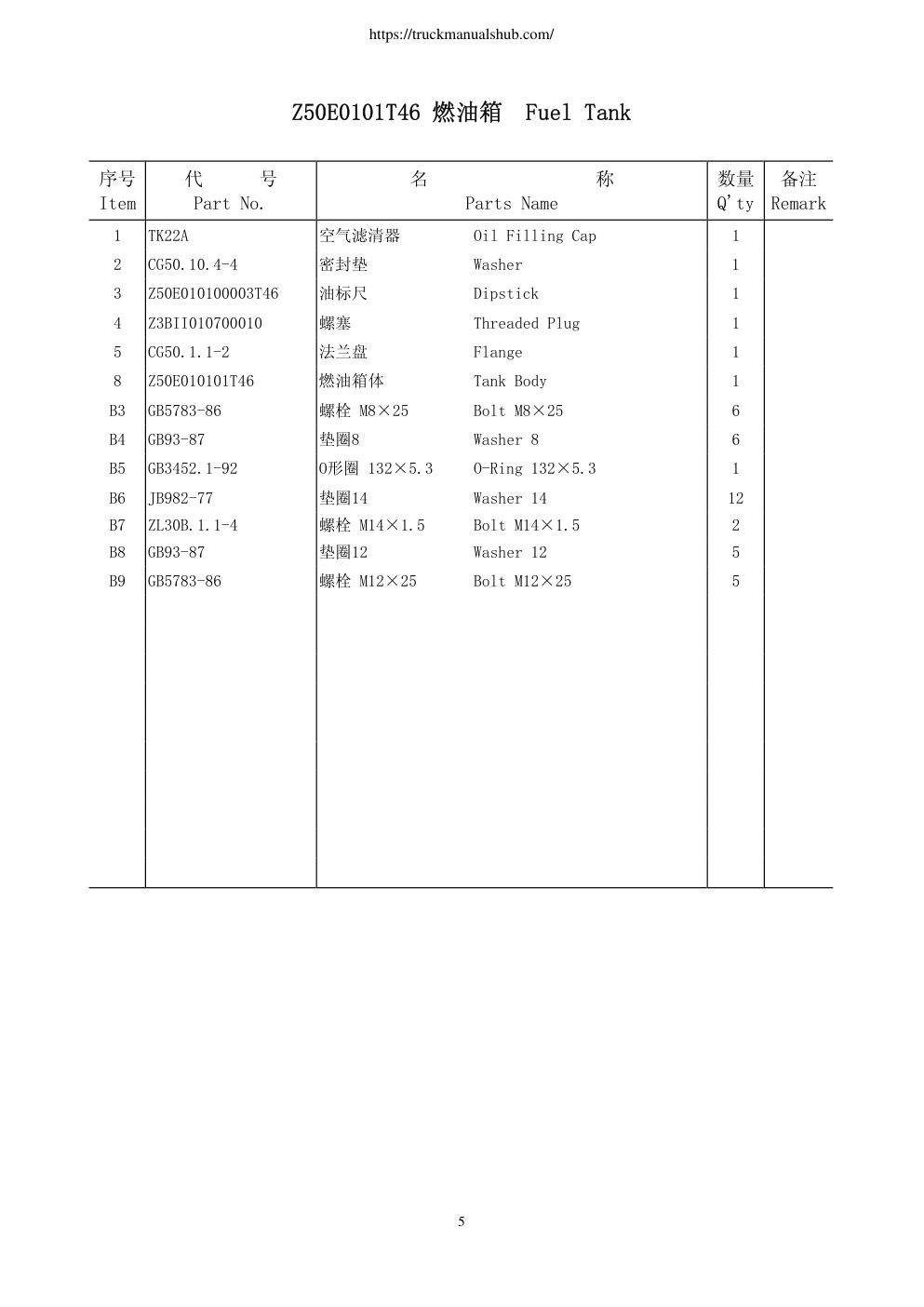

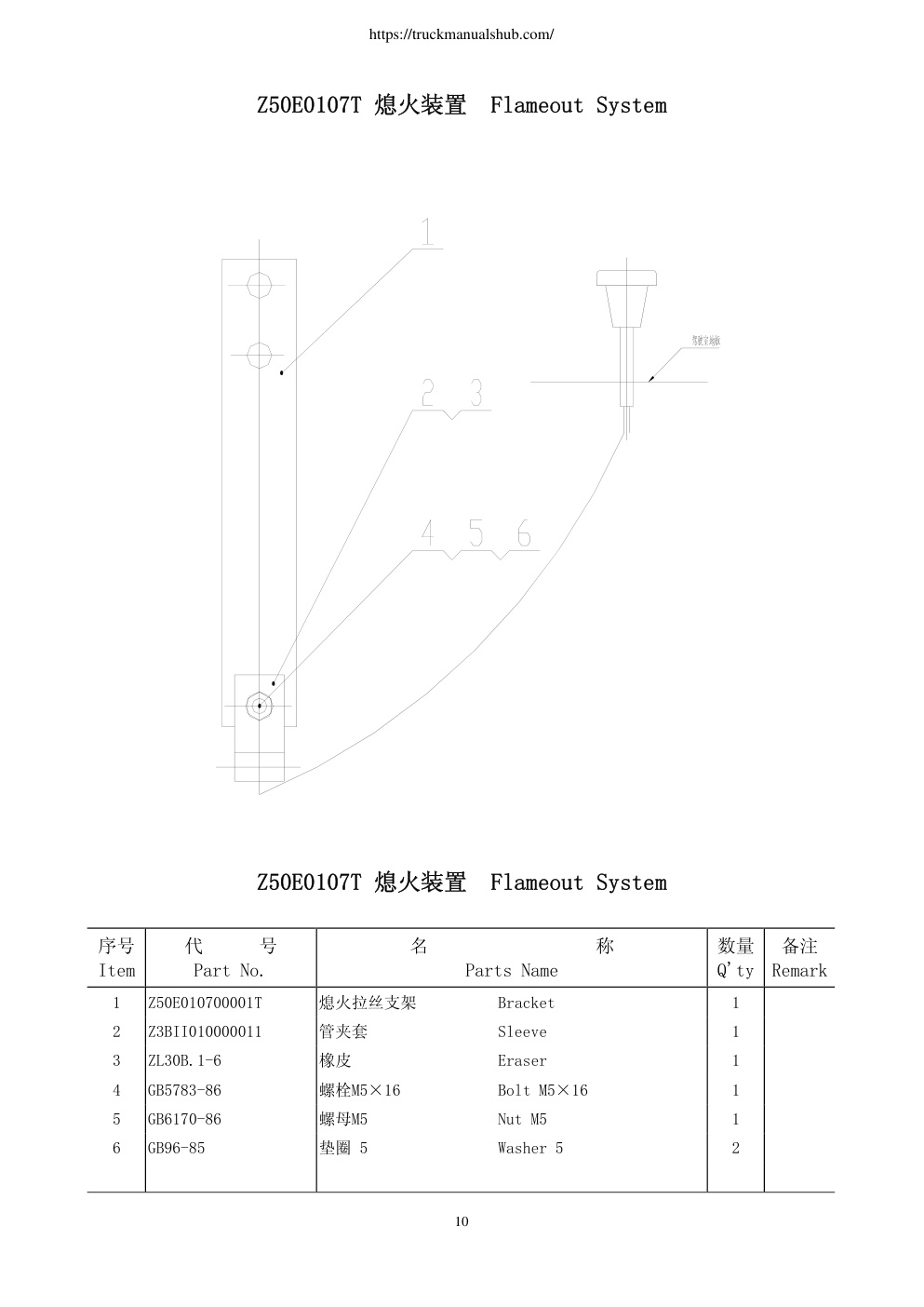

https://truckmanualshub.com/ 发动机装置 Engine Assembly 1 https://truckmanualshub.com/ Z50E01T46 发动机装置 Engine Assembly 2 https://truckmanualshub.com/ Z50E01T46 发动机装置 Engine Assembly 序号 代 号 名 称 数量 备注 Item Part No. Parts Name Q'ty Remark 1 Z50E0101T46 燃油箱 Fuel Tank 1 2 Z50E0102T46 冷却系统 Cooling System 1 3 Z50E0103T 进气系统 Input System 1 4 Z50E0104T 排气系统 Exhaust System 1 5 CG50.1.3T7 出水管总成 Outlet Hose Assembly 1 6 WD615.67G3-36 柴油机 Diesel Engine 1 7 Z50E0106T 油门操纵装置 Governor Control 1 8 6250型 减震垫 Pamper 2 9 Z50E0107T 熄火装置 Flameout System 1 10 Z50E0108T 燃油进油管 Oil Inlet Hose 1 11 Z50E0109T 燃油回油管 Oil Return Hose 1 12 Z50E0110T 进水管总成 Inlet Hose Assembly 1 14 Z50F010000001 调整垫片 Adjusting Shim 8 15 Z50E010000001T 锁紧钢丝 Lock Wire 1.6m 16 Z50F010000001T 取暖接头 Connector 2 17 CG50.1-16 螺栓 M16X35 Bolt M16X35 8 18 CG50.1-5 锁紧垫片 Lock Shim 6 19 CG50.1-14 螺柱 Bolt 12 20 CG50.1-4 纸垫（二） Paper Gasket (II) 1 21 ZL30B.1.1-4 螺栓M14X1.5 Bolt M14X1.5 2 22 GB5783-86 螺栓M12X25 Bolt M12X25 5 23 GB93-87 垫圈12 Washer 12 5 24 GB93-87 垫圈16 Washer 16 8 25 GB6170-86 螺母M10 Nut M10 12 26 GB93-87 垫圈10 Washer 10 16 27 JB982-77 垫圈14 Washer 14 12 3 https://truckmanualshub.com/ Z50E0101T46 燃油箱 Fuel Tank 4 https://truckmanualshub.com/…
