LEXION 570 — 520 Montana Technical Systems Electric System SERVICE & PARTS Electric System LEXION 500 TIC

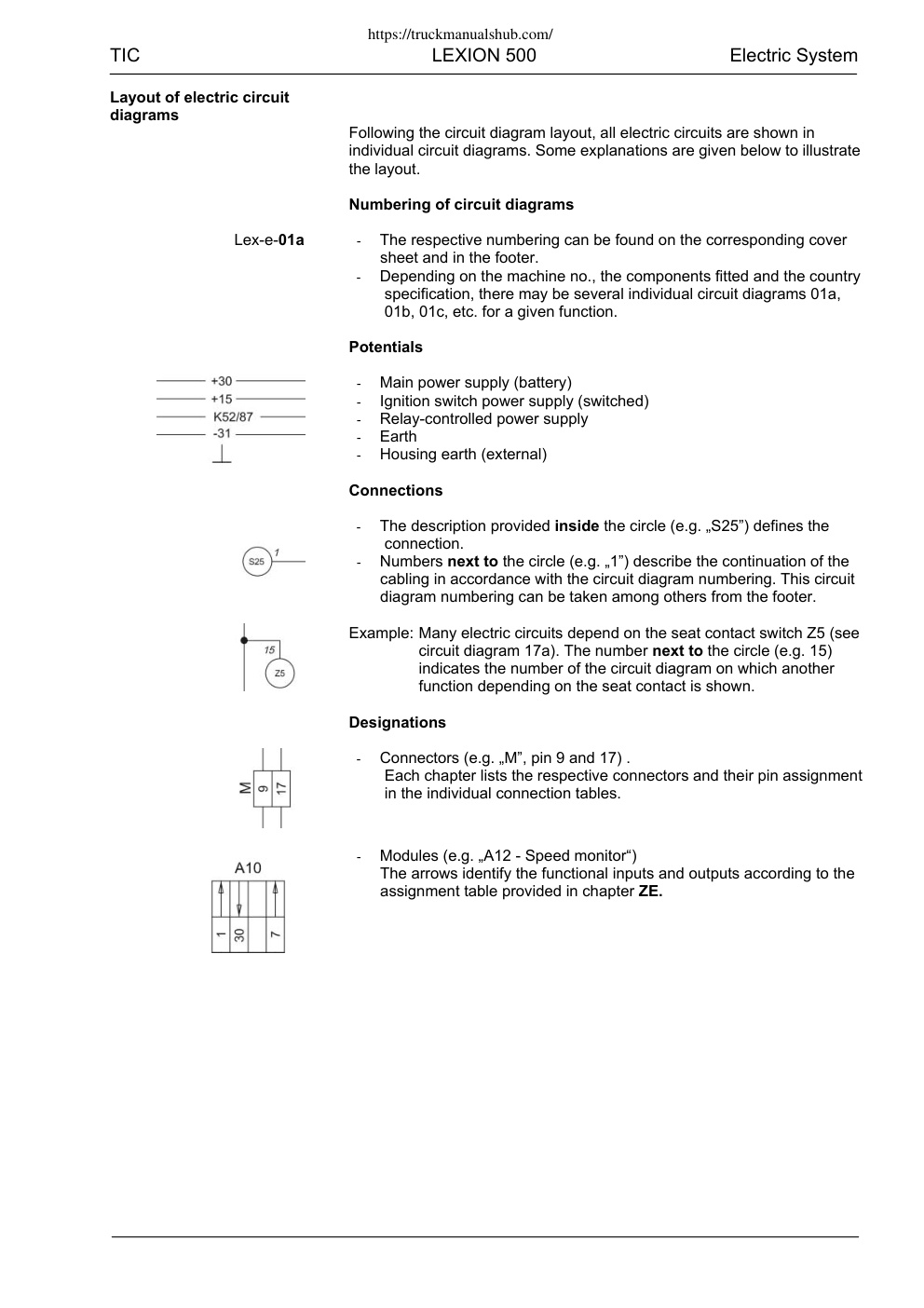

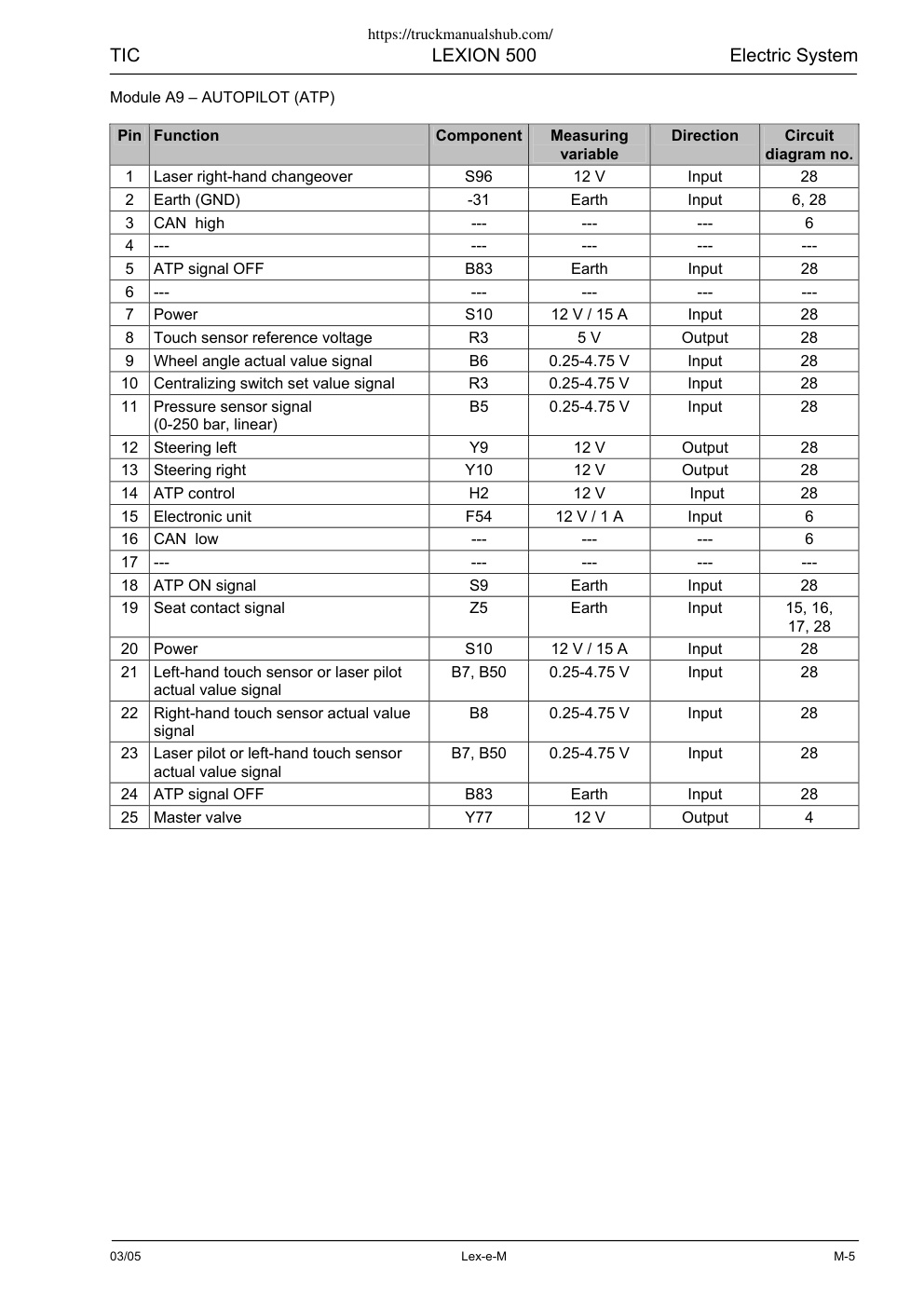

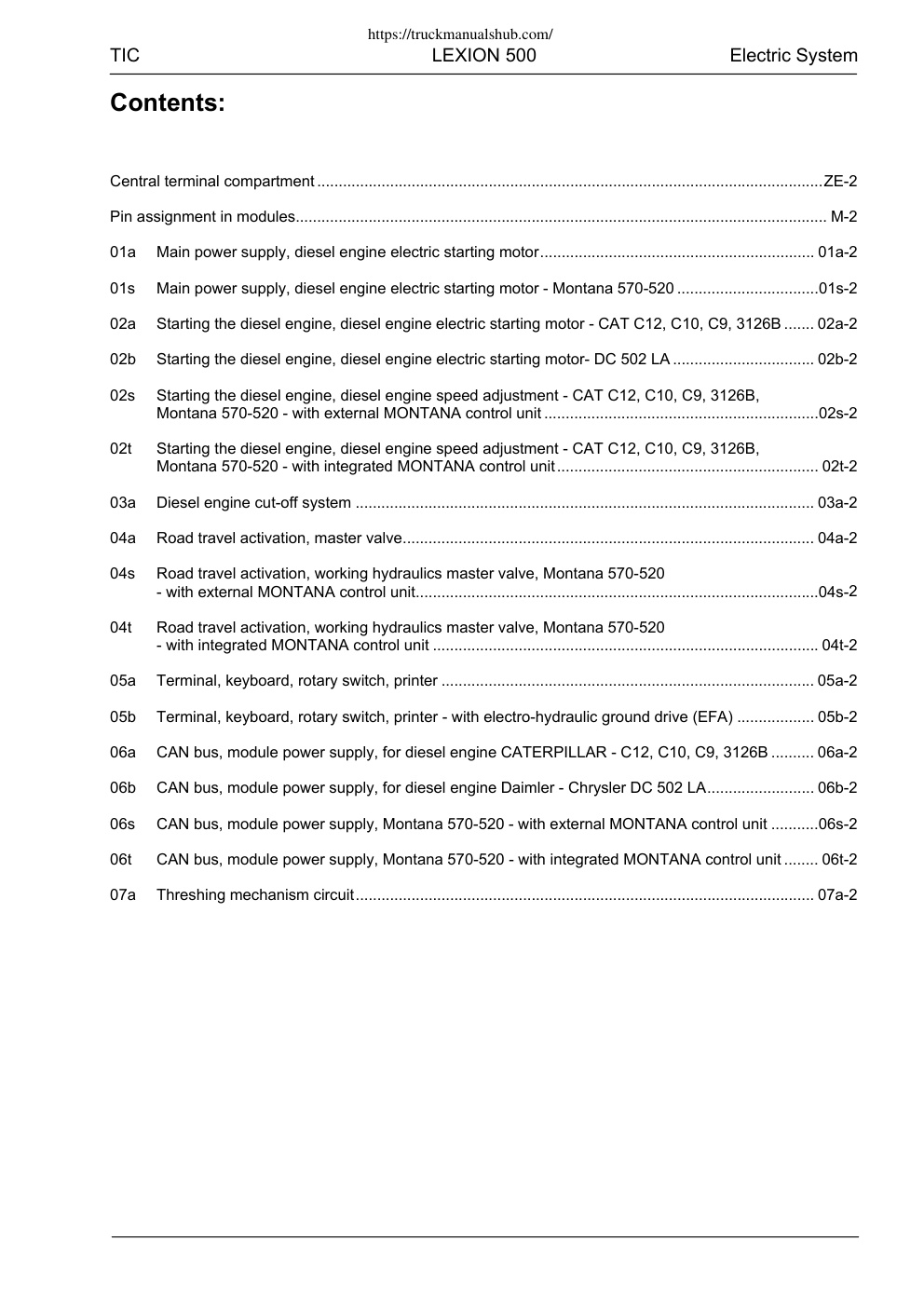

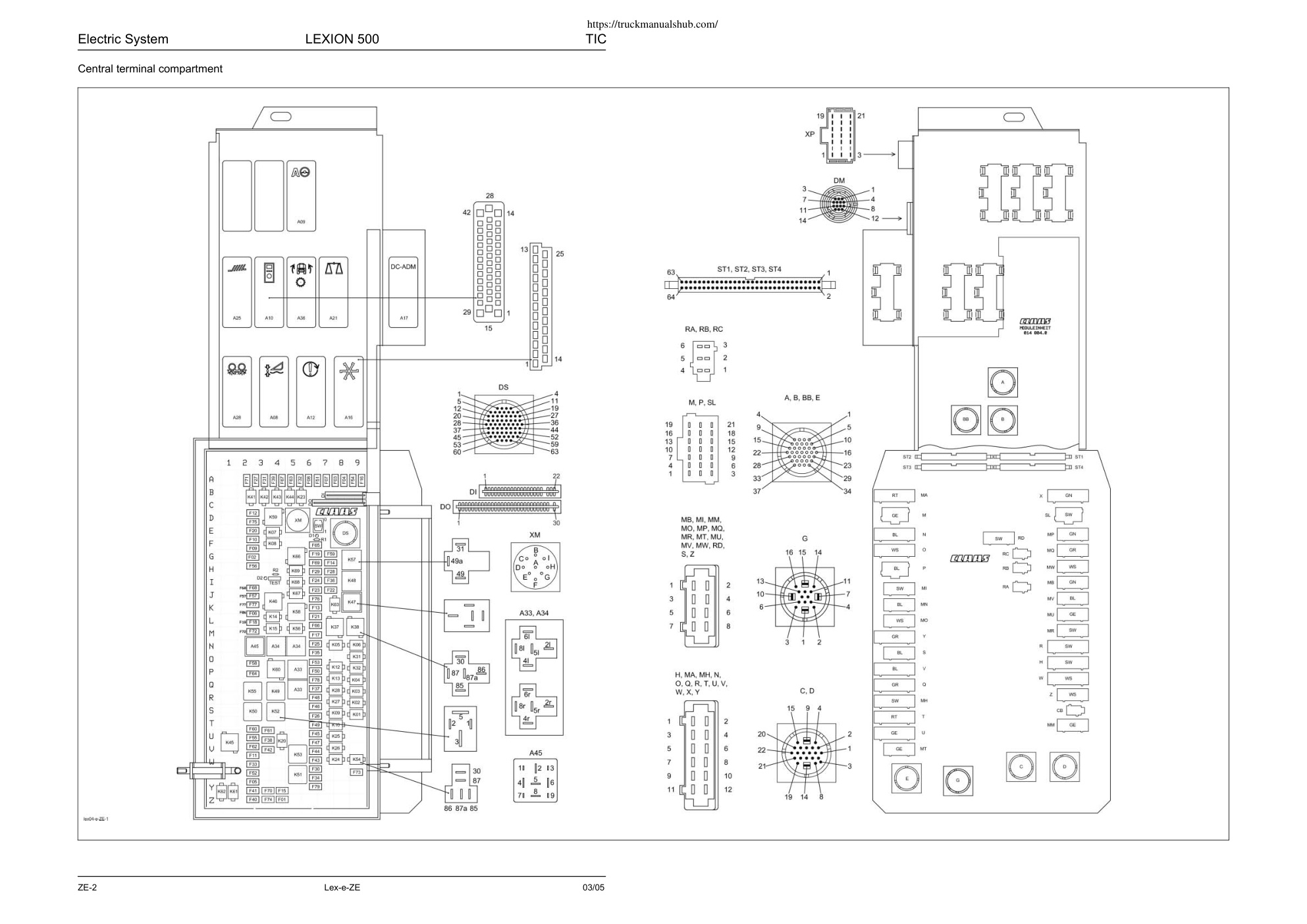

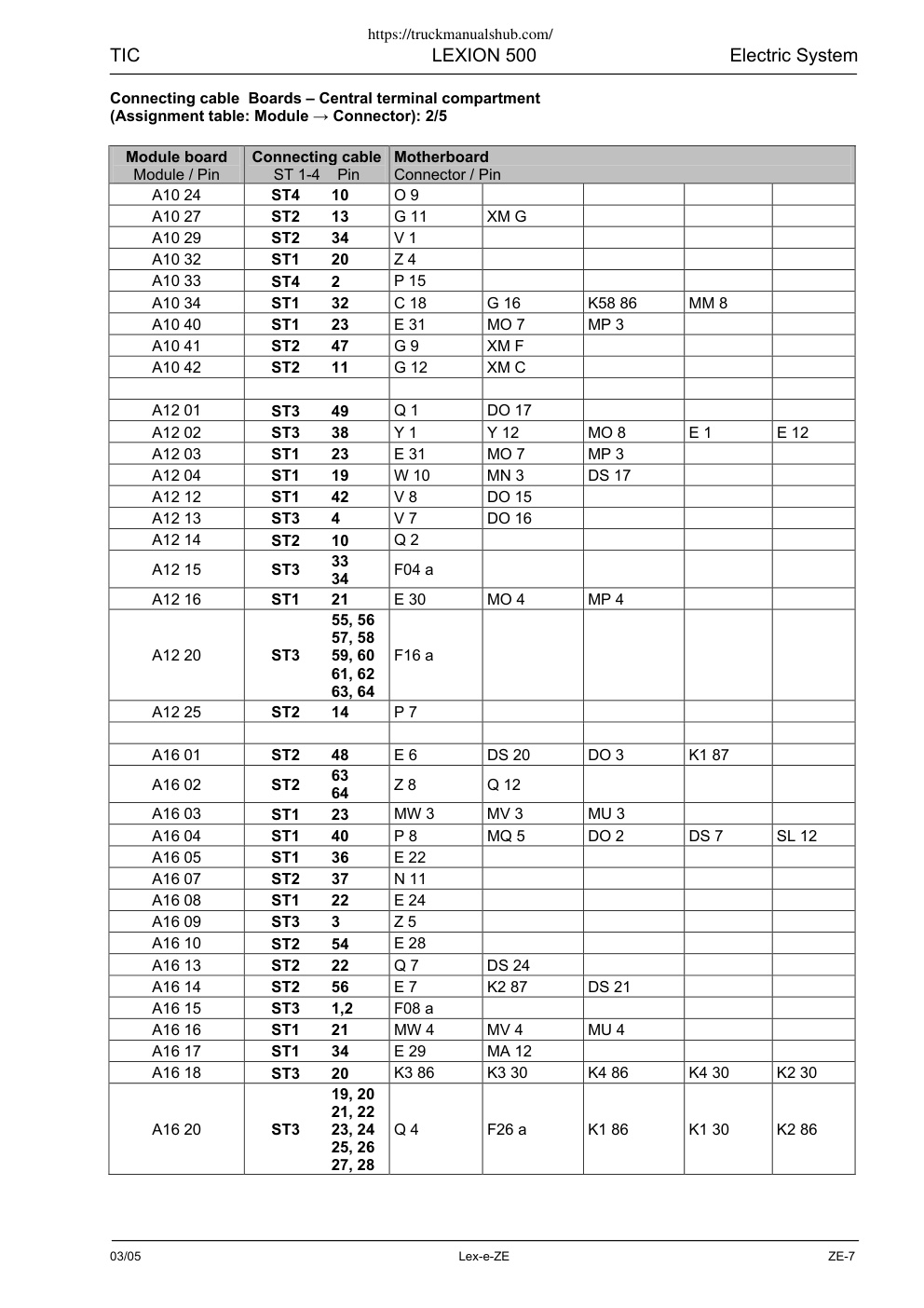

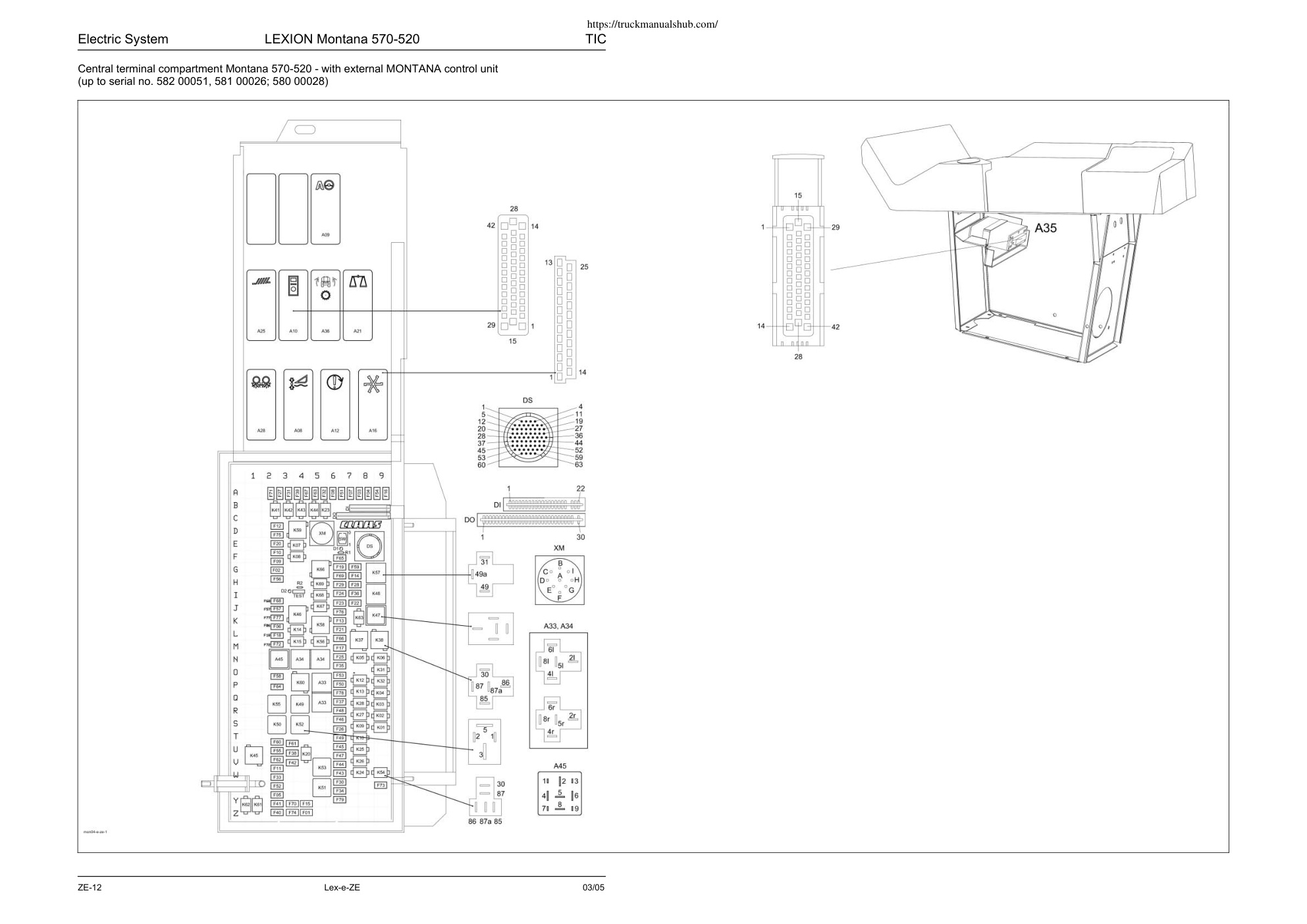

https://truckmanualshub.com/ LEXION 570 – 520 Montana Technical Systems Electric System https://truckmanualshub.com/ Electric System LEXION 500 TIC https://truckmanualshub.com/ TIC LEXION 500 Electric System Layout of electric circuit diagrams Following the circuit diagram layout, all electric circuits are shown in individual circuit diagrams. Some explanations are given below to illustrate the layout. Numbering of circuit diagrams Lex-e-01a - The respective numbering can be found on the corresponding cover sheet and in the footer. - Depending on the machine no., the components fitted and the country specification, there may be several individual circuit diagrams 01a, 01b, 01c, etc. for a given function. Potentials - Main power supply (battery) - Ignition switch power supply (switched) - Relay-controlled power supply - Earth - Housing earth (external) Connections - The description provided inside the circle (e.g. „S25”) defines the connection. - Numbers next to the circle (e.g. „1”) describe the continuation of the cabling in accordance with the circuit diagram numbering. This circuit diagram numbering can be taken among others from the footer. Example: Many electric circuits…
