QUADRANT 2100 RC Technical Systems Electric System SERVICE & PARTS Electric System Quadrant 2100 TIC qu2100-e-ze 12/04

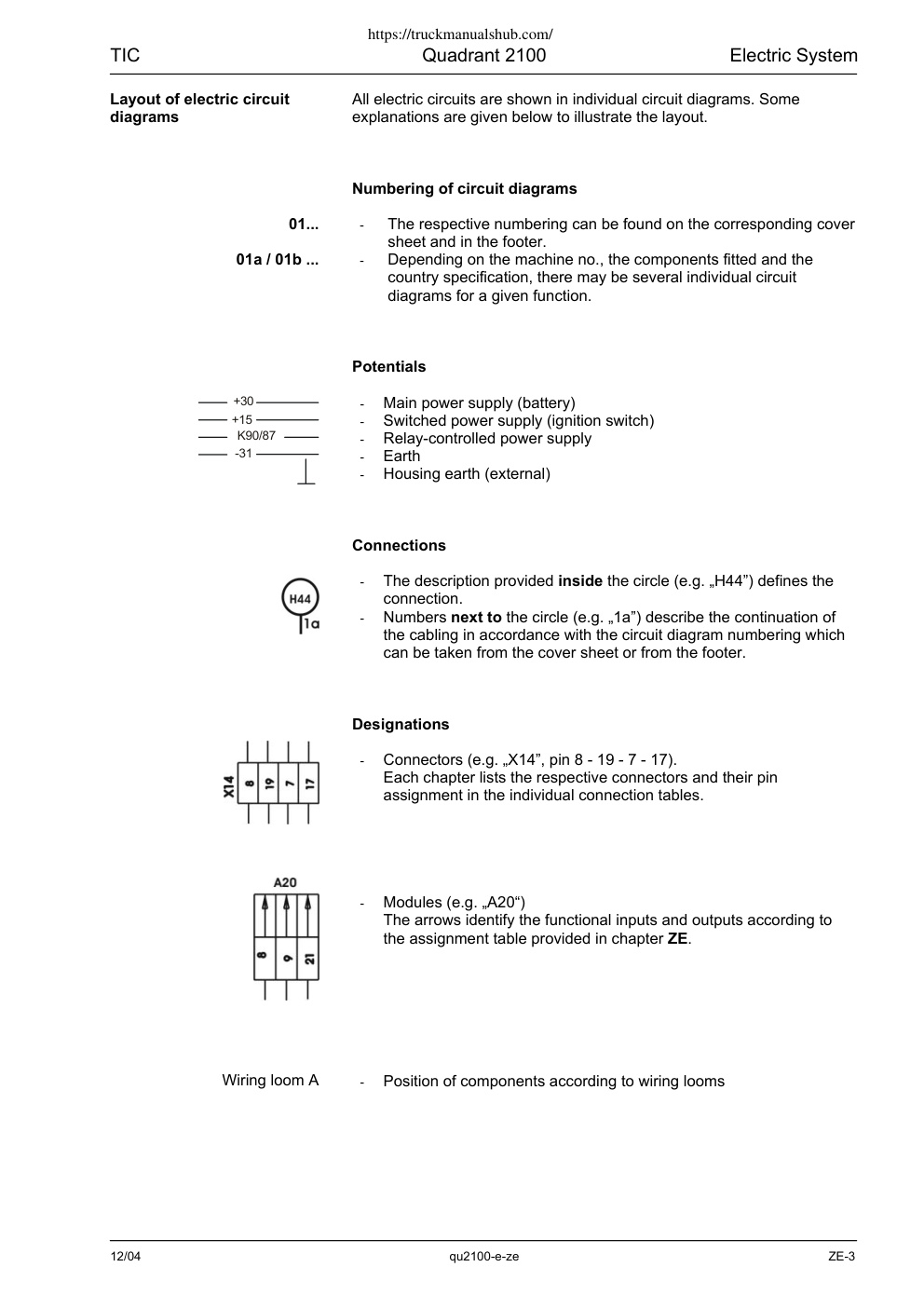

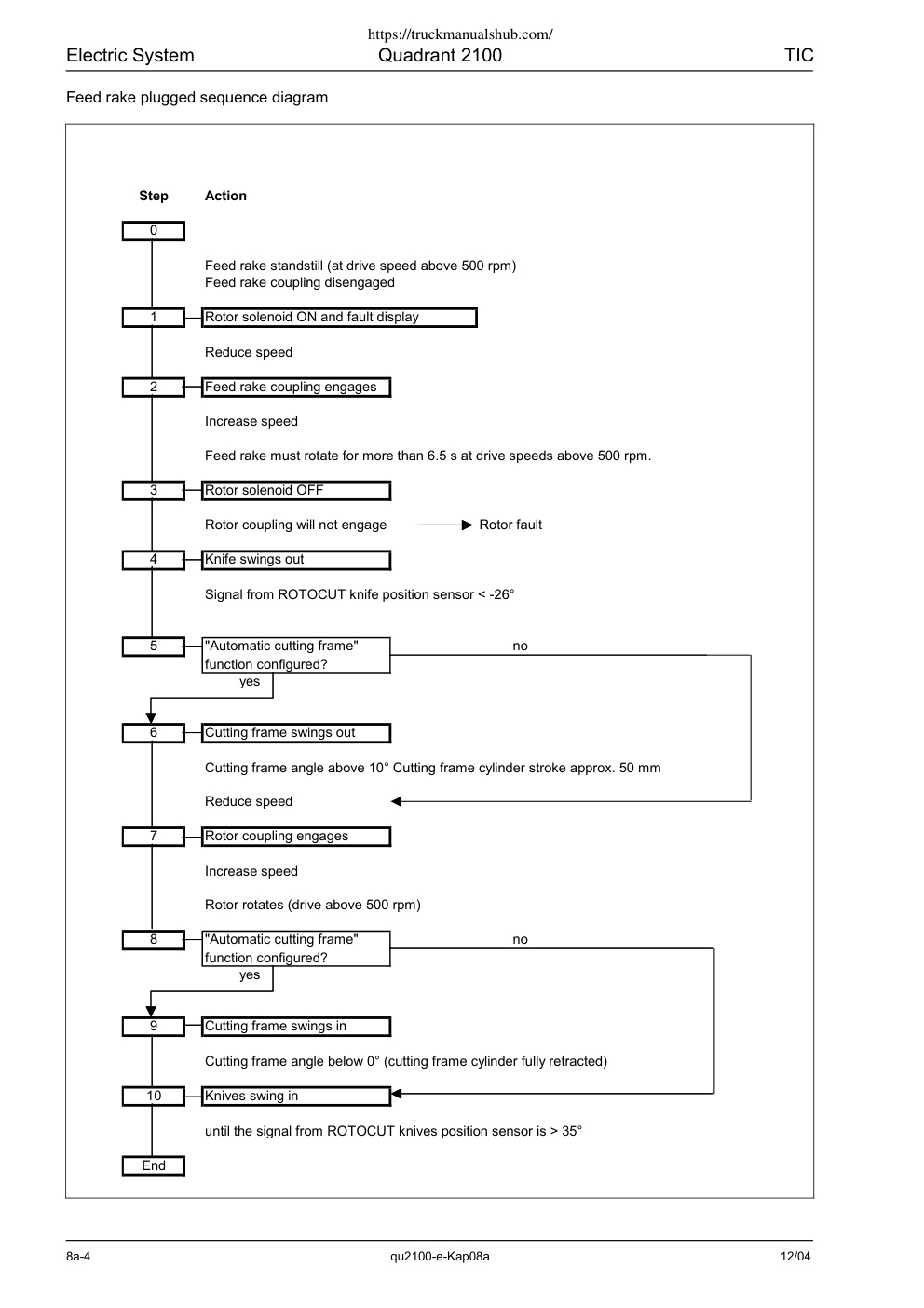

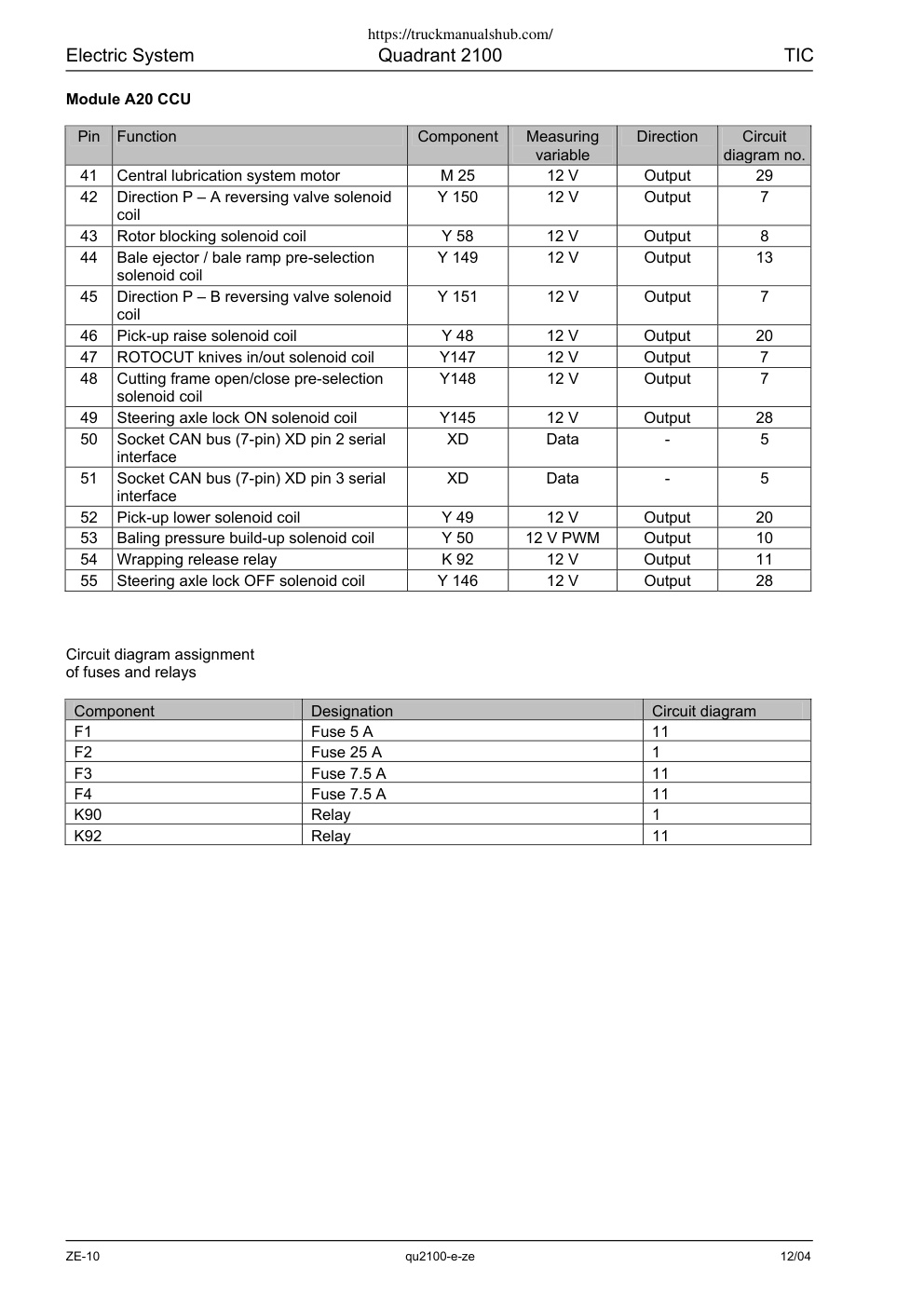

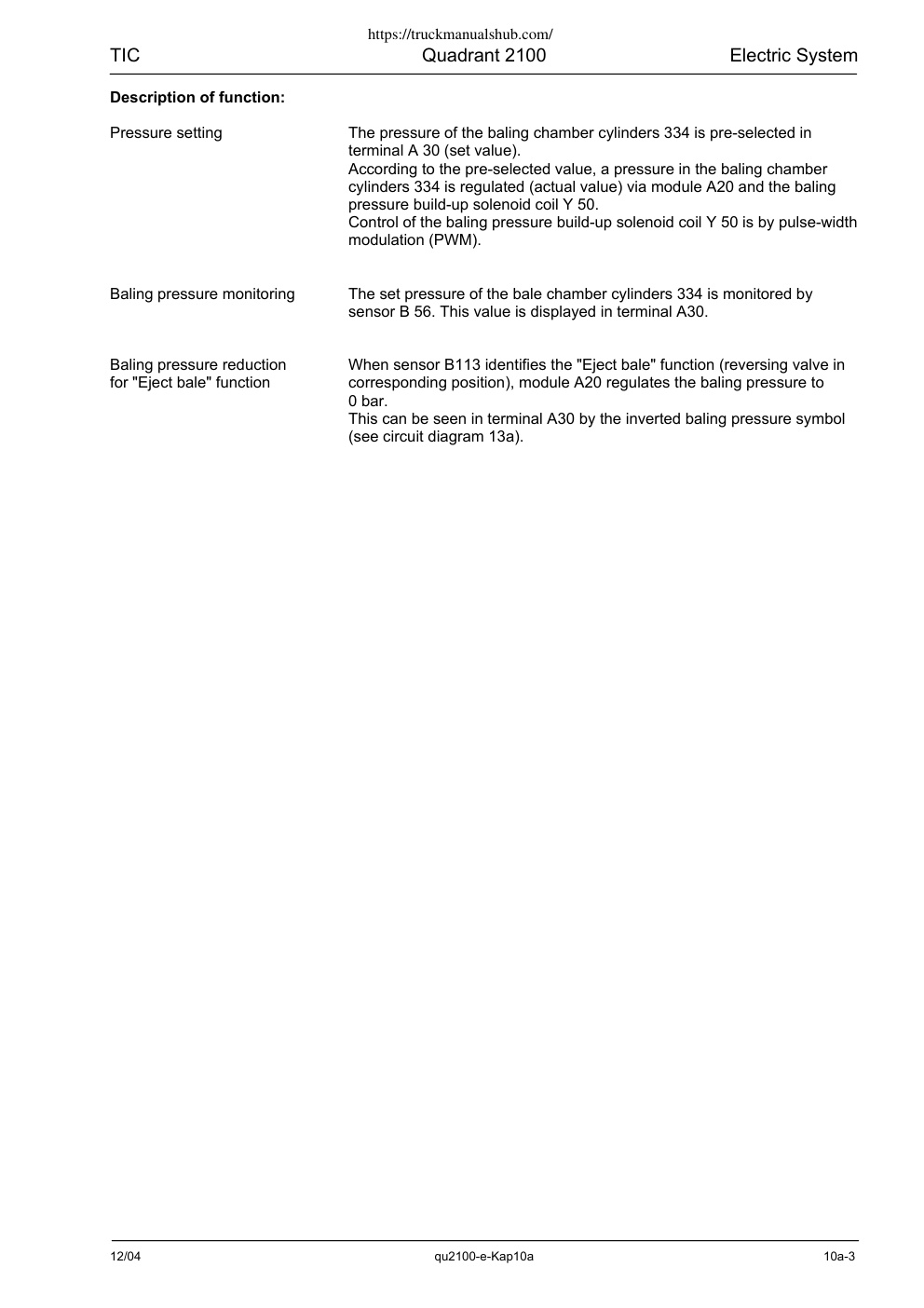

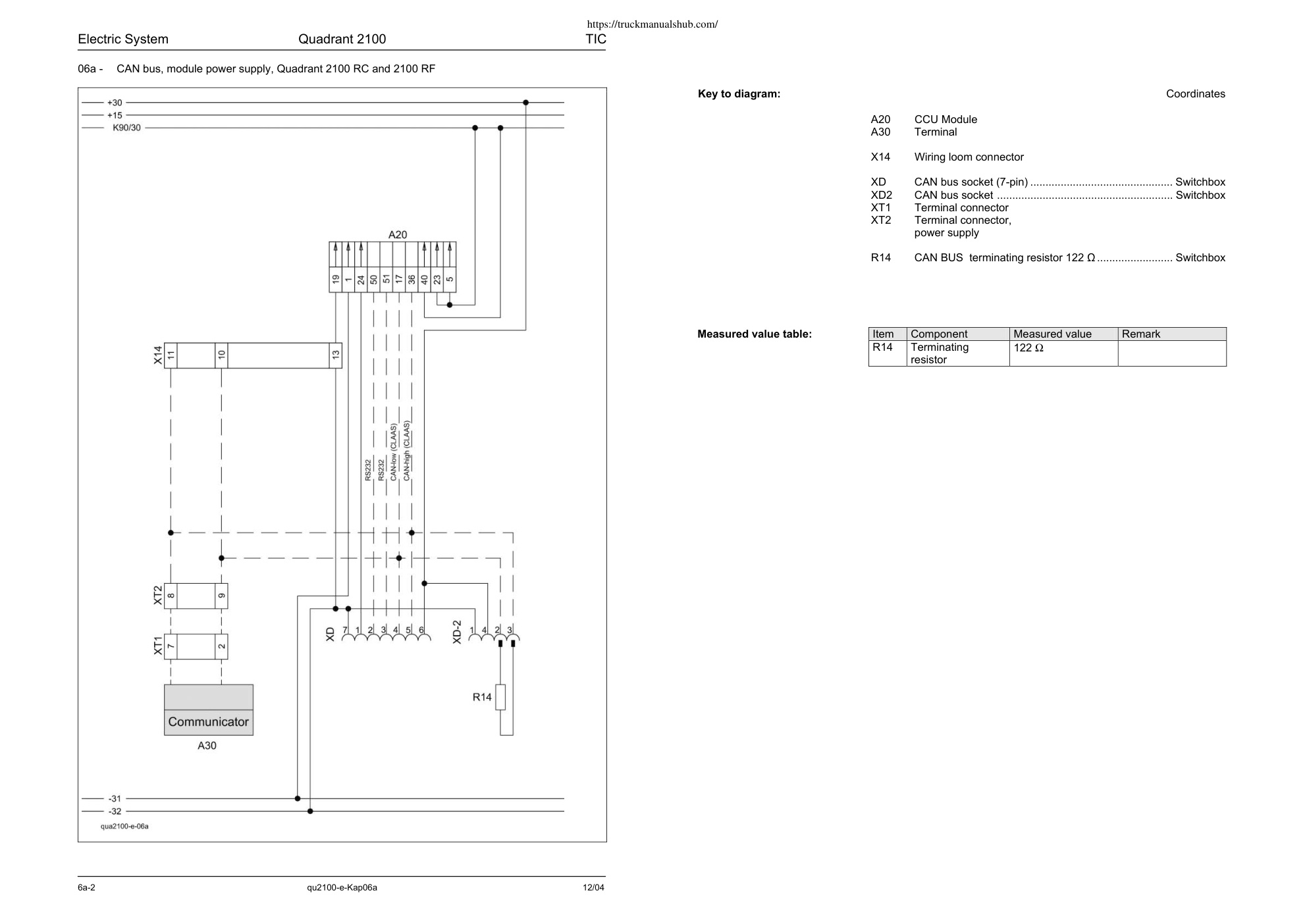

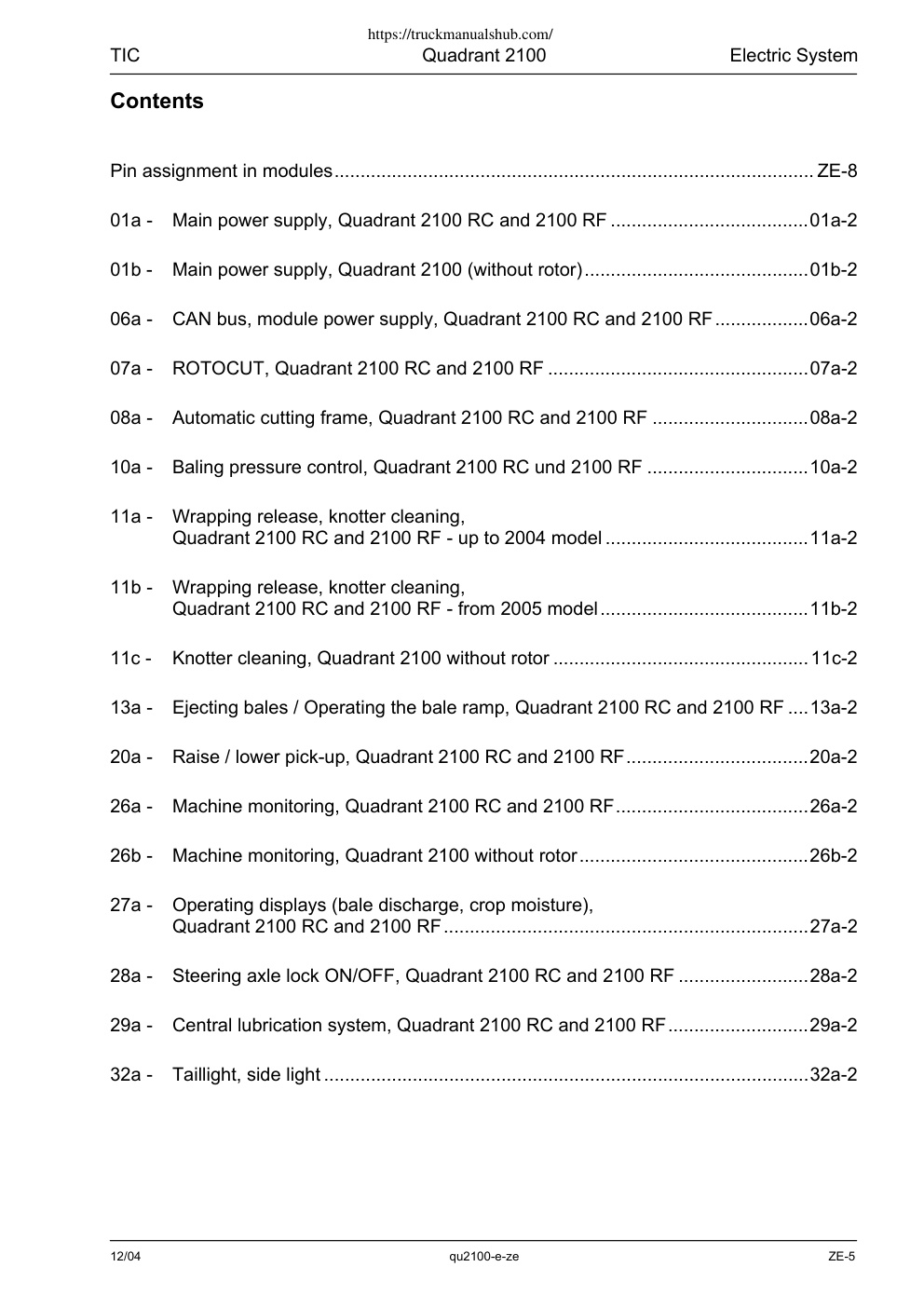

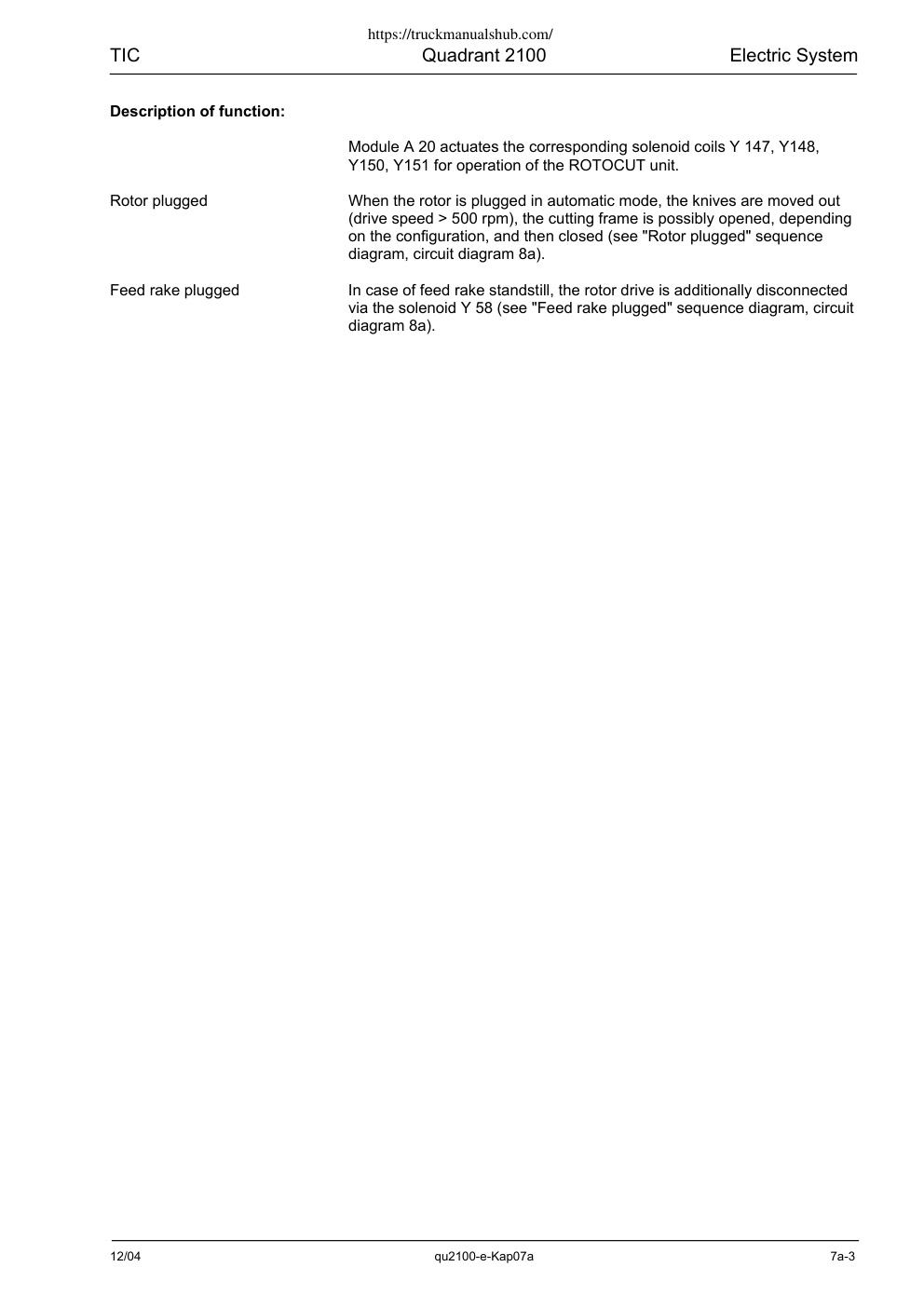

https://truckmanualshub.com/ QUADRANT 2100 QUADRANT 2100 RC Technical Systems Electric System https://truckmanualshub.com/ Electric System Quadrant 2100 TIC qu2100-e-ze 12/04 https://truckmanualshub.com/ TIC Quadrant 2100 Electric System Layout of electric circuit All electric circuits are shown in individual circuit diagrams. Some diagrams explanations are given below to illustrate the layout. Numbering of circuit diagrams 01... - The respective numbering can be found on the corresponding cover sheet and in the footer. 01a / 01b ... - Depending on the machine no., the components fitted and the country specification, there may be several individual circuit diagrams for a given function. Potentials +30 - Main power supply (battery) +15 - Switched power supply (ignition switch) K90/87 - Relay-controlled power supply -31 - Earth - Housing earth (external) Connections - The description provided inside the circle (e.g. „H44”) defines the connection. - Numbers next to the circle (e.g. „1a”) describe the continuation of the cabling in accordance with the circuit diagram numbering which can be taken from the cover sheet or from the footer. Designations - Connectors (e.g. „X14”, pin 8 - 19…
