ROLLANT 240 with UNIWRAP ROLLANT 250 with UNIWRAP Technical Systems Electric System SERVICE & PARTS Electric System Rollant 240/250 TIC

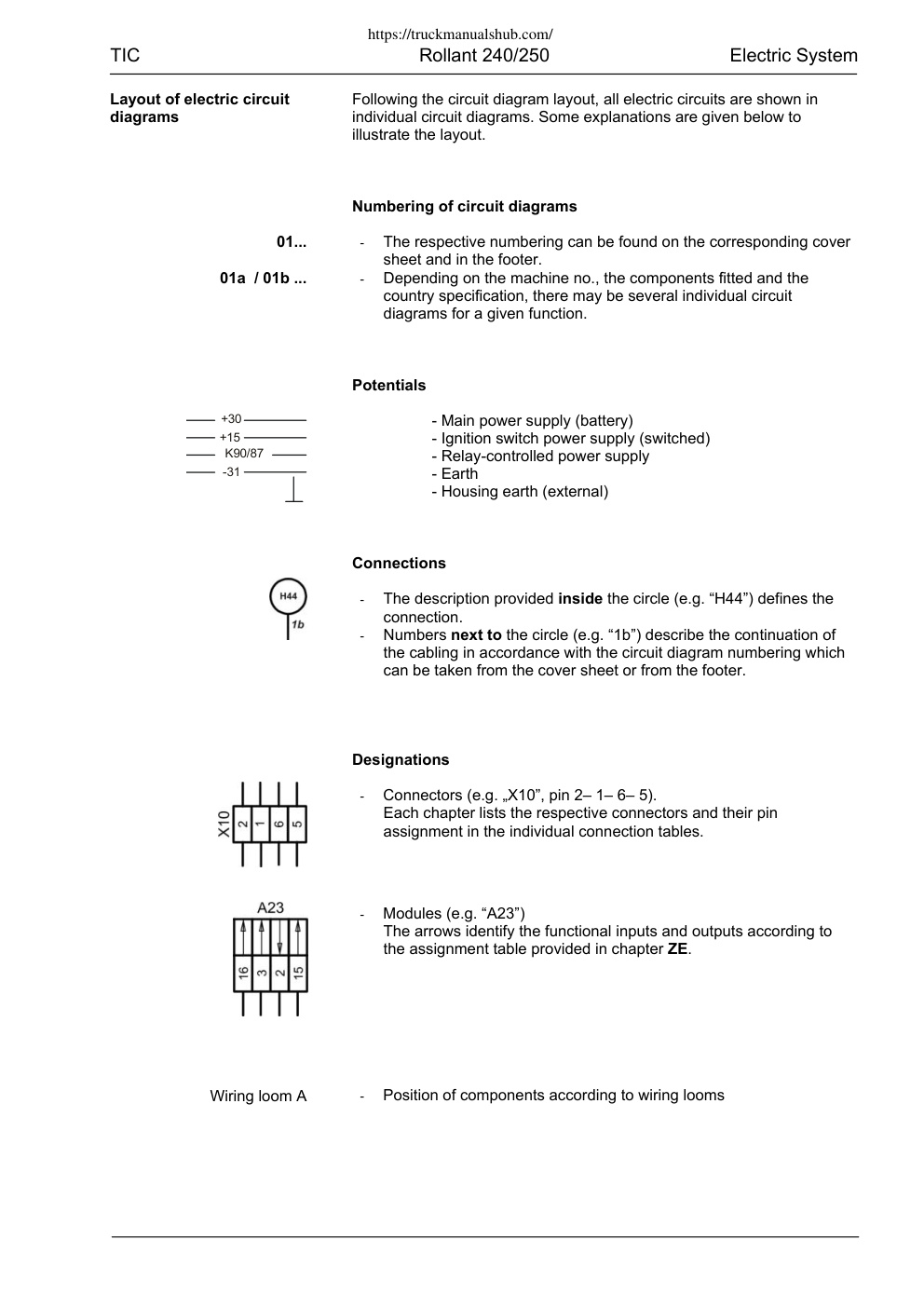

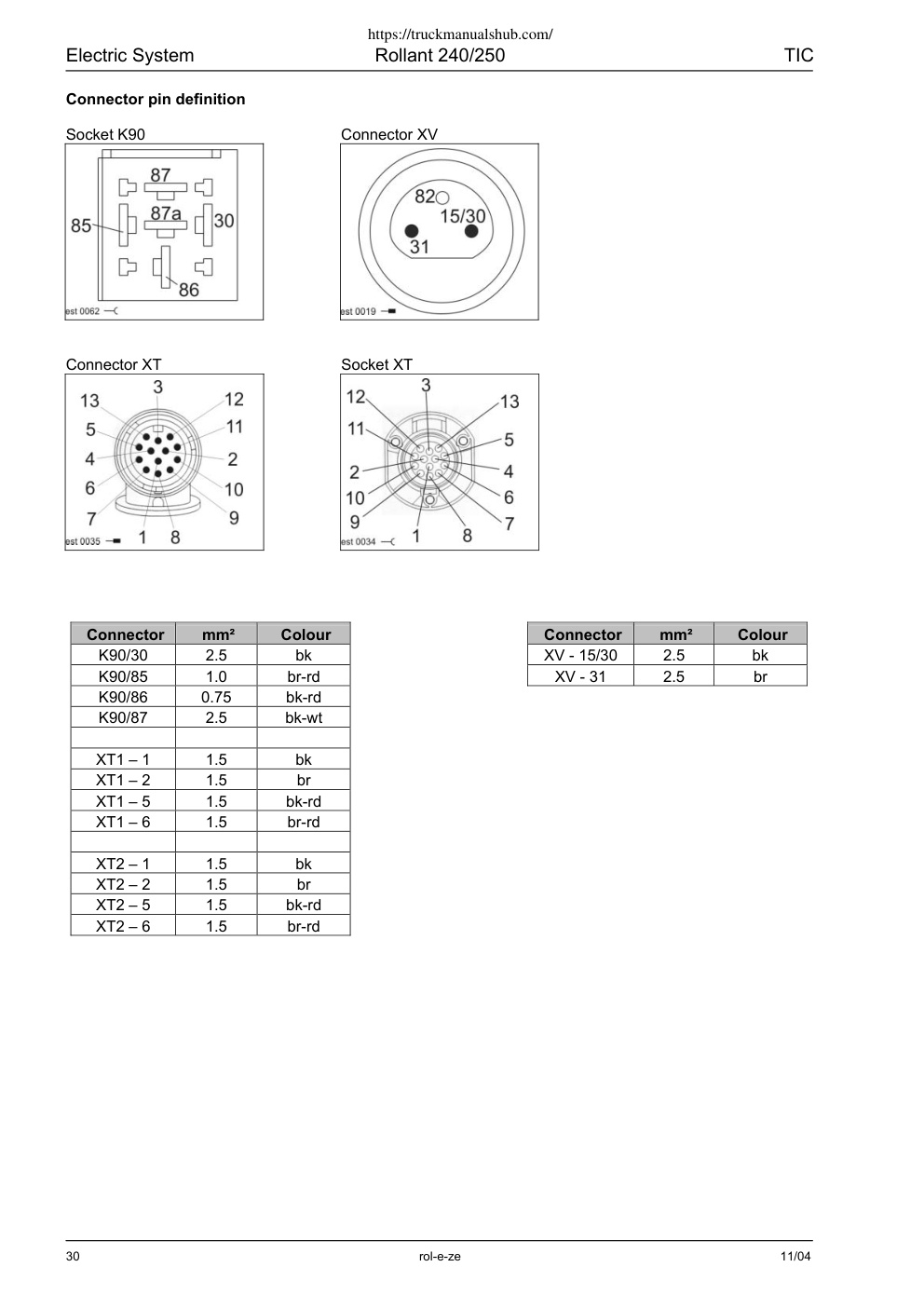

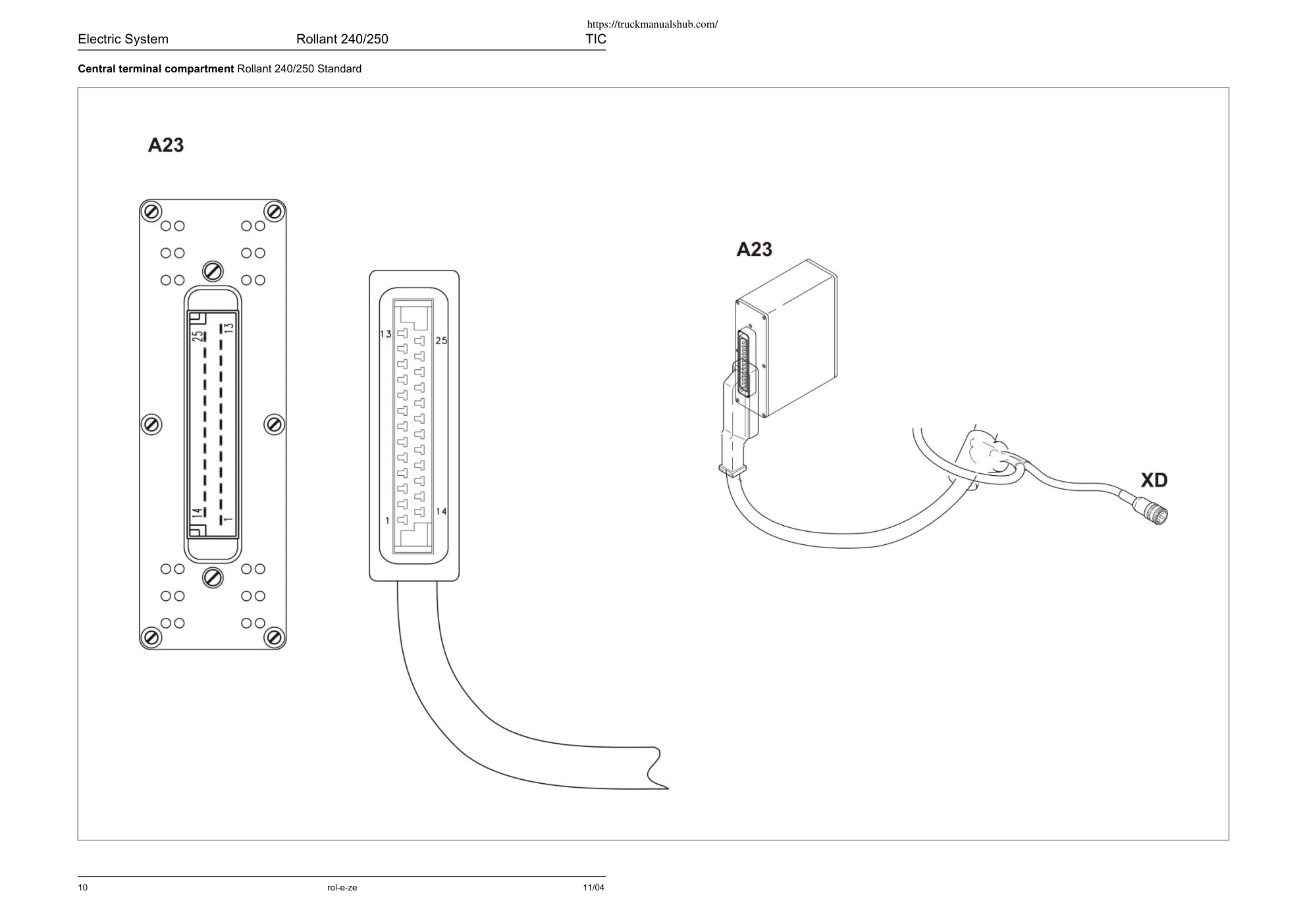

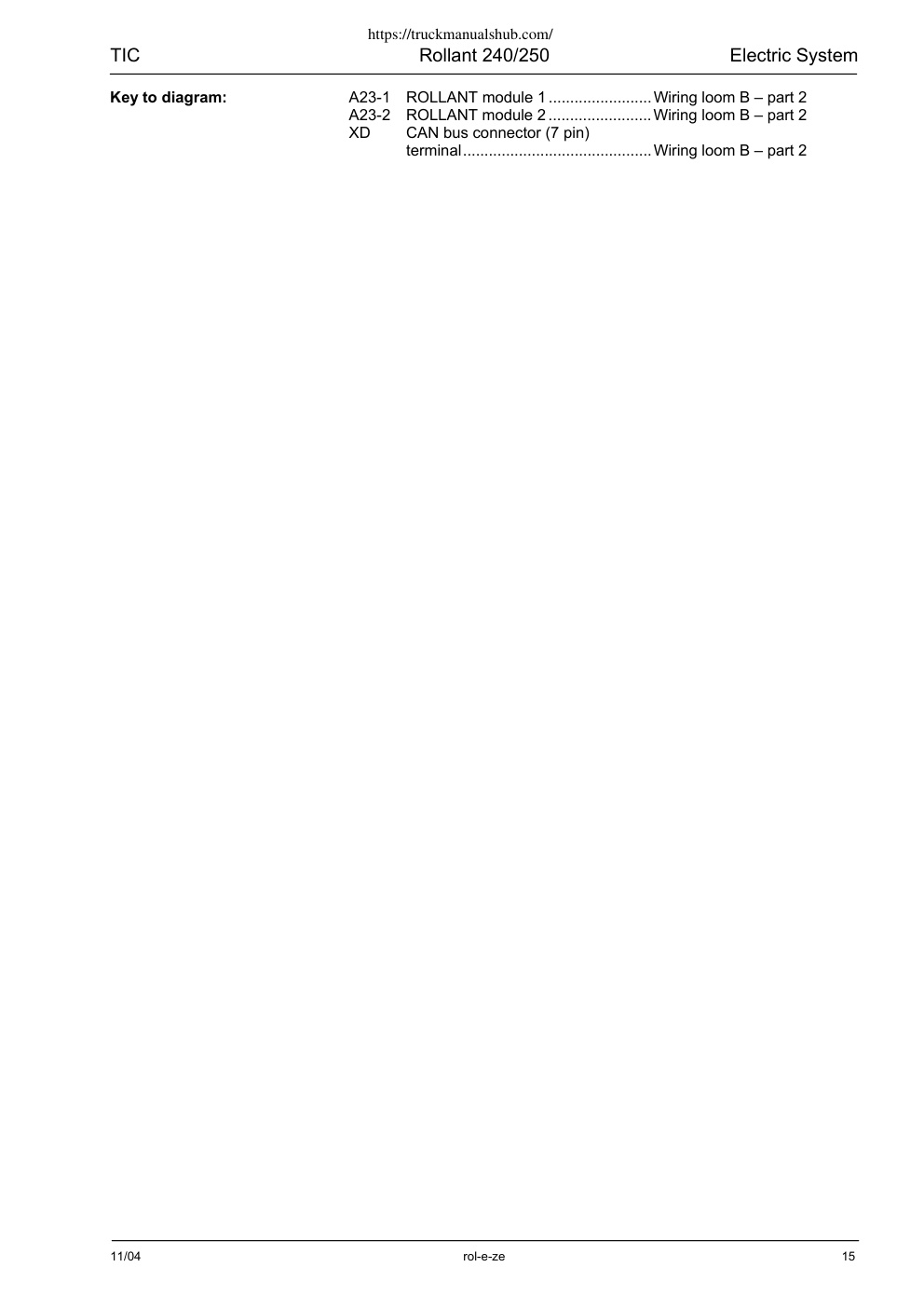

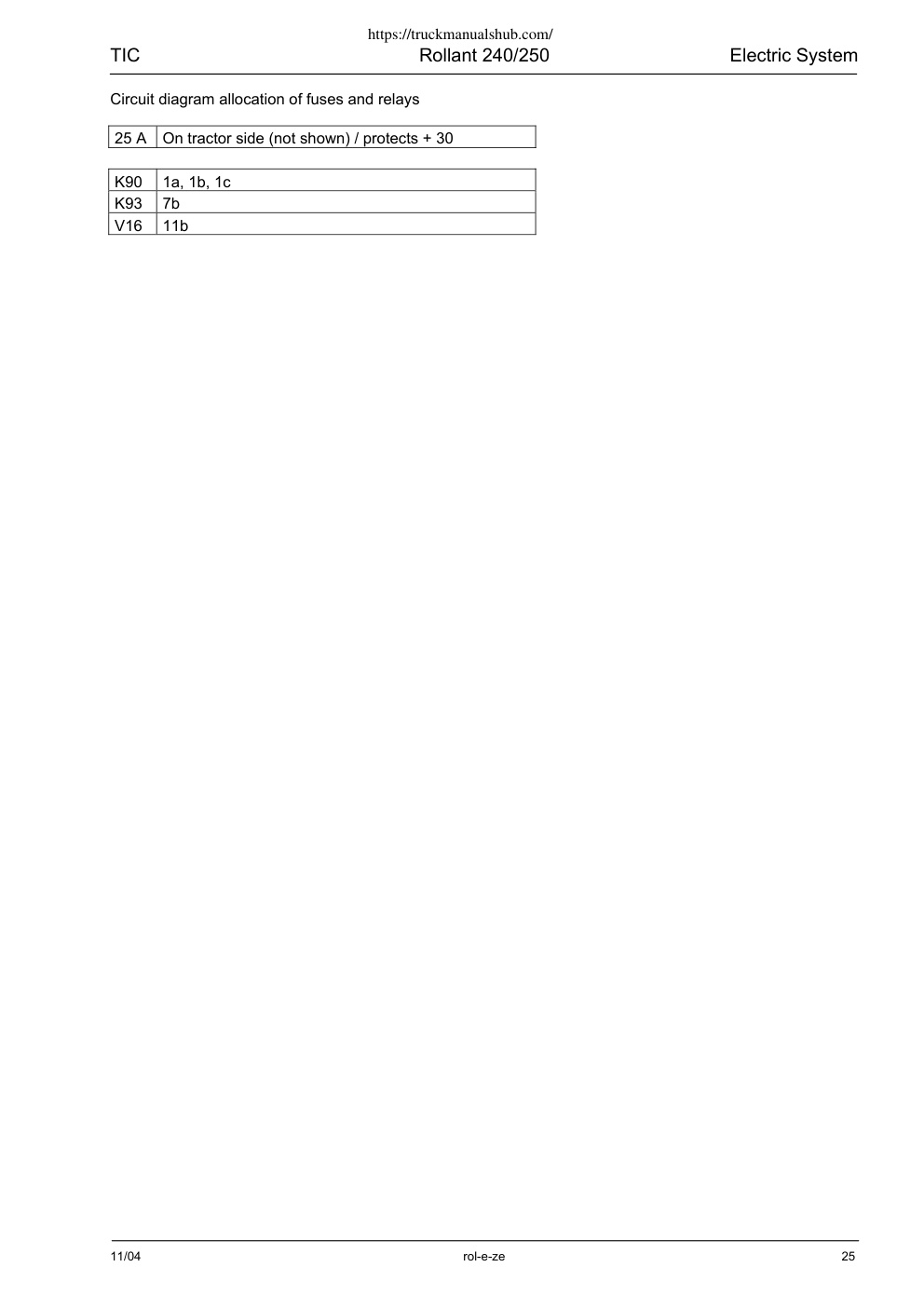

https://truckmanualshub.com/ ROLLANT 240 ROLLANT 250 ROLLANT 240 with UNIWRAP ROLLANT 250 with UNIWRAP Technical Systems Electric System https://truckmanualshub.com/ Electric System Rollant 240/250 TIC https://truckmanualshub.com/ TIC Rollant 240/250 Electric System Layout of electric circuit Following the circuit diagram layout, all electric circuits are shown in diagrams individual circuit diagrams. Some explanations are given below to illustrate the layout. Numbering of circuit diagrams 01... - The respective numbering can be found on the corresponding cover sheet and in the footer. 01a / 01b ... - Depending on the machine no., the components fitted and the country specification, there may be several individual circuit diagrams for a given function. Potentials +30 - Main power supply (battery) +15 - Ignition switch power supply (switched) K90/87 - Relay-controlled power supply -31 - Earth - Housing earth (external) Connections - The description provided inside the circle (e.g. “H44”) defines the connection. - Numbers next to the circle (e.g. “1b”) describe the continuation of the cabling in accordance with the circuit diagram numbering which can be taken from the cover sheet or…
