Technical Systems Hydraulic System SERVICE & PARTS

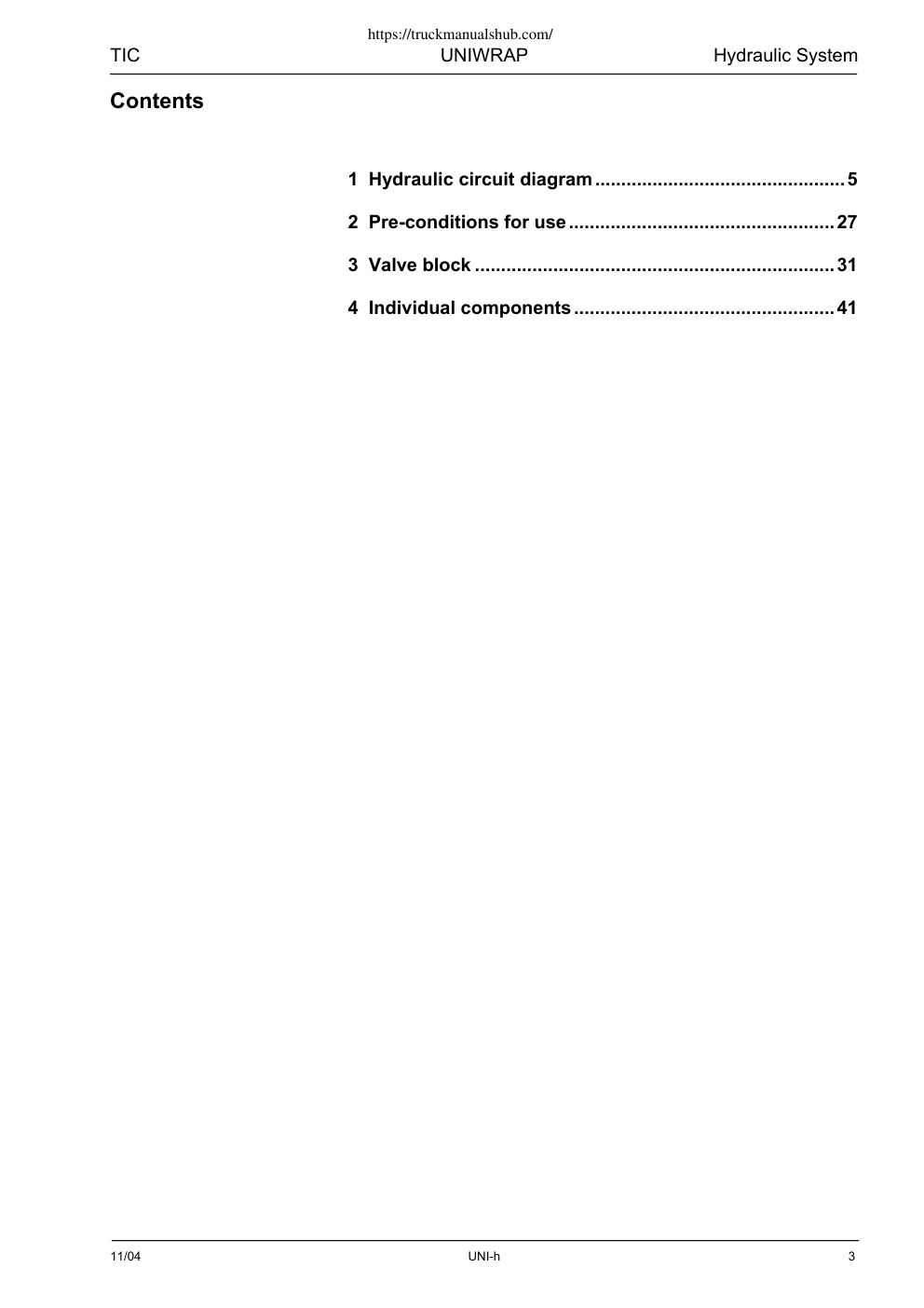

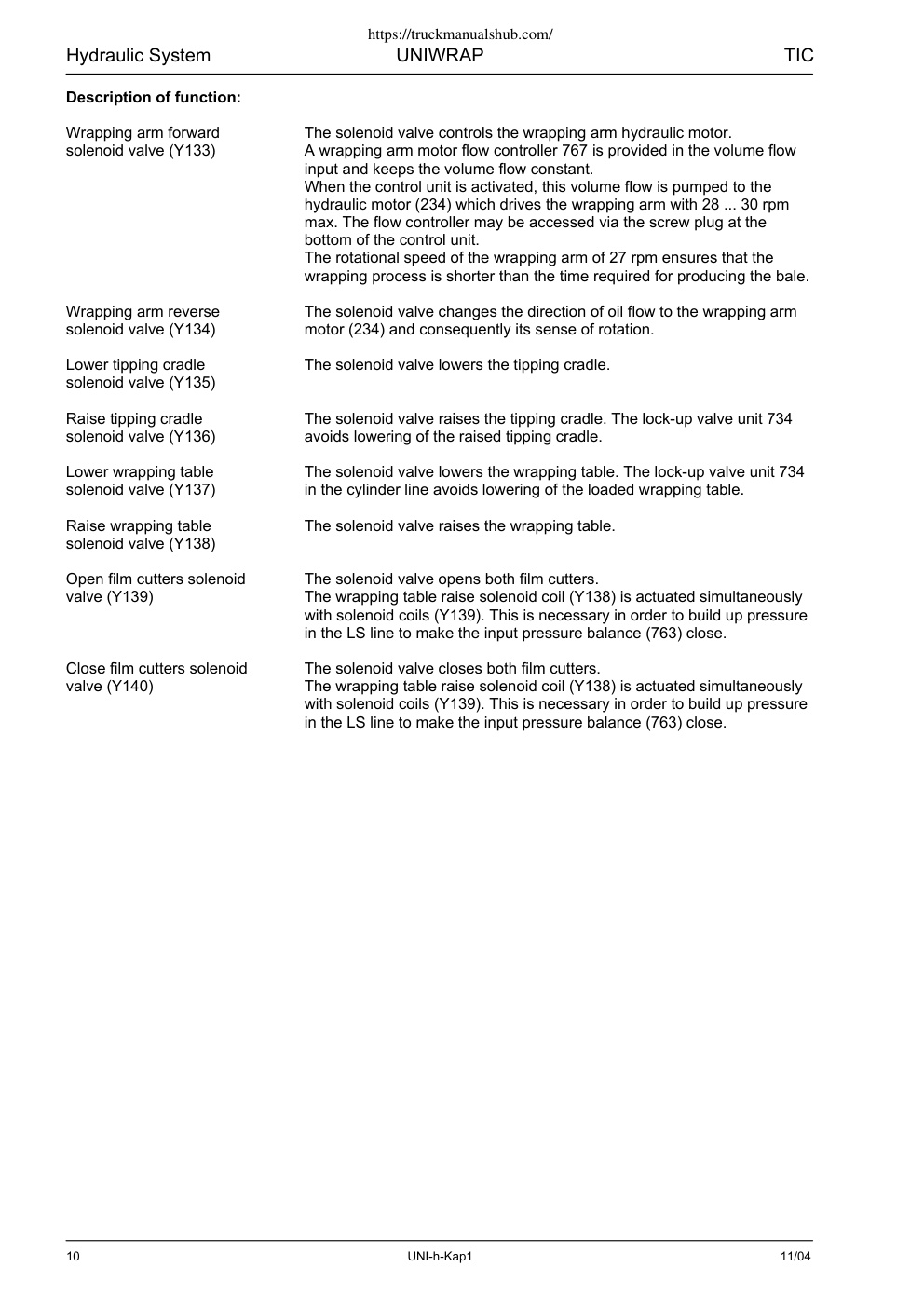

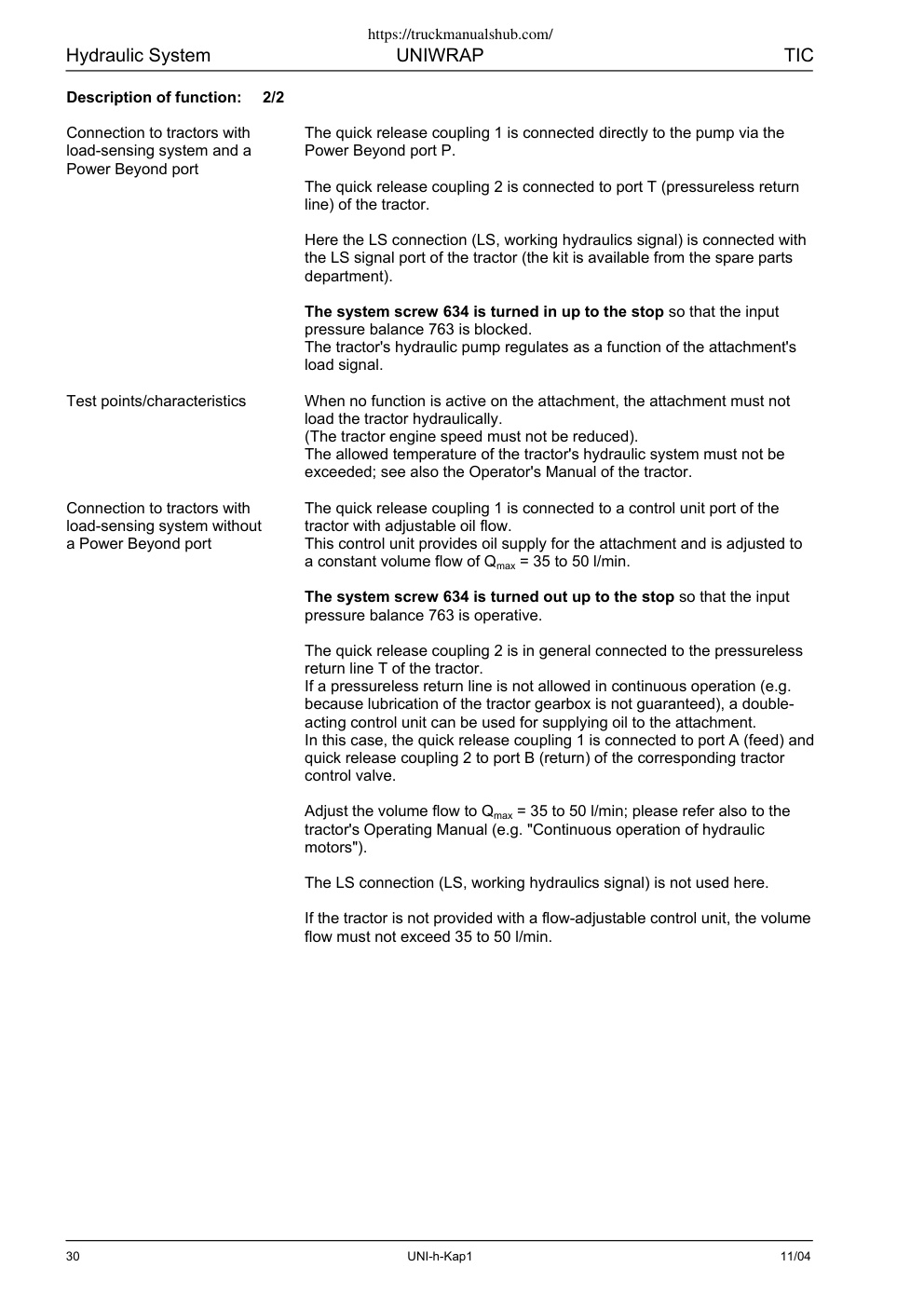

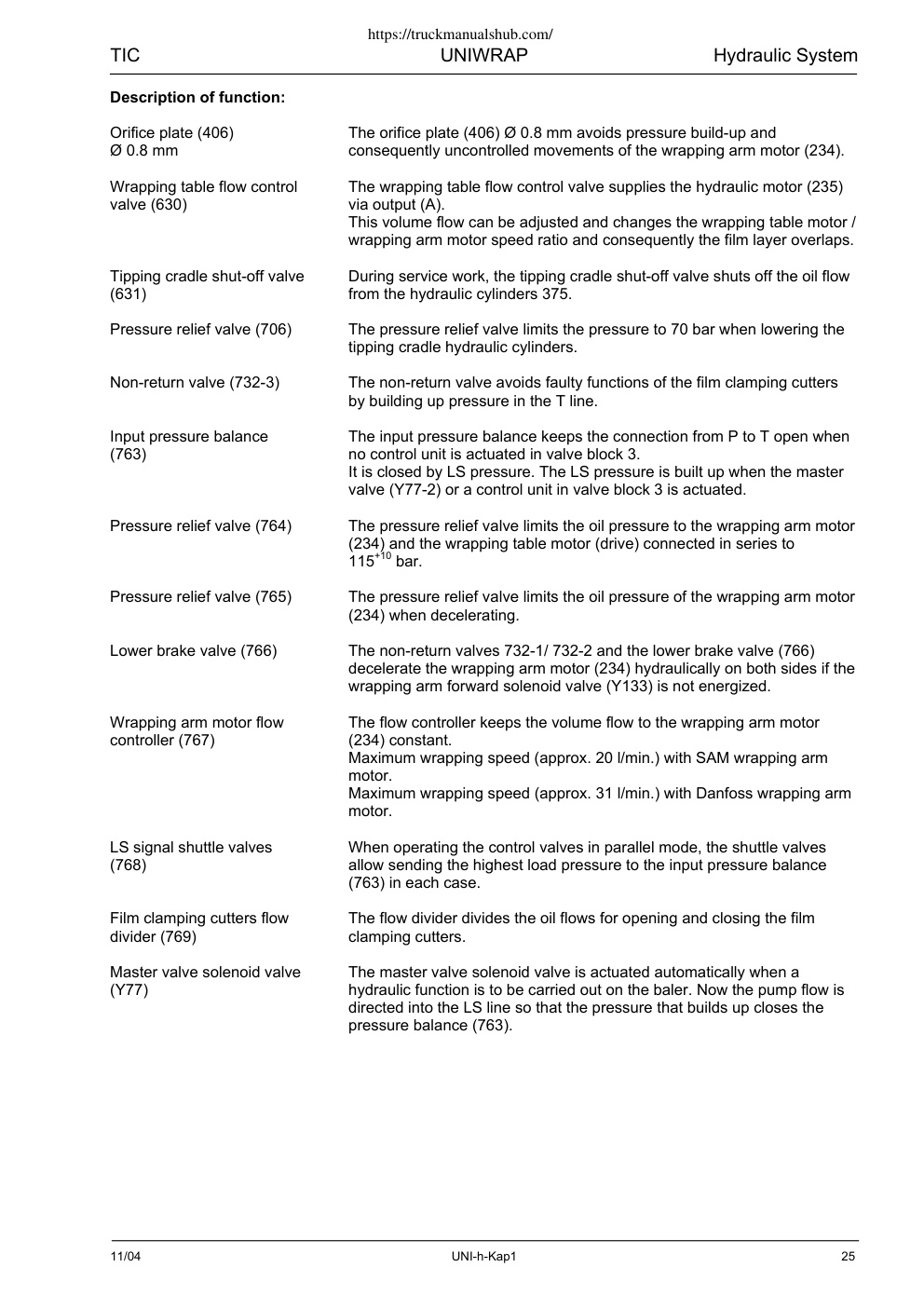

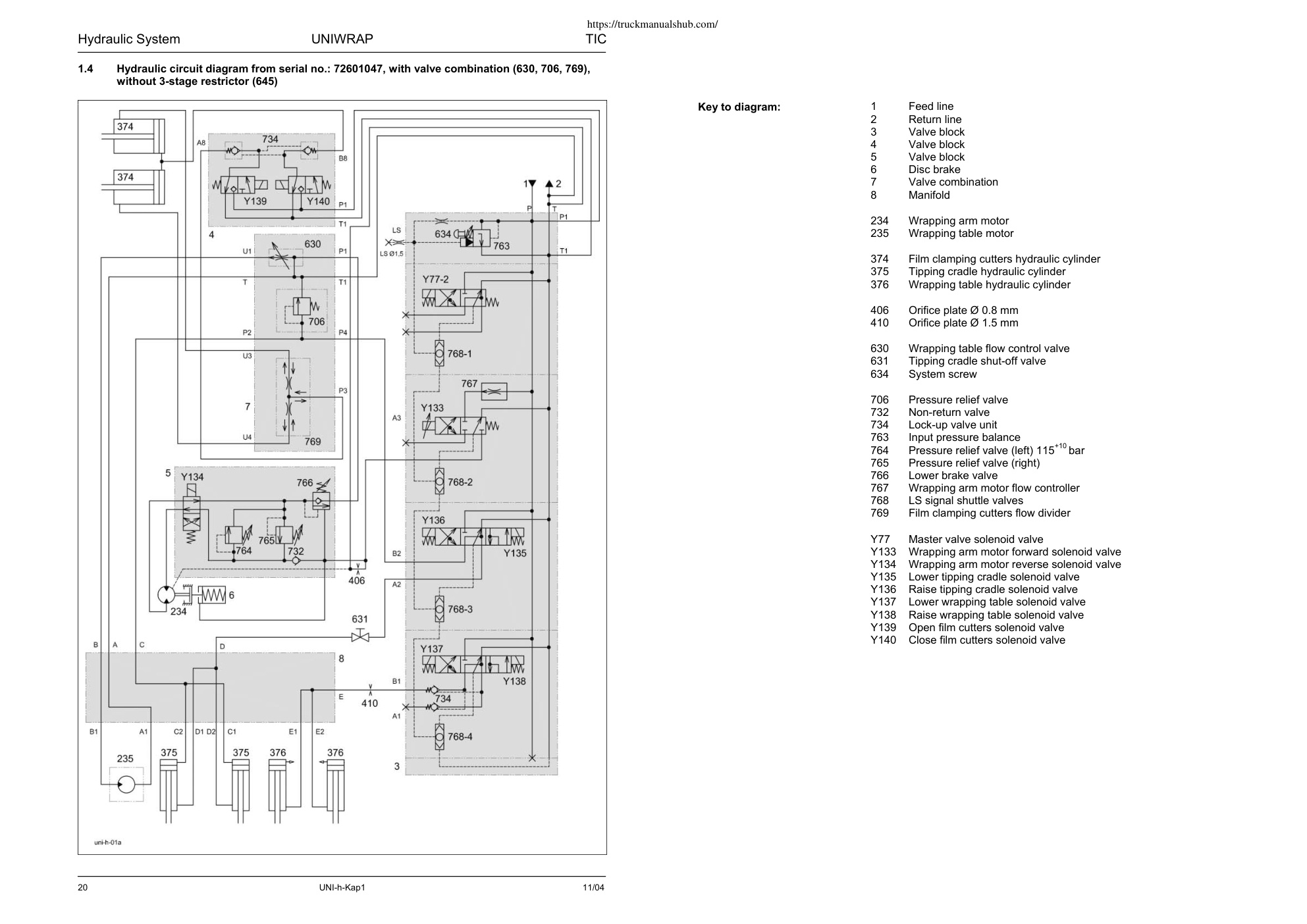

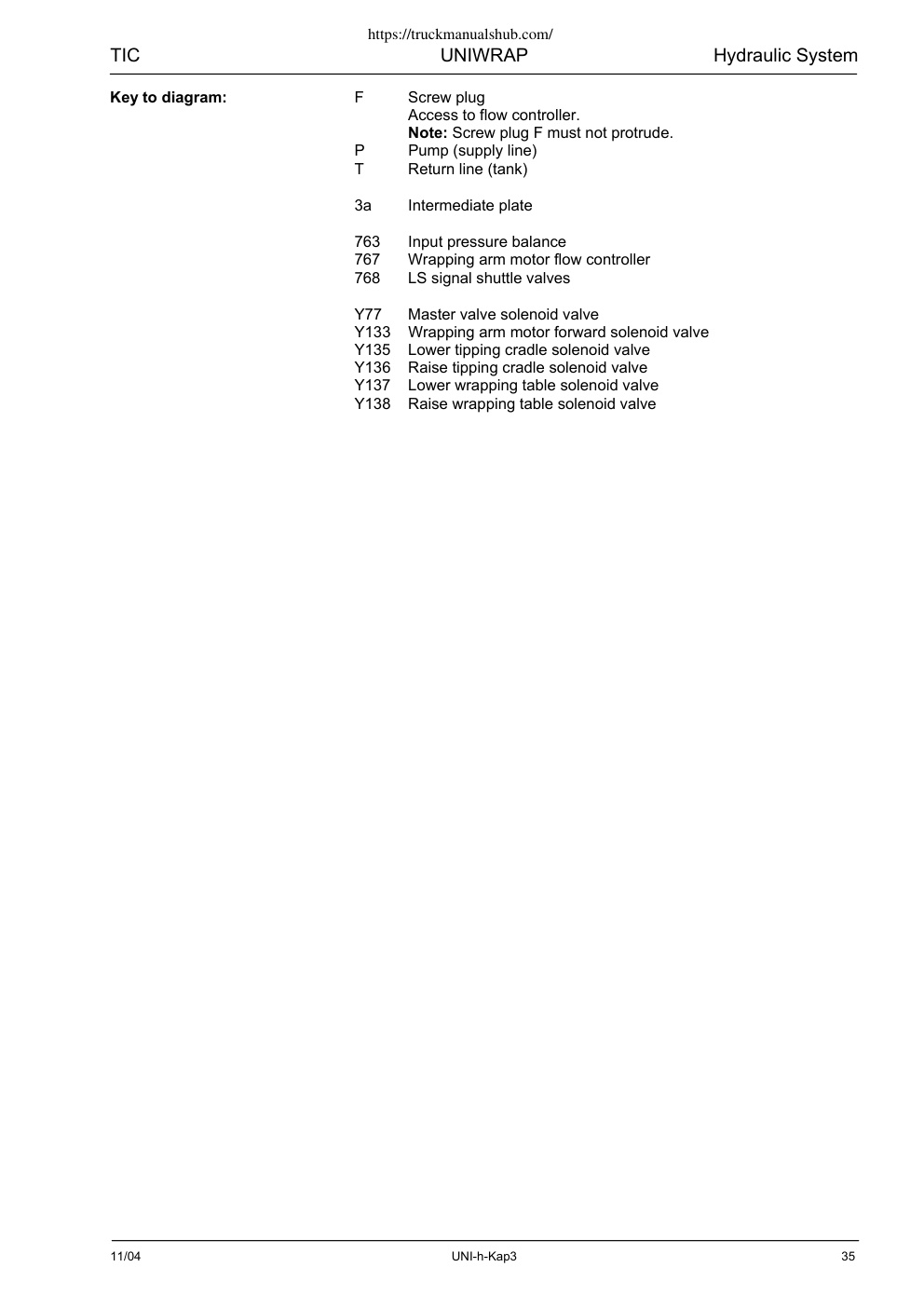

https://truckmanualshub.com/ UNIWRAP Technical Systems Hydraulic System https://truckmanualshub.com/ https://truckmanualshub.com/ TIC UNIWRAP Hydraulic System Contents 1 Hydraulic circuit diagram................................................5 2 Pre-conditions for use...................................................27 3 Valve block .....................................................................31 4 Individual components..................................................41 11/04 UNI-h 3 https://truckmanualshub.com/ Hydraulic System UNIWRAP TIC 4 UNI-h 11/04 https://truckmanualshub.com/ TIC UNIWRAP Hydraulic System 1 Hydraulic circuit diagram 1.1 Hydraulic circuit diagram up to serial no.: 72600130........................8 1.2 Hydraulic circuit diagram from machine no.: 72600131, with tipping cradle service shut-off valve (631)...............................12 1.3 Hydraulic circuit diagram from machine no.: 72600531, with film clamping cutters flow divider (769)....................................16 1.4 Hydraulic circuit diagram from serial no.: 72601047, with valve combination (630, 706, 769), without 3-stage restrictor (645)…
