Parts Manual

Hydrostatic Lawn Tractor CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A. FORM NO. TABLE OF CONTENTS DESCRIPTION PAGE DESCRIPTION PAGE Axle, Front....................................................... 6 Fender............................................................. 10 Battery............................................................. 16 Frame.............................................................. 8 Brake Pedal..................................................... 12 Fuel Tank......................................................... 10 Head Lamp...................................................... 18 Grille................................................................ 18 Mower Deck, 50-inch........................................ 21 Hood................................................................ 18 Pedal Controls.....

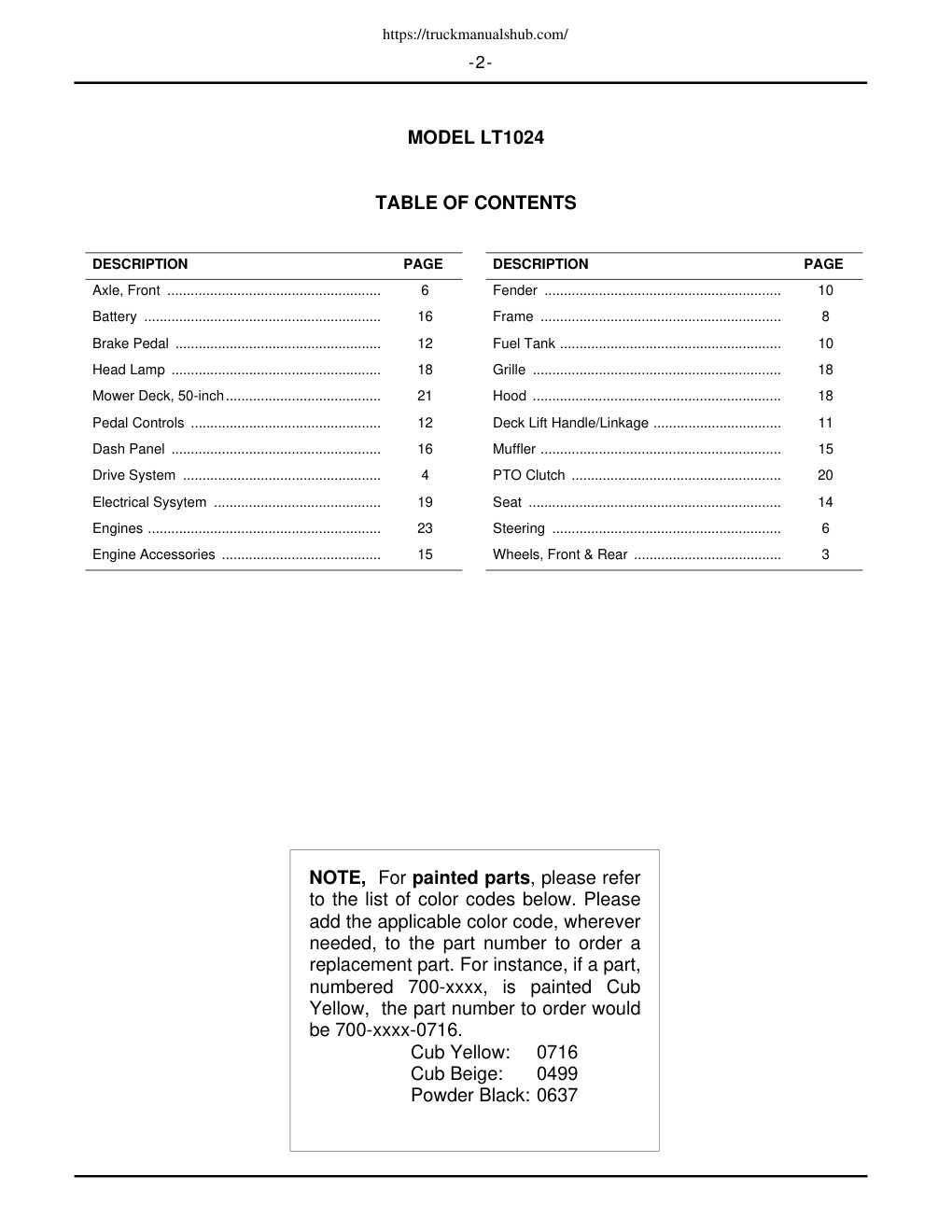

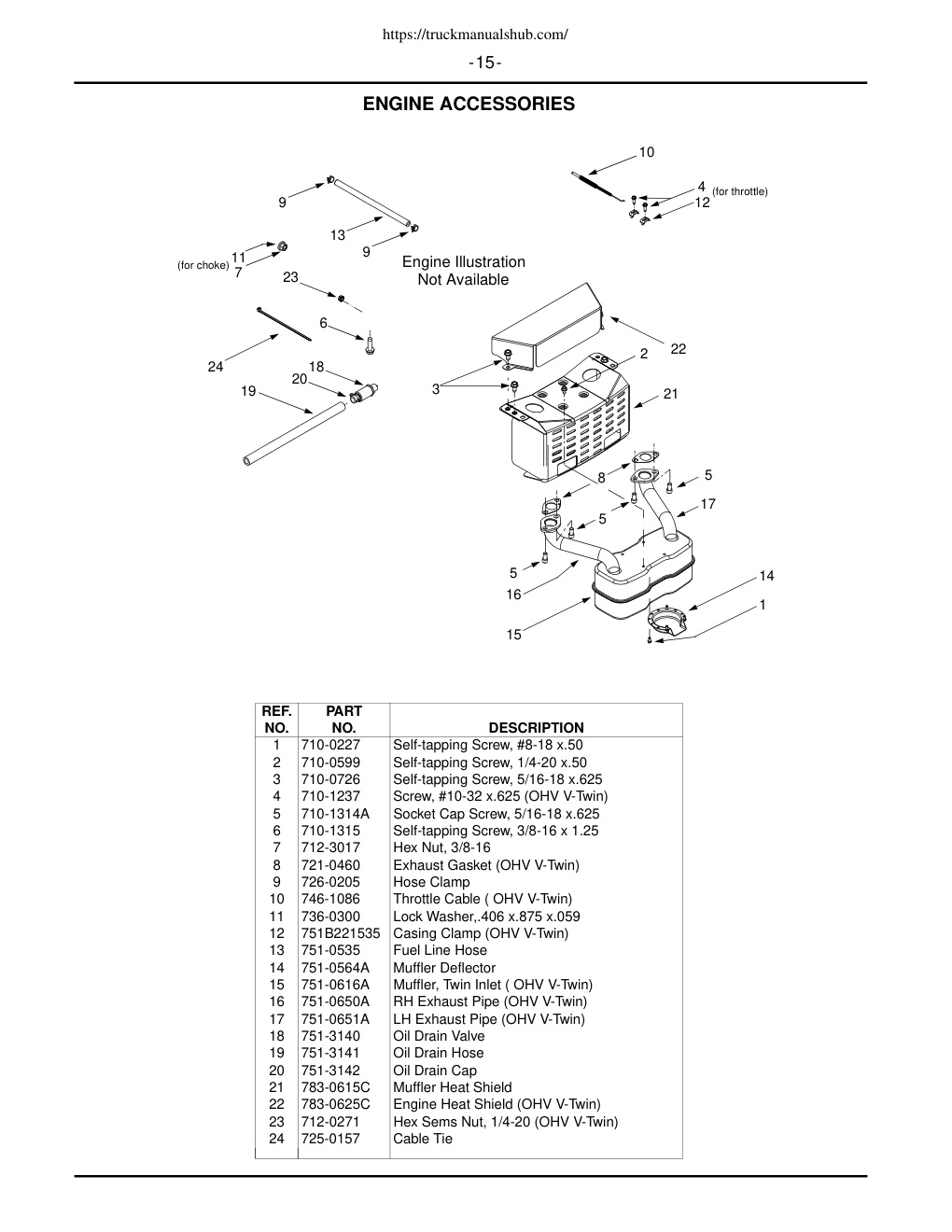

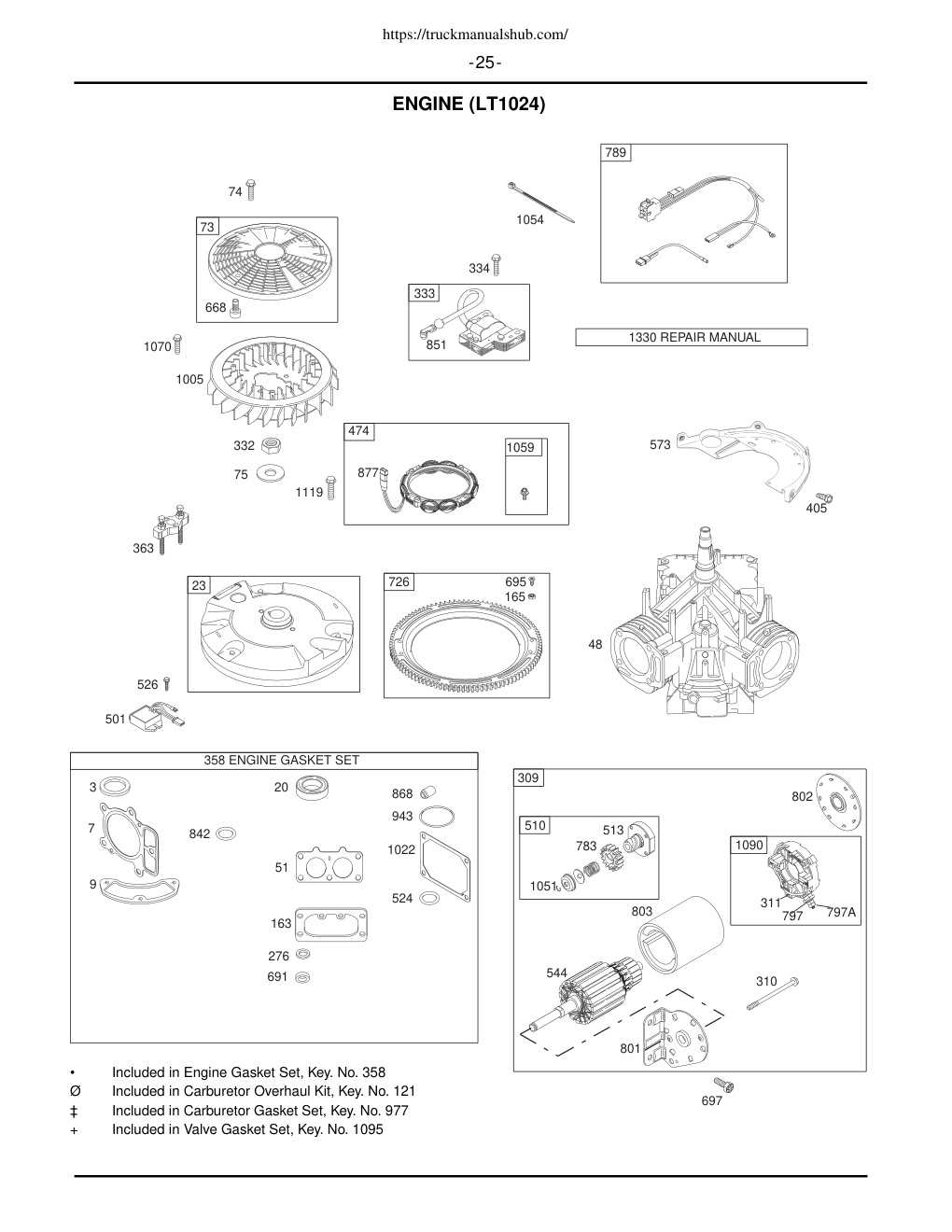

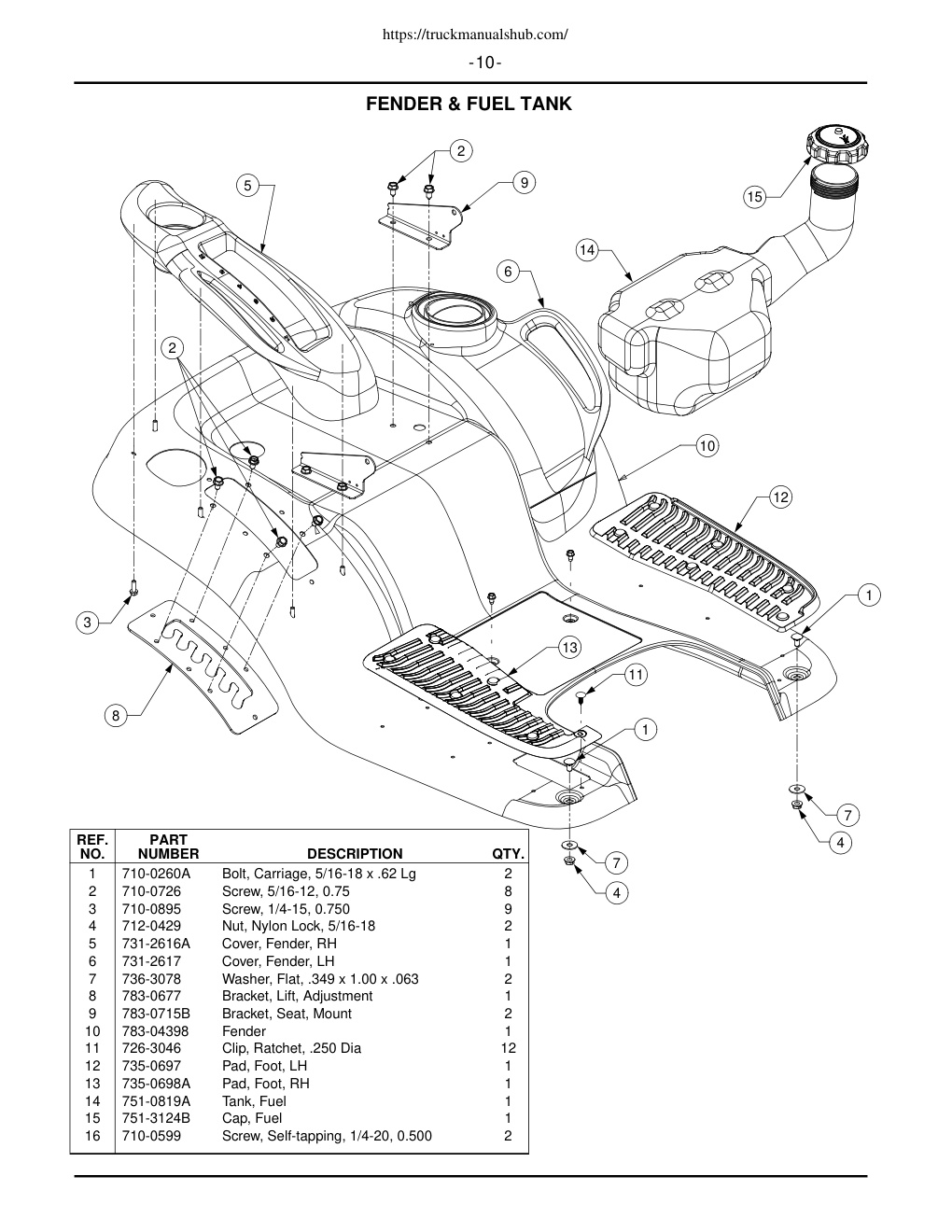

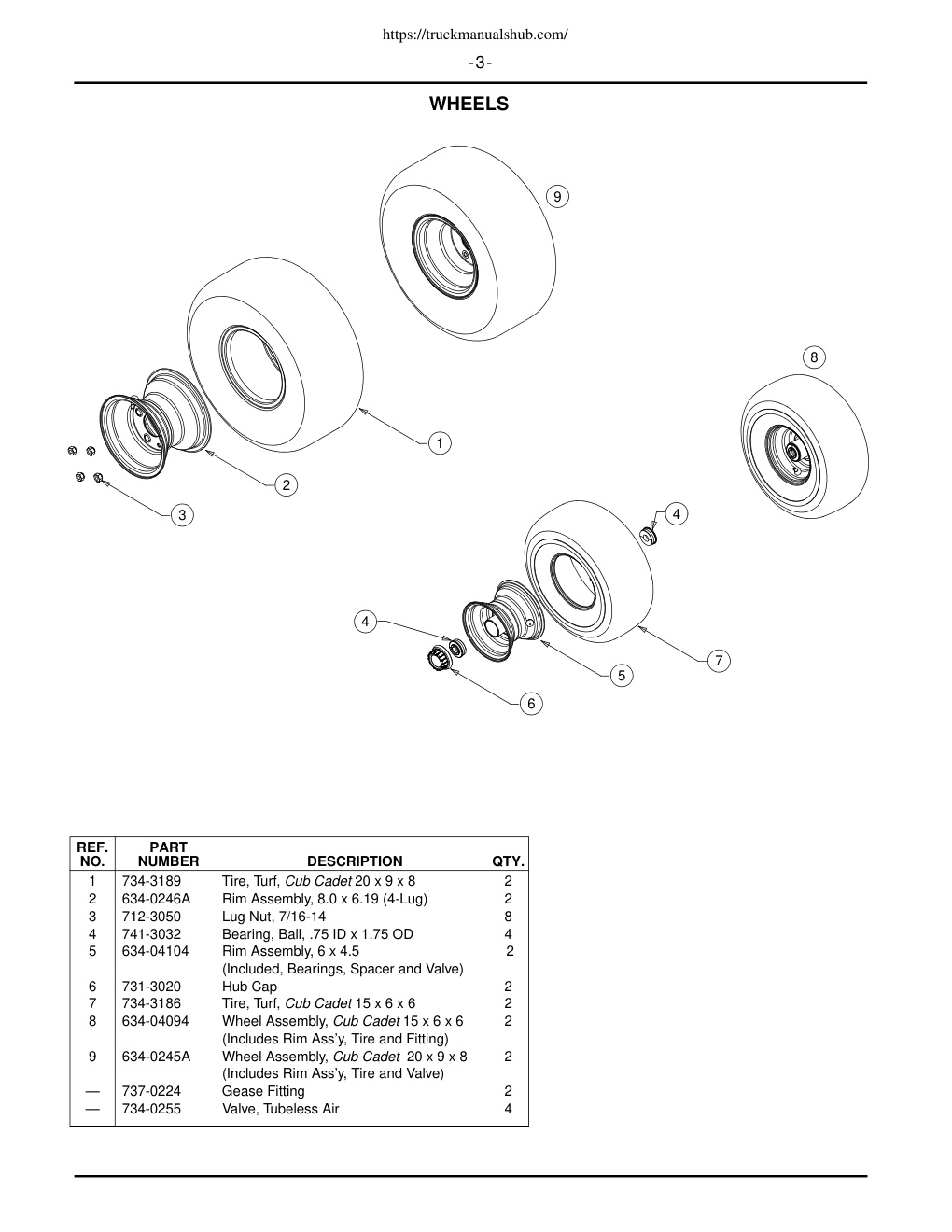

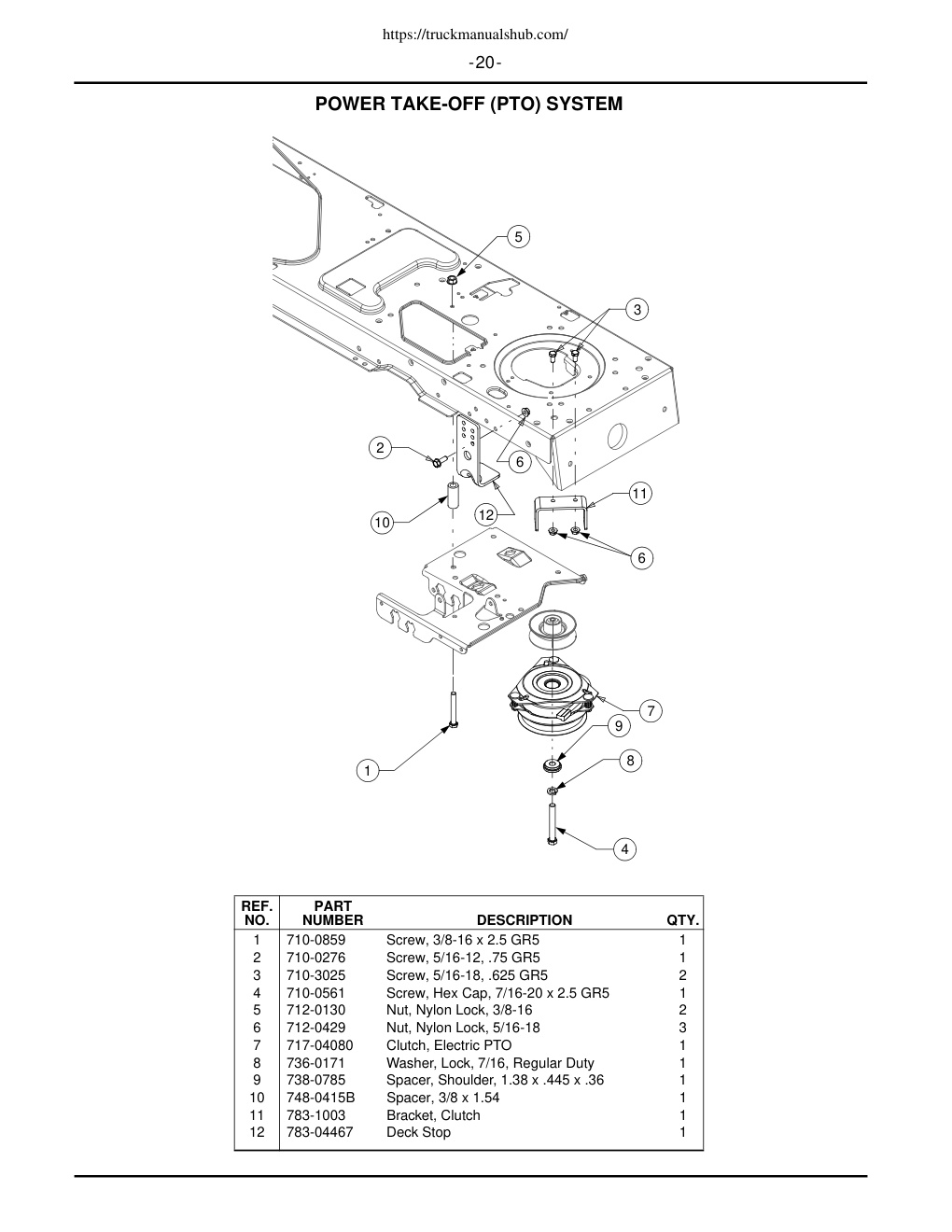

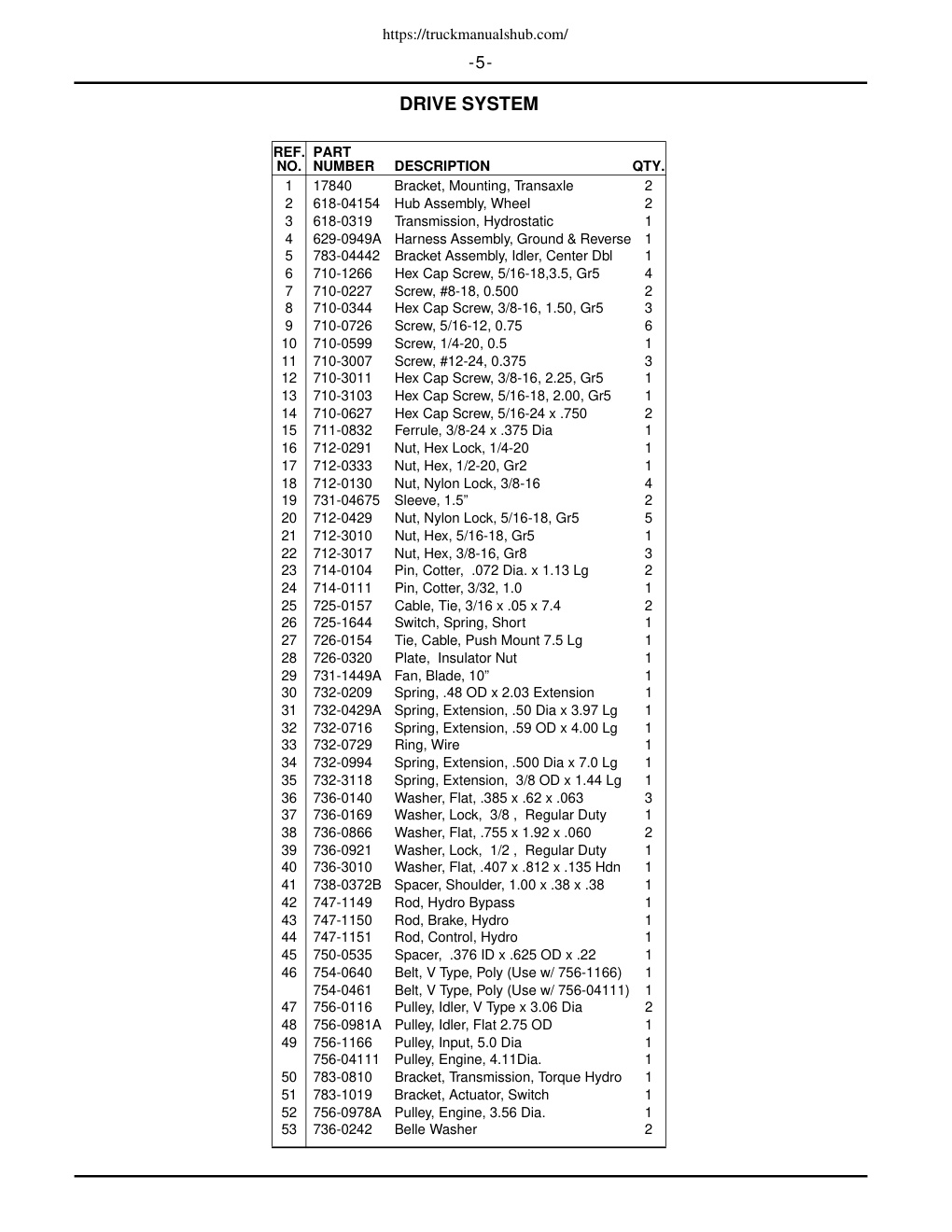

https://truckmanualshub.com/ Parts Manual SERIES 1000 Hydrostatic Lawn Tractor Models LT1024 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 PRINTED IN U.S.A. FORM NO. 769-01022.fm 1/16/04 https://truckmanualshub.com/ -2- MODEL LT1024 TABLE OF CONTENTS DESCRIPTION PAGE DESCRIPTION PAGE Axle, Front ....................................................... 6 Fender ............................................................. 10 Battery ............................................................. 16 Frame .............................................................. 8 Brake Pedal ..................................................... 12 Fuel Tank ......................................................... 10 Head Lamp ...................................................... 18 Grille ................................................................ 18 Mower Deck, 50-inch........................................ 21 Hood ................................................................ 18 Pedal Controls ................................................. 12 Deck Lift Handle/Linkage ................................. 11 Dash Panel ......................................................…
