Illustrated Parts Manual

Lawn Tractor — LTX 1040 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-04587 (July 29, 2009) Steering & Front Axle Assembly

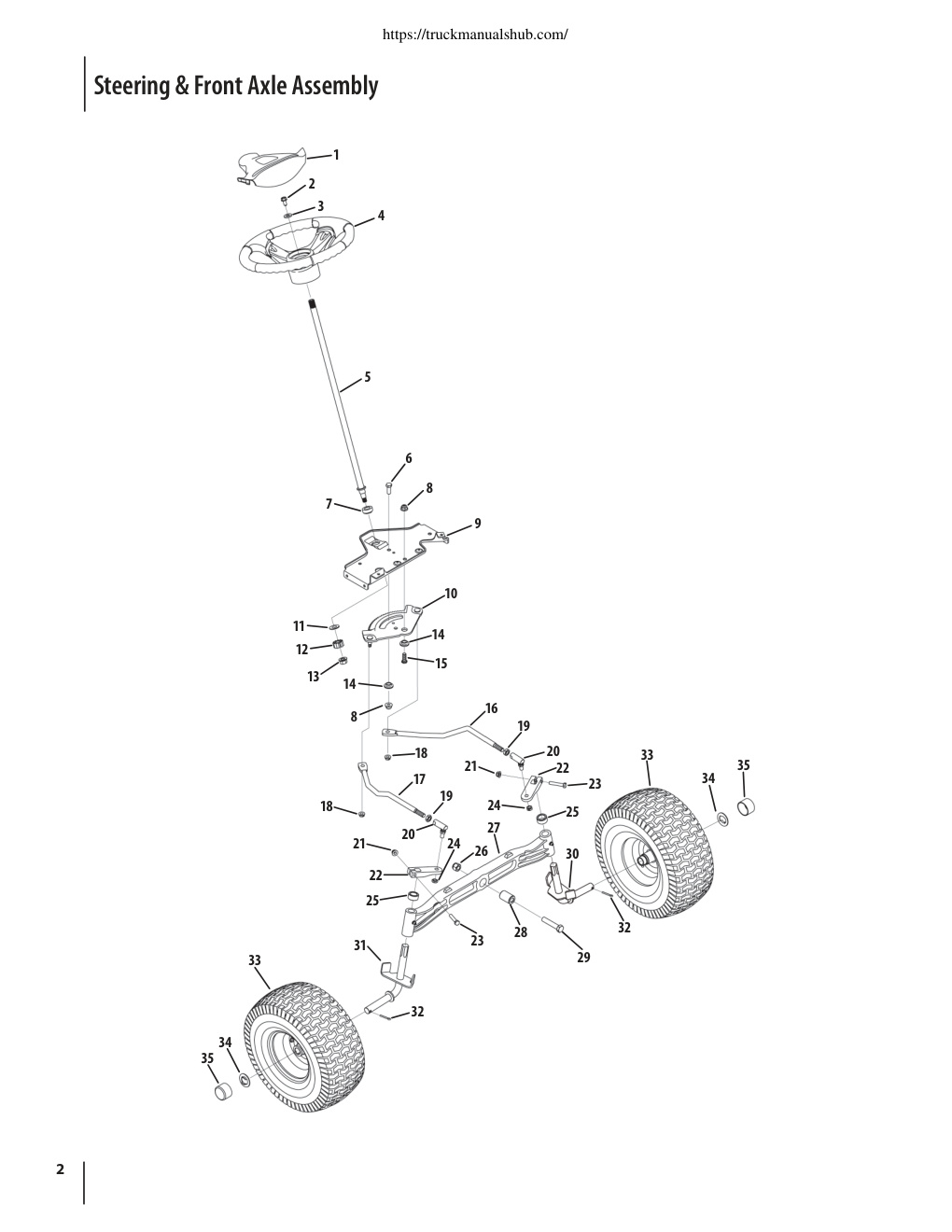

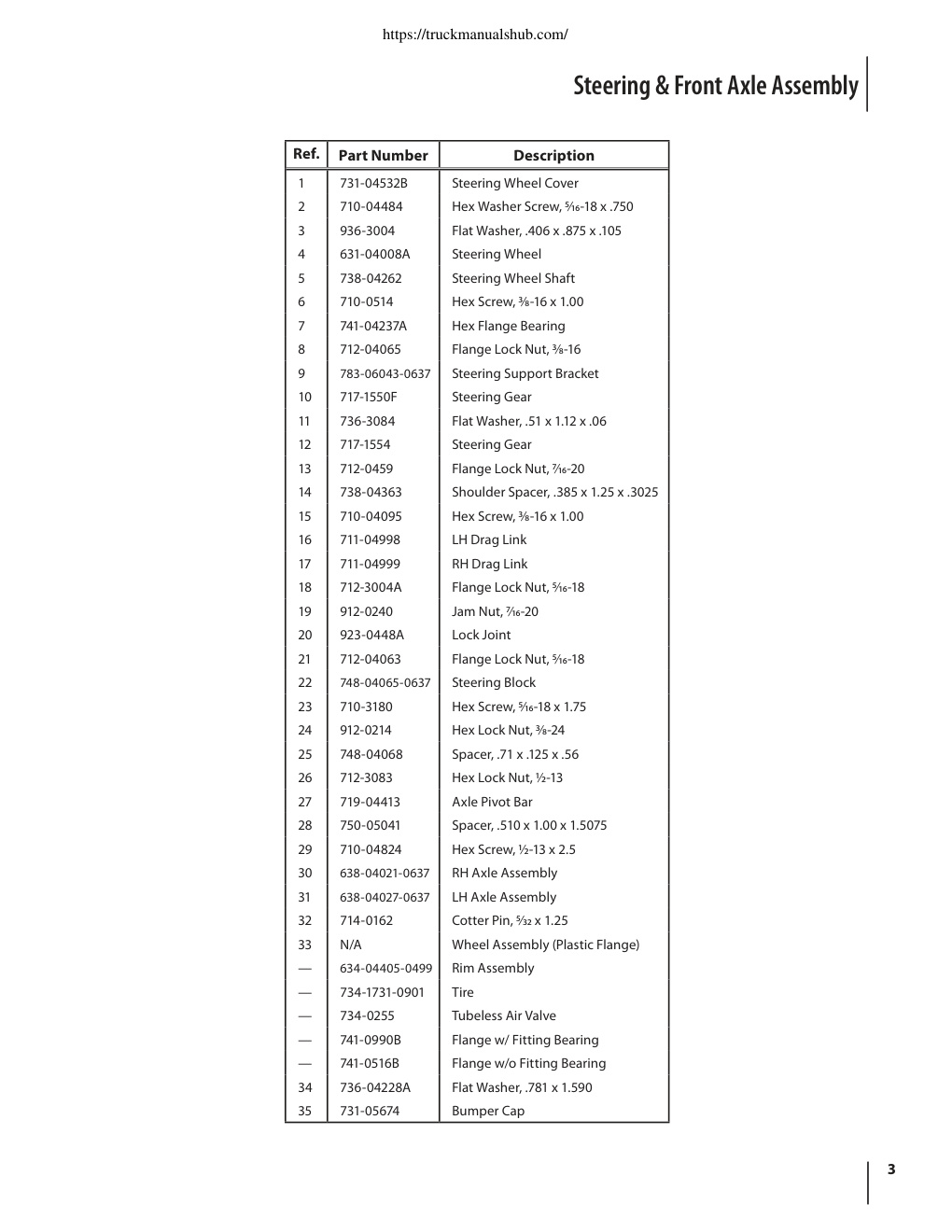

https://truckmanualshub.com/ Illustrated Parts Manual Lawn Tractor — LTX 1040 CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No. 769-04587 (July 29, 2009) https://truckmanualshub.com/ Steering & Front Axle Assembly 1 2 3 4 5 6 8 7 9 10 11 14 12 15 13 14 16 8 19 18 20 33 21 22 35 17 23 34 19 18 24 25 27 20 21 24 26 30 22 25 32 28 31 23 33 29 32 34 35 2 https://truckmanualshub.com/ Steering & Front Axle Assembly Ref. Part Number Description 1 731-04532B Steering Wheel Cover 2 710-04484 Hex Washer Screw, 5⁄16-18 x .750 3 936-3004 Flat Washer, .406 x .875 x .105 4 631-04008A Steering Wheel 5 738-04262 Steering Wheel Shaft 6 710-0514 Hex Screw, 3⁄8-16 x 1.00 7 741-04237A Hex Flange Bearing 8 712-04065 Flange Lock Nut, 3⁄8-16 9 783-06043-0637 Steering Support Bracket 10 717-1550F Steering Gear 11 736-3084 Flat Washer, .51 x 1.12 x .06 12 717-1554 Steering Gear 13 712-0459 Flange Lock Nut, 7⁄16-20 14 738-04363 Shoulder Spacer, .385 x 1.25 x .3025 15 710-04095 Hex Screw, 3⁄8-16 x 1.00 16 711-04998 LH Drag Link 17 711-04999 RH Drag Link 18 712-3004A Flange Lock Nut, 5⁄16-18 19 912-0240 Jam Nut, 7⁄16-20 20 923-0448A Lock Joint 21 712-04063 Flange Lock Nut,…
