1 150102-00004A CYLINDER BLOCK ASS'Y 1

Fig. 001 CYLINDER BLOCK Doosan Infracore Fig. 001 CYLINDER BLOCK Key No Part No Description Qty S.C Serial No ICA Replacable Qty 1A - CYLINDER BLOCK 1 D 1B - THRUST BEARING CAP ASS'Y 1 D 1BA - BEARING CAP;THRUST 1 D 1BB 65.91710-0001 RING;STOPPER 2 1C - BEARING CAP ASS'Y 6 D 1CA - BEARING CAP 1 D 1CB 65.91710-0001 RING;STOPPER 2 1D 65.90020-0066A BOLT;BRG CAP 14 1E 65.04410-0021A BUSH;CAMSHAFT 6 B 1F 65.04410-0022 BUSH;CAMSHAFT 1 B 1G 65.90302-0009 PLUG;CORE 2 1H 65.90302-0042 PLUG;CORE 8 1I 65.90302-0034 PLUG;CORE 5 1J 65.91606-0041 PLUG;CORE 2 1K 06.31641-0618 BALL;STEEL 1 20 65.90320-0022 PLUG SCREW PT1/8 1 21 65.91001-0013A PIN;CORE 6 30 410127-00088 RELIEF VALVE ASS'Y 1 30A 06.56021-0102 O-RING 1 30B - RELIEF VALVE 1 D 33 06.22022-1063 PIN 2 34 65.91605-0002 COVER;CORE HOLE 1 35 65.90310-0134 SCREW;PLUG 2 36 06.56190-0732 SEAL;RING 2 40 65.01201-0075A CYLINDER LINER-GRADE 6 D 41 65.

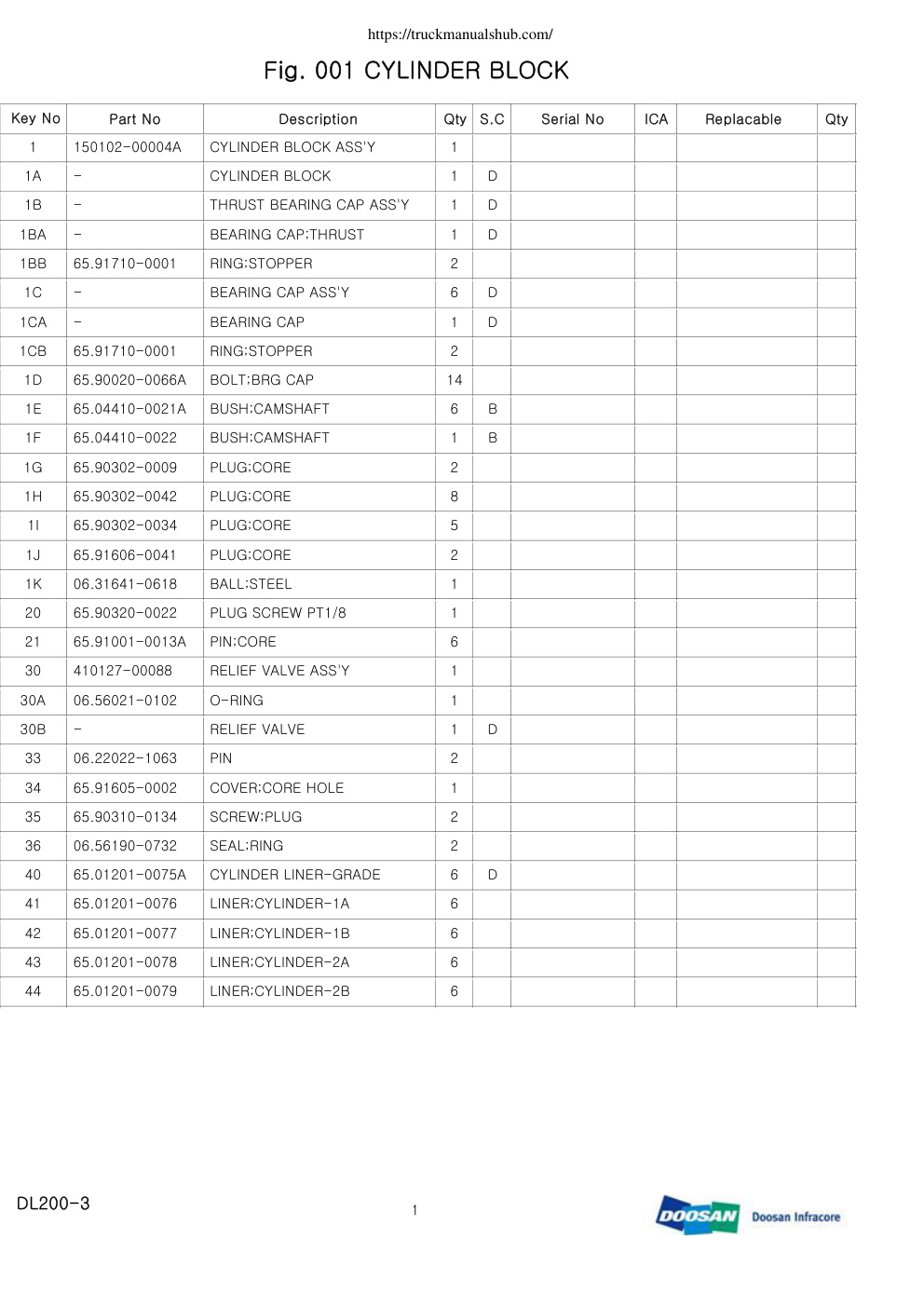

https://truckmanualshub.com/ Fig. 001 CYLINDER BLOCK DL200-3 https://truckmanualshub.com/ Fig. 001 CYLINDER BLOCK Key No Part No Description Qty S.C Serial No ICA Replacable Qty 1 150102-00004A CYLINDER BLOCK ASS'Y 1 1A - CYLINDER BLOCK 1 D 1B - THRUST BEARING CAP ASS'Y 1 D 1BA - BEARING CAP;THRUST 1 D 1BB 65.91710-0001 RING;STOPPER 2 1C - BEARING CAP ASS'Y 6 D 1CA - BEARING CAP 1 D 1CB 65.91710-0001 RING;STOPPER 2 1D 65.90020-0066A BOLT;BRG CAP 14 1E 65.04410-0021A BUSH;CAMSHAFT 6 B 1F 65.04410-0022 BUSH;CAMSHAFT 1 B 1G 65.90302-0009 PLUG;CORE 2 1H 65.90302-0042 PLUG;CORE 8 1I 65.90302-0034 PLUG;CORE 5 1J 65.91606-0041 PLUG;CORE 2 1K 06.31641-0618 BALL;STEEL 1 20 65.90320-0022 PLUG SCREW PT1/8 1 21 65.91001-0013A PIN;CORE 6 30 410127-00088 RELIEF VALVE ASS'Y 1 30A 06.56021-0102 O-RING 1 30B - RELIEF VALVE 1 D 33 06.22022-1063 PIN 2 34 65.91605-0002 COVER;CORE HOLE 1 35 65.90310-0134 SCREW;PLUG 2 36 06.56190-0732 SEAL;RING 2 40 65.01201-0075A CYLINDER LINER-GRADE 6 D 41 65.01201-0076 LINER;CYLINDER-1A 6 42 65.01201-0077 LINER;CYLINDER-1B 6 43 65.01201-0078 LINER;CYLINDER-2A 6 44 65.01201-0079 LINER;CYLINDER-2B 6 DL200-3 1 https://truckmanualshub.com/ Fig. 002 TIMING GEAR CASE…
