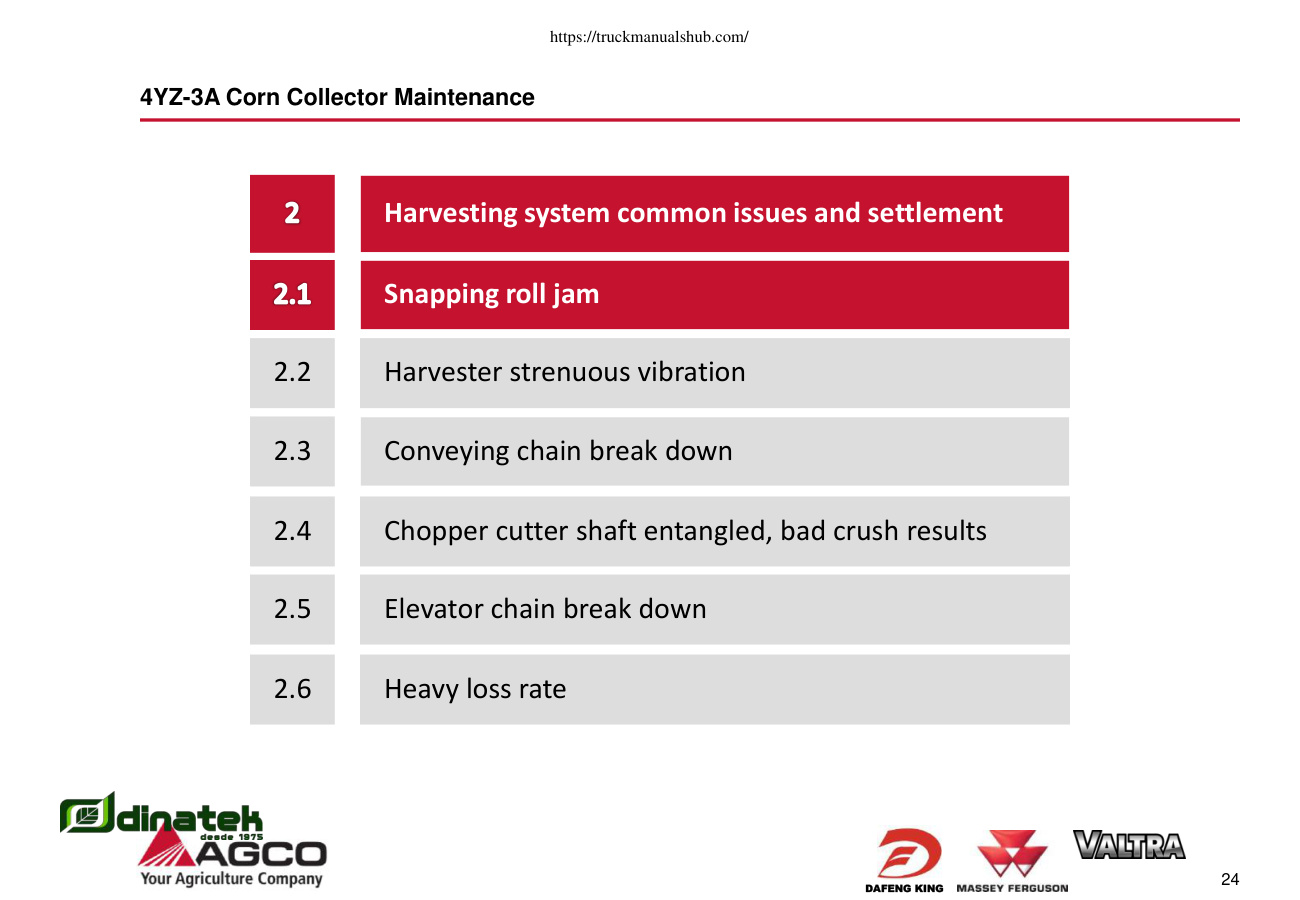

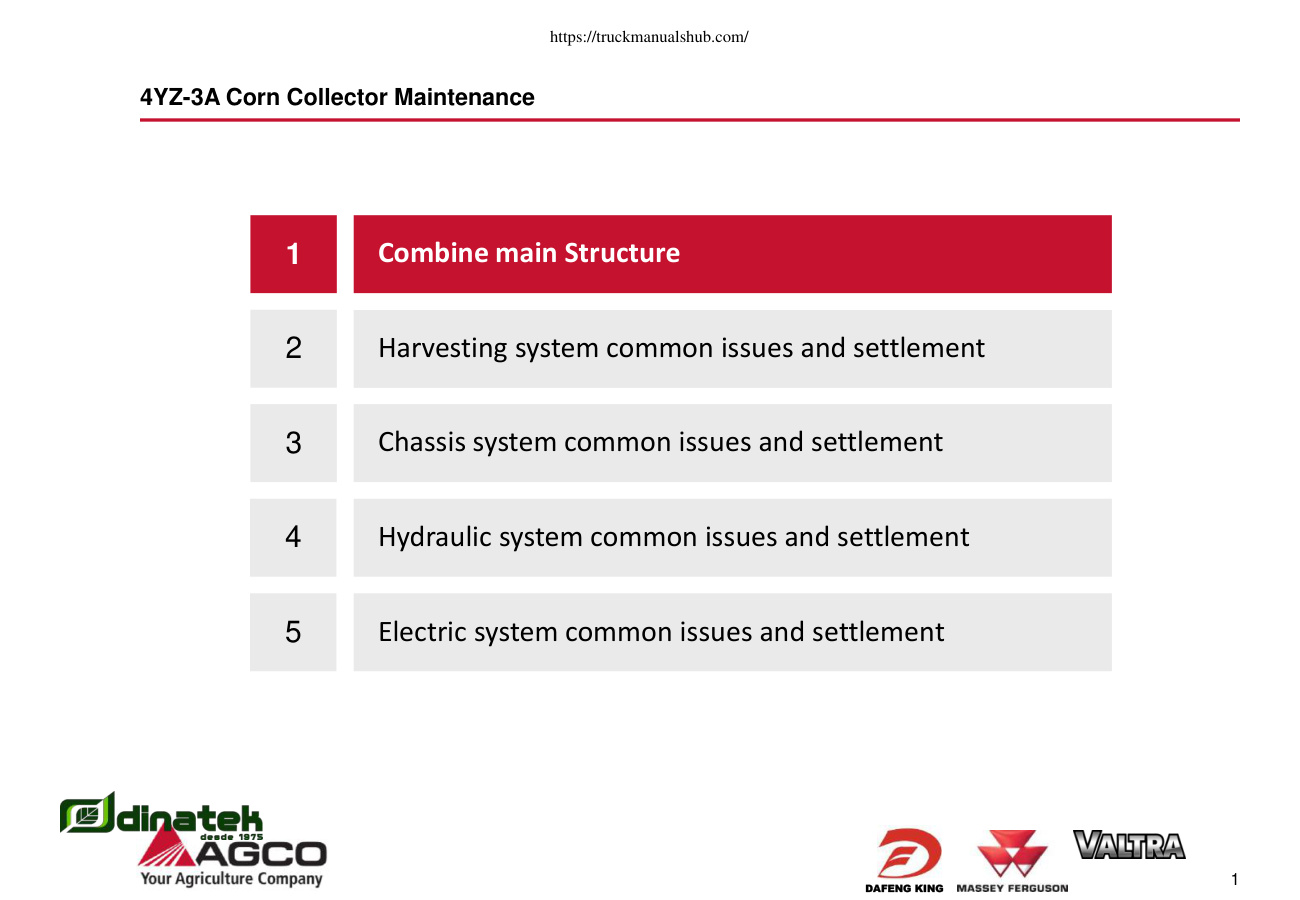

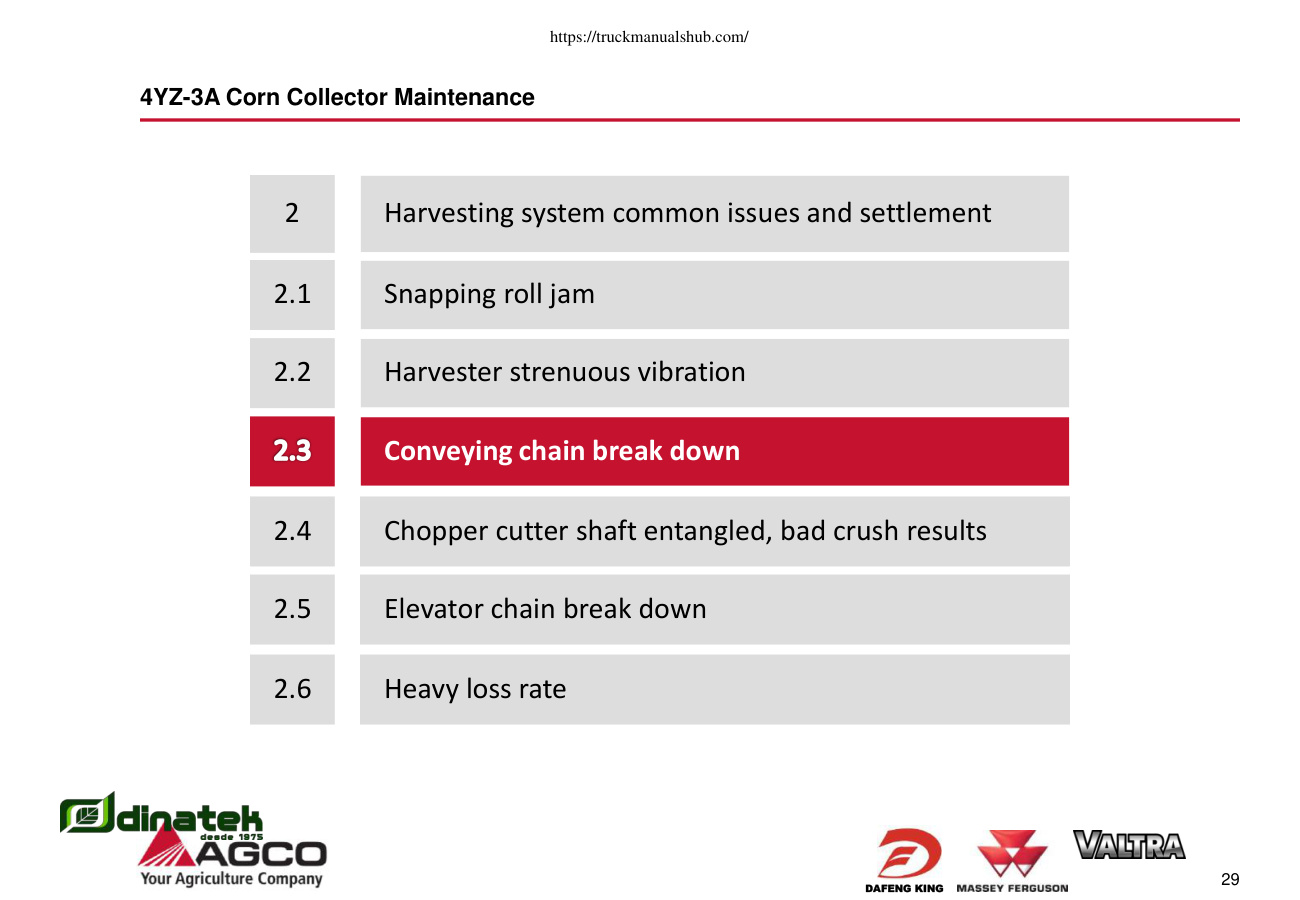

4YZ-3A Corn Collector Maintenance Your Agriculture Company 4YZ-3A Corn Collector Maintenance 1 Combine main Structure 2 Harvesting system common issues and settlement 3 Chassis system common issues and settlement 4 Hydraulic system common issues and settlement 5 Electric system common issues and settlement

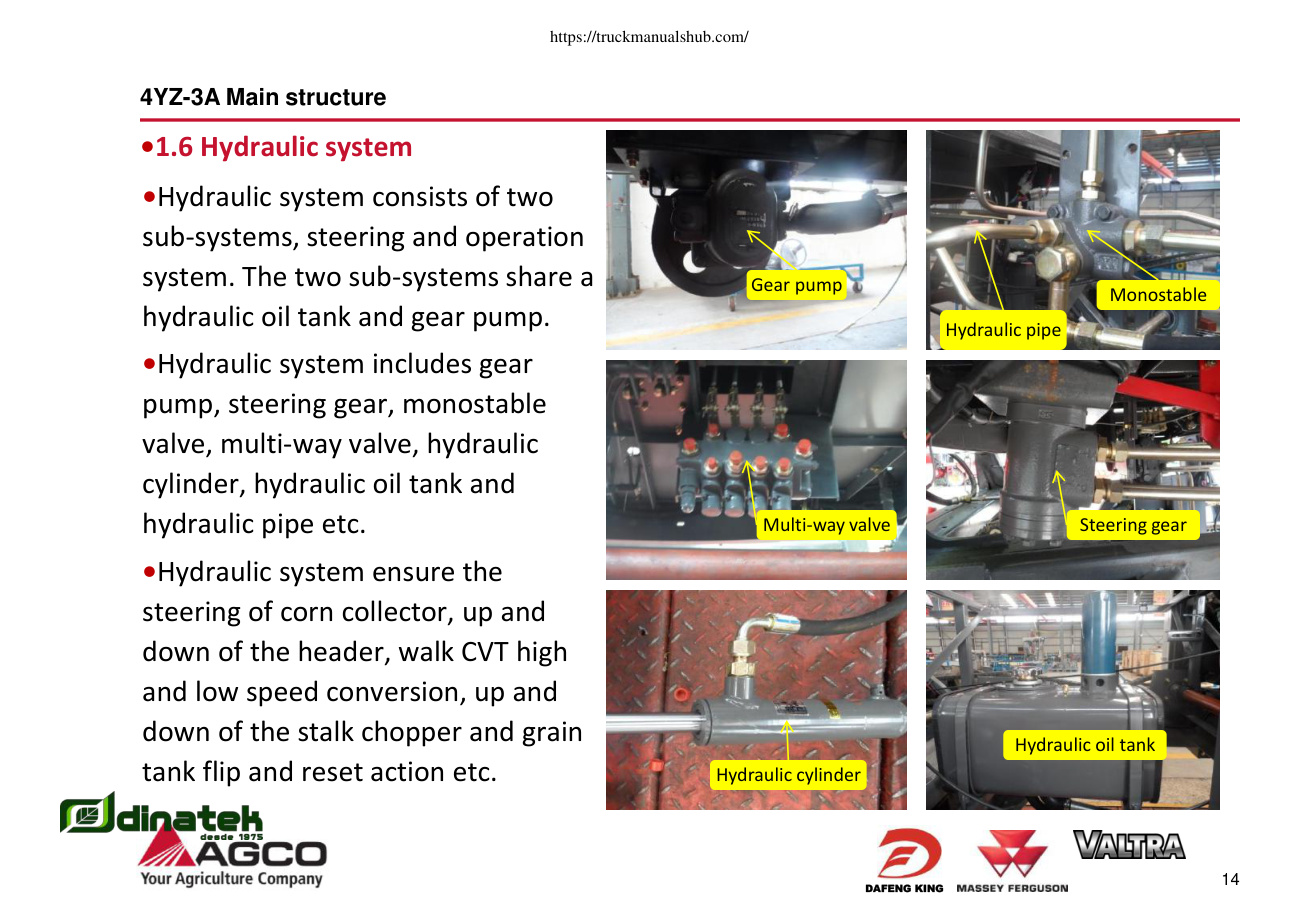

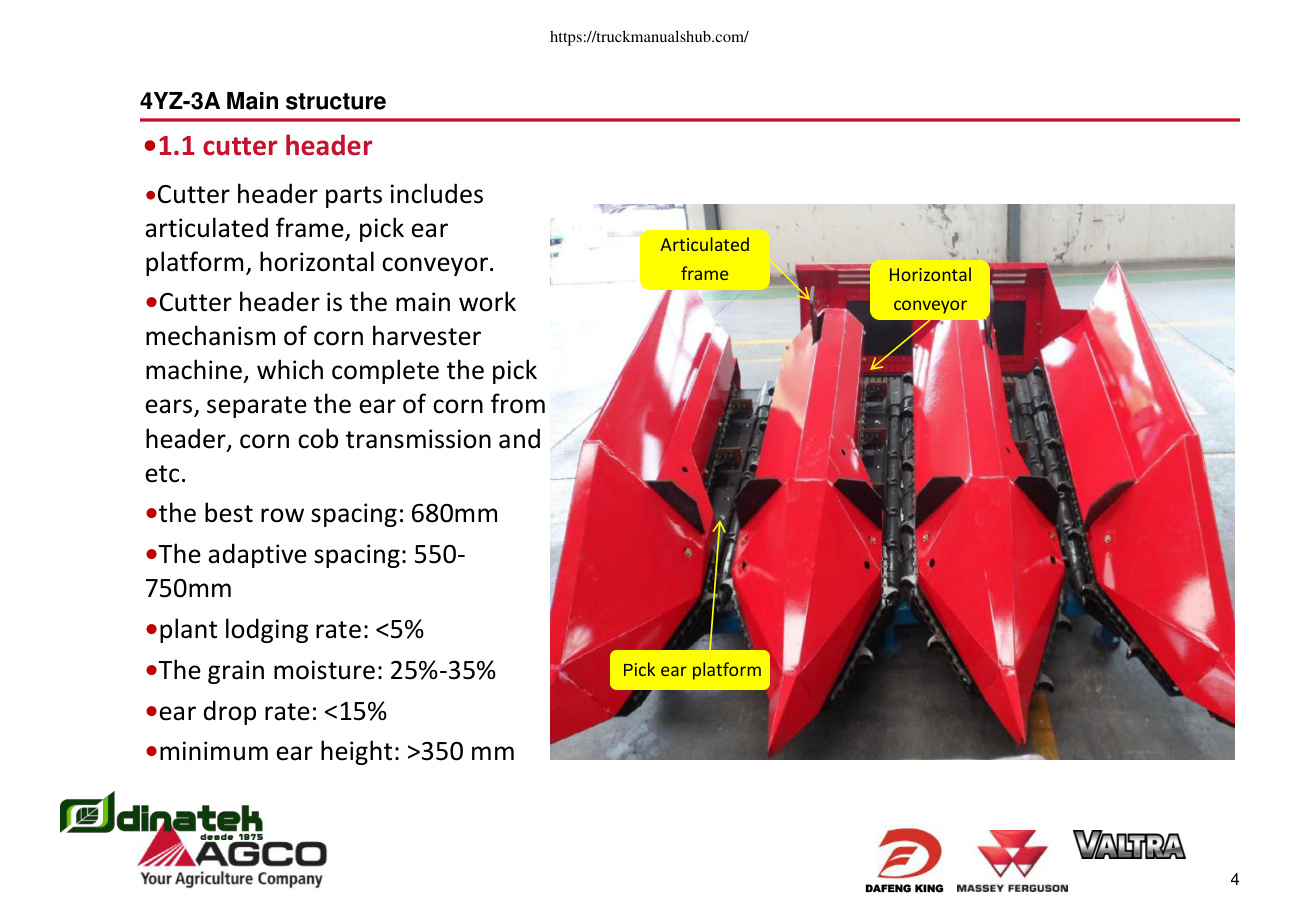

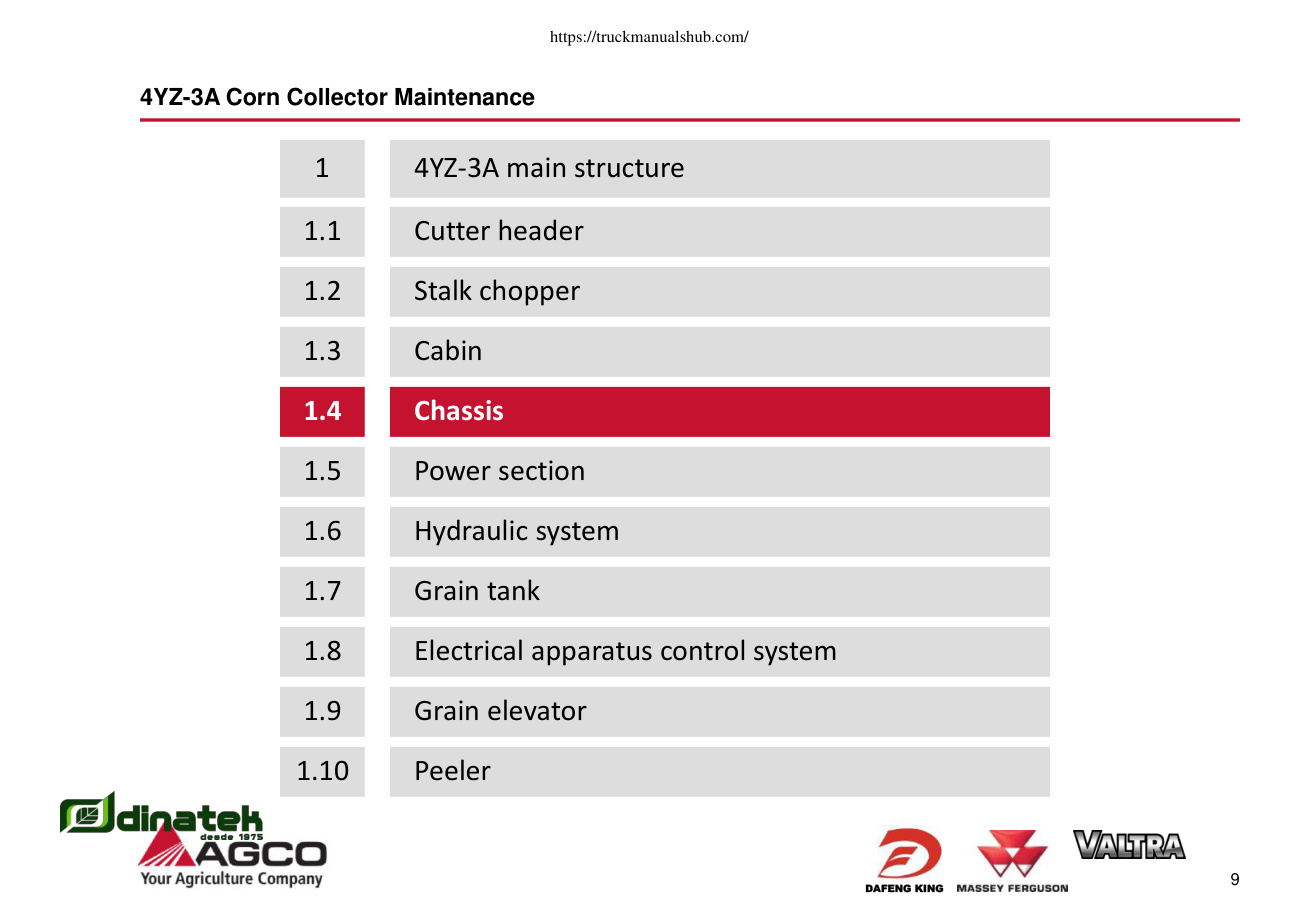

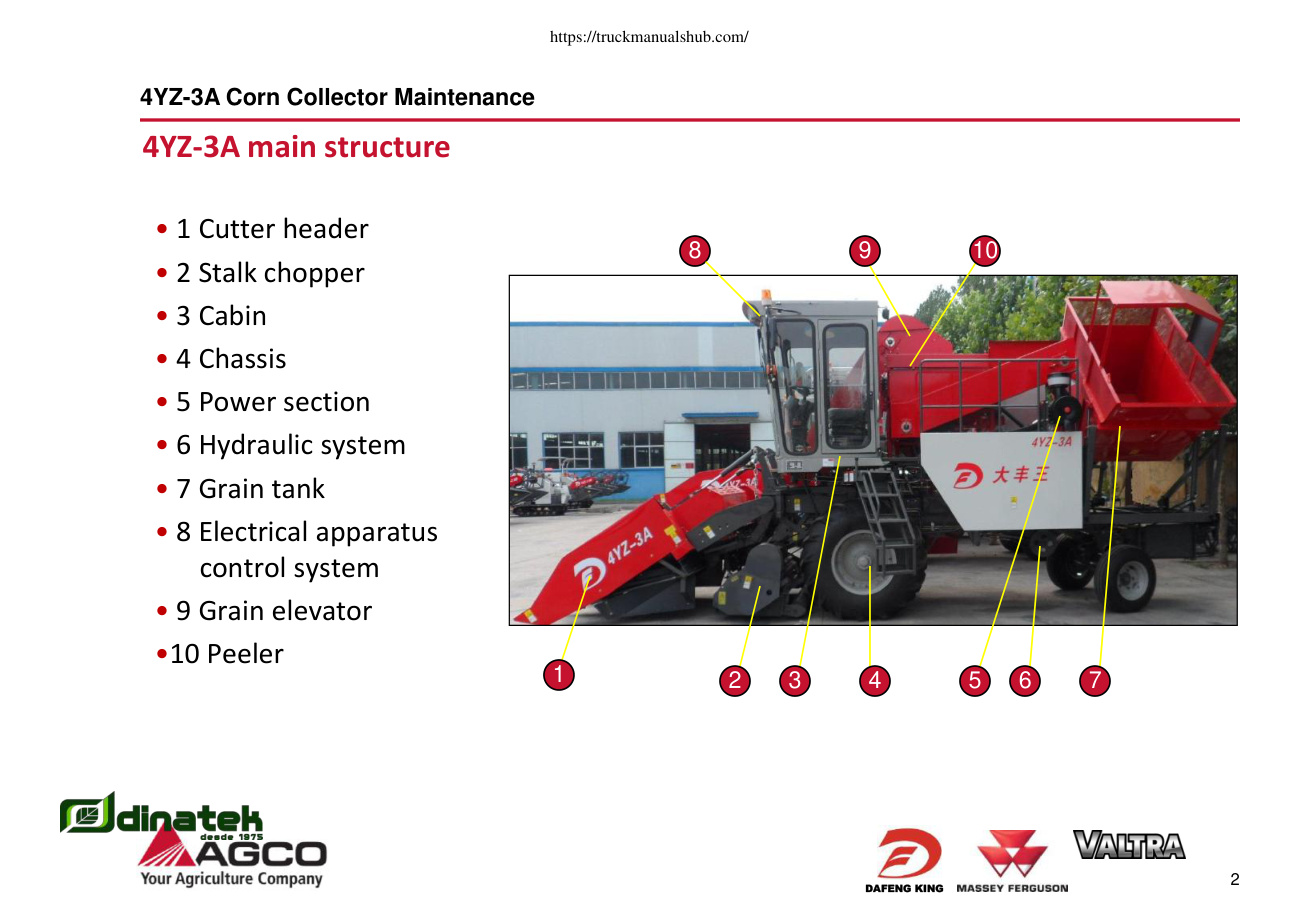

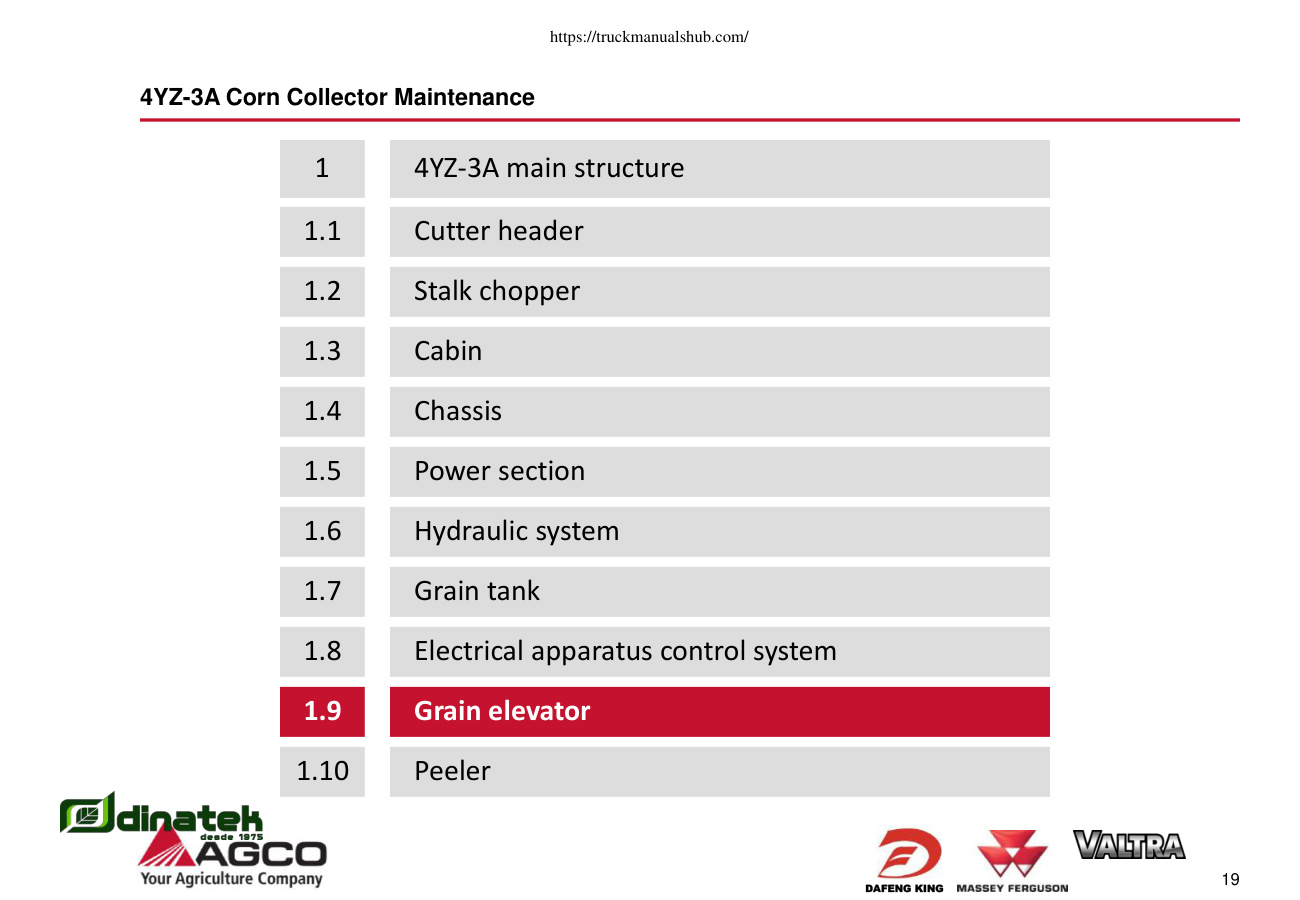

https://truckmanualshub.com/ 4YZ-3A Corn Collector Maintenance Feb. 26, 2015 https://truckmanualshub.com/ 4YZ-3A Corn Collector Maintenance 1 Combine main Structure 2 Harvesting system common issues and settlement 3 Chassis system common issues and settlement 4 Hydraulic system common issues and settlement 5 Electric system common issues and settlement DAFENG KING 1 https://truckmanualshub.com/ 4YZ-3A Corn Collector Maintenance 4YZ-3A main structure • 1 Cutter header 8 9 10 • 2 Stalk chopper • 3 Cabin • 4 Chassis • 5 Power section • 6 Hydraulic system • 7 Grain tank • 8 Electrical apparatus control system • 9 Grain elevator •10 Peeler 1 2 3 4 5 6 7 DAFENG KING 2 https://truckmanualshub.com/ 4YZ-3A Corn Collector Maintenance 1 4YZ-3A main structure 1.1 Cutter header 1.2 Stalk chopper 1.3 Cabin 1.4 Chassis 1.5 Power section 1.6 Hydraulic system 1.7 Grain tank 1.8 Electrical apparatus control system 1.9 Grain elevator 1.10 Peeler DAFENG KING 3 https://truckmanualshub.com/ 4YZ-3A Main structure •1.1 cutter header •Cutter header parts includes articulated frame, pick ear Articulated platform, horizontal conveyor. frame Horizontal •Cutter header is the main work conveyor mechanism of…
