II DISASSEMBLY/REASSEMBLY

Nom du fichier : Deutz – Workshop Manual BFM 1008F part 2.pdf

Par Elmar

II DISASSEMBLY/REASSEMBLY CAMSHAFT LOBE SPECIFICATIONS NOTE: The camshaft shown in the figure is reflective of a F3M 1008. However, the cam lobes are identical for the F2/3/4M 1008 diesel engines. The cam lobes are slightly different for the BF4M 1008 as is shown in the data below. H- F2/3/4M 1008 = Valve Lobe (intake/exhaust) = 29.598-29.650 mm H- BF4M 1008, Intake Lobe = 29.438 - 29.490 mm H- BF4M 1008, Exhaust Lobe = 29.778 - 29.830 mm H- USEABLE Limit (All Models) = Minimum Value minus(-) 0.1 mm H1-Injection Lobe (All Models) = 28.948 - 29.00 mm H1-Injection Lobe USEABLE Limit = 28.848 mm LOBE IDENTIFICATION: A1 No. 1 Intake A2 No. 2 Intake A3 No. 3 Intake S1 No. 1 Exhaust S2 No. 2 Exhaust S3 No. 3 Exhaust I1 No. 1 Injection I2 No. 2 Injection I3 No. 3 Injection CYLINDER HEAD REMOVAL Remove all cylinder head bolts, then lift the cylinder head from the crankcase. Do not pry excessivel

https://truckmanualshub.com/ II DISASSEMBLY/REASSEMBLY CAMSHAFT LOBE SPECIFICATIONS NOTE: The camshaft shown in the figure is reflective of a F3M 1008. However, the cam lobes are identical for the F2/3/4M 1008 diesel engines. The cam lobes are slightly different for the BF4M 1008 as is shown in the data below. H- F2/3/4M 1008 = Valve Lobe (intake/exhaust) = 29.598-29.650 mm H- BF4M 1008, Intake Lobe = 29.438 - 29.490 mm H- BF4M 1008, Exhaust Lobe = 29.778 - 29.830 mm H- USEABLE Limit (All Models) = Minimum Value minus(-) 0.1 mm H1-Injection Lobe (All Models) = 28.948 - 29.00 mm H1-Injection Lobe USEABLE Limit = 28.848 mm LOBE IDENTIFICATION: A1 No. 1 Intake A2 No. 2 Intake A3 No. 3 Intake S1 No. 1 Exhaust S2 No. 2 Exhaust S3 No. 3 Exhaust I1 No. 1 Injection I2 No. 2 Injection I3 No. 3 Injection CYLINDER HEAD REMOVAL Remove all cylinder head bolts, then lift the cylinder head from the crankcase. Do not pry excessively, lever or strike the cylinder head with a hammer in attempts to break the cylinder head loose from the head gasket. Do not damage the pre-combustion chambers during the handling process. INSPECTION: Thoroughly clean the cylinder head in a non-caustic solvent. Dry with…

45 pages 2,15 Mo PDF créé le 04/12/2007

Mots-clés

valve cylinder head spring valves guides lobe springs stem intake exhaust shown zone bf4m guide warpage using clean

Aperçu du document

Quelques pages ont été sélectionnées automatiquement afin de vérifier le contenu du document avant téléchargement.

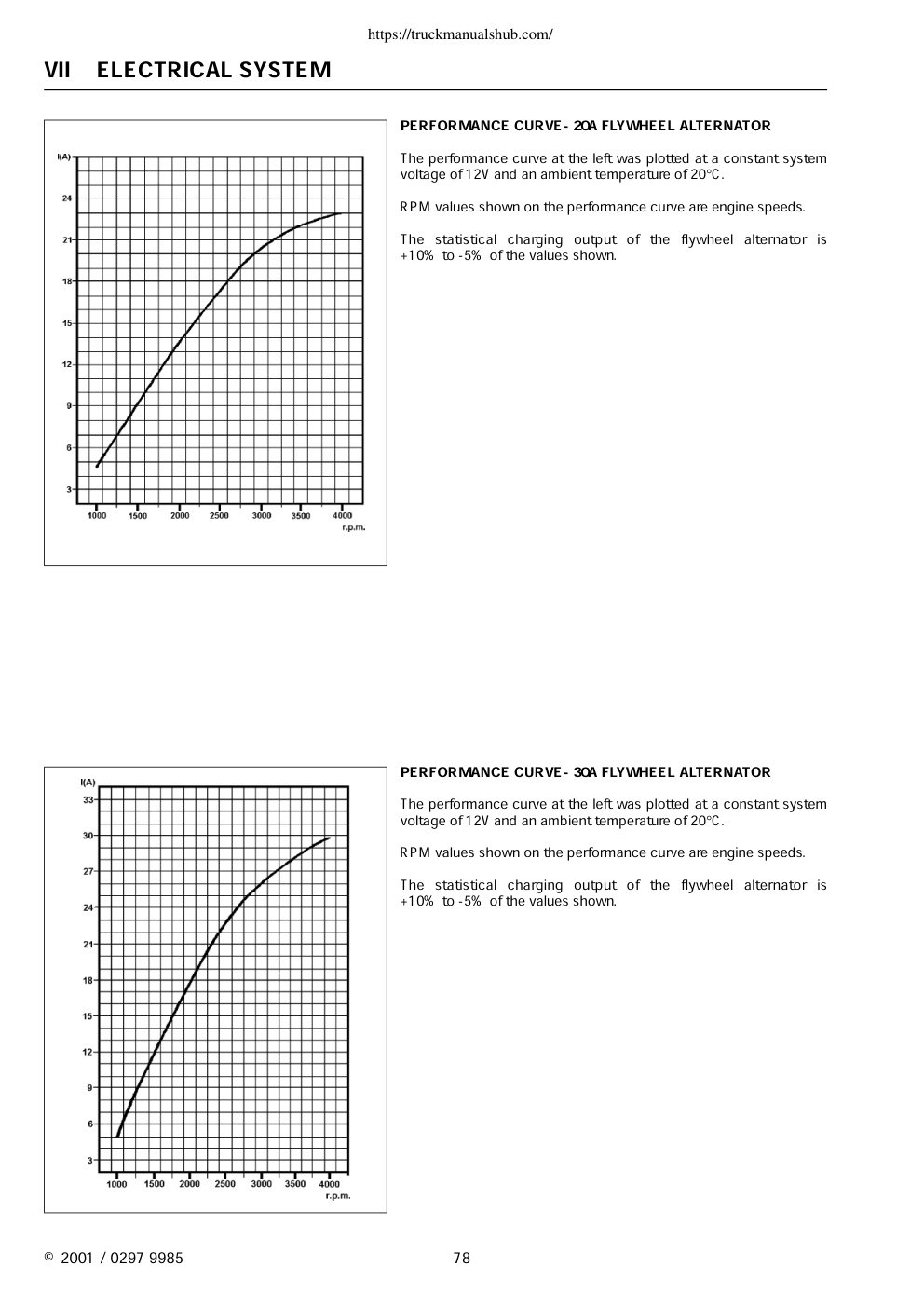

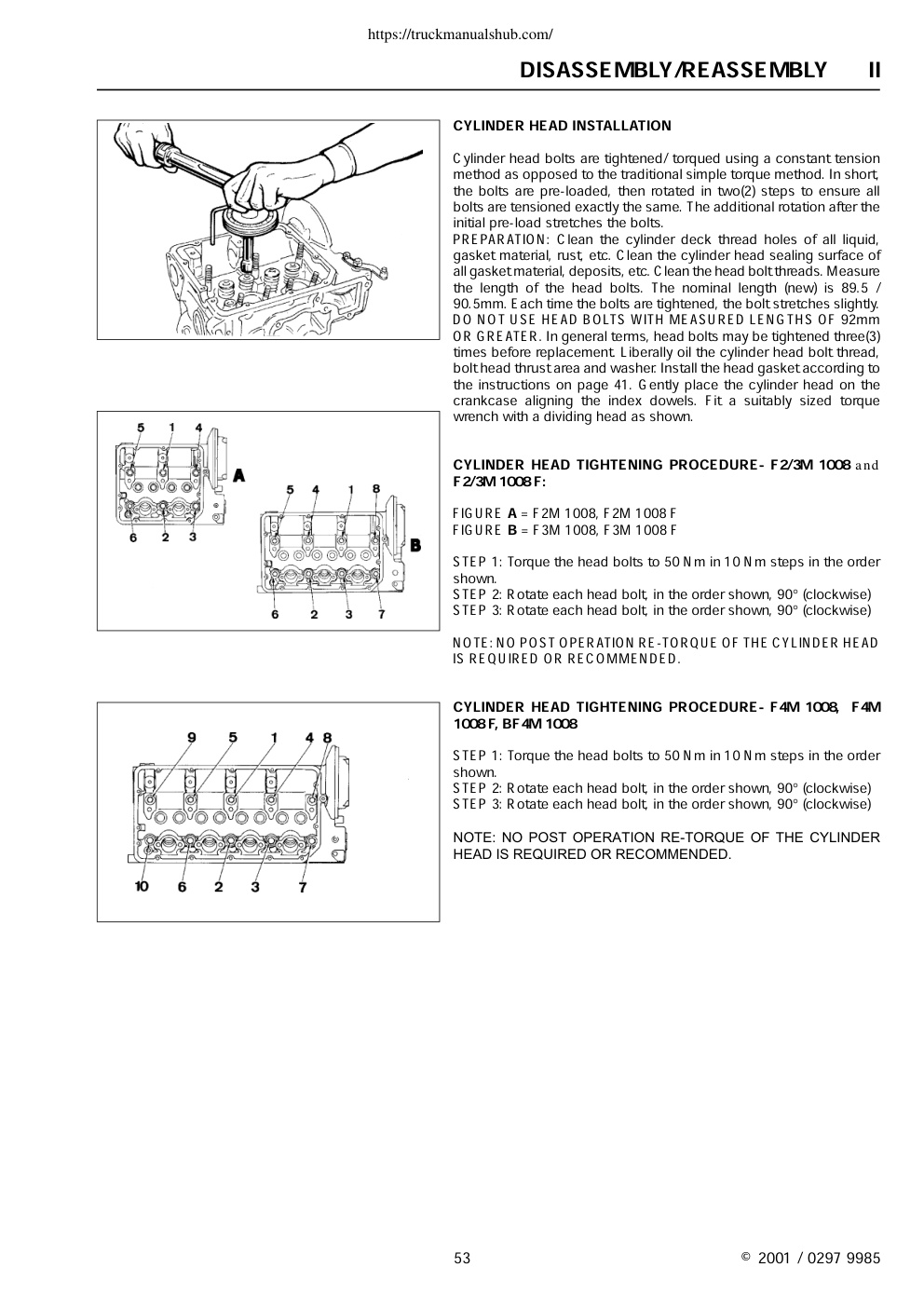

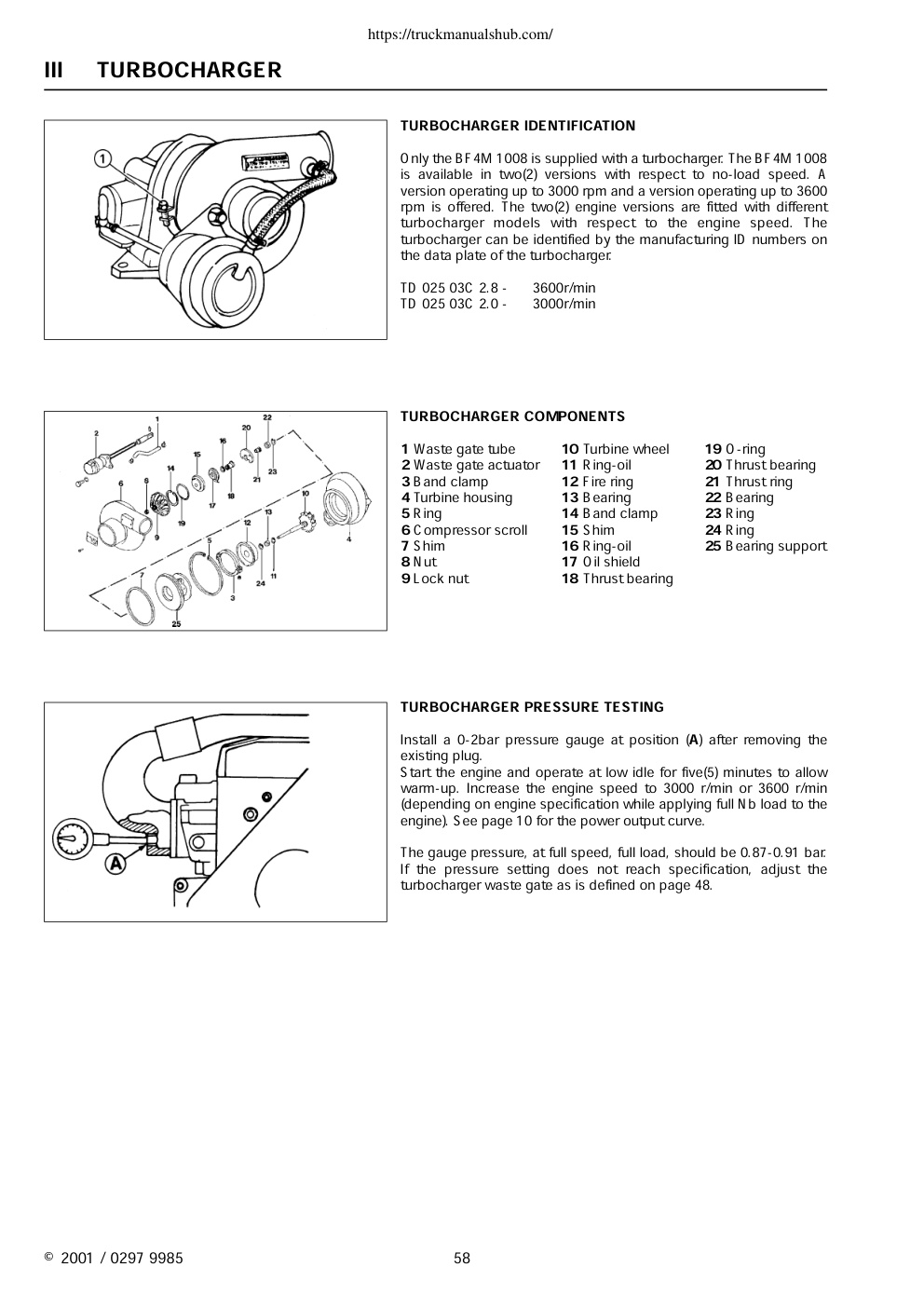

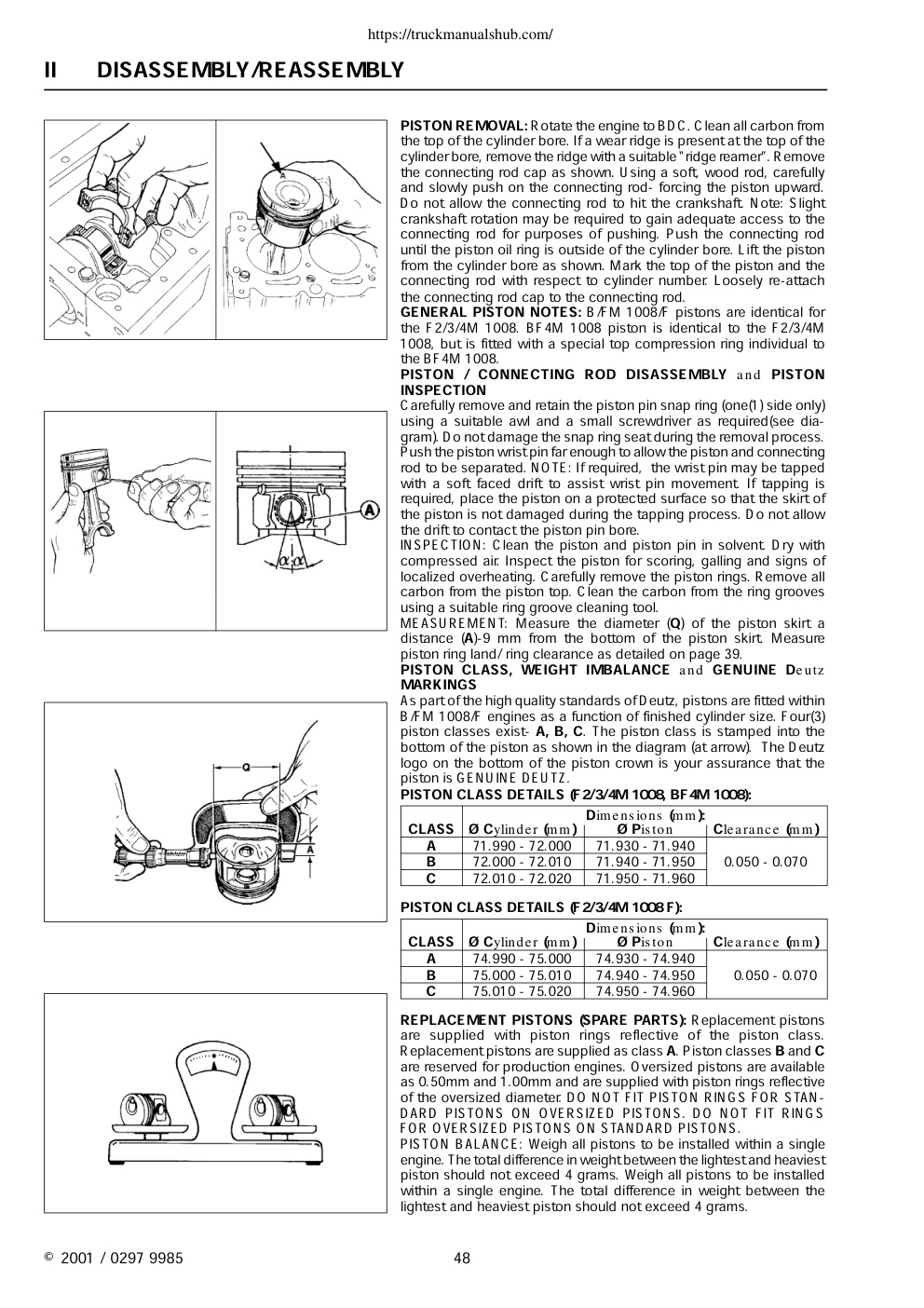

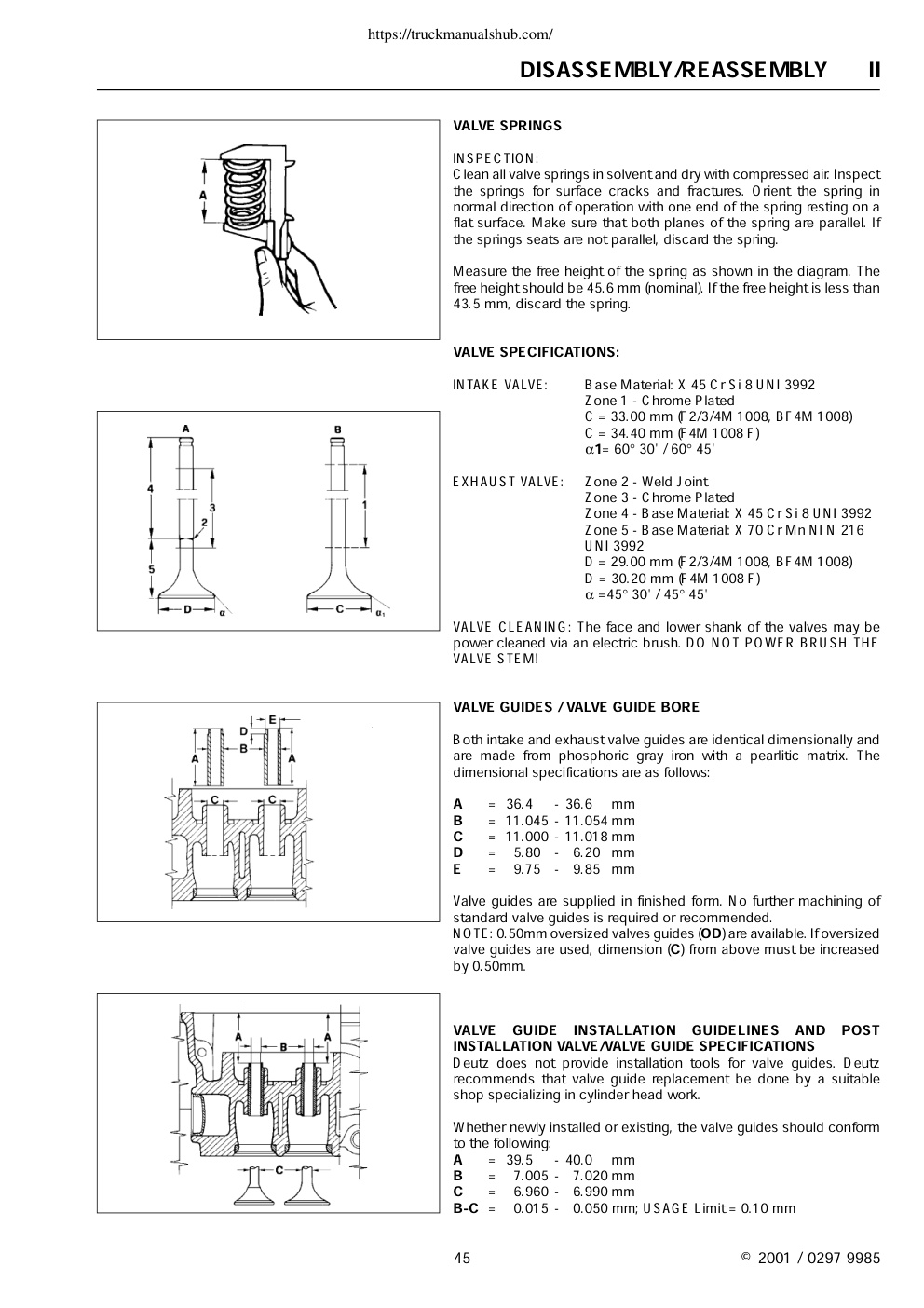

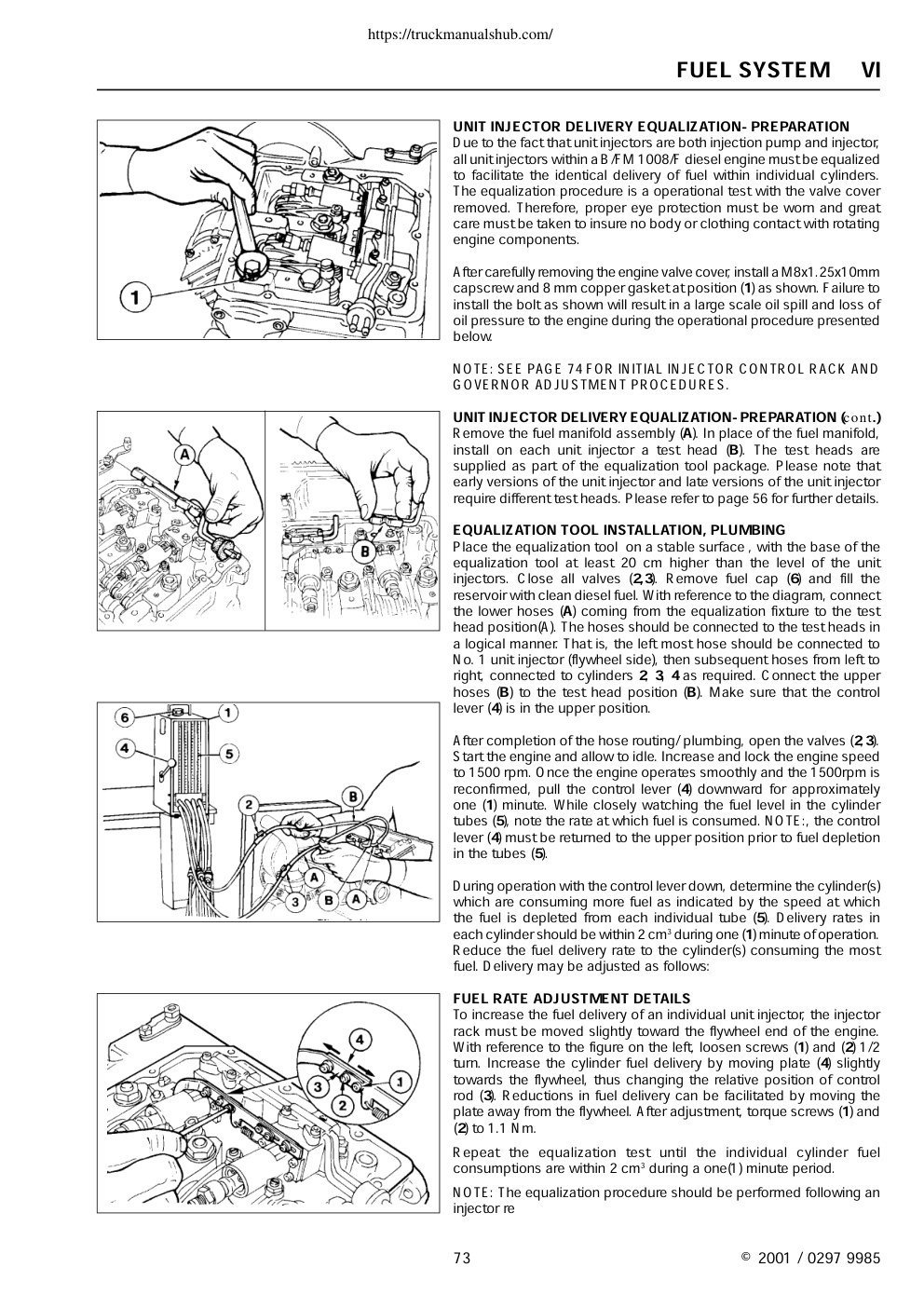

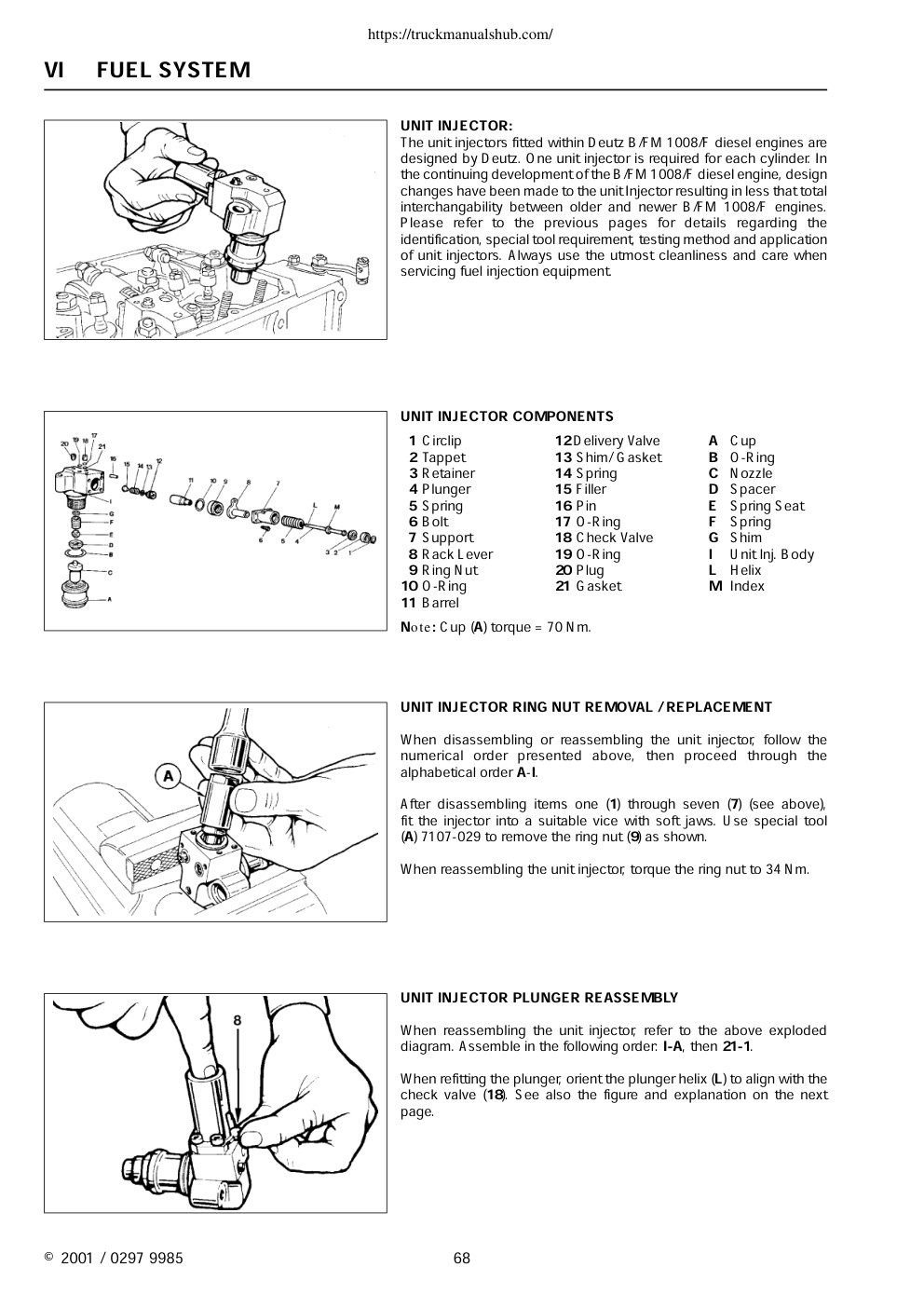

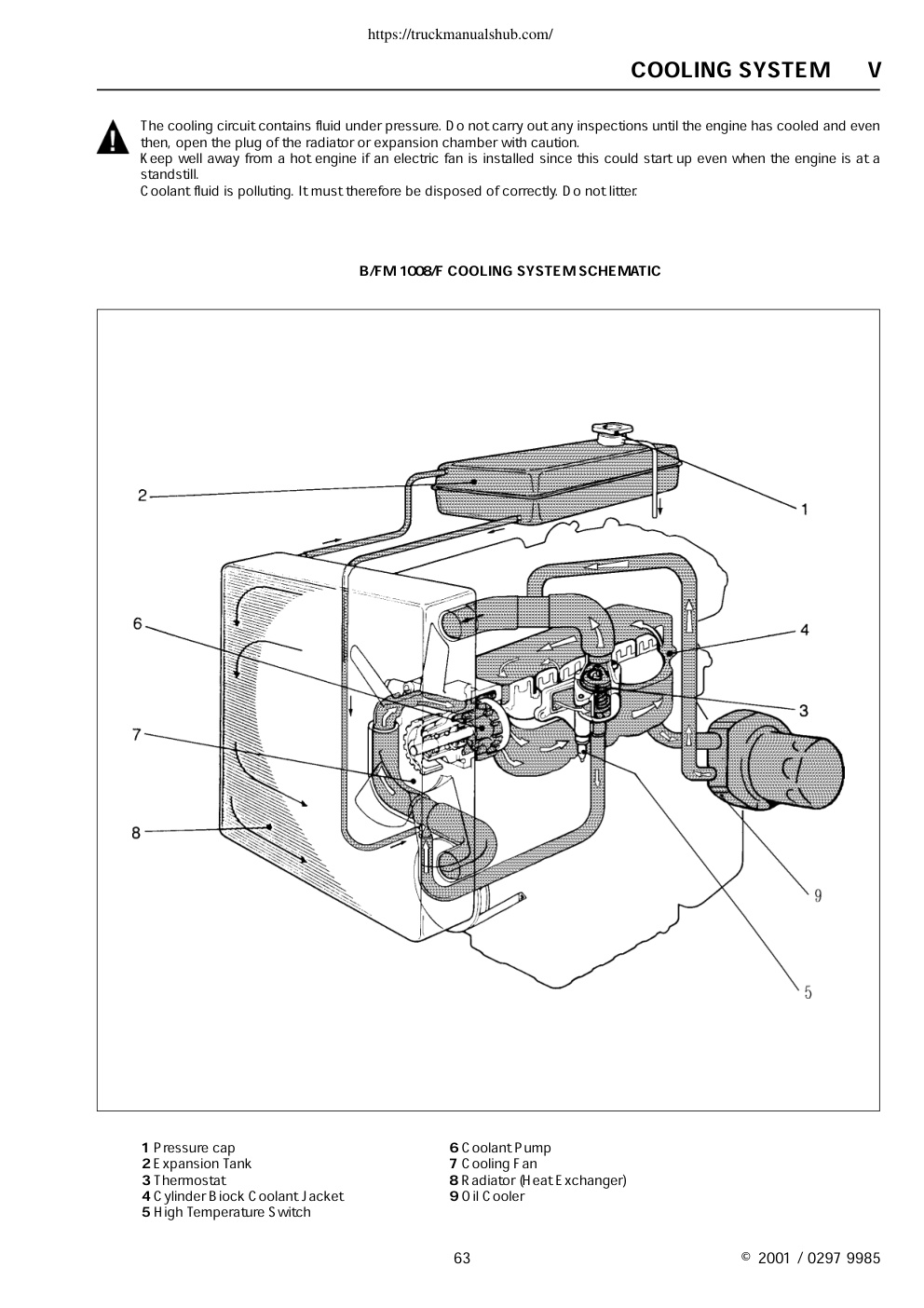

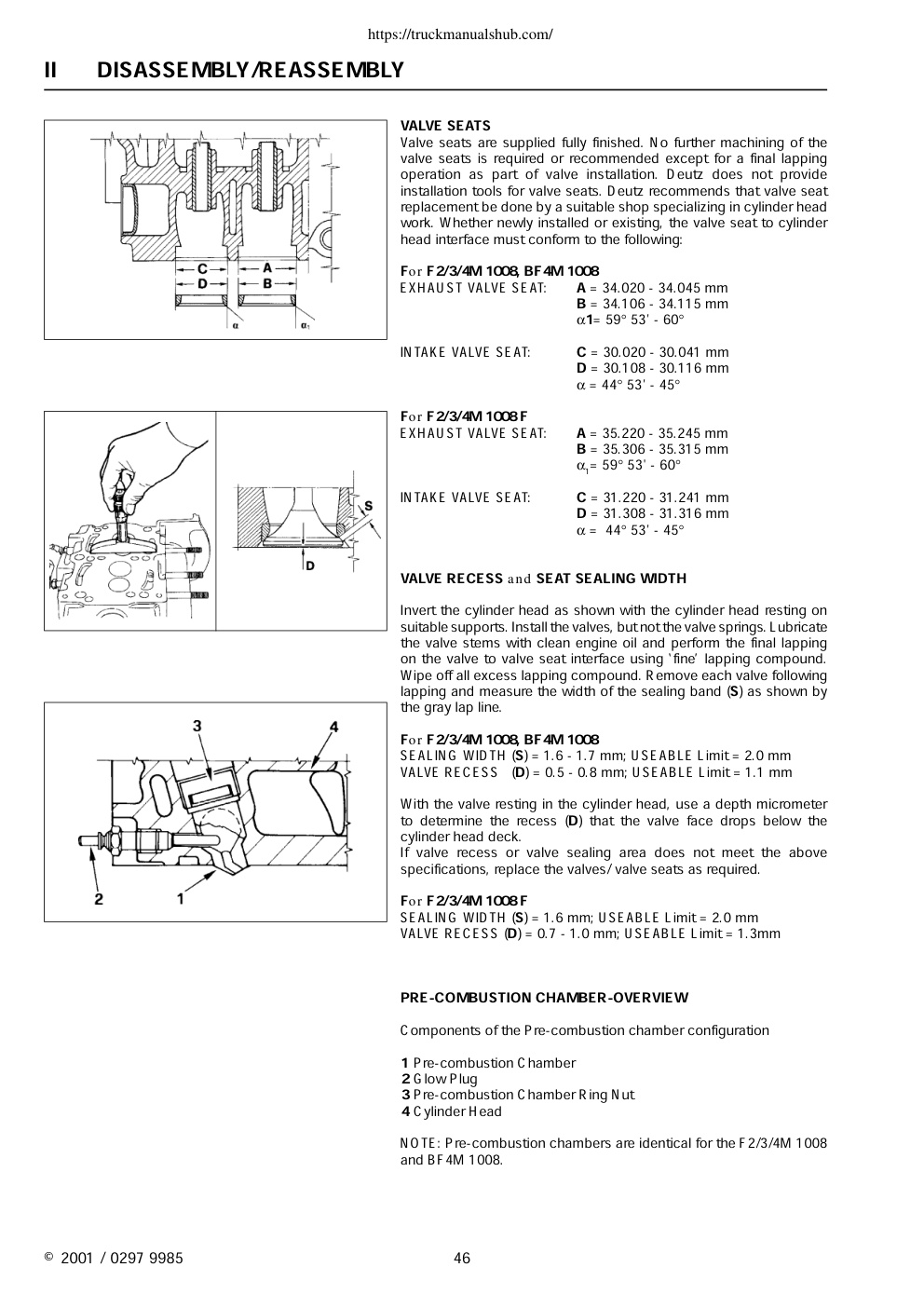

10 aperçus
