Dieci A series 55.19 Technical Specification.pdf

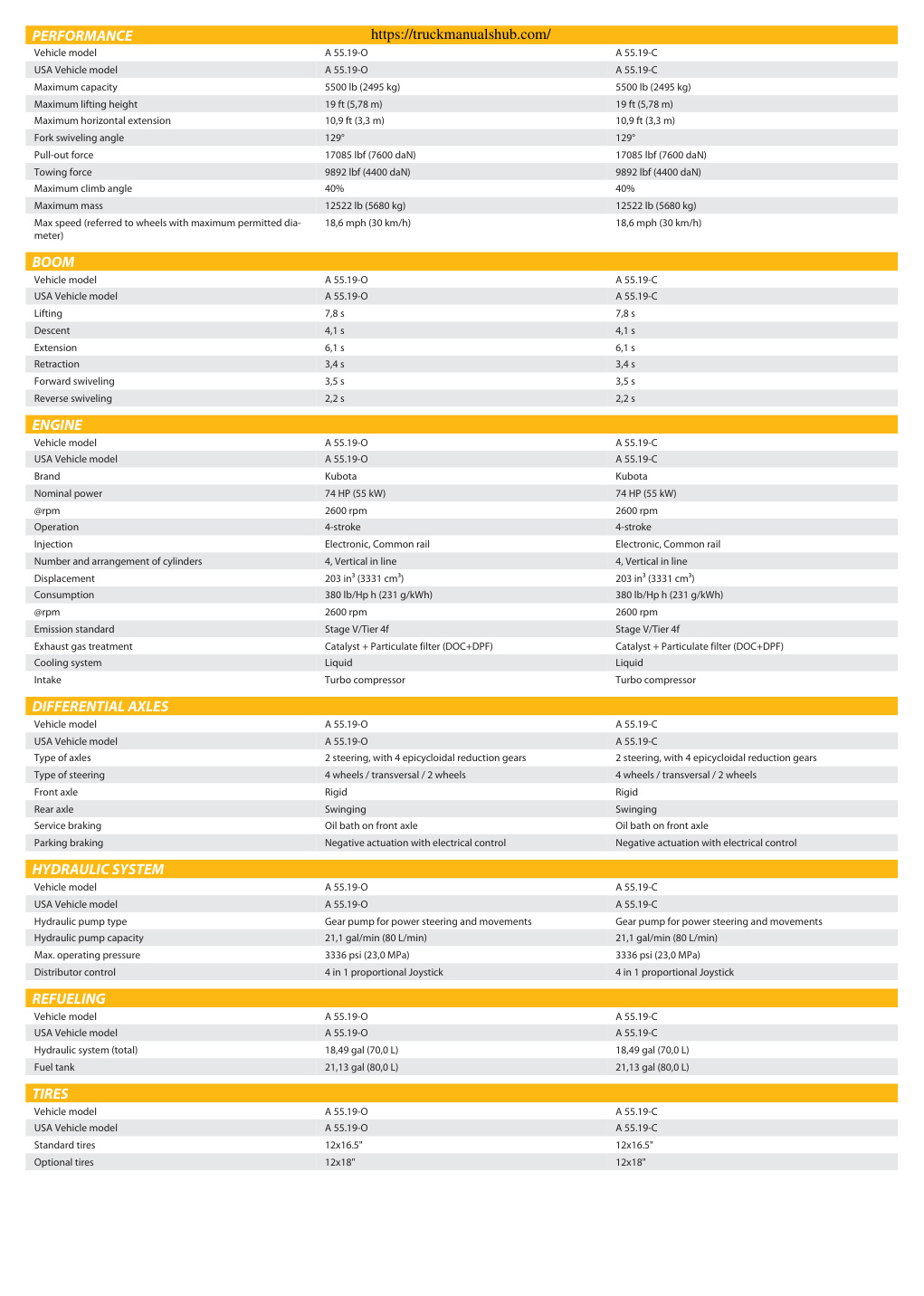

PERFORMANCE Vehicle model A 55.19-O A 55.19-C USA Vehicle model A 55.19-O A 55.19-C Maximum capacity 5500 lb (2495 kg) 5500 lb (2495 kg) Maximum lifting height 19 ft (5,78 m) 19 ft (5,78 m) Maximum horizontal extension 10,9 ft (3,3 m) 10,9 ft (3,3 m) Fork swiveling angle 129° 129° Pull-out force 17085 lbf (7600 daN) 17085 lbf (7600 daN) Towing force 9892 lbf (4400 daN) 9892 lbf (4400 daN) Maximum climb angle 40% 40% Maximum mass 12522 lb (5680 kg) 12522 lb (5680 kg) Max speed (referred to wheels with maximum permitted dia- 18,6 mph (30 km/h) 18,6 mph (30 km/h) Vehicle model A 55.19-O A 55.19-C USA Vehicle model A 55.19-O A 55.19-C Lifting 7,8 s 7,8 s Descent 4,1 s 4,1 s Extension 6,1 s 6,1 s Retraction 3,4 s 3,4 s Forward swiveling 3,5 s 3,5 s Reverse swiveling 2,2 s 2,2 s Vehicle model A 55.19-O A 55.19-C USA Vehicle model A 55.19-O A 55.1

https://truckmanualshub.com/ PERFORMANCE https://truckmanualshub.com/ Vehicle model A 55.19-O A 55.19-C USA Vehicle model A 55.19-O A 55.19-C Maximum capacity 5500 lb (2495 kg) 5500 lb (2495 kg) Maximum lifting height 19 ft (5,78 m) 19 ft (5,78 m) Maximum horizontal extension 10,9 ft (3,3 m) 10,9 ft (3,3 m) Fork swiveling angle 129° 129° Pull-out force 17085 lbf (7600 daN) 17085 lbf (7600 daN) Towing force 9892 lbf (4400 daN) 9892 lbf (4400 daN) Maximum climb angle 40% 40% Maximum mass 12522 lb (5680 kg) 12522 lb (5680 kg) Max speed (referred to wheels with maximum permitted dia- 18,6 mph (30 km/h) 18,6 mph (30 km/h) meter) BOOM Vehicle model A 55.19-O A 55.19-C USA Vehicle model A 55.19-O A 55.19-C Lifting 7,8 s 7,8 s Descent 4,1 s 4,1 s Extension 6,1 s 6,1 s Retraction 3,4 s 3,4 s Forward swiveling 3,5 s 3,5 s Reverse swiveling 2,2 s 2,2 s ENGINE Vehicle model A 55.19-O A 55.19-C USA Vehicle model A 55.19-O A 55.19-C Brand Kubota Kubota Nominal power 74 HP (55 kW) 74 HP (55 kW) @rpm 2600 rpm 2600 rpm Operation 4-stroke 4-stroke Injection Electronic, Common rail Electronic, Common rail Number and arrangement of cylinders 4, Vertical in line 4, Vertical in line Displacement 203…
