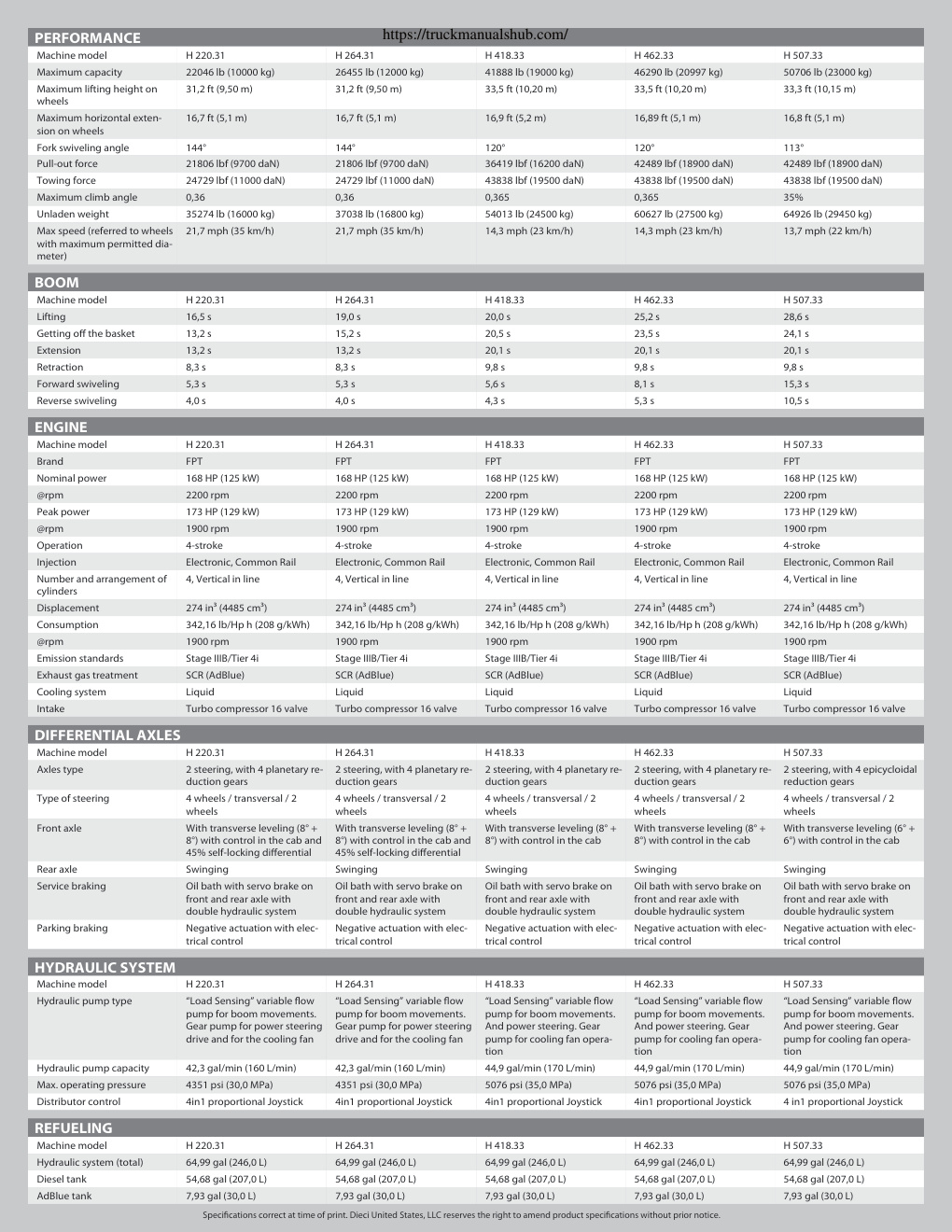

220.31 264.31 418.33 462.33 507.33 PERFORMANCE Machine model H 220.31 H 264.31 H 418.33 H 462.33 H 507.33 Maximum capacity 22046 lb (10000 kg) 26455 lb (12000 kg) 41888 lb (19000 kg) 46290 lb (20997 kg) 50706 lb (23000 kg) Maximum lifting height on 31,2 ft (9,50 m) 31,2 ft (9,50 m) 33,5 ft (10,20 m) 33,5 ft (10,20 m) 33,3 ft (10,15 m) Maximum horizontal exten- 16,7 ft (5,1 m) 16,7 ft (5,1 m) 16,9 ft (5,2 m) 16,89 ft (5,1 m) 16,8 ft (5,1 m) Fork swiveling angle 144° 144° 120° 120° 113° Pull-out force 21806 lbf (9700 daN) 21806 lbf (9700 daN) 36419 lbf (16200 daN) 42489 lbf (18900 daN) 42489 lbf (18900 daN) Towing force 24729 lbf (11000 daN) 24729 lbf (11000 daN) 43838 lbf (19500 daN) 43838 lbf (19500 daN) 43838 lbf (19500 daN) Maximum climb angle 0,36 0,36 0,365 0,365 35% Unladen weight 35274 lb (16000 kg) 37038 lb (16800 kg) 54013 lb (24500 kg) 60627 lb (2750

https://truckmanualshub.com/ 220.31 264.31 418.33 462.33 507.33 PERFORMANCE https://truckmanualshub.com/ Machine model H 220.31 H 264.31 H 418.33 H 462.33 H 507.33 Maximum capacity 22046 lb (10000 kg) 26455 lb (12000 kg) 41888 lb (19000 kg) 46290 lb (20997 kg) 50706 lb (23000 kg) Maximum lifting height on 31,2 ft (9,50 m) 31,2 ft (9,50 m) 33,5 ft (10,20 m) 33,5 ft (10,20 m) 33,3 ft (10,15 m) wheels Maximum horizontal exten- 16,7 ft (5,1 m) 16,7 ft (5,1 m) 16,9 ft (5,2 m) 16,89 ft (5,1 m) 16,8 ft (5,1 m) sion on wheels Fork swiveling angle 144° 144° 120° 120° 113° Pull-out force 21806 lbf (9700 daN) 21806 lbf (9700 daN) 36419 lbf (16200 daN) 42489 lbf (18900 daN) 42489 lbf (18900 daN) Towing force 24729 lbf (11000 daN) 24729 lbf (11000 daN) 43838 lbf (19500 daN) 43838 lbf (19500 daN) 43838 lbf (19500 daN) Maximum climb angle 0,36 0,36 0,365 0,365 35% Unladen weight 35274 lb (16000 kg) 37038 lb (16800 kg) 54013 lb (24500 kg) 60627 lb (27500 kg) 64926 lb (29450 kg) Max speed (referred to wheels 21,7 mph (35 km/h) 21,7 mph (35 km/h) 14,3 mph (23 km/h) 14,3 mph (23 km/h) 13,7 mph (22 km/h) with maximum permitted dia- meter) BOOM Machine model H 220.31 H 264.31 H 418.33 H 462.33 H…
