Dieci Icarus 40.14 40.17 55.17 Technical Specification.pdf

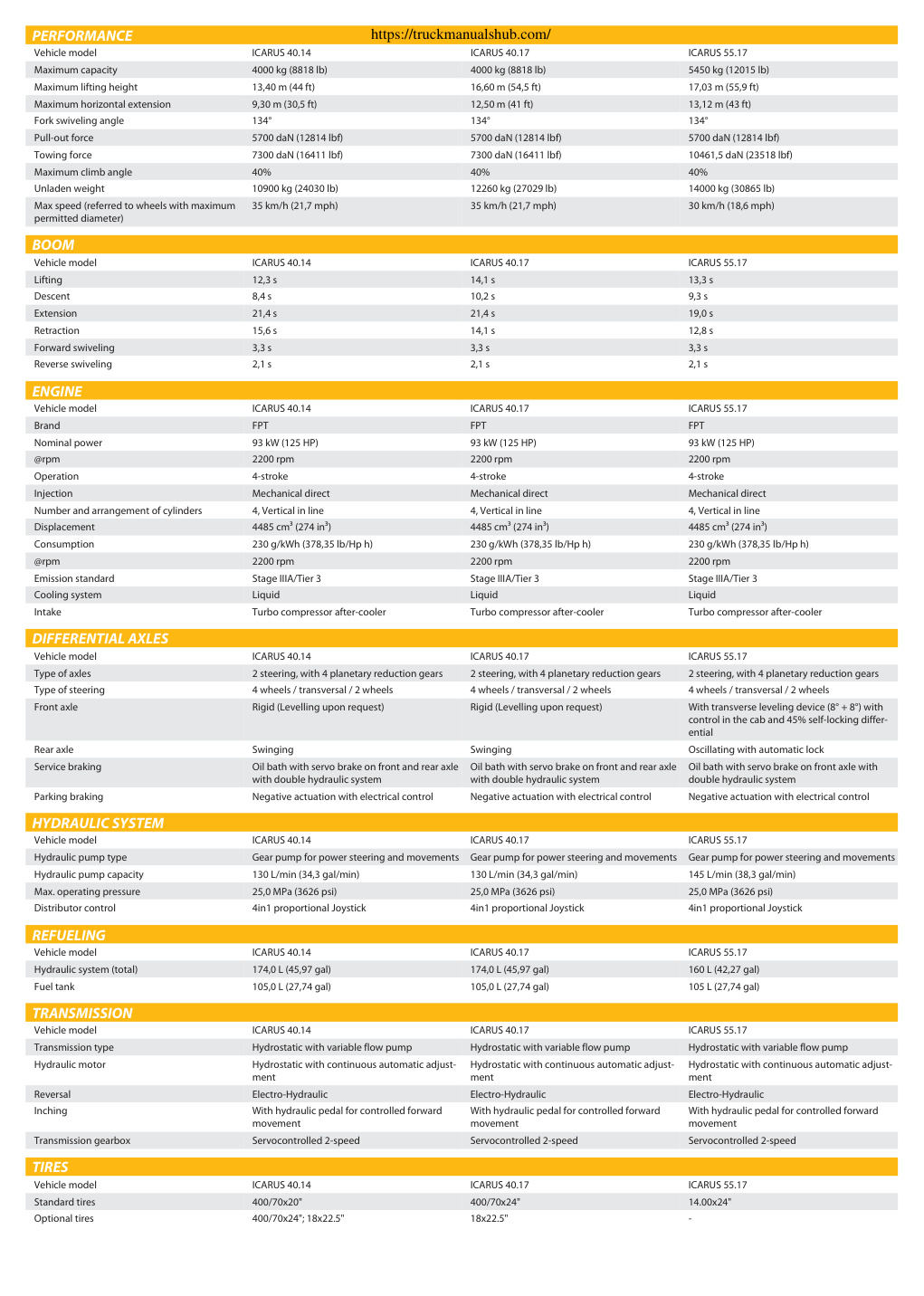

40.14 | 40.17 | 55.17 PERFORMANCE Vehicle model ICARUS 40.14 ICARUS 40.17 ICARUS 55.17 Maximum capacity 4000 kg (8818 lb) 4000 kg (8818 lb) 5450 kg (12015 lb) Maximum lifting height 13,40 m (44 ft) 16,60 m (54,5 ft) 17,03 m (55,9 ft) Maximum horizontal extension 9,30 m (30,5 ft) 12,50 m (41 ft) 13,12 m (43 ft) Fork swiveling angle 134° 134° 134° Pull-out force 5700 daN (12814 lbf) 5700 daN (12814 lbf) 5700 daN (12814 lbf) Towing force 7300 daN (16411 lbf) 7300 daN (16411 lbf) 10461,5 daN (23518 lbf) Maximum climb angle 40% 40% 40% Unladen weight 10900 kg (24030 lb) 12260 kg (27029 lb) 14000 kg (30865 lb) Max speed (referred to wheels with maximum 35 km/h (21,7 mph) 35 km/h (21,7 mph) 30 km/h (18,6 mph) permitted diameter) Vehicle model ICARUS 40.14 ICARUS 40.17 ICARUS 55.17 Lifting 12,3 s 14,1 s 13,3 s Descent 8,4 s 10,2 s 9,3 s Extension 21,4 s 21,4 s 19,0 s

https://truckmanualshub.com/ PERFORMANCE https://truckmanualshub.com/ Vehicle model ICARUS 40.14 ICARUS 40.17 ICARUS 55.17 Maximum capacity 4000 kg (8818 lb) 4000 kg (8818 lb) 5450 kg (12015 lb) Maximum lifting height 13,40 m (44 ft) 16,60 m (54,5 ft) 17,03 m (55,9 ft) Maximum horizontal extension 9,30 m (30,5 ft) 12,50 m (41 ft) 13,12 m (43 ft) Fork swiveling angle 134° 134° 134° Pull-out force 5700 daN (12814 lbf) 5700 daN (12814 lbf) 5700 daN (12814 lbf) Towing force 7300 daN (16411 lbf) 7300 daN (16411 lbf) 10461,5 daN (23518 lbf) Maximum climb angle 40% 40% 40% Unladen weight 10900 kg (24030 lb) 12260 kg (27029 lb) 14000 kg (30865 lb) Max speed (referred to wheels with maximum 35 km/h (21,7 mph) 35 km/h (21,7 mph) 30 km/h (18,6 mph) permitted diameter) BOOM Vehicle model ICARUS 40.14 ICARUS 40.17 ICARUS 55.17 Lifting 12,3 s 14,1 s 13,3 s Descent 8,4 s 10,2 s 9,3 s Extension 21,4 s 21,4 s 19,0 s Retraction 15,6 s 14,1 s 12,8 s Forward swiveling 3,3 s 3,3 s 3,3 s Reverse swiveling 2,1 s 2,1 s 2,1 s ENGINE Vehicle model ICARUS 40.14 ICARUS 40.17 ICARUS 55.17 Brand FPT FPT FPT Nominal power 93 kW (125 HP) 93 kW (125 HP) 93 kW (125 HP) @rpm 2200 rpm 2200 rpm 2200 rpm Operation…
