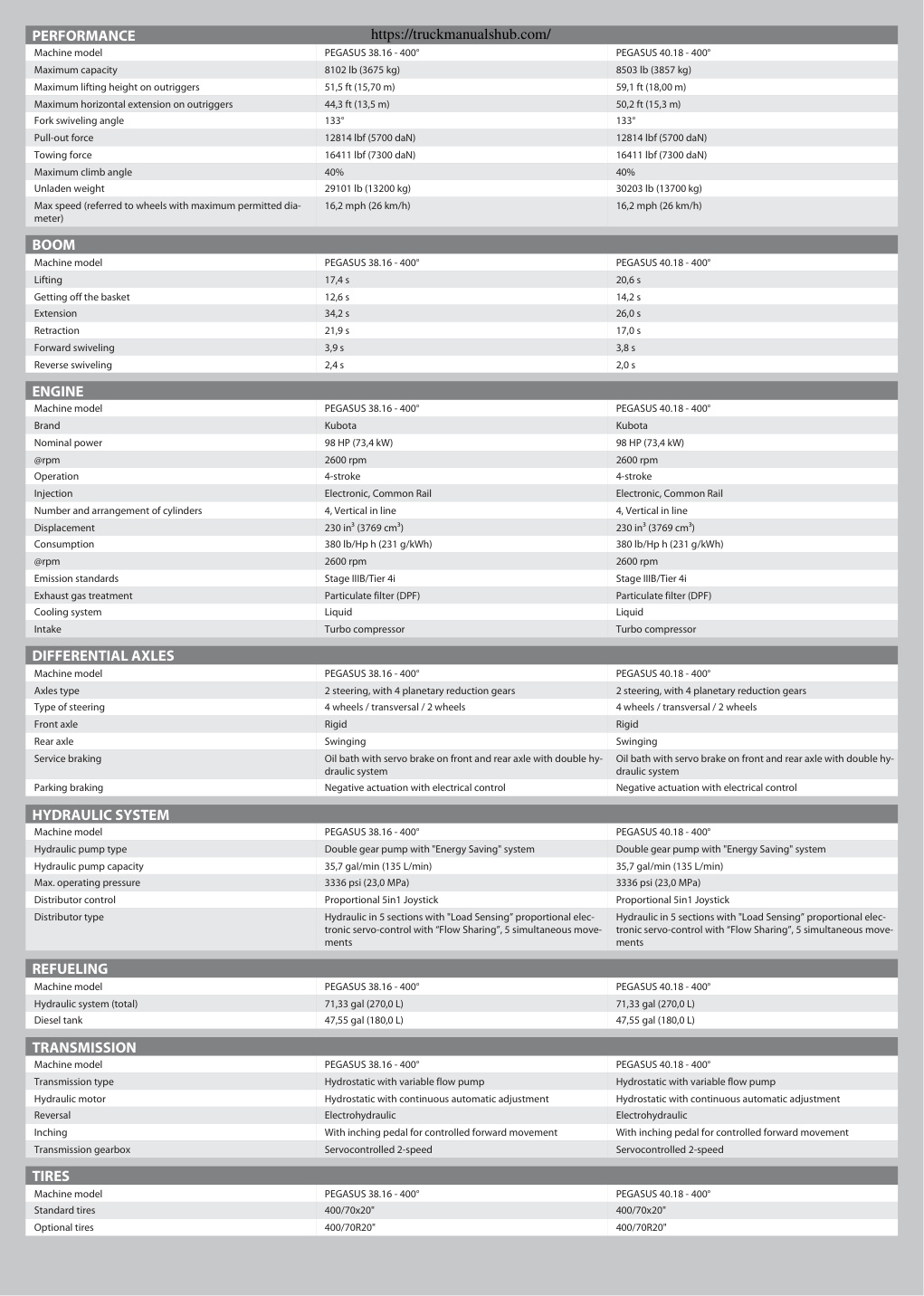

PERFORMANCE

Machine model PEGASUS 38.16 - 400° PEGASUS 40.18 - 400° Maximum capacity 8102 lb (3675 kg) 8503 lb (3857 kg) Maximum lifting height on outriggers 51,5 ft (15,70 m) 59,1 ft (18,00 m) Maximum horizontal extension on outriggers 44,3 ft (13,5 m) 50,2 ft (15,3 m) Fork swiveling angle 133° 133° Pull-out force 12814 lbf (5700 daN) 12814 lbf (5700 daN) Towing force 16411 lbf (7300 daN) 16411 lbf (7300 daN) Maximum climb angle 40% 40% Unladen weight 29101 lb (13200 kg) 30203 lb (13700 kg) Max speed (referred to wheels with maximum permitted dia- 16,2 mph (26 km/h) 16,2 mph (26 km/h) Machine model PEGASUS 38.16 - 400° PEGASUS 40.18 - 400° Lifting 17,4 s 20,6 s Getting off the basket 12,6 s 14,2 s Extension 34,2 s 26,0 s Retraction 21,9 s 17,0 s Forward swiveling 3,9 s 3,8 s Reverse swiveling 2,4 s 2,0 s Machine model PEGASUS 38.16 - 400° PEGASUS 40.18 - 400° Brand Kubota Kubota Nominal power 98 HP

https://truckmanualshub.com/ PERFORMANCE https://truckmanualshub.com/ Machine model PEGASUS 38.16 - 400° PEGASUS 40.18 - 400° Maximum capacity 8102 lb (3675 kg) 8503 lb (3857 kg) Maximum lifting height on outriggers 51,5 ft (15,70 m) 59,1 ft (18,00 m) Maximum horizontal extension on outriggers 44,3 ft (13,5 m) 50,2 ft (15,3 m) Fork swiveling angle 133° 133° Pull-out force 12814 lbf (5700 daN) 12814 lbf (5700 daN) Towing force 16411 lbf (7300 daN) 16411 lbf (7300 daN) Maximum climb angle 40% 40% Unladen weight 29101 lb (13200 kg) 30203 lb (13700 kg) Max speed (referred to wheels with maximum permitted dia- 16,2 mph (26 km/h) 16,2 mph (26 km/h) meter) BOOM Machine model PEGASUS 38.16 - 400° PEGASUS 40.18 - 400° Lifting 17,4 s 20,6 s Getting off the basket 12,6 s 14,2 s Extension 34,2 s 26,0 s Retraction 21,9 s 17,0 s Forward swiveling 3,9 s 3,8 s Reverse swiveling 2,4 s 2,0 s ENGINE Machine model PEGASUS 38.16 - 400° PEGASUS 40.18 - 400° Brand Kubota Kubota Nominal power 98 HP (73,4 kW) 98 HP (73,4 kW) @rpm 2600 rpm 2600 rpm Operation 4-stroke 4-stroke Injection Electronic, Common Rail Electronic, Common Rail Number and arrangement of cylinders 4, Vertical in line 4, Vertical in…
