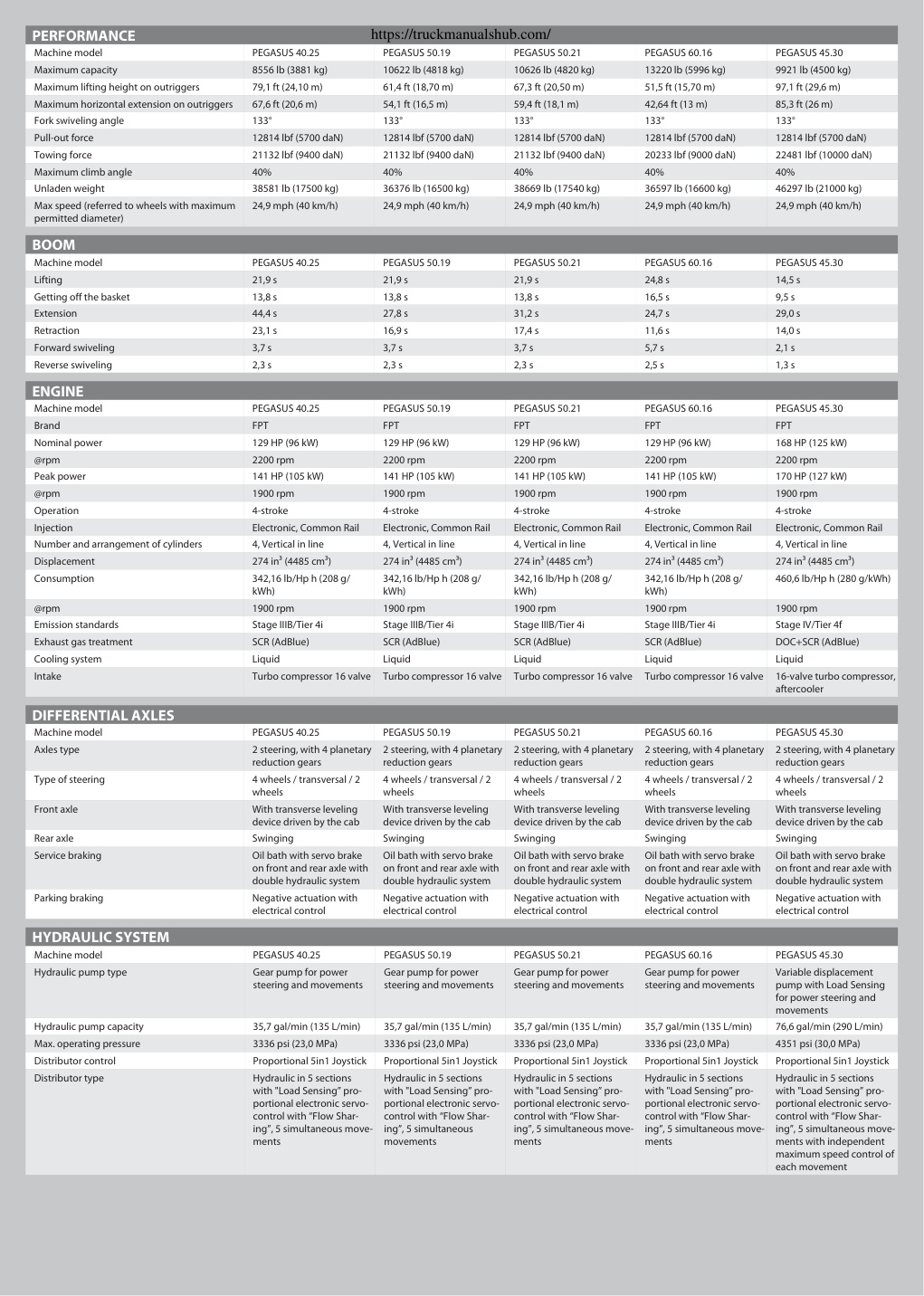

PERFORMANCE

Nom du fichier : Dieci Pegasus 40.25 50.19 50.21 60.16 45.30 Technical Specification.pdf

Machine model PEGASUS 40.25 PEGASUS 50.19 PEGASUS 50.21 PEGASUS 60.16 PEGASUS 45.30 Maximum capacity 8556 lb (3881 kg) 10622 lb (4818 kg) 10626 lb (4820 kg) 13220 lb (5996 kg) 9921 lb (4500 kg) Maximum lifting height on outriggers 79,1 ft (24,10 m) 61,4 ft (18,70 m) 67,3 ft (20,50 m) 51,5 ft (15,70 m) 97,1 ft (29,6 m) Maximum horizontal extension on outriggers 67,6 ft (20,6 m) 54,1 ft (16,5 m) 59,4 ft (18,1 m) 42,64 ft (13 m) 85,3 ft (26 m) Fork swiveling angle 133° 133° 133° 133° 133° Pull-out force 12814 lbf (5700 daN) 12814 lbf (5700 daN) 12814 lbf (5700 daN) 12814 lbf (5700 daN) 12814 lbf (5700 daN) Towing force 21132 lbf (9400 daN) 21132 lbf (9400 daN) 21132 lbf (9400 daN) 20233 lbf (9000 daN) 22481 lbf (10000 daN) Maximum climb angle 40% 40% 40% 40% 40% Unladen weight 38581 lb (17500 kg) 36376 lb (16500 kg) 38669 lb (17540 kg) 36597 lb (16600 kg) 46297 lb (21000 kg) Max speed (refe

https://truckmanualshub.com/ PERFORMANCE https://truckmanualshub.com/ Machine model PEGASUS 40.25 PEGASUS 50.19 PEGASUS 50.21 PEGASUS 60.16 PEGASUS 45.30 Maximum capacity 8556 lb (3881 kg) 10622 lb (4818 kg) 10626 lb (4820 kg) 13220 lb (5996 kg) 9921 lb (4500 kg) Maximum lifting height on outriggers 79,1 ft (24,10 m) 61,4 ft (18,70 m) 67,3 ft (20,50 m) 51,5 ft (15,70 m) 97,1 ft (29,6 m) Maximum horizontal extension on outriggers 67,6 ft (20,6 m) 54,1 ft (16,5 m) 59,4 ft (18,1 m) 42,64 ft (13 m) 85,3 ft (26 m) Fork swiveling angle 133° 133° 133° 133° 133° Pull-out force 12814 lbf (5700 daN) 12814 lbf (5700 daN) 12814 lbf (5700 daN) 12814 lbf (5700 daN) 12814 lbf (5700 daN) Towing force 21132 lbf (9400 daN) 21132 lbf (9400 daN) 21132 lbf (9400 daN) 20233 lbf (9000 daN) 22481 lbf (10000 daN) Maximum climb angle 40% 40% 40% 40% 40% Unladen weight 38581 lb (17500 kg) 36376 lb (16500 kg) 38669 lb (17540 kg) 36597 lb (16600 kg) 46297 lb (21000 kg) Max speed (referred to wheels with maximum 24,9 mph (40 km/h) 24,9 mph (40 km/h) 24,9 mph (40 km/h) 24,9 mph (40 km/h) 24,9 mph (40 km/h) permitted diameter) BOOM Machine model PEGASUS 40.25 PEGASUS 50.19 PEGASUS 50.21 PEGASUS 60.16 PEGASUS…

8 pages 4,89 Mo PDF créé le 18/12/2017

Mots-clés

pegasus rpm hydraulic control wheels steering lbf dan electronic servo axle system power pump front rear 40.25 50.19
