Dieci Pegasus 50.26 Technical Specification.pdf

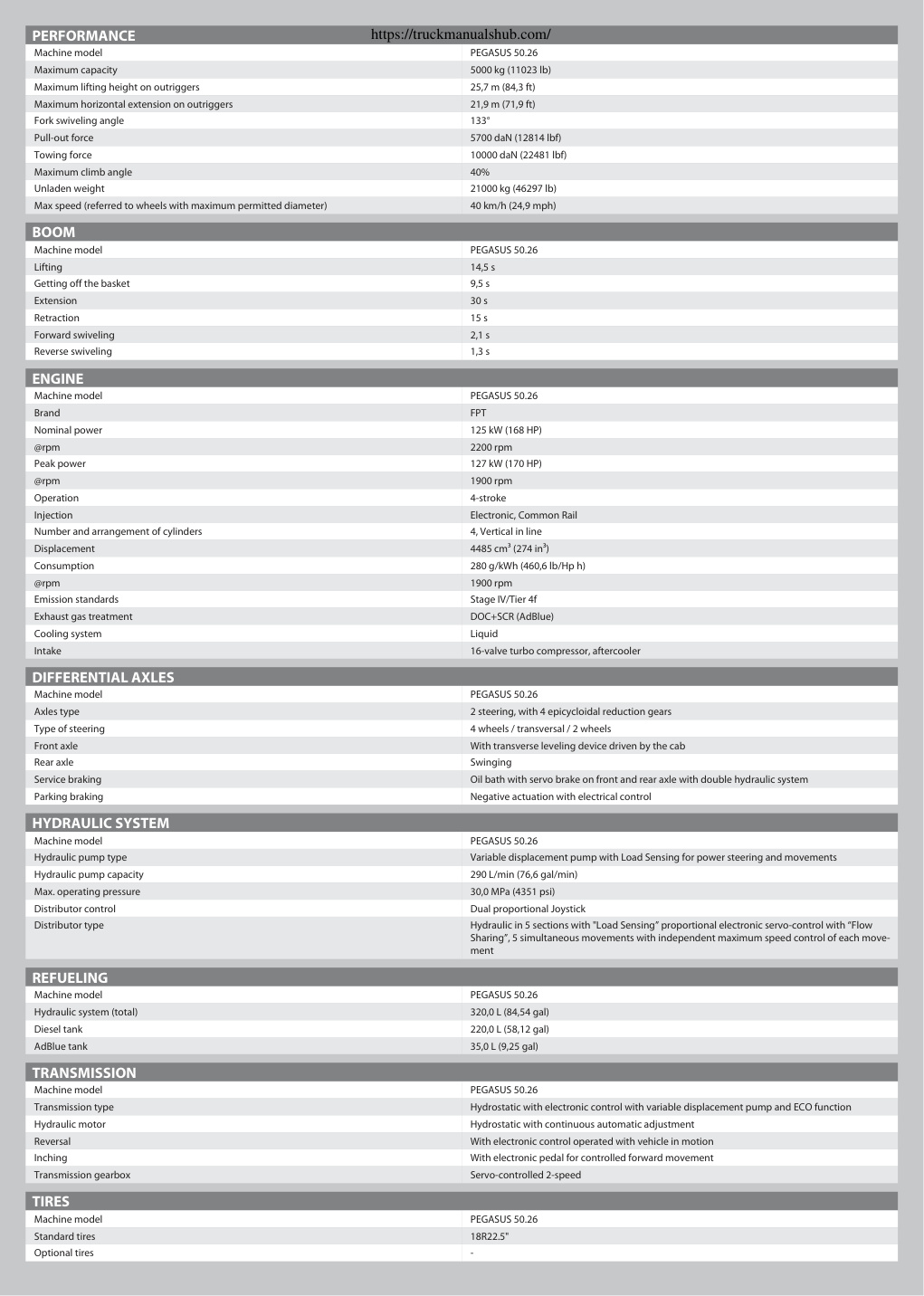

PERFORMANCE Machine model PEGASUS 50.26 Maximum capacity 5000 kg (11023 lb) Maximum lifting height on outriggers 25,7 m (84,3 ft) Maximum horizontal extension on outriggers 21,9 m (71,9 ft) Fork swiveling angle 133° Pull-out force 5700 daN (12814 lbf) Towing force 10000 daN (22481 lbf) Maximum climb angle 40% Unladen weight 21000 kg (46297 lb) Max speed (referred to wheels with maximum permitted diameter) 40 km/h (24,9 mph) Machine model PEGASUS 50.26 Getting off the basket 9,5 s Retraction 15 s Forward swiveling 2,1 s Reverse swiveling 1,3 s Machine model PEGASUS 50.26 Nominal power 125 kW (168 HP) Peak power 127 kW (170 HP) Operation 4-stroke Injection Electronic, Common Rail Number and arrangement of cylinders 4, Vertical in line Displacement 4485 cm³ (274 in³) Consumption 280 g/kWh (460,6 lb/Hp h) Emission standards Stage IV/Tier 4f Exhaust gas treatment

https://truckmanualshub.com/ PERFORMANCE https://truckmanualshub.com/ Machine model PEGASUS 50.26 Maximum capacity 5000 kg (11023 lb) Maximum lifting height on outriggers 25,7 m (84,3 ft) Maximum horizontal extension on outriggers 21,9 m (71,9 ft) Fork swiveling angle 133° Pull-out force 5700 daN (12814 lbf) Towing force 10000 daN (22481 lbf) Maximum climb angle 40% Unladen weight 21000 kg (46297 lb) Max speed (referred to wheels with maximum permitted diameter) 40 km/h (24,9 mph) BOOM Machine model PEGASUS 50.26 Lifting 14,5 s Getting off the basket 9,5 s Extension 30 s Retraction 15 s Forward swiveling 2,1 s Reverse swiveling 1,3 s ENGINE Machine model PEGASUS 50.26 Brand FPT Nominal power 125 kW (168 HP) @rpm 2200 rpm Peak power 127 kW (170 HP) @rpm 1900 rpm Operation 4-stroke Injection Electronic, Common Rail Number and arrangement of cylinders 4, Vertical in line Displacement 4485 cm³ (274 in³) Consumption 280 g/kWh (460,6 lb/Hp h) @rpm 1900 rpm Emission standards Stage IV/Tier 4f Exhaust gas treatment DOC+SCR (AdBlue) Cooling system Liquid Intake 16-valve turbo compressor, aftercooler DIFFERENTIAL AXLES Machine model PEGASUS 50.26 Axles type 2 steering, with 4 epicycloidal…
