Axle

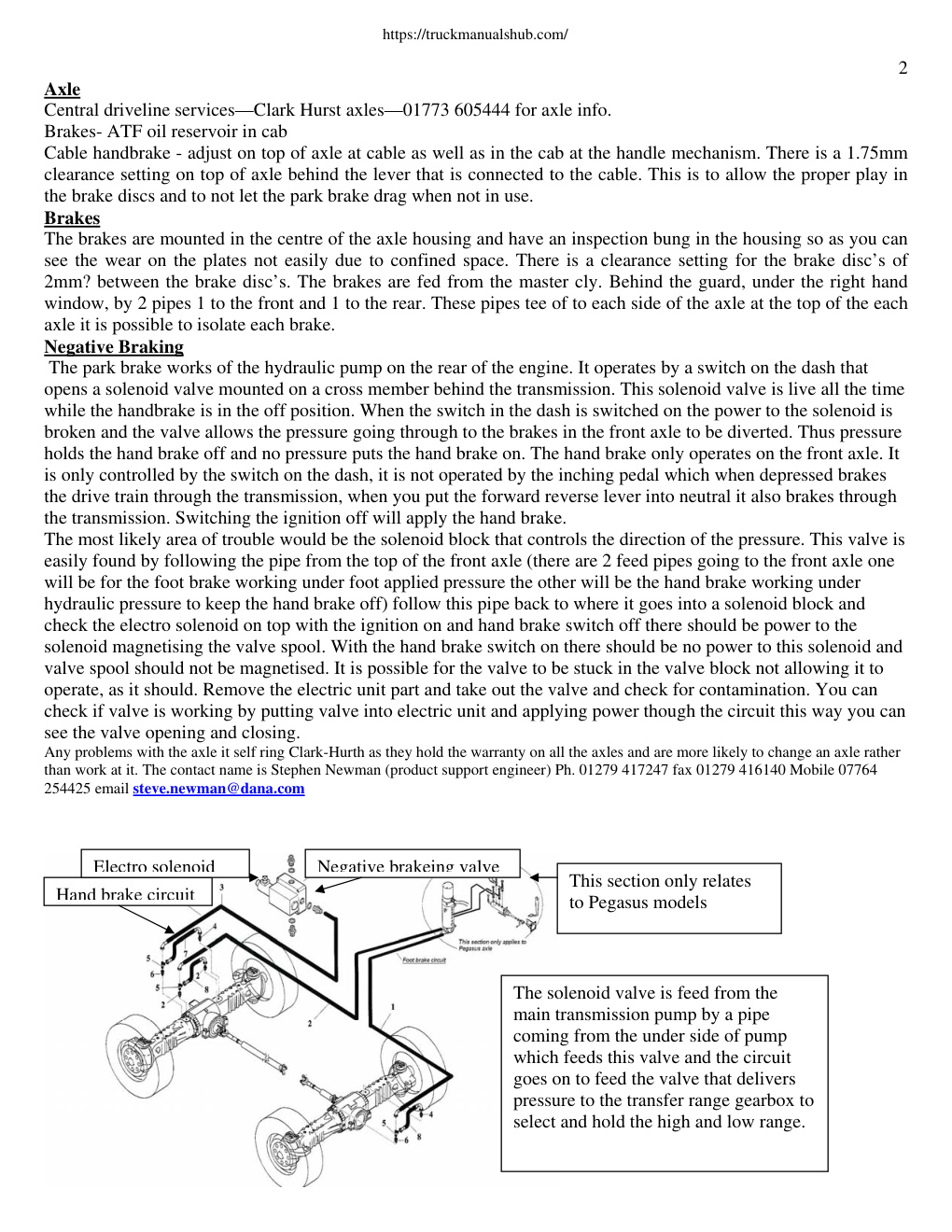

Dieci Workshop Manual Central driveline services—Clark Hurst axles—01773 605444 for axle info. Brakes- ATF oil reservoir in cab Cable handbrake - adjust on top of axle at cable as well as in the cab at the handle mechanism. There is a 1.75mm clearance setting on top of axle behind the lever that is connected to the cable. This is to allow the proper play in the brake discs and to not let the park brake drag when not in use. The brakes are mounted in the centre of the axle housing and have an inspection bung in the housing so as you can see the wear on the plates not easily due to confined space. There is a clearance setting for the brake disc’s of 2mm? between the brake disc’s. The brakes are fed from the master cly. Behind the guard, under the right hand window, by 2 pipes 1 to the front and 1 to the rear. These pipes tee of to each side of the axle at the top of the each axle it is pos

https://truckmanualshub.com/ 1 Dieci Workshop Manual https://truckmanualshub.com/ 2 Axle Central driveline services—Clark Hurst axles—01773 605444 for axle info. Brakes- ATF oil reservoir in cab Cable handbrake - adjust on top of axle at cable as well as in the cab at the handle mechanism. There is a 1.75mm clearance setting on top of axle behind the lever that is connected to the cable. This is to allow the proper play in the brake discs and to not let the park brake drag when not in use. Brakes The brakes are mounted in the centre of the axle housing and have an inspection bung in the housing so as you can see the wear on the plates not easily due to confined space. There is a clearance setting for the brake disc’s of 2mm? between the brake disc’s. The brakes are fed from the master cly. Behind the guard, under the right hand window, by 2 pipes 1 to the front and 1 to the rear. These pipes tee of to each side of the axle at the top of the each axle it is possible to isolate each brake. Negative Braking The park brake works of the hydraulic pump on the rear of the engine. It operates by a switch on the dash that opens a solenoid valve mounted on a cross member behind the…
