Dieci i 12.56 Technical Specification.pdf

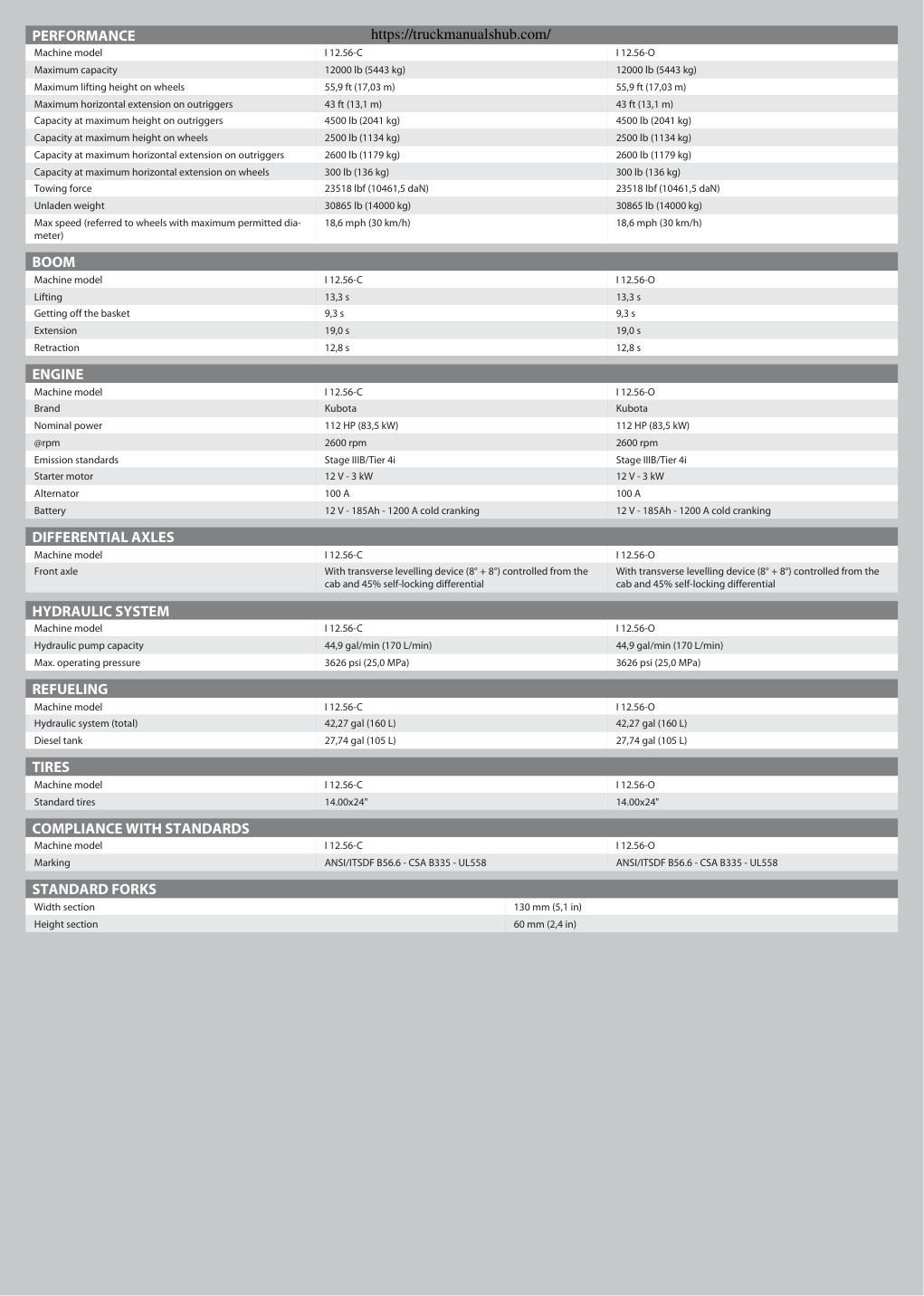

PERFORMANCE Machine model I 12.56-C I 12.56-O Maximum capacity 12000 lb (5443 kg) 12000 lb (5443 kg) Maximum lifting height on wheels 55,9 ft (17,03 m) 55,9 ft (17,03 m) Maximum horizontal extension on outriggers 43 ft (13,1 m) 43 ft (13,1 m) Capacity at maximum height on outriggers 4500 lb (2041 kg) 4500 lb (2041 kg) Capacity at maximum height on wheels 2500 lb (1134 kg) 2500 lb (1134 kg) Capacity at maximum horizontal extension on outriggers 2600 lb (1179 kg) 2600 lb (1179 kg) Capacity at maximum horizontal extension on wheels 300 lb (136 kg) 300 lb (136 kg) Towing force 23518 lbf (10461,5 daN) 23518 lbf (10461,5 daN) Unladen weight 30865 lb (14000 kg) 30865 lb (14000 kg) Max speed (referred to wheels with maximum permitted dia- 18,6 mph (30 km/h) 18,6 mph (30 km/h) Machine model I 12.56-C I 12.56-O Lifting 13,3 s 13,3 s Getting off the basket 9,3 s 9,3 s E

https://truckmanualshub.com/ PERFORMANCE https://truckmanualshub.com/ Machine model I 12.56-C I 12.56-O Maximum capacity 12000 lb (5443 kg) 12000 lb (5443 kg) Maximum lifting height on wheels 55,9 ft (17,03 m) 55,9 ft (17,03 m) Maximum horizontal extension on outriggers 43 ft (13,1 m) 43 ft (13,1 m) Capacity at maximum height on outriggers 4500 lb (2041 kg) 4500 lb (2041 kg) Capacity at maximum height on wheels 2500 lb (1134 kg) 2500 lb (1134 kg) Capacity at maximum horizontal extension on outriggers 2600 lb (1179 kg) 2600 lb (1179 kg) Capacity at maximum horizontal extension on wheels 300 lb (136 kg) 300 lb (136 kg) Towing force 23518 lbf (10461,5 daN) 23518 lbf (10461,5 daN) Unladen weight 30865 lb (14000 kg) 30865 lb (14000 kg) Max speed (referred to wheels with maximum permitted dia- 18,6 mph (30 km/h) 18,6 mph (30 km/h) meter) BOOM Machine model I 12.56-C I 12.56-O Lifting 13,3 s 13,3 s Getting off the basket 9,3 s 9,3 s Extension 19,0 s 19,0 s Retraction 12,8 s 12,8 s ENGINE Machine model I 12.56-C I 12.56-O Brand Kubota Kubota Nominal power 112 HP (83,5 kW) 112 HP (83,5 kW) @rpm 2600 rpm 2600 rpm Emission standards Stage IIIB/Tier 4i Stage IIIB/Tier 4i Starter motor 12 V -…
