Source: Chrysler service manuals

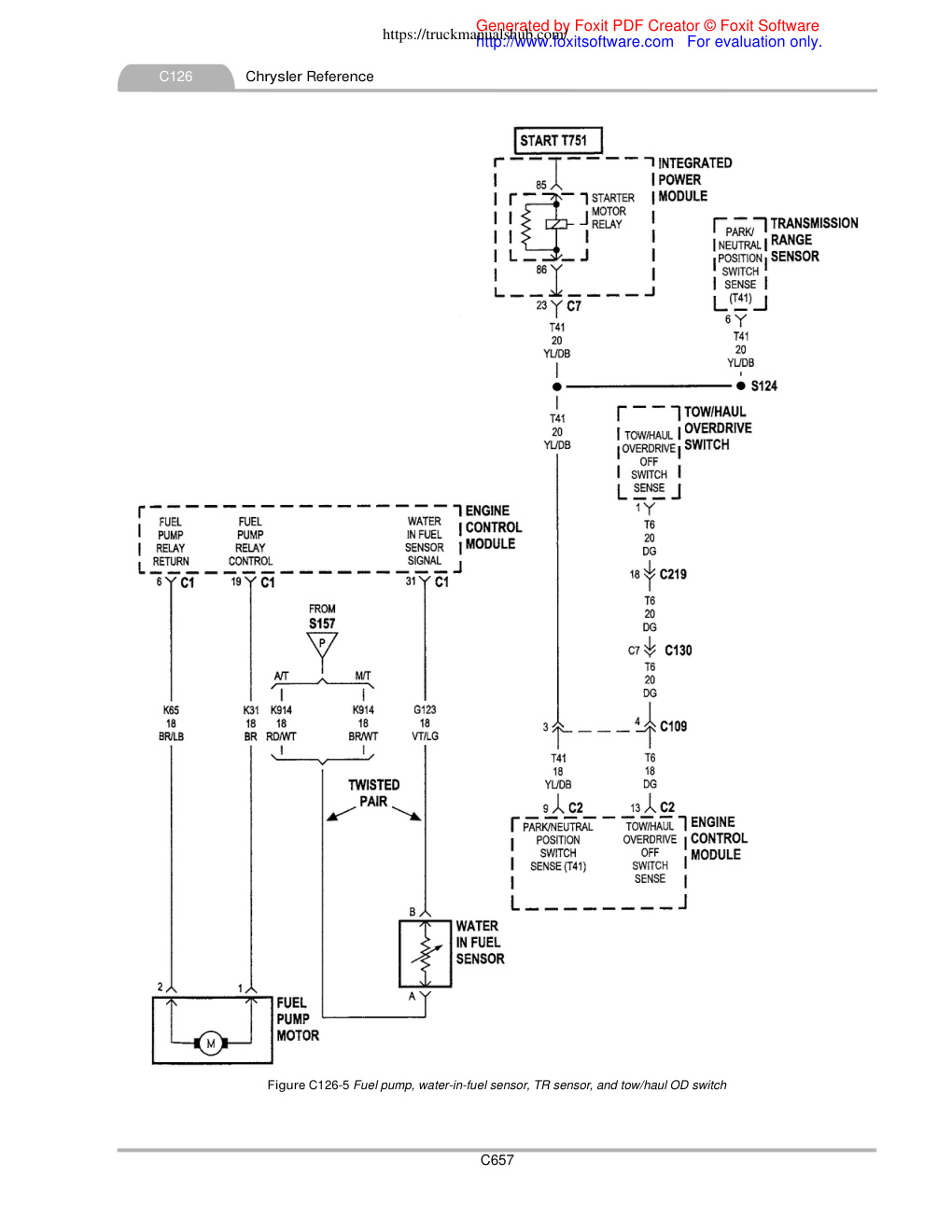

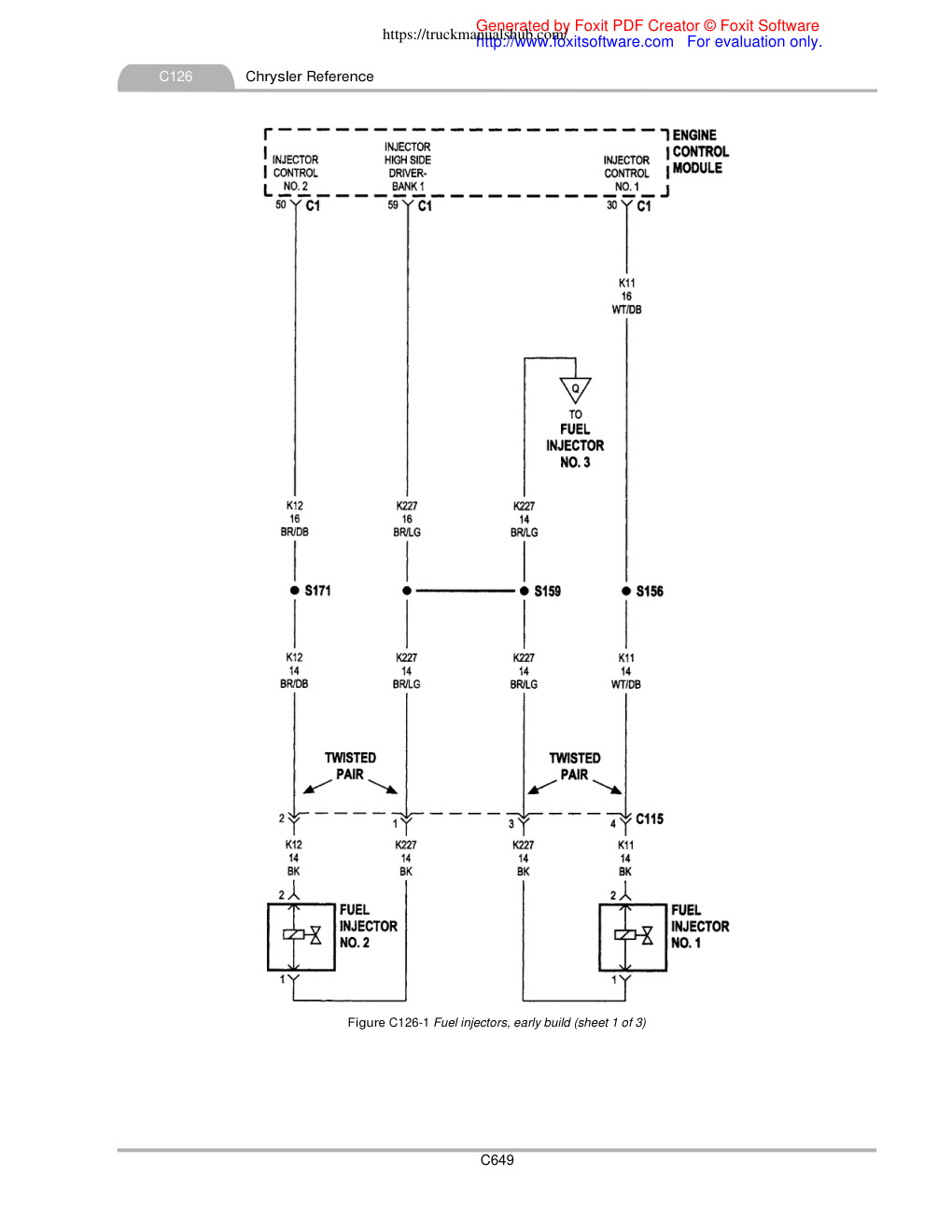

Generated by Foxit PDF Creator © Foxit Software For evaluation only. C126 Chrysler Reference Subject: Wiring diagrams for 2004 Dodge truck with 5.9L diesel engine Source: Chrysler service manuals This reference contains the following engine control module (ECM) diagrams: Figure C126-1 Fuel injectors, early build Figure C126-2 Fuel injectors, late build Figure C126-3 A/C pressure transducer Figure C126-4 CMP sensor and CKP sensor Figure C126-5 Fuel pump, water-in-fuel sensor, TR sensor, and tow/haul OD switch Figure C126-6 IAT sensor, early build with manual transmission Figure C126-7 IAT sensor, except early build with manual transmission Figure C126-8 Fuel control actuator and IAT/MAP sensor Figure C126-9 Generator and lift pump motor Figure C126-10 ECM power supply Figure C126-11 Engine oil pressure switch Figure C126-12 Vistron

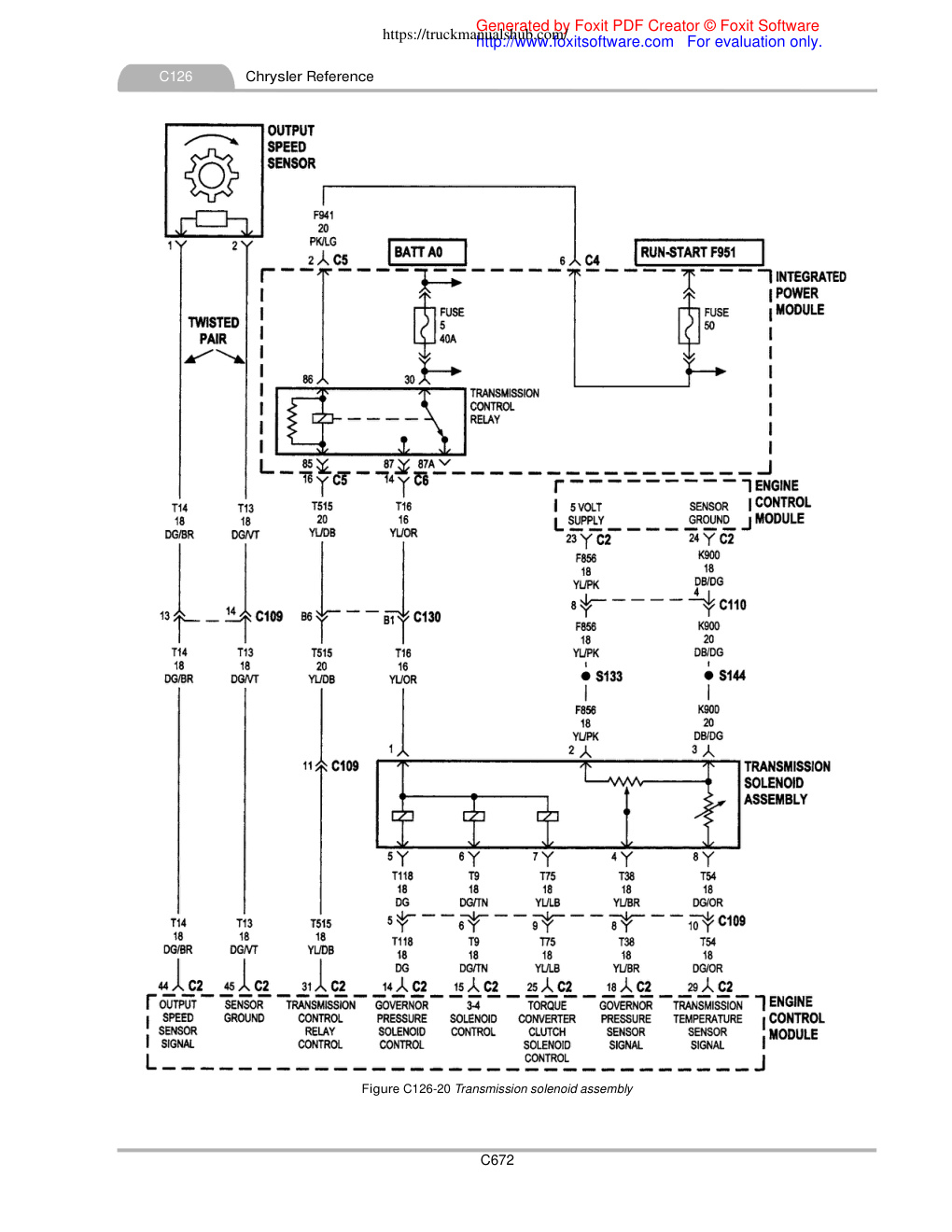

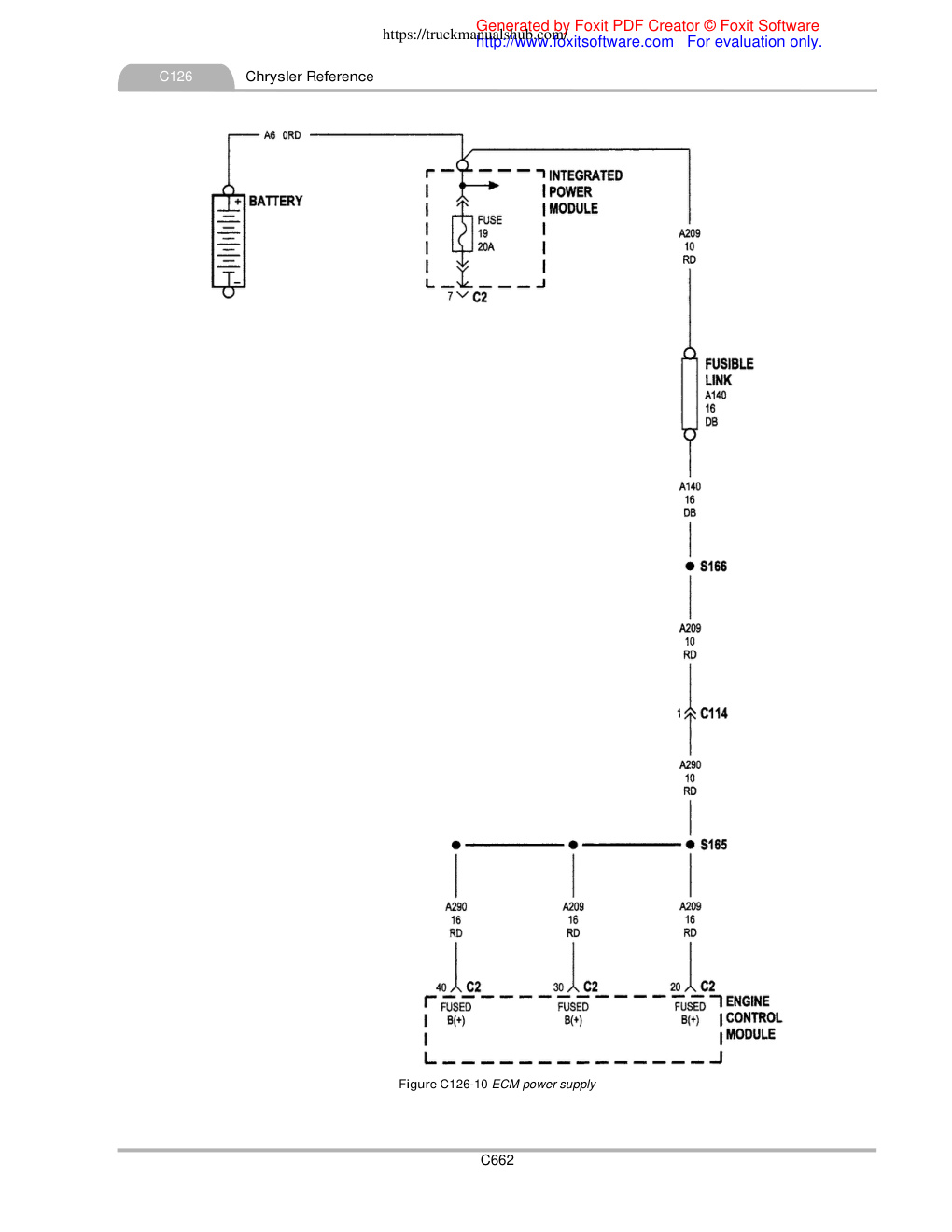

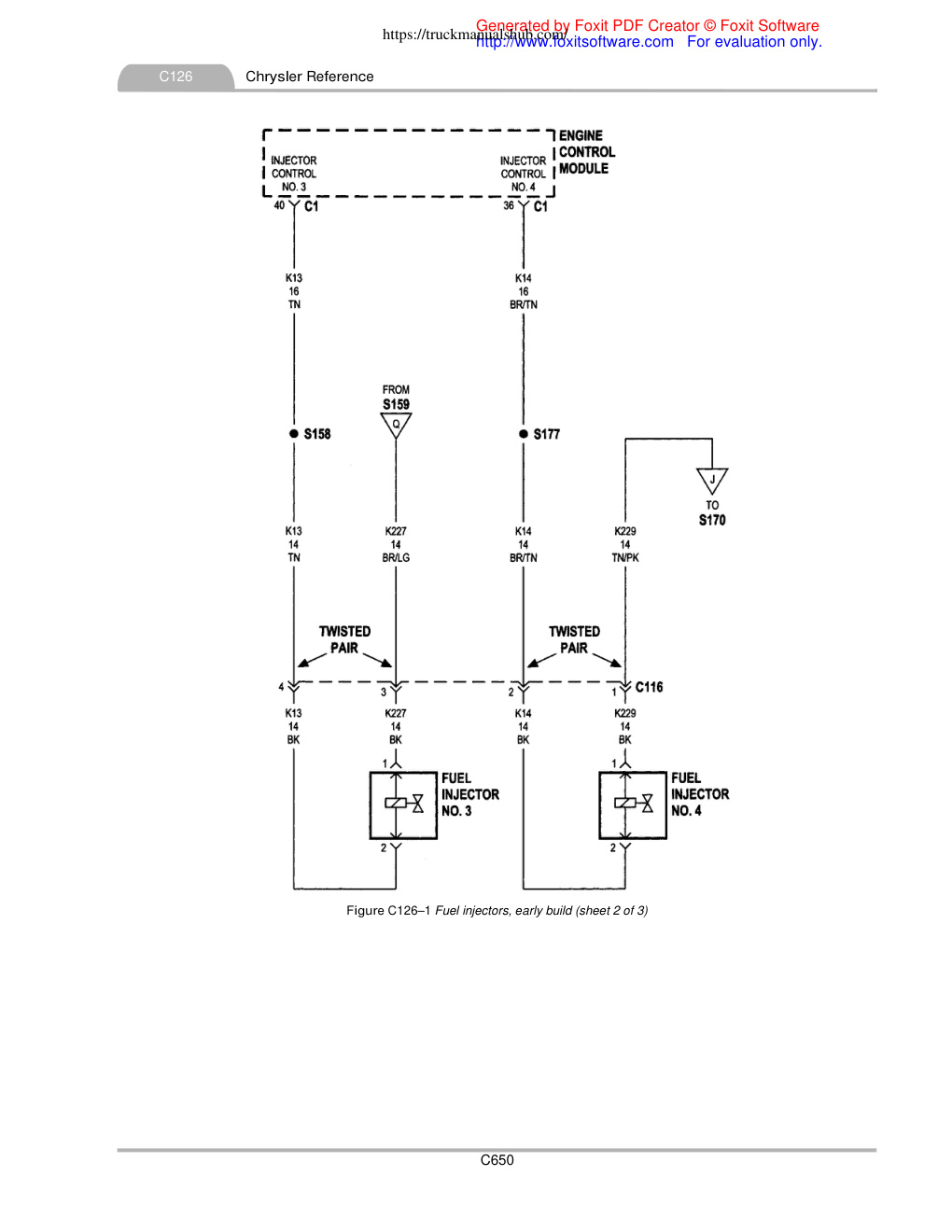

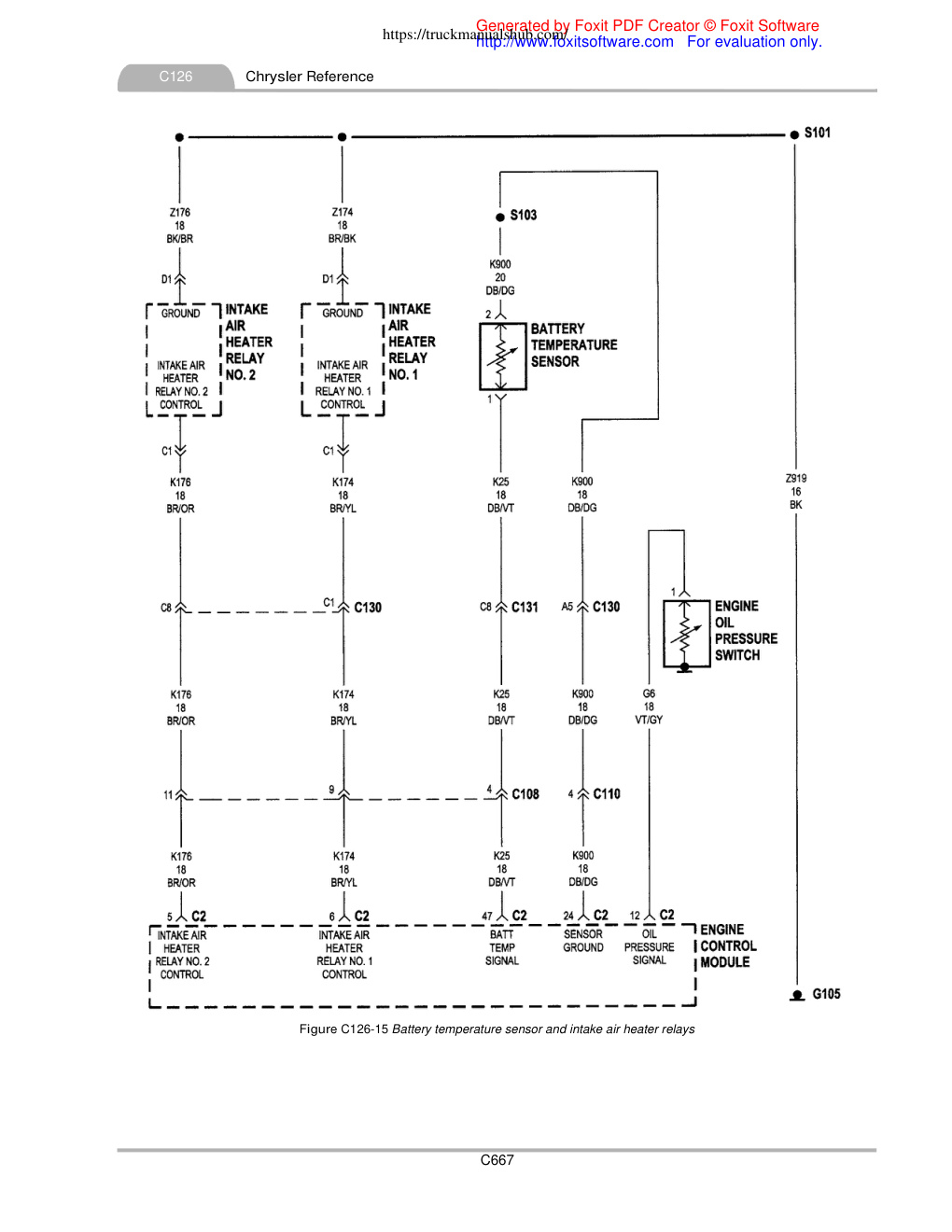

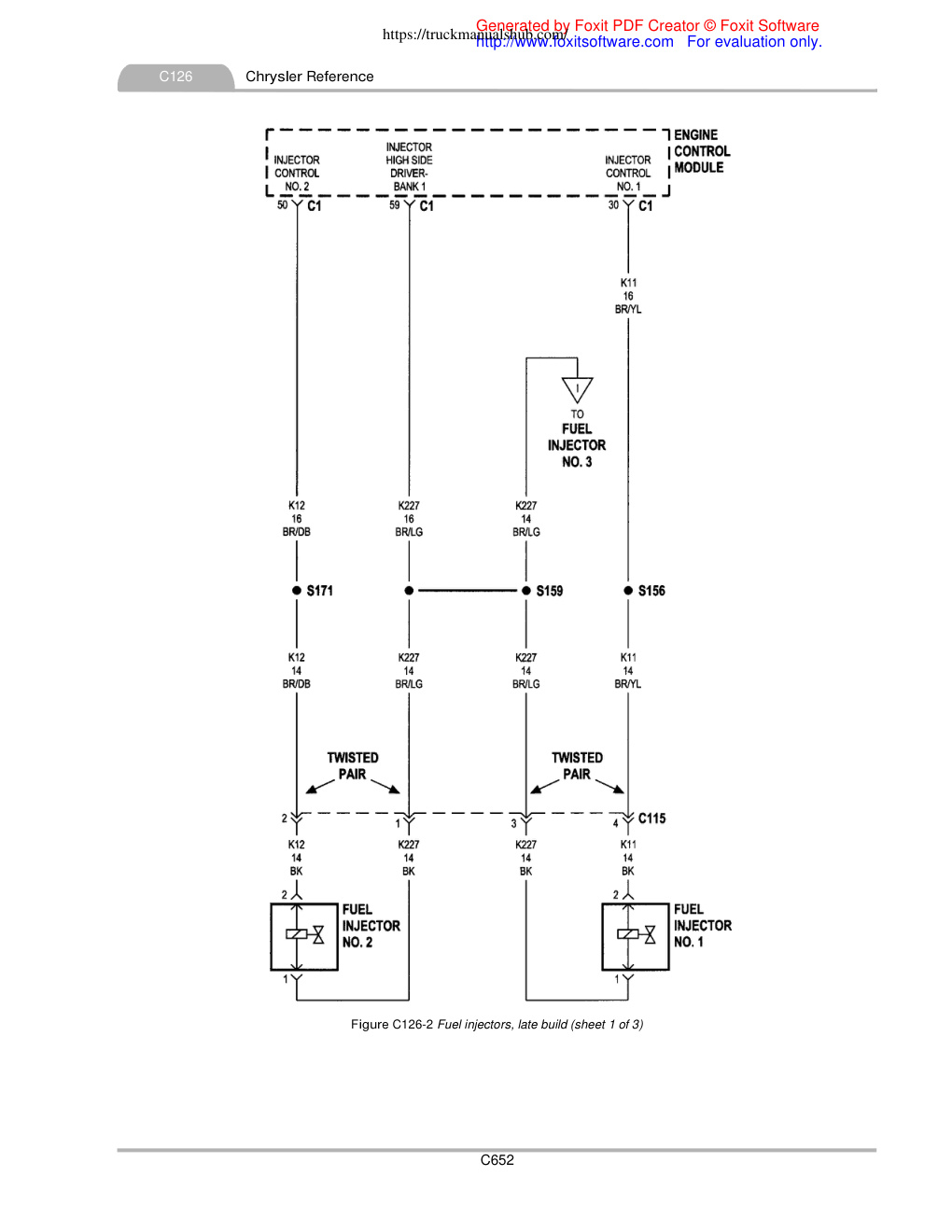

Generated by Foxit PDF Creator © Foxit Software https://truckmanualshub.com/ http://www.foxitsoftware.com For evaluation only. C126 Chrysler Reference Subject: Wiring diagrams for 2004 Dodge truck with 5.9L diesel engine Source: Chrysler service manuals This reference contains the following engine control module (ECM) diagrams: Figure C126-1 Fuel injectors, early build Figure C126-2 Fuel injectors, late build Figure C126-3 A/C pressure transducer Figure C126-4 CMP sensor and CKP sensor Figure C126-5 Fuel pump, water-in-fuel sensor, TR sensor, and tow/haul OD switch Figure C126-6 IAT sensor, early build with manual transmission Figure C126-7 IAT sensor, except early build with manual transmission Figure C126-8 Fuel control actuator and IAT/MAP sensor Figure C126-9 Generator and lift pump motor Figure C126-10 ECM power supply Figure C126-11 Engine oil pressure switch Figure C126-12 Vistronic fan drive, early build Figure C126-13 Vistronic fan drive, late build Figure C126-14 PCI bus and SCI bus Figure C126-15 Battery temperature sensor and intake air heater relays Figure C126-16 Brake lamp switch and ABS controller Figure C126-17 Fuel pump module and vacuum pump Figure C126-18…
