SERVICE MANUAL

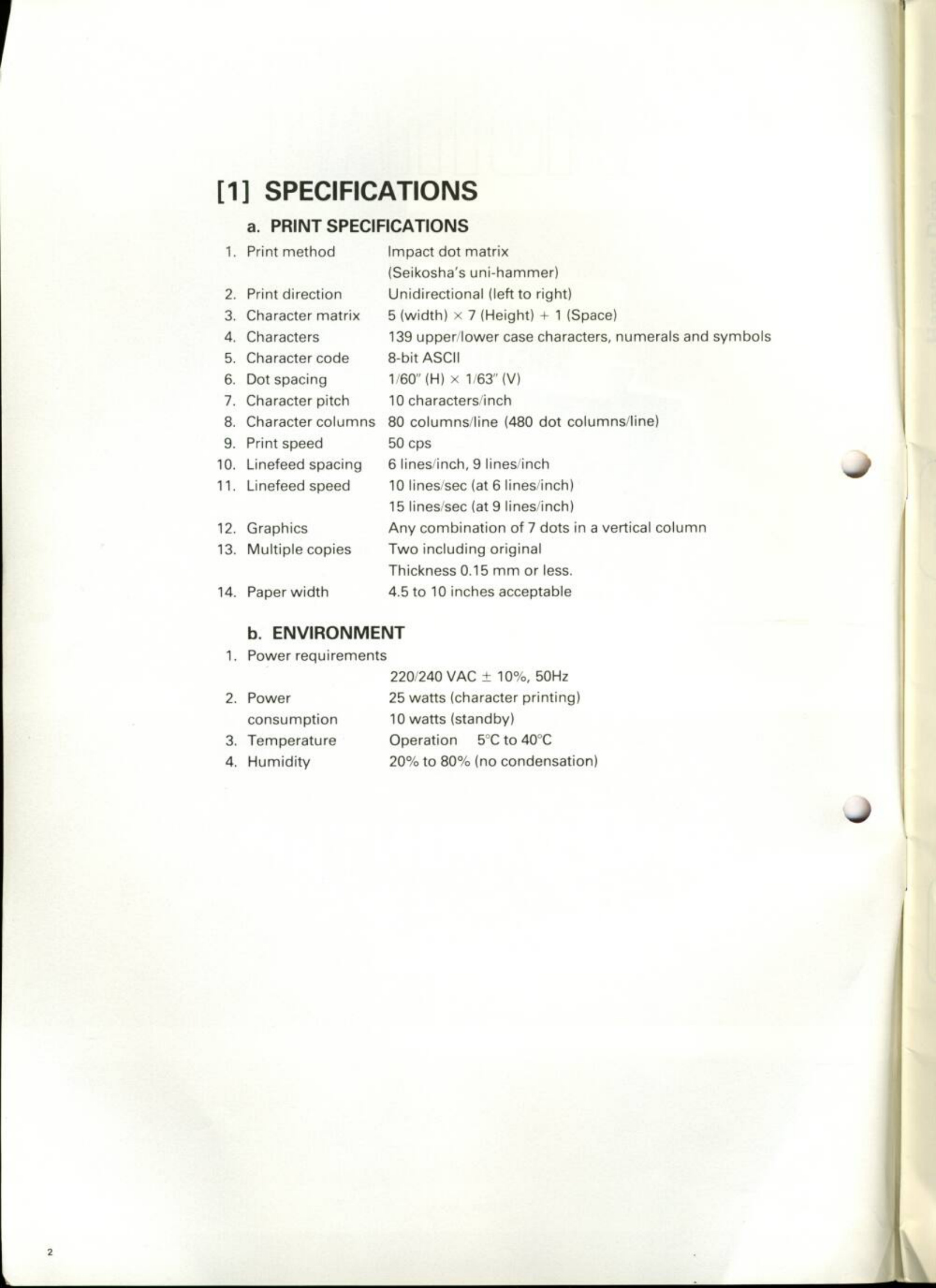

[1] SPECIFICATIONS a. PRINT SPECIFICATIONS 1. Print method Impact dot matrix {Seikosha's uni-hammer) 2. Print direction Unidirectional (left to right) 3. Character matrix 5 (width) x 7 (Height) + 1 (Space) 4. Characters 139 upper/lower case characters, numerals and symbols 5. Character code 8-bit ASCII 6. Dot spacing 1:60" (H) x 1/63" (V) 7. Character pitch 10 characters/inch 8. Character columns 80 columnsiline (480 dot columns/linel 9. Print speed 50 cps 10. Linefeed spacing 6 lines/inch, 9 lines/inch SD 11. Linefeed speed 10 lines’sec (at 6 lines/inch) 15 lines’sec (at 9 lines‘inch) 12. Graphics Any combination of 7 dots in a vertical column 13. Multiple copies Two including original Thickness 0.15 mm or less. 14. Paper width 4.5 to 10 inches acceptable 1. Power requirements 220/240 VAC + 10%, 50Hz 2. Power 25 watts (character printing) consumption 10 watts (standby) 3. Temperature Op

DMP1 PRINTER SERVICE MANUAL [1] SPECIFICATIONS a. PRINT SPECIFICATIONS 1. Print method Impact dot matrix {Seikosha's uni-hammer) 2. Print direction Unidirectional (left to right) 3. Character matrix 5 (width) x 7 (Height) + 1 (Space) 4. Characters 139 upper/lower case characters, numerals and symbols 5. Character code 8-bit ASCII 6. Dot spacing 1:60" (H) x 1/63" (V) 7. Character pitch 10 characters/inch 8. Character columns 80 columnsiline (480 dot columns/linel 9. Print speed 50 cps 10. Linefeed spacing 6 lines/inch, 9 lines/inch SD 11. Linefeed speed 10 lines’sec (at 6 lines/inch) 15 lines’sec (at 9 lines‘inch) 12. Graphics Any combination of 7 dots in a vertical column 13. Multiple copies Two including original Thickness 0.15 mm or less. 14. Paper width 4.5 to 10 inches acceptable b. ENVIRONMENT 1. Power requirements 220/240 VAC + 10%, 50Hz 2. Power 25 watts (character printing) consumption 10 watts (standby) 3. Temperature Operation 5°C to 40°C 4, Humidity 20% to 80% (no condensation)
