VHF/UHF ALL MODE TRANSCEIVER

IC-910H

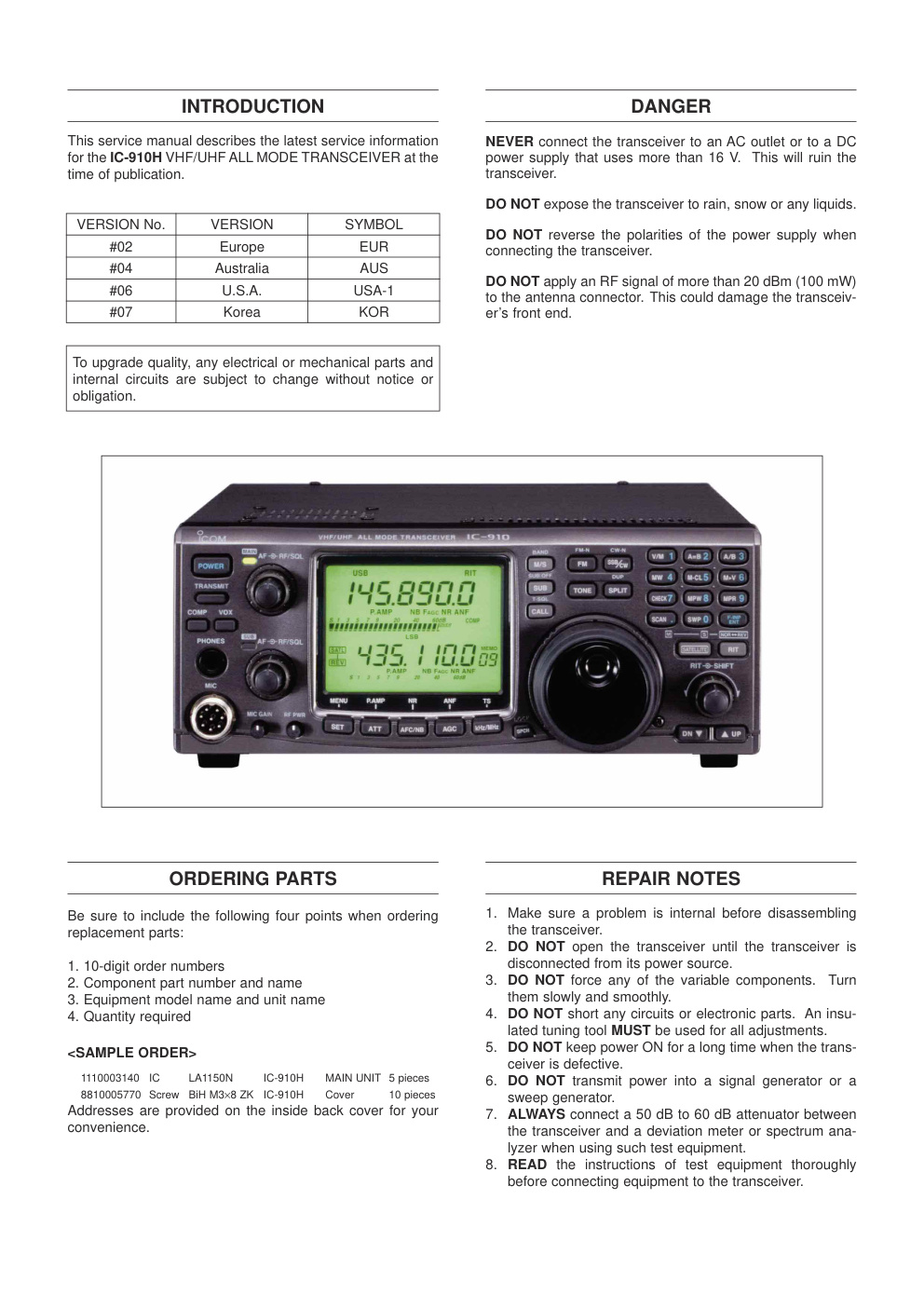

SERVICE MANUAL VHF/UHF ALL MODE TRANSCEIVER i910H INTRODUCTION DANGER This service manual describes the latest service information NEVER connect the transceiver to an AC outlet or to a DC for the IC-910H VHF/UHF ALL MODE TRANSCEIVER at the power supply that uses more than 16 V. This will ruin the time of publication. transceiver. DO NOT expose the transceiver to rain, snow or any liquids. VERSION No. VERSION SYMBOL DO NOT reverse the polarities of the power supply when #02 Europe EUR connecting the transceiver. #04 Australia AUS DO NOT apply an RF signal of more than 20 dBm (100 mW) #06 U.S.A. USA-1 to the antenna connector. This could damage the transceiv- #07 Korea KOR er’s front end. To upgrade quality, any electrical or mechanical parts and internal circuits are subject to change without notice or obligation. ORDERING PARTS REPAIR NOTES Be sure to include the following four points when ordering 1. Make sure a problem is internal before disassembling replacement parts: the transceiver. 2. DO NOT open the transceiver until the transceiver is 1. 10-digit order numbers disconnected from its power source. 2. Component part number and name 3. DO NOT force any of the variable…
