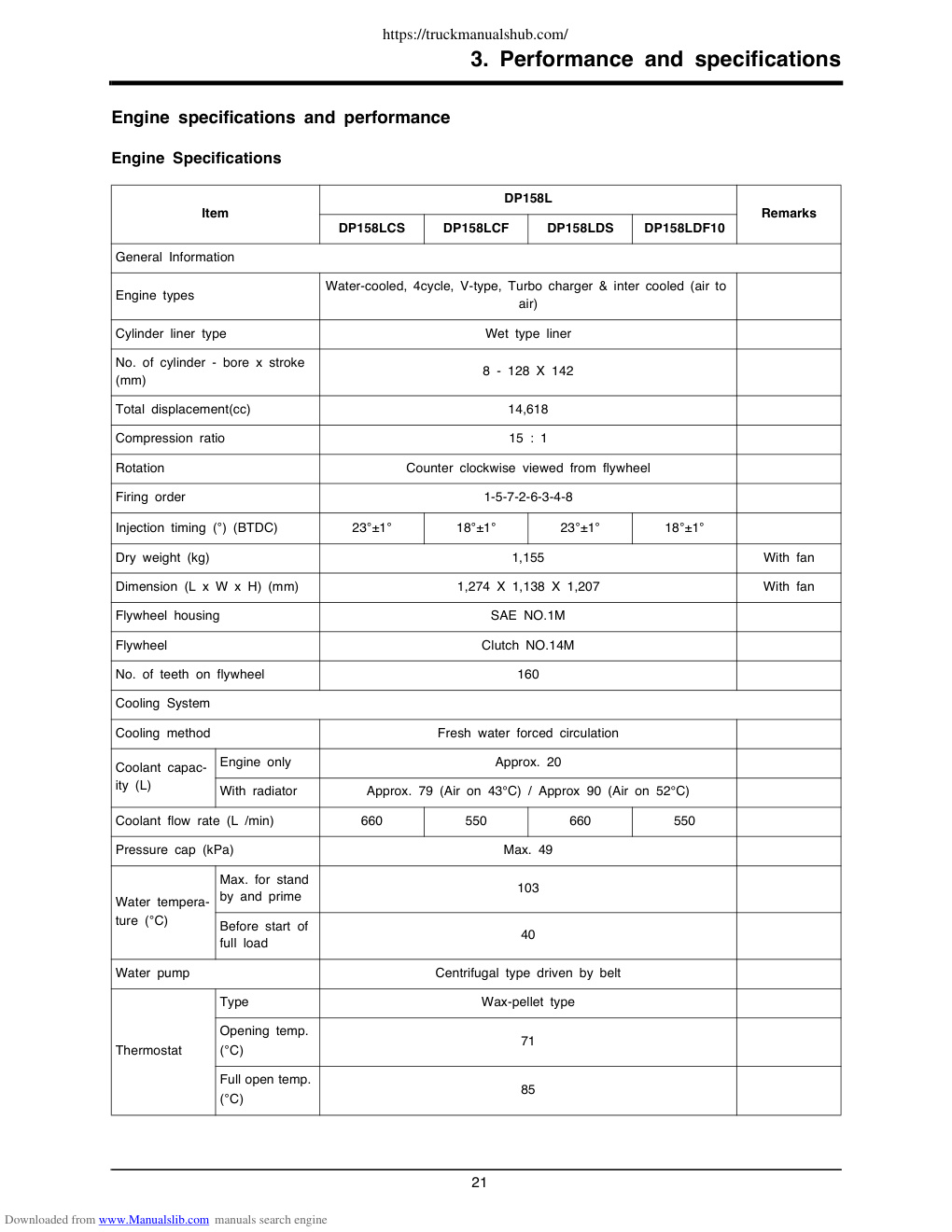

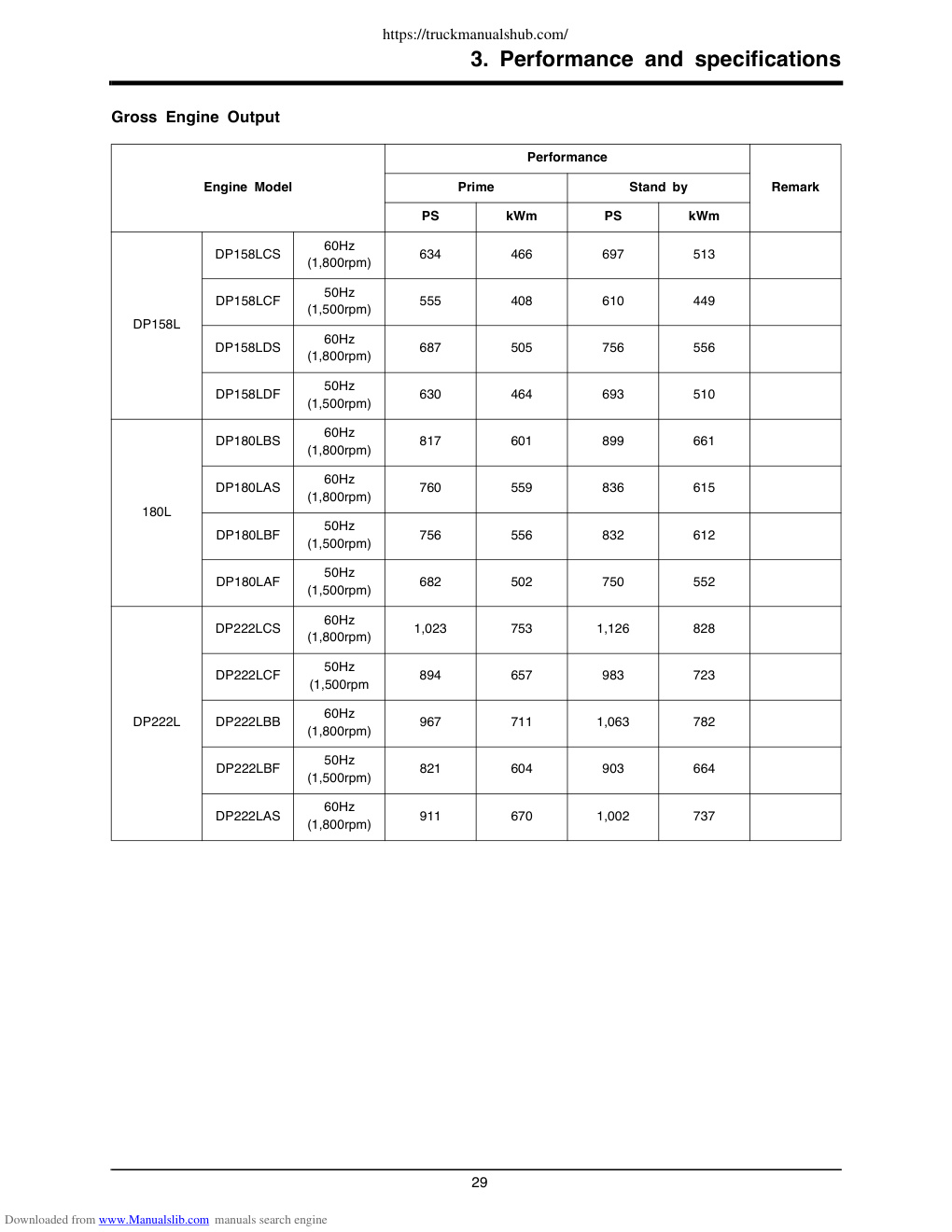

https://truckmanualshub.com/ 950106-01352 Operation & Maintenance Manual GENERATOR DIESEL ENGINE DP158LCF/LCS/LDF/LDS DP180LBS/LAS/LBF/LAF DP222LAS/LBF/LBS/LCF/LCS Doosan lnfracore Downloaded from www.Manualslib.com manuals search engine https://truckmanualshub.com/ 3. Performance and specifications Engine specifications and performance Engine Specifications DP158L Item Remarks DP158LCS DP158LCF DP158LDS DP158LDF10 General Information Water-cooled, 4cycle, V-type, Turbo charger & inter cooled (air to Engine types air) Cylinder liner type Wet type liner No. of cylinder - bore x stroke 8 - 128 X 142 (mm) Total displacement(cc) 14,618 Compression ratio 15 : 1 Rotation Counter clockwise viewed from flywheel Firing order 1-5-7-2-6-3-4-8 Injection timing (°) (BTDC) 23°±1° 18°±1° 23°±1° 18°±1° Dry weight (kg) 1,155 With fan Dimension (L x W x H) (mm) 1,274 X 1,138 X 1,207 With fan Flywheel housing SAE NO.1M Flywheel Clutch NO.14M No. of teeth on flywheel 160 Cooling System Cooling method Fresh water forced circulation Engine only Approx. 20 Coolant capac- ity (L) With radiator Approx. 79 (Air on 43°C) / Approx 90 (Air on 52°C) Coolant flow rate (L /min) 660 550 660 550 Pressure cap (kPa)…
