Maintenance Manual

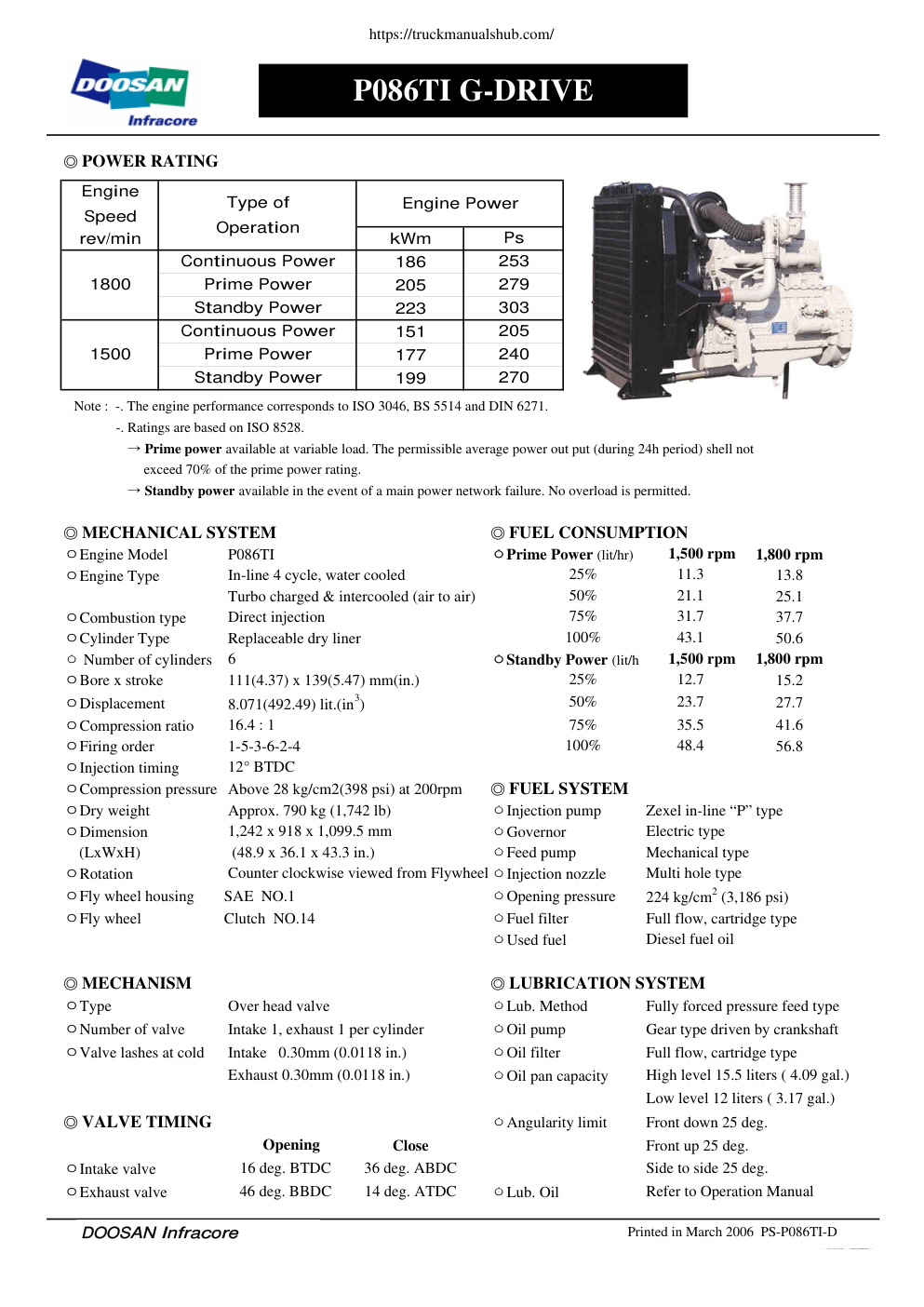

fateli 7: ¥.') Doosan Infracore Type of Engine Power Speed Operation Continuous Power 186 253 1800 Prime Power 205 279 Standby Power 223 303 Continuous Power 151 205 1500 Prime Power 177 240 Standby Power 199 270 Note: -. The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. -. Ratings are based on ISO 8528. → Prime power available at variable load. The permissible average power out put (during 24h period) shell not exceed 70% of the prime power rating. → Standby power available in the event of a main power network failure. No overload is permitted. ◎ MECHANICAL SYSTEM ◎ FUEL CONSUMPTION ㅇEngine Model P086TI ㅇPrime Power (lit/hr) 1,500 rpm 1,800 rpm ㅇEngine Type In-line 4 cycle, water cooled 25% 11.3 13.8 Turbo charged & intercooled (air to air) 50% 21.1 25.1 ㅇCombustion type Direct injection 75% 31.7 37.7 ㅇCylinder Type Replaceable dry liner 100% 43.1 50.6 ㅇ Number of c

https://truckmanualshub.com/ VOLTAR https://truckmanualshub.com/ P086TI G-DRIVE ◎ POWER RATING Engine Type of Engine Power Speed Operation rev/min kWm Ps Continuous Power 186 253 1800 Prime Power 205 279 Standby Power 223 303 Continuous Power 151 205 1500 Prime Power 177 240 Standby Power 199 270 Note : -. The engine performance corresponds to ISO 3046, BS 5514 and DIN 6271. -. Ratings are based on ISO 8528. → Prime power available at variable load. The permissible average power out put (during 24h period) shell not exceed 70% of the prime power rating. → Standby power available in the event of a main power network failure. No overload is permitted. ◎ MECHANICAL SYSTEM ◎ FUEL CONSUMPTION ㅇEngine Model P086TI ㅇPrime Power (lit/hr) 1,500 rpm 1,800 rpm ㅇEngine Type In-line 4 cycle, water cooled 25% 11.3 13.8 Turbo charged & intercooled (air to air) 50% 21.1 25.1 ㅇCombustion type Direct injection 75% 31.7 37.7 ㅇCylinder Type Replaceable dry liner 100% 43.1 50.6 ㅇ Number of cylinders 6 ㅇStandby Power (lit/h 1,500 rpm 1,800 rpm ㅇBore x stroke 111(4.37) x 139(5.47) mm(in.) 25% 12.7 15.2 ㅇDisplacement 8.071(492.49) lit.(in3) 50% 23.7 27.7 ㅇCompression ratio 16.4 : 1 75% 35.5 41.6 ㅇFiring…
