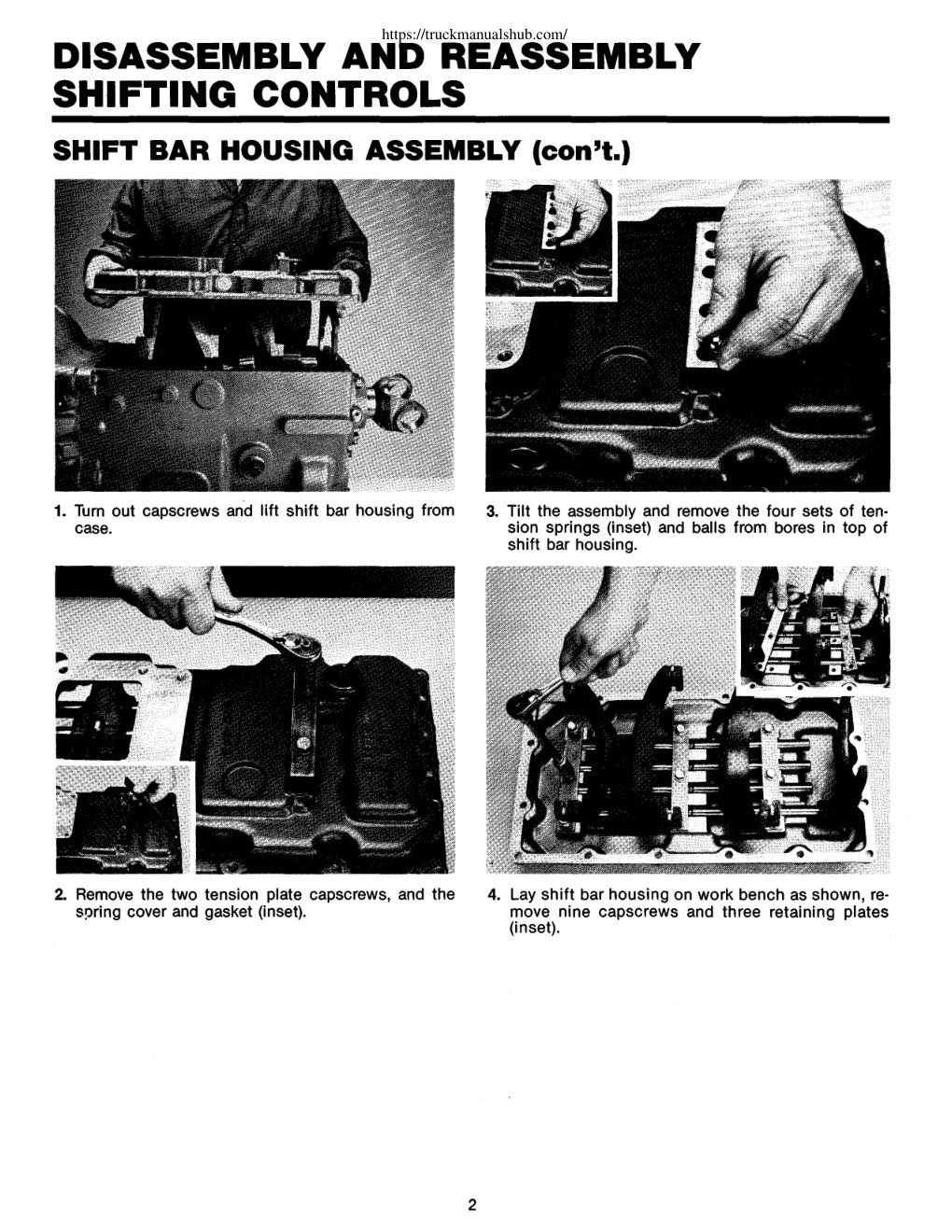

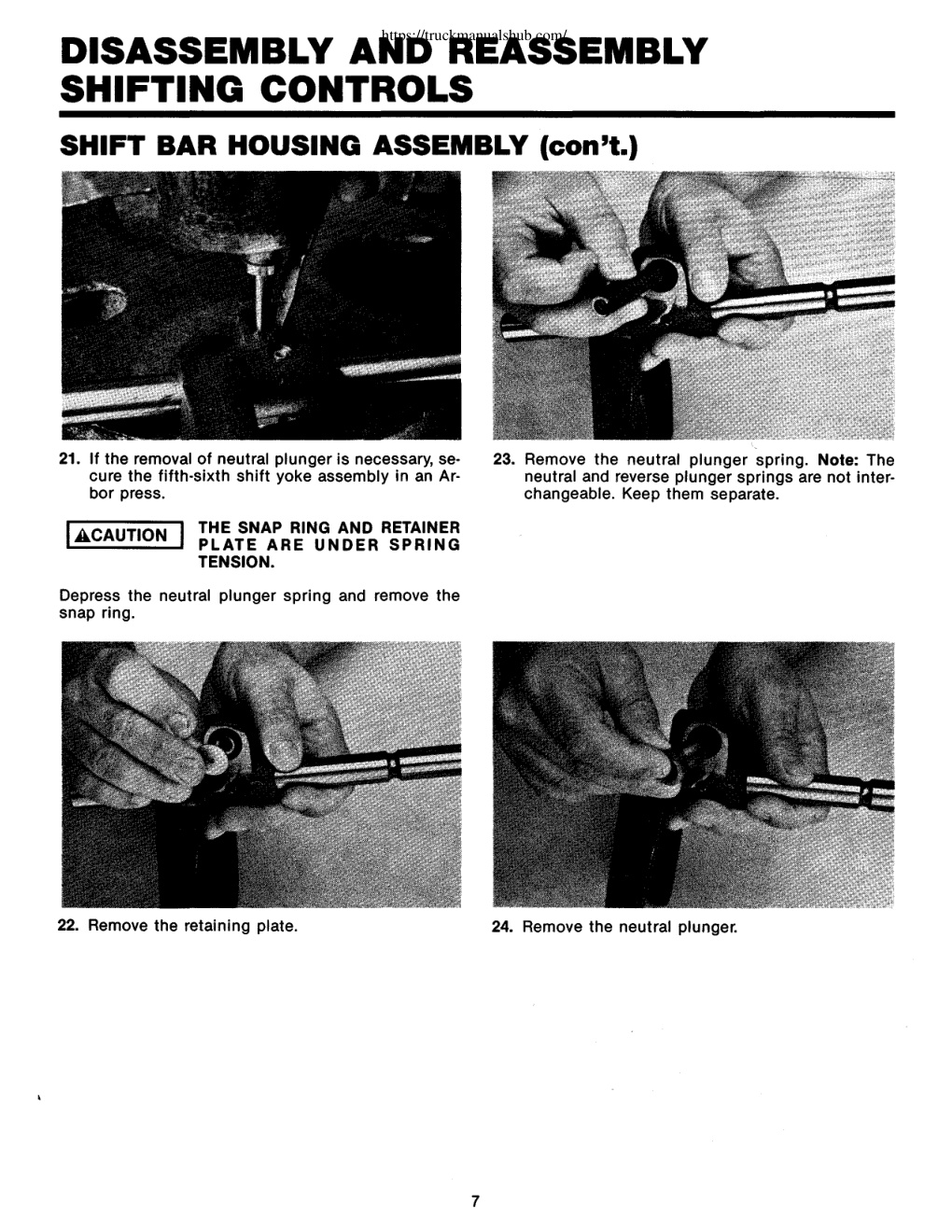

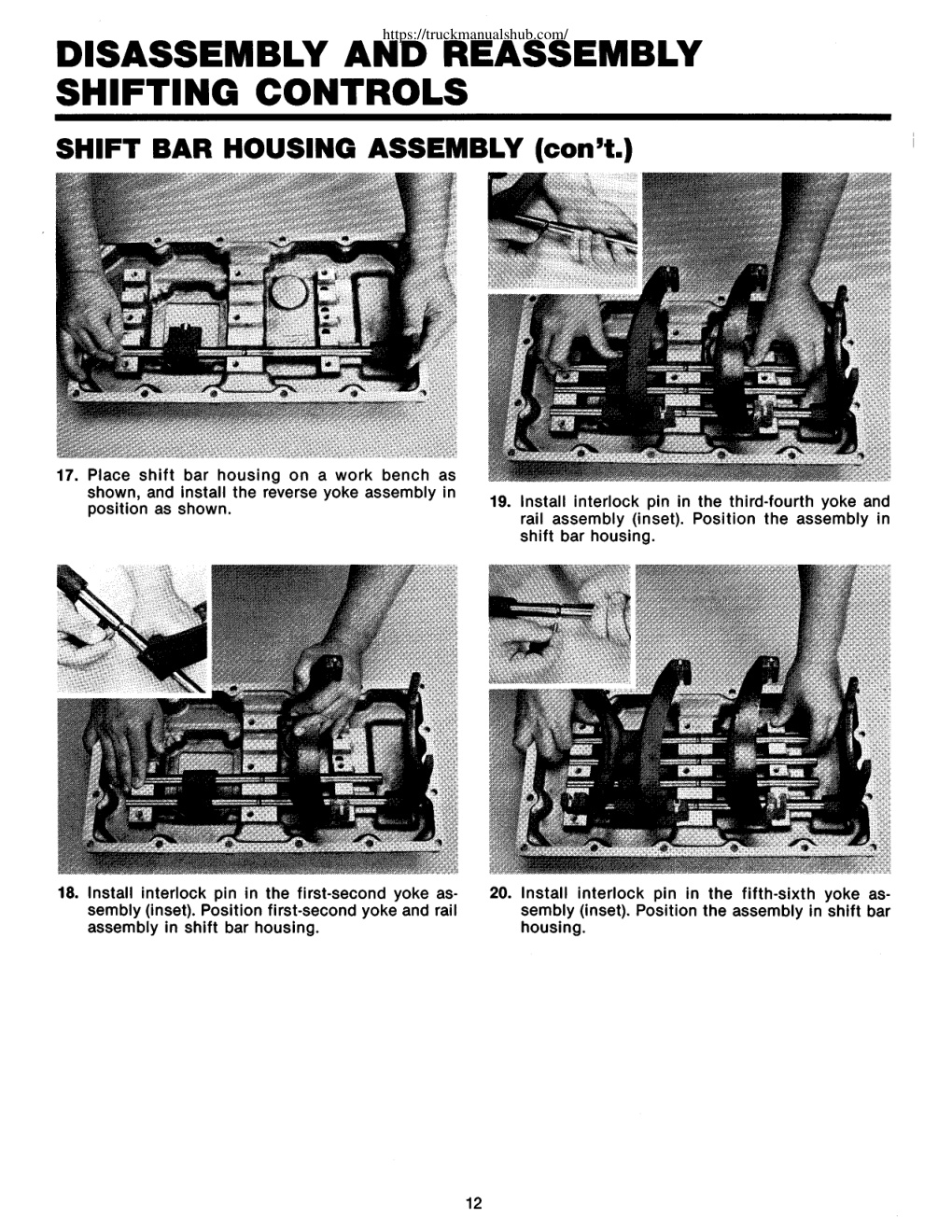

https://truckmanualshub.com/ Service Manual Fuller Mid Range Transmissions TRSM0171 October 2007 https://truckmanualshub.com/ For parts or service call us Pro Gear & Transmission, Inc. 1 (877) 776-4600 (407) 872-1901 parts@eprogear.com 906 W. Gore St. Orlando, FL 32805 https://truckmanualshub.com/ https://truckmanualshub.com/ DISASSEMBLY AND REASSEMBLY SHIFTING CONTROLS Appendix SHIFT BAR HOUSING ASSEMBLIES Note: The FS-6106 transmission can be equipped with either a Flat Rail Shift Bar Housing or a Round Rall Shift Bar Housing. To identify which type of shift bar housing the transmission is equipped with and the procedure for disas· sembly and reassembly refer to pages 19, 12 in the FS-6106 Service Manual and the following illustrations to match the drawings to the shift bar housing. A. Removal and Disassembly Round Rall Design BAR HOUSING ASSEMBLY REVERSE LIGHT SWITCH~- CAPSCREW' GASKET LIFTING~ EYE . I --- :._.::;;;;:::.-:;;:::.~~~~>~":~:. L------- ~,......,:::.:;;;;:;.;..;..-~ NEUTRAL LIGHT SWITCH Cut 6229A-4/87 - YOKES ANO BARS Cut 62268-3/87 1 https://truckmanualshub.com/ DISASSEMBLY AND REASSEMBLY SHIFTING CONTROLS SHIFT BAR HOUSING ASSEMBLY (con't.) 1. Turn out capscrews…
