Troubleshooting Guide

Eaton Hybrid Drive Systems MY08

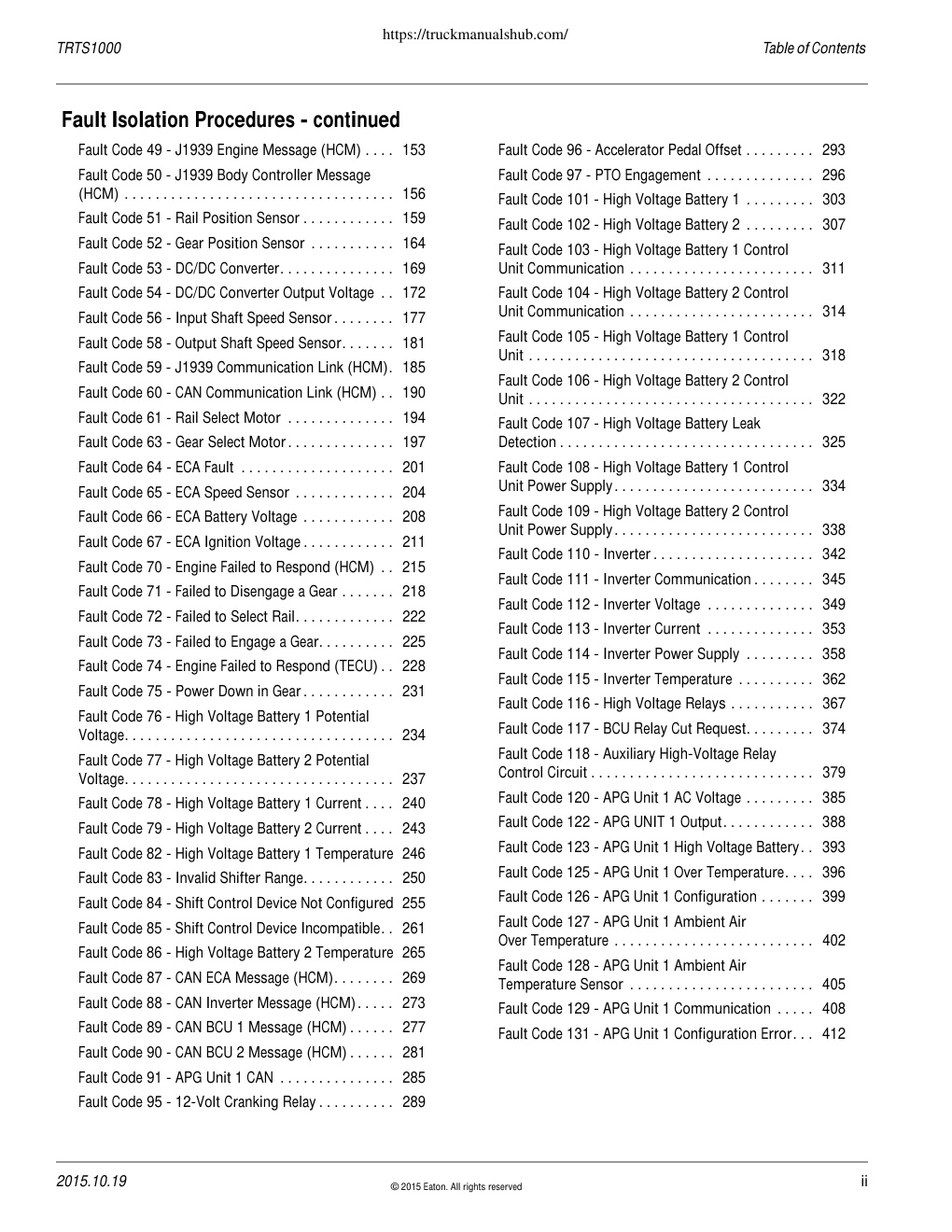

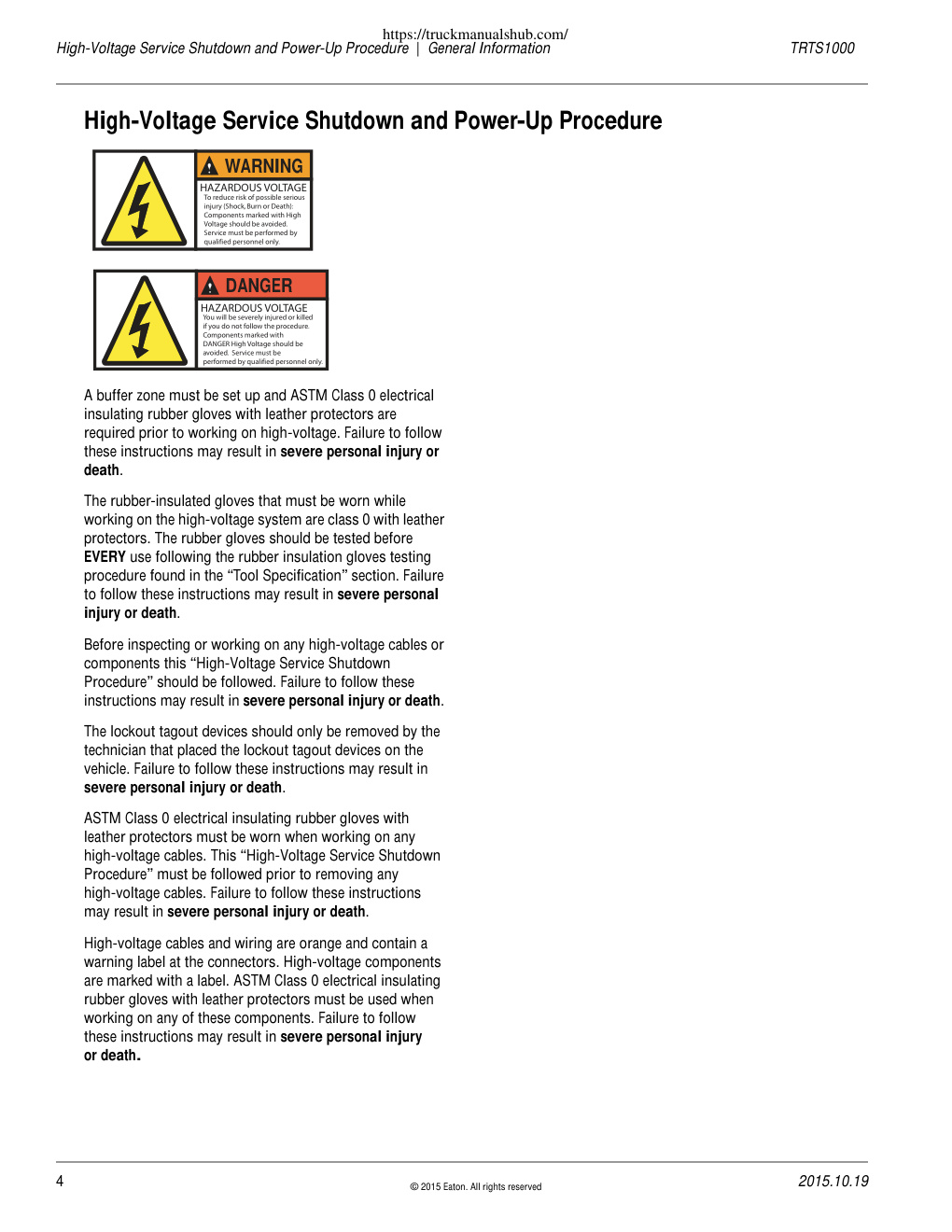

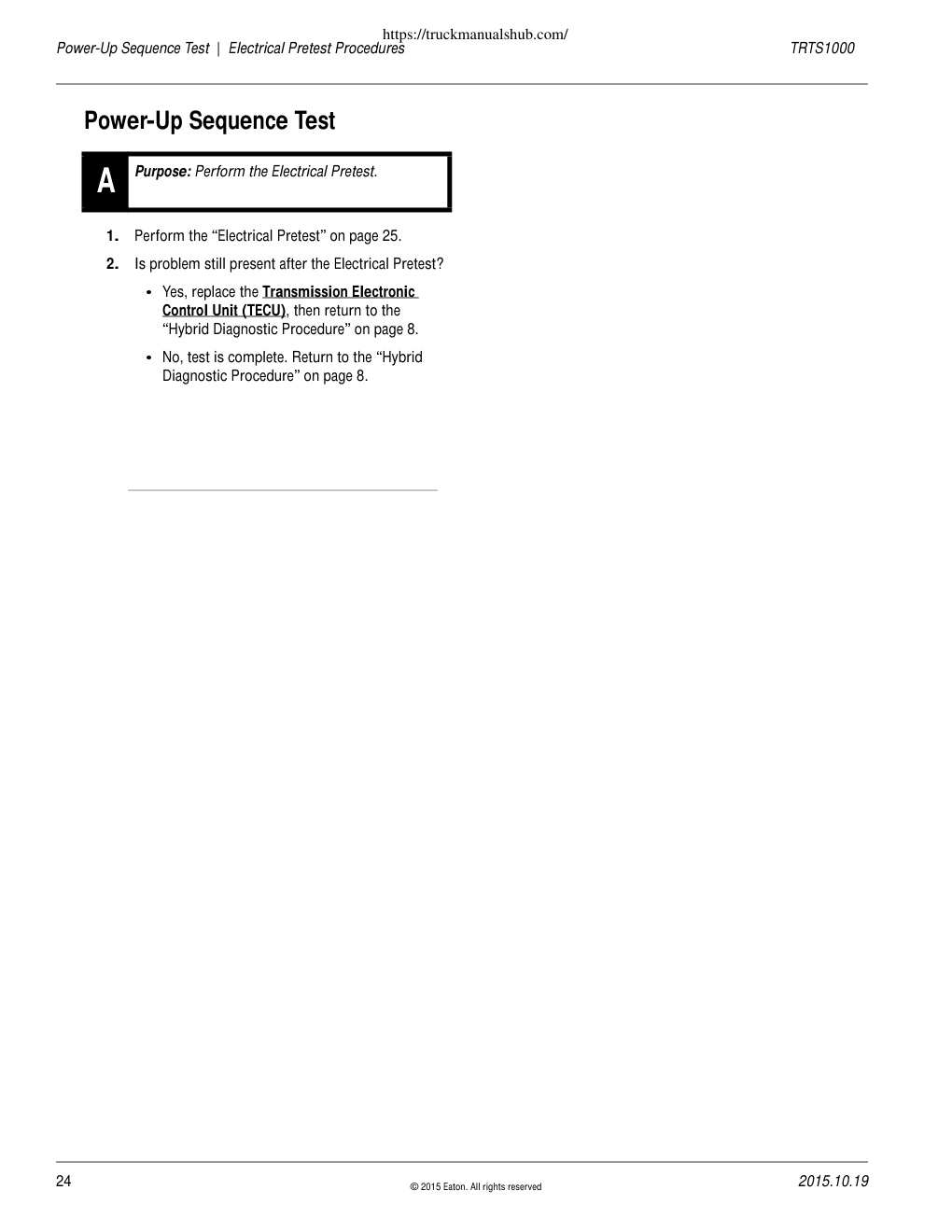

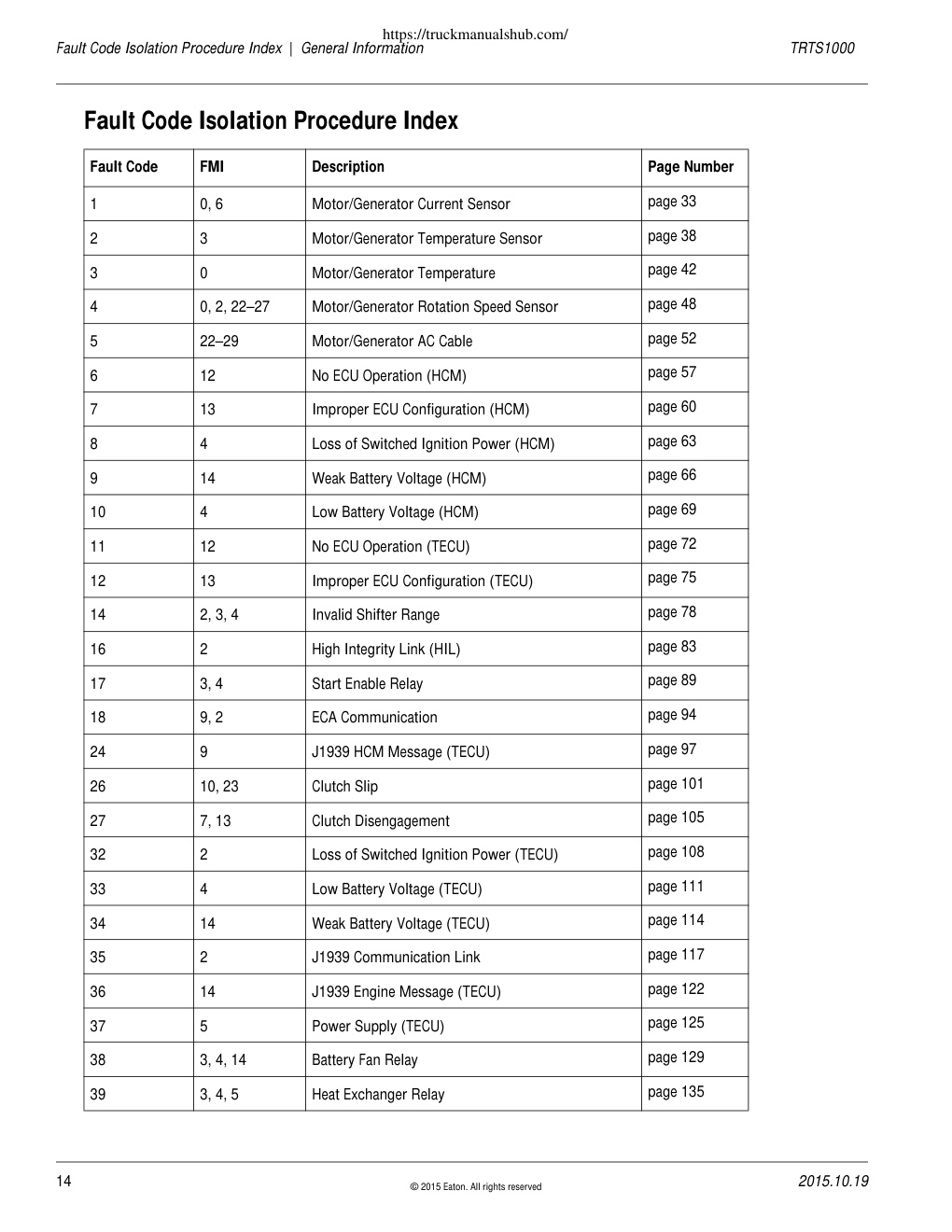

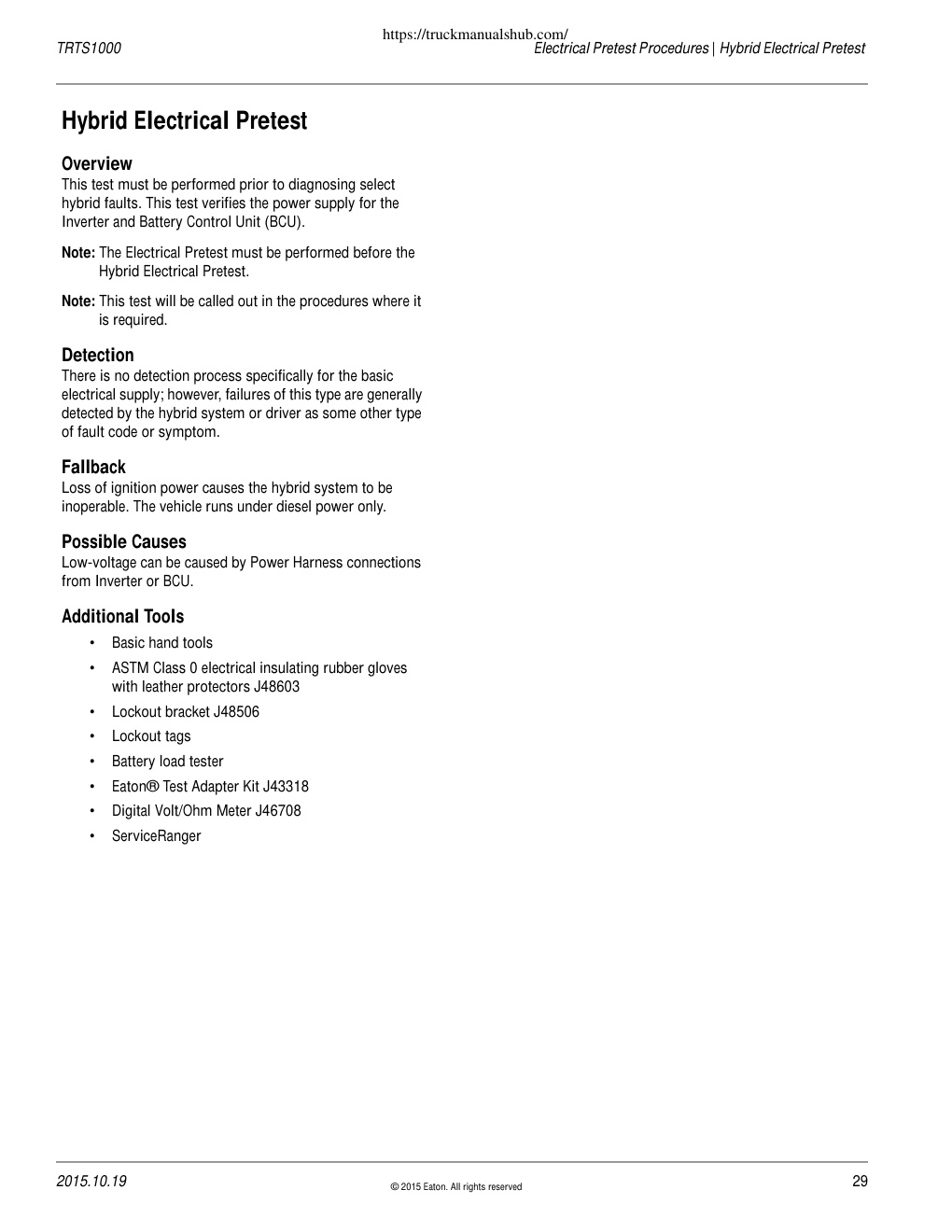

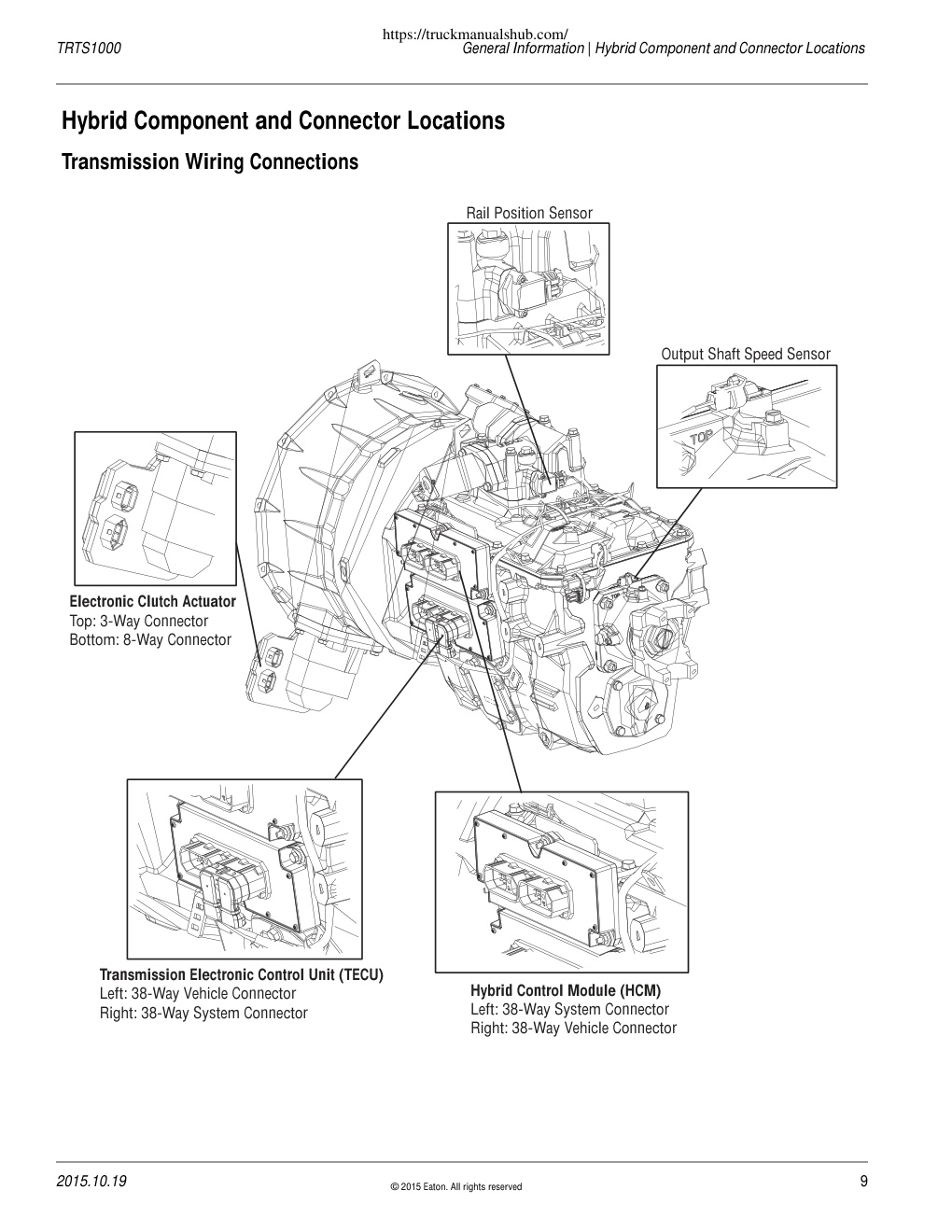

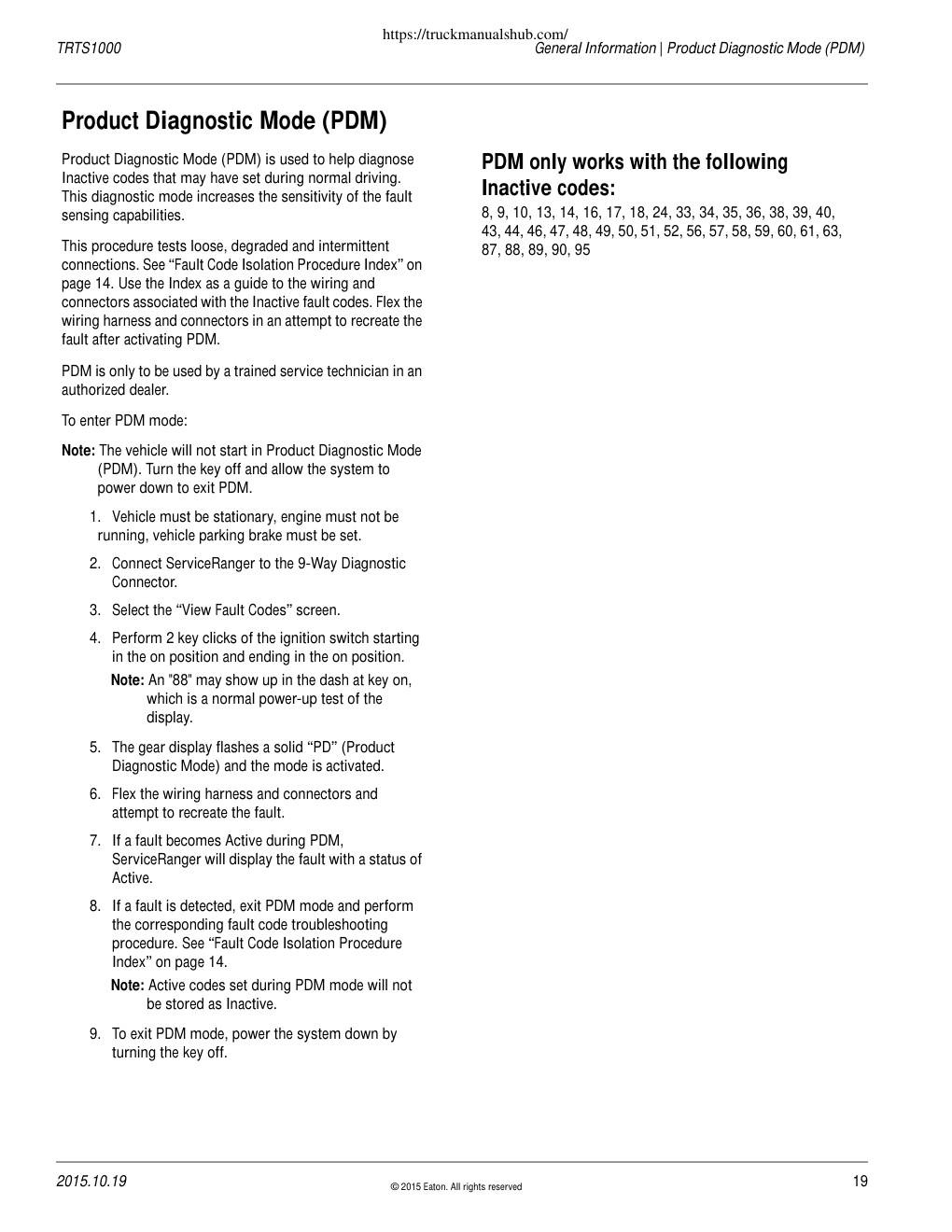

https://truckmanualshub.com/ Troubleshooting Guide Eaton Hybrid Drive Systems MY08 TRTS1000 EN-US October 2015 EH-8E306A-U EH-8E306A-UPG EH-8E306A-UP EH-8E306A-CD EH-8E306A-T EH-6E606B-CD https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ Table of Contents TRTS1000 Table of Contents General Information Electrical Pretest Procedures Warnings & Cautions. . . . . . . . . . . . . . . . . . . . . . . . . . 1 Power-Up Sequence Test. . . . . . . . . . . . . . . . . . . . . . 22 High-Voltage Warnings & Cautions . . . . . . . . . . . . 2 Electrical Pretest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Insulated Rubber Glove Test and High-Voltage Hybrid Electrical Pretest. . . . . . . . . . . . . . . . . . . . . . . 29 Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Insulated Rubber Glove Test. . . . . . . . . . . . . . . . . . 3 Fault Isolation Procedures High-Voltage Work Area Requirements . . . . . . . . . 3 Fault Code 1 - Motor/Generator Current Sensor. . . . . 33 High-Voltage Service Shutdown and Power-Up Fault Code 2 - Motor/Generator Temperature Sensor 38 Procedure . . . . . . . . . . . . . . . . . . . .…
