Service Manual

Sevice Manual T-11605 Series

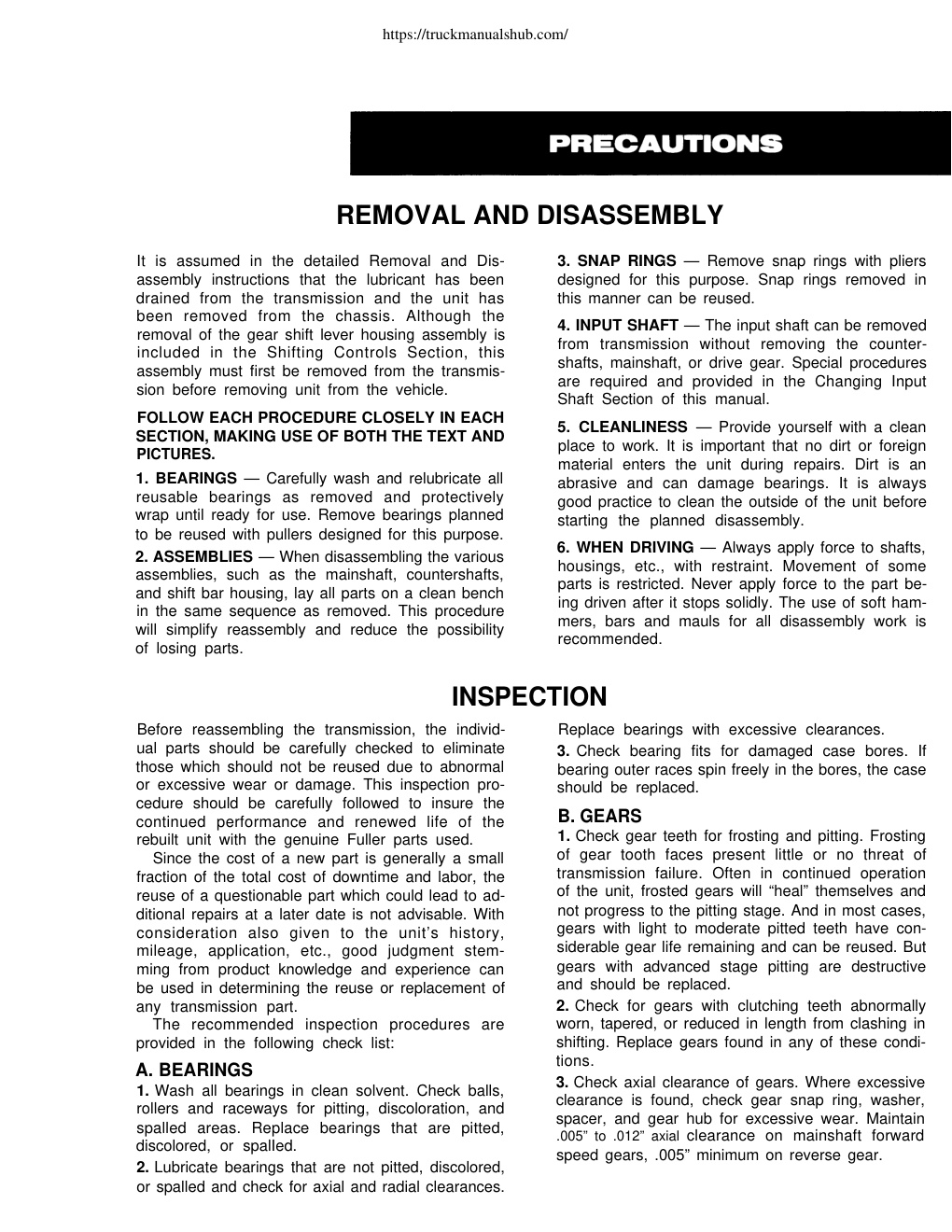

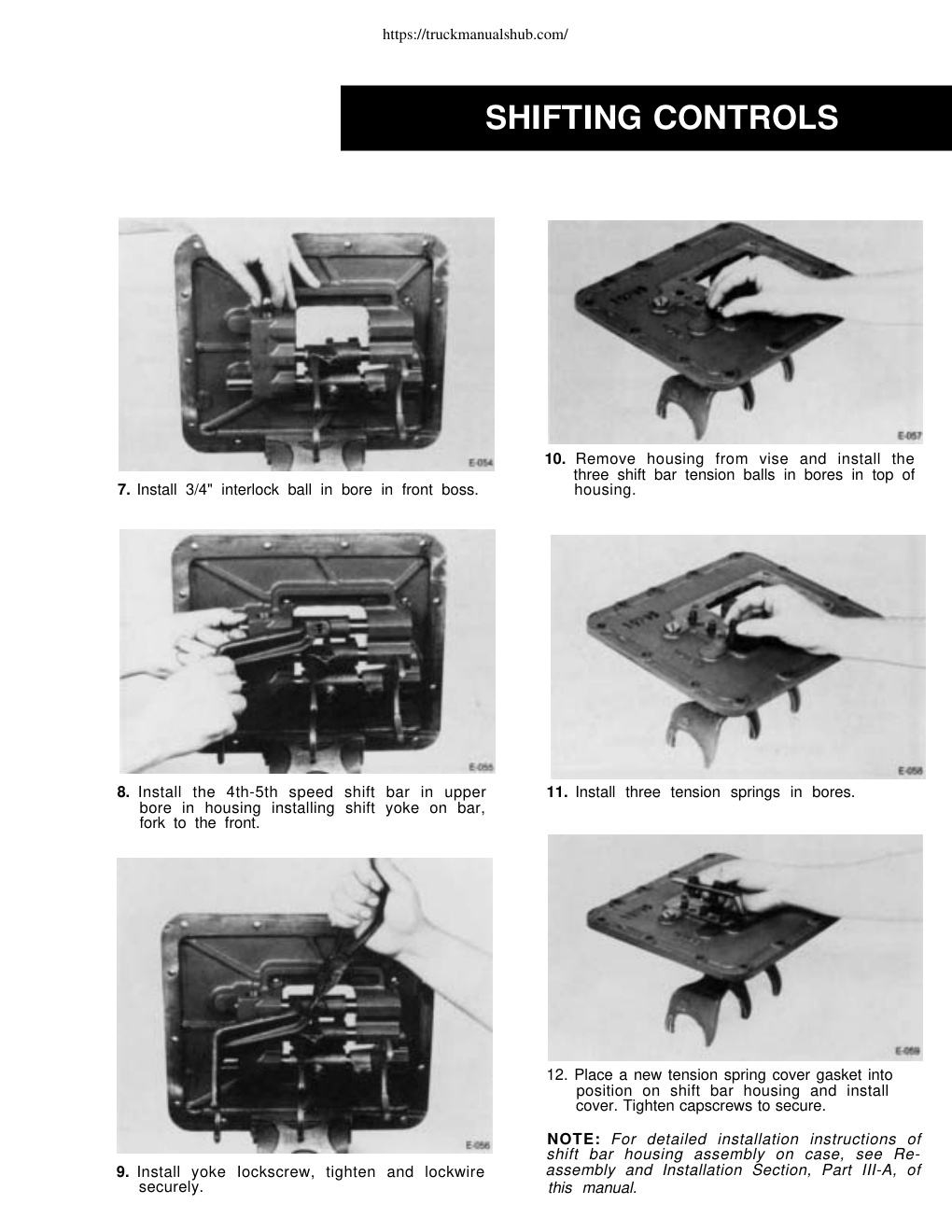

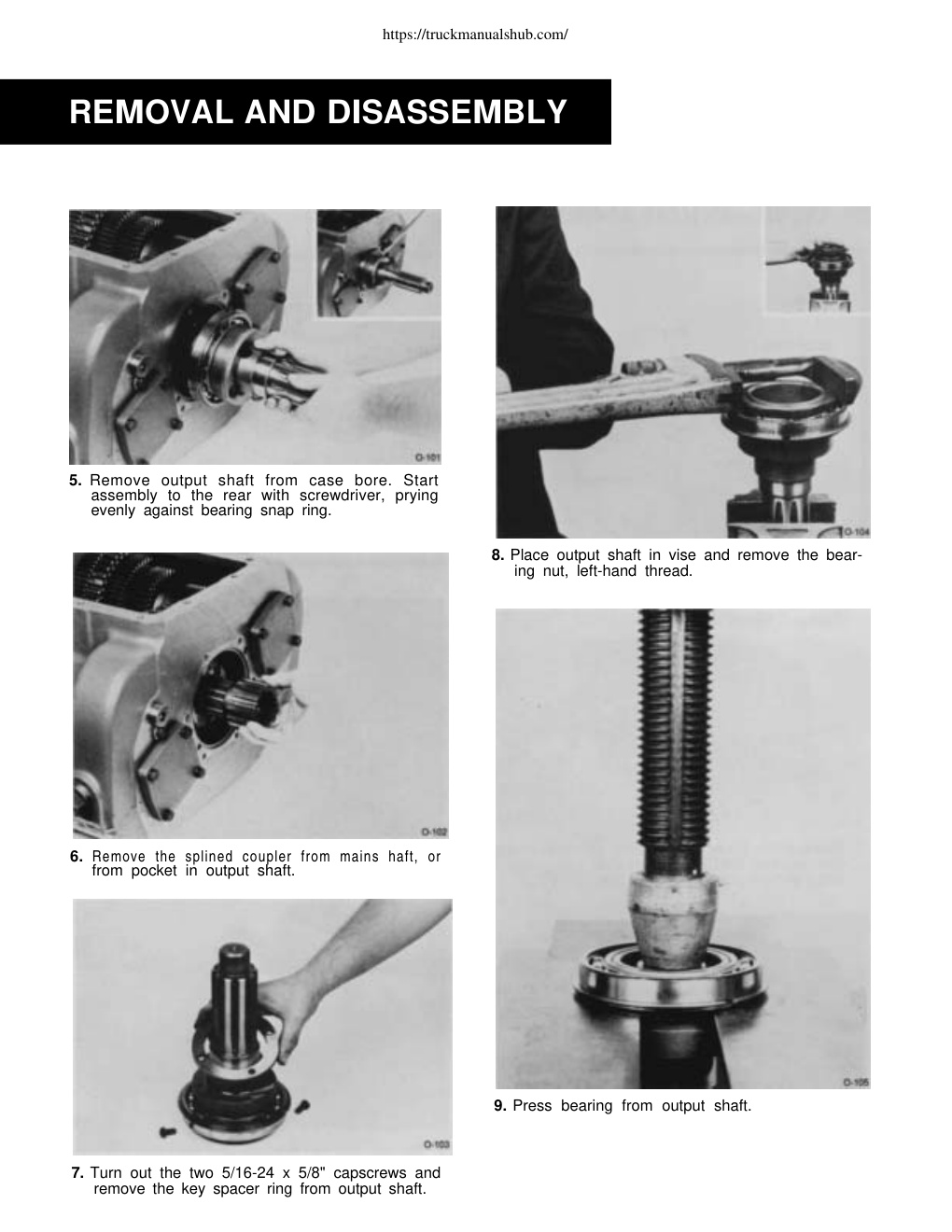

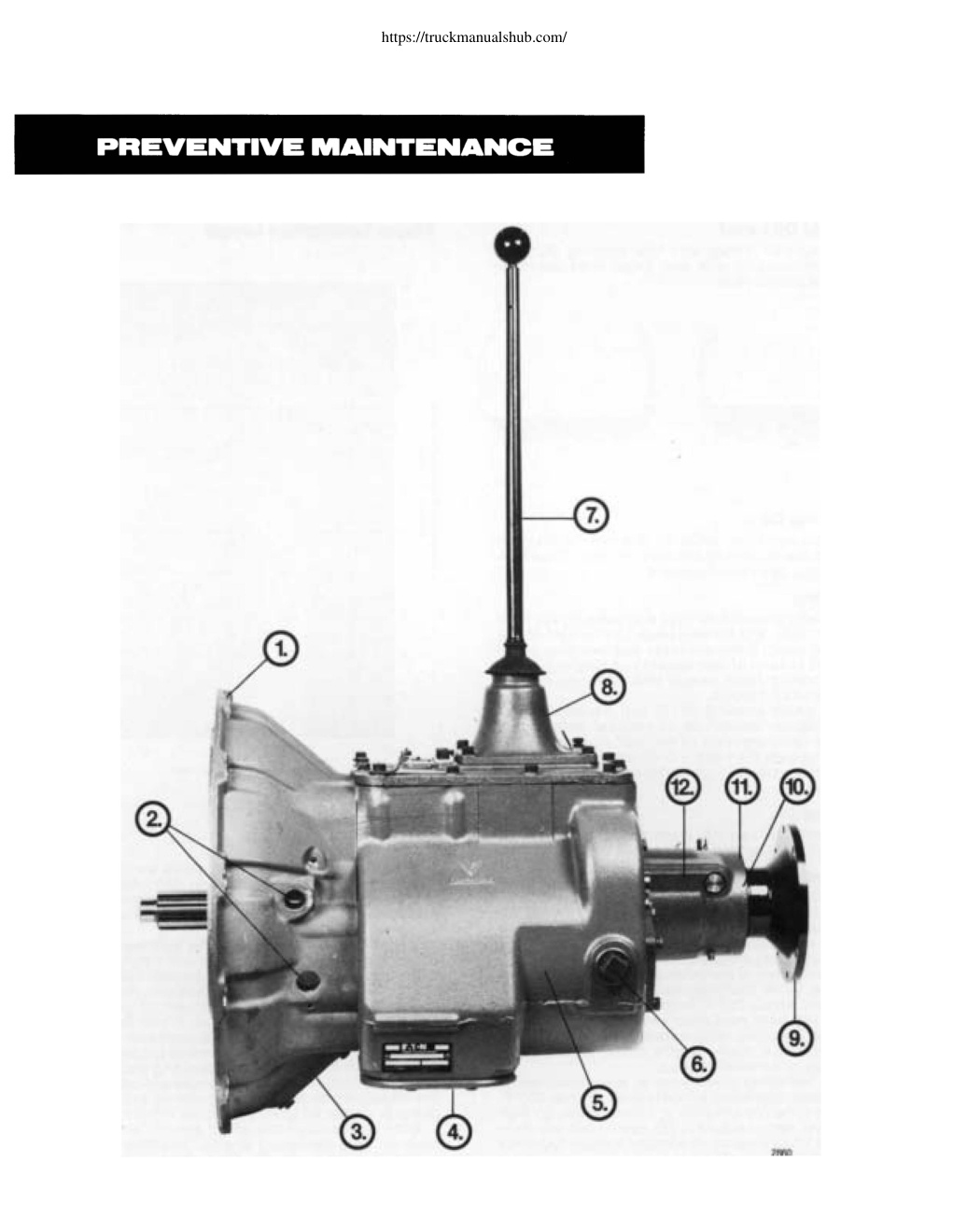

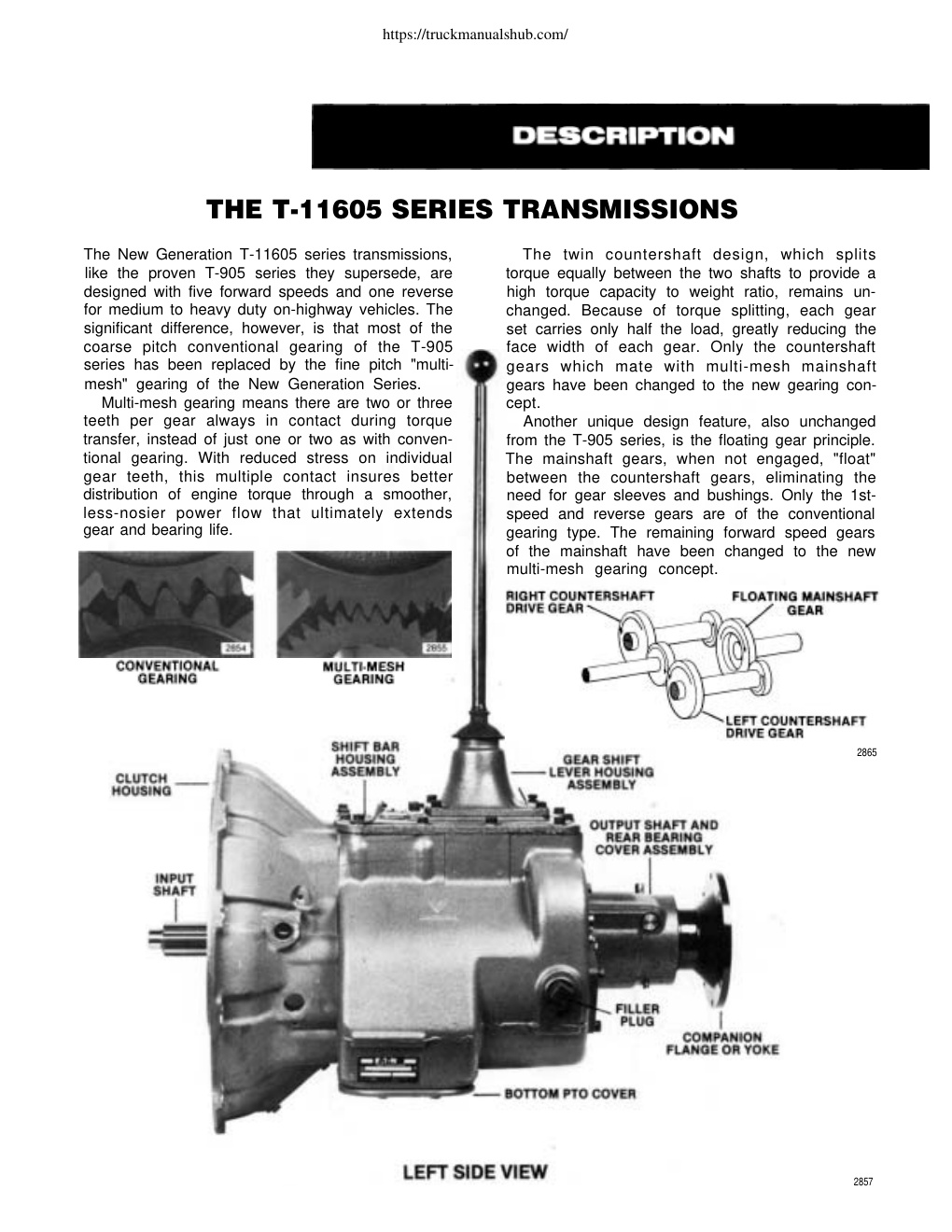

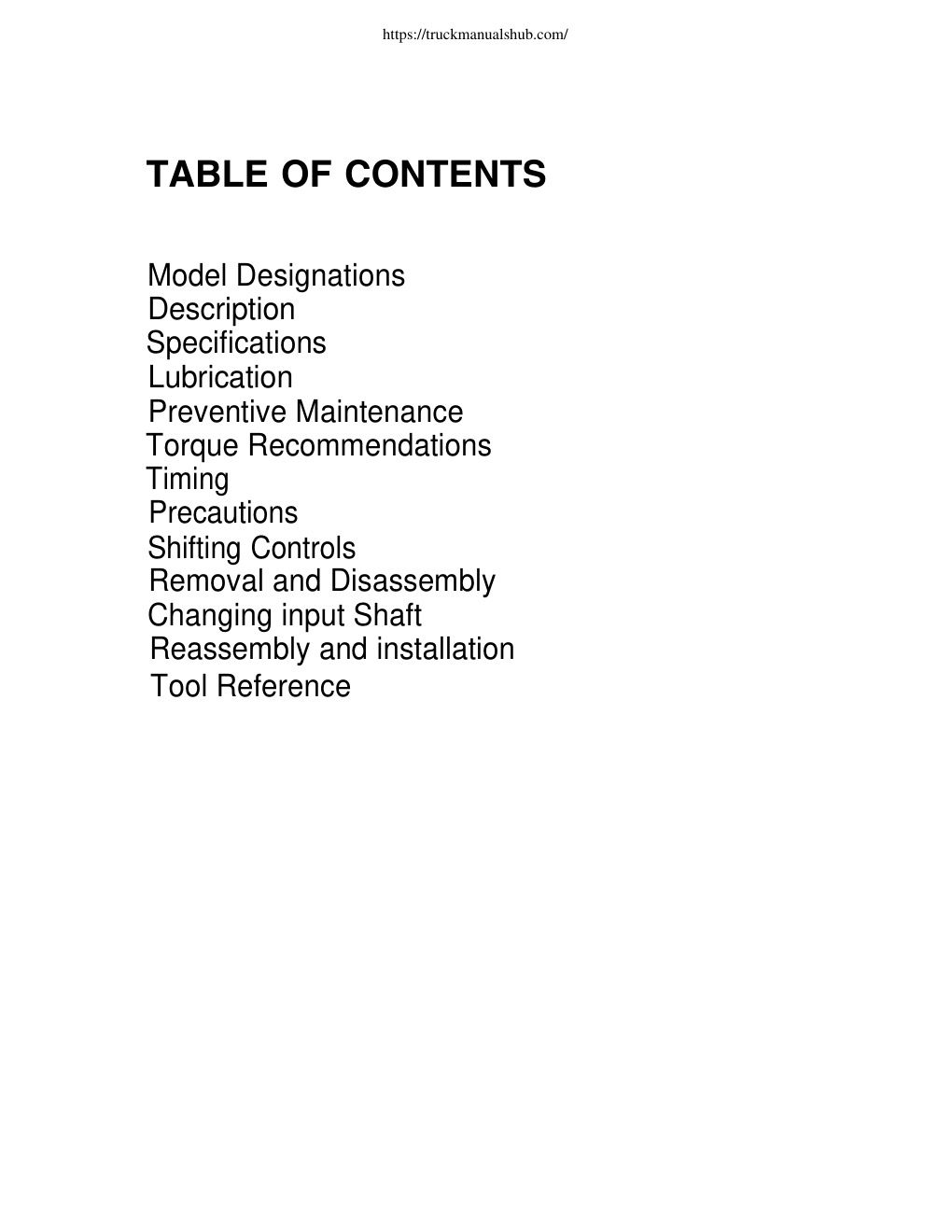

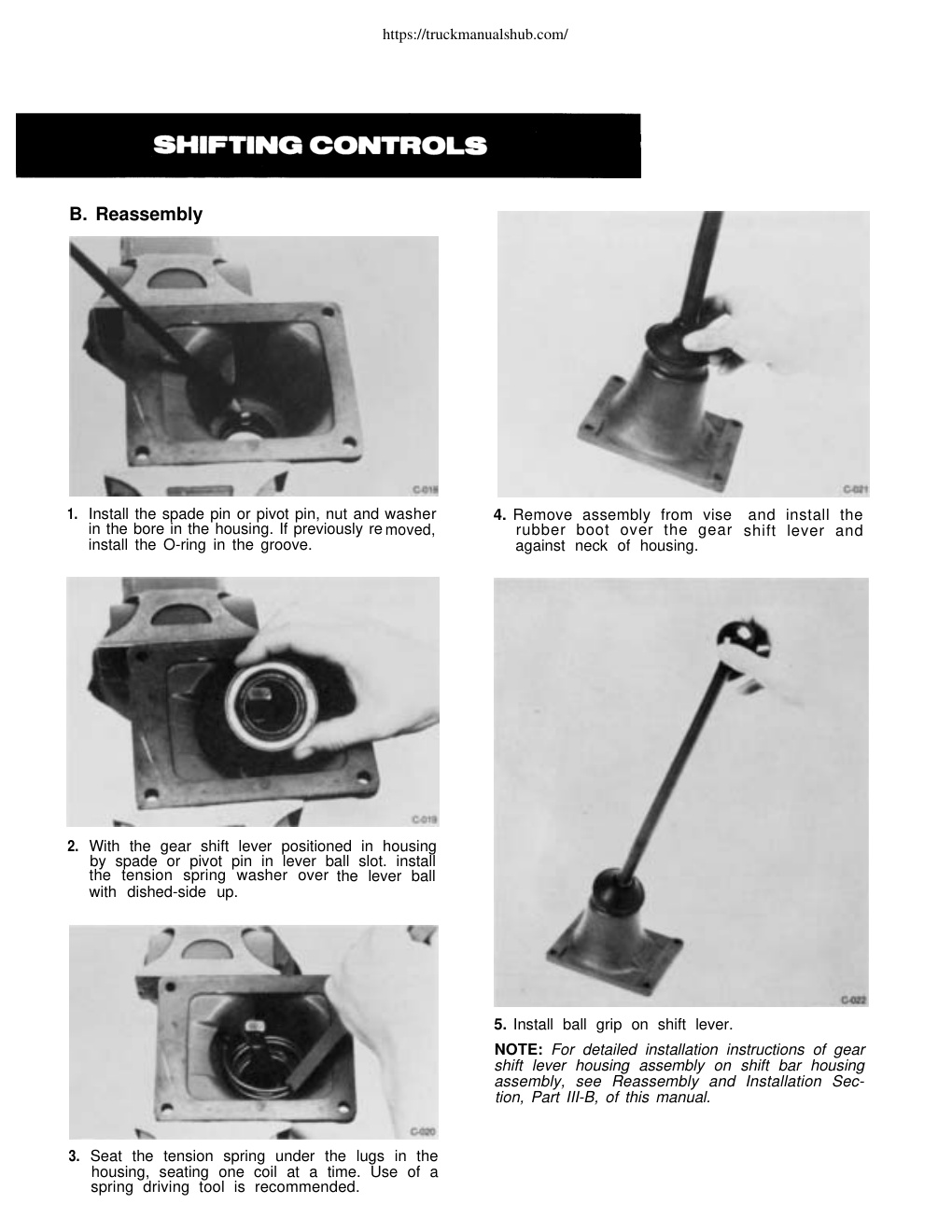

https://truckmanualshub.com/ Service Manual Fuller Medium Heavy Transmissions TRSM0200 October 2007 https://truckmanualshub.com/ For parts or service call us Pro Gear & Transmission, Inc. 1 (877) 776-4600 (407) 872-1901 parts@eprogear.com 906 W. Gore St. Orlando, FL 32805 https://truckmanualshub.com/ TABLE OF CONTENTS Model Designations Description Specifications Lubrication Preventive Maintenance Torque Recommendations Timing Precautions Shifting Controls Removal and Disassembly Changing input Shaft Reassembly and installation Tool Reference https://truckmanualshub.com/ MODEL DESIGNATIONS “T” = Twin Countershaft “O” = Used as a letter, denotes Overdrive model “11” x 100 = 1100 Ibs.-ft. torque capacity rating “6” = Denotes “multi-mesh” gearing “05” = Five forward speeds “A”, “B”, etc. = Following numbers indicates a specific set of ratios Since the models in the T-11605 series are identical in construction, references in this manual apply to all models unless stated otherwise. This in- cludes models not listed above which may have other ratio combinations, designated by letters following the numerals. ADDITIONAL LITERATURE The following additional literature is available for the…
