MINI EXCAVATORS

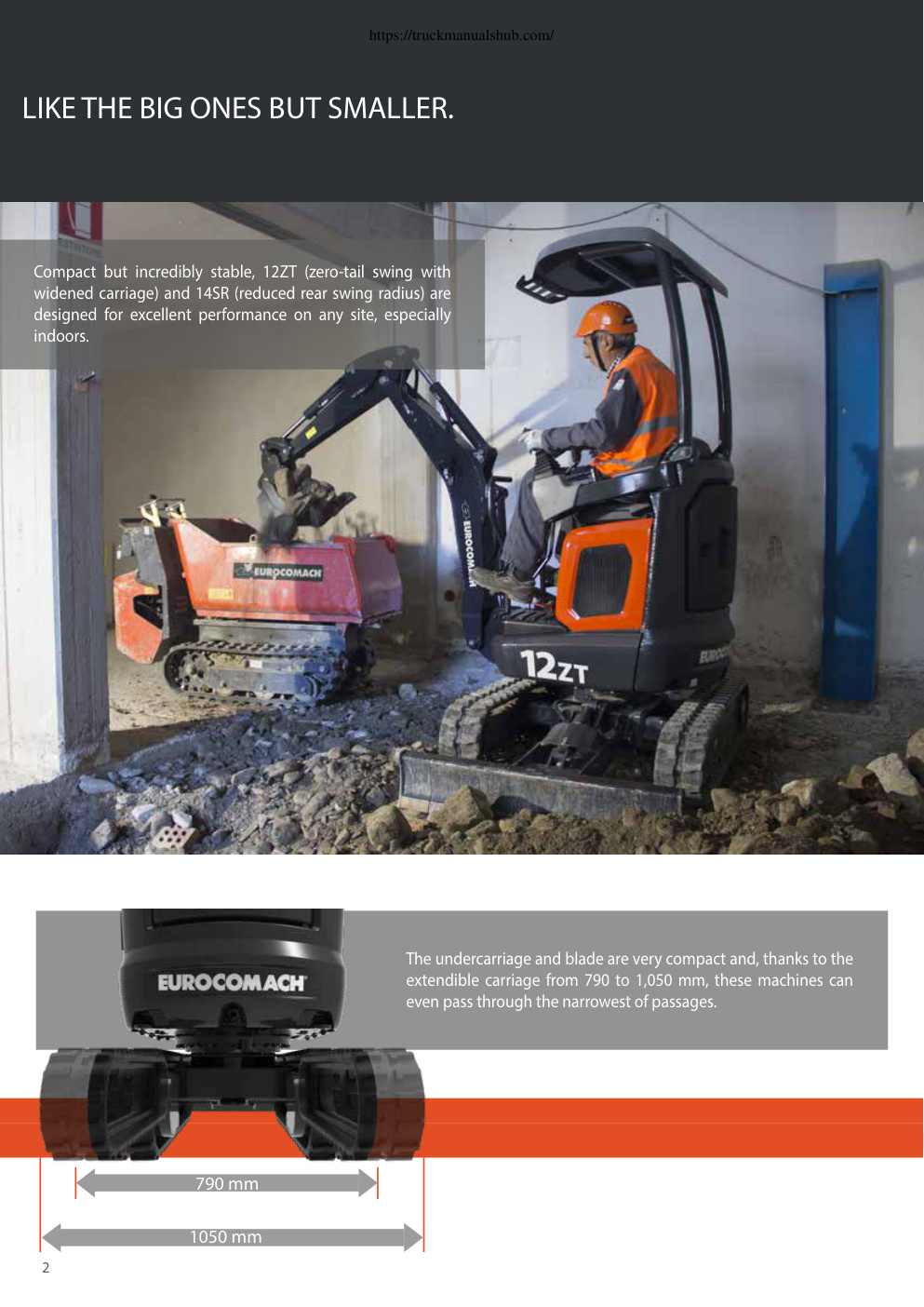

Concrete solutions. Always. Operative weight 1,160 - 1,185 kg Maximum power 10.2 kW - 13.7 HP Operative weight 1,230 - 1,255 kg Maximum power 10.2 kW - 13.7 HP 1 LIKE THE BIG ONES BUT SMALLER. Compact but incredibly stable, 12ZT (zero-tail swing with widened carriage) and 14SR (reduced rear swing radius) are designed for excellent performance on any site, especially The undercarriage and blade are very compact and, thanks to the extendible carriage from 790 to 1,050 mm, these machines can even pass through the narrowest of passages.

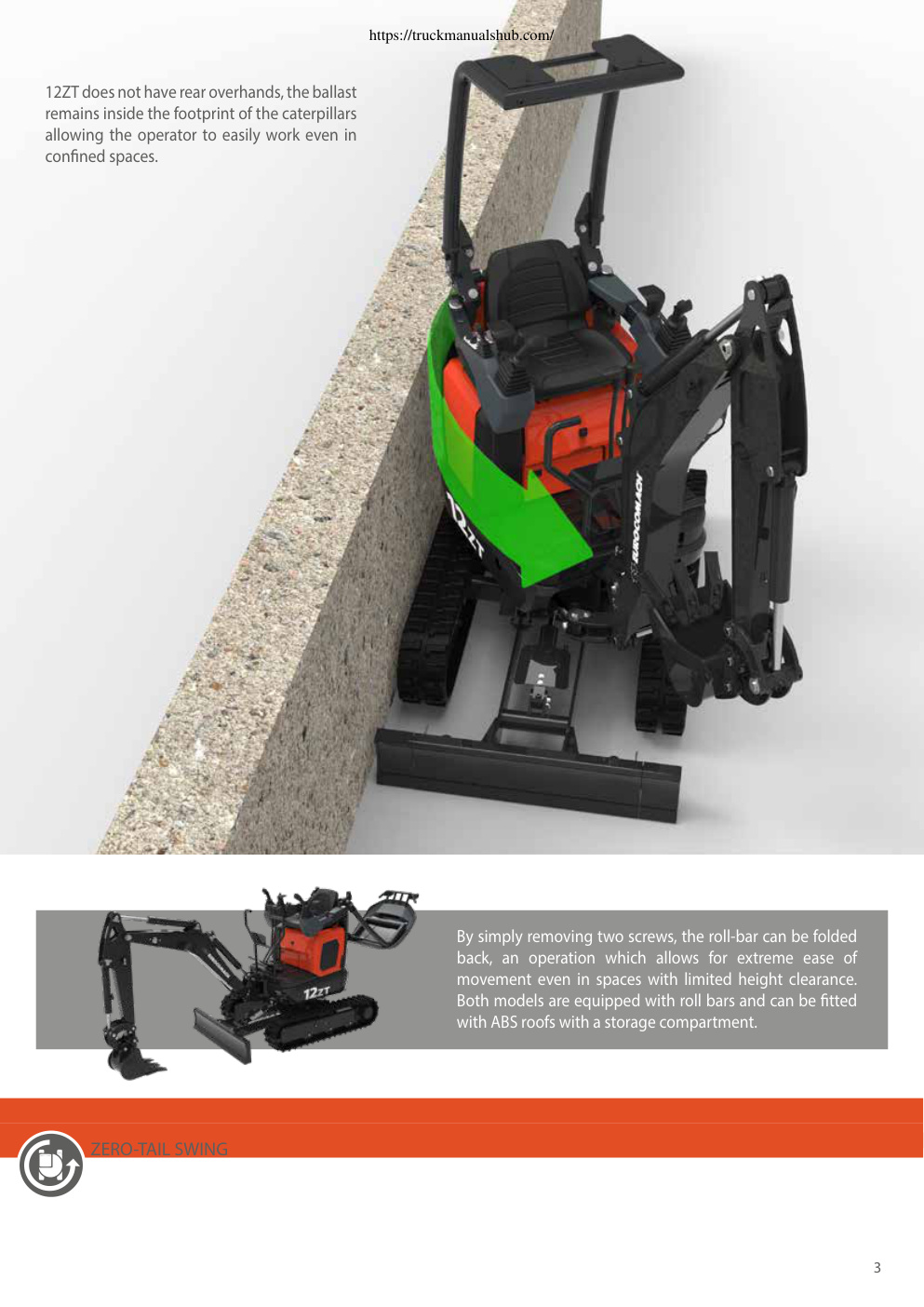

https://truckmanualshub.com/ MINI EXCAVATORS Concrete solutions. Always. Operative weight 1,160 - 1,185 kg Maximum power 10.2 kW - 13.7 HP Operative weight 1,230 - 1,255 kg Maximum power 10.2 kW - 13.7 HP 1 https://truckmanualshub.com/ LIKE THE BIG ONES BUT SMALLER. Compact but incredibly stable, 12ZT (zero-tail swing with widened carriage) and 14SR (reduced rear swing radius) are designed for excellent performance on any site, especially indoors. The undercarriage and blade are very compact and, thanks to the extendible carriage from 790 to 1,050 mm, these machines can even pass through the narrowest of passages. 790 mm 1050 mm 2 https://truckmanualshub.com/ 12ZT does not have rear overhands, the ballast remains inside the footprint of the caterpillars allowing the operator to easily work even in confined spaces. By simply removing two screws, the roll-bar can be folded back, an operation which allows for extreme ease of movement even in spaces with limited height clearance. Both models are equipped with roll bars and can be fitted with ABS roofs with a storage compartment. ZERO-TAIL SWING 3 https://truckmanualshub.com/ The driving position has been studied in order to give…
