Microsoft Word - Flexi G4 Workshop Manual English Rev D

Workshop Manual umber: 42056-00 Produced by Narrow Aisle Ltd © COPYRIGHT 2013 All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any other form or means, electronic, mechanical, photocopying or otherwise without prior permission from Narrow Aisle. When ordering spare parts for your Flexi Generation 4 forklift truck, check the truck specification supplied with your truck for the correct listing for variables, such as, chassis, mast or traction controller that are fitted. Narrow Aisle Limited, Great Western Way, Great Bridge, Tipton, West Midlands, DY4 7AH, United Kingdom. Issue D – 26/06/2013 Part Number: 42056-00

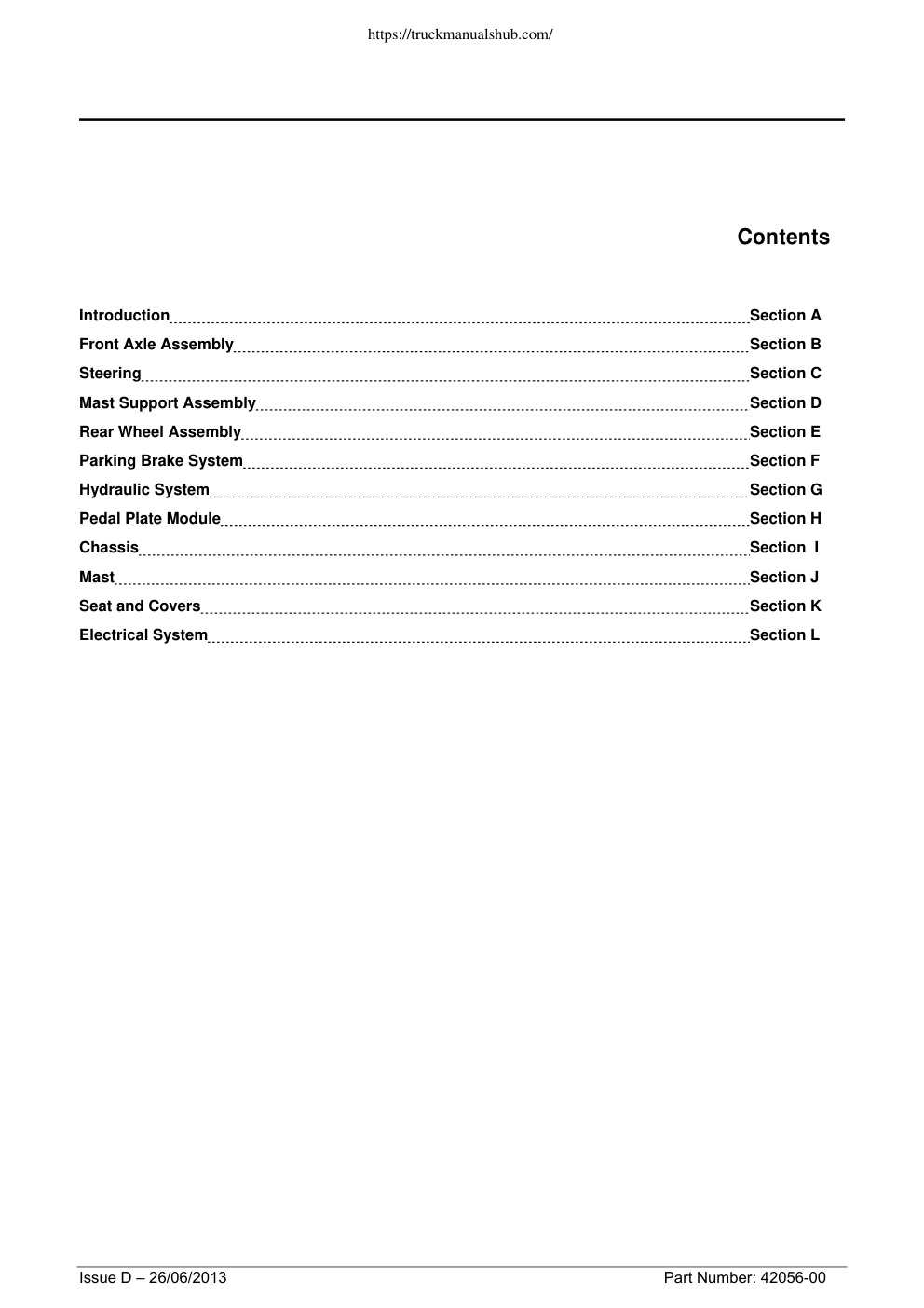

https://truckmanualshub.com/ Flexi G4 AC Workshop Manual Part Number: 42056-00 Issue D – 26/06/2013 https://truckmanualshub.com/ Section A A - 2 Produced by Narrow Aisle Ltd © COPYRIGHT 2013 All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted in any other form or means, electronic, mechanical, photocopying or otherwise without prior permission from Narrow Aisle. When ordering spare parts for your Flexi Generation 4 forklift truck, check the truck specification supplied with your truck for the correct listing for variables, such as, chassis, mast or traction controller that are fitted. Issued by: Narrow Aisle Limited, Great Western Way, Great Bridge, Tipton, West Midlands, DY4 7AH, United Kingdom. Issue D – 26/06/2013 Part Number: 42056-00 https://truckmanualshub.com/ Introduction A - 3 Contents Introduction Section A Front Axle Assembly Section B Steering Section C Mast Support Assembly Section D Rear Wheel Assembly Section E Parking Brake System Section F Hydraulic System Section G Pedal Plate Module Section H Chassis Section I Mast Section J Seat and Covers Section K Electrical System Section L Issue D – 26/06/2013 Part…
