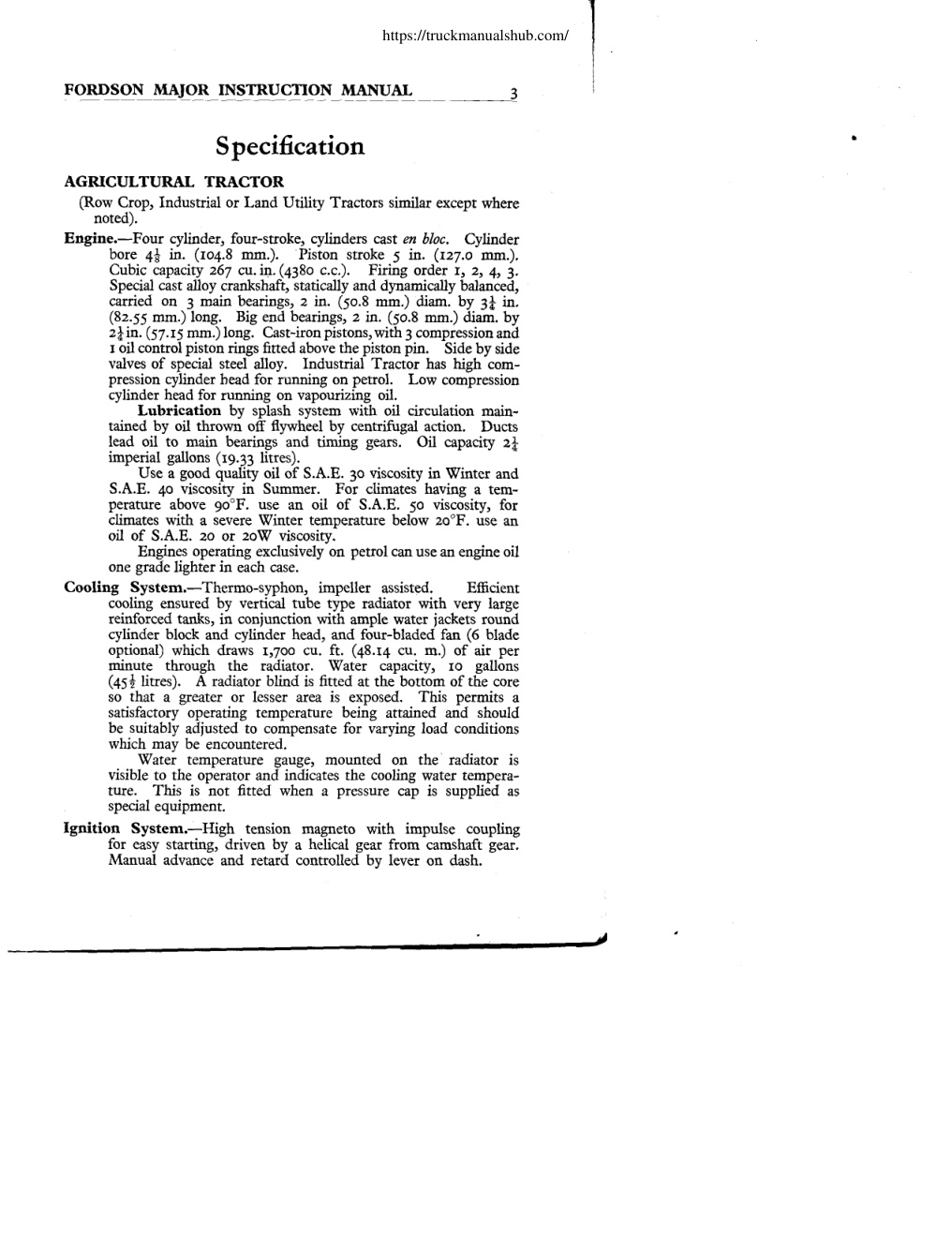

FORDSON MAJOR INSTRUCTION MANUAL __ 3

5 AGRICULTURAL: ROW CROP BE LAND UTILITY - INDUSTRIAL PRICE 2/- POST FREE FORD MOTOR COMPANY Ep. AGRICULTURAL TRACTOR (Row Crop, Industrial or Land Utility Tractors similar except where Engine.—Four cylinder, four-stroke, cylinders cast en bloc. Cylinder bore 44 in. (104.8 mm.). ‘Piston stroke 5 in. (127.0 mm.). Cubic capacity 267 cu. in. (4380 c.c.). Firing order I, 2, 4, 3. Special cast alloy crankshaft, statically and dynamically balanced, carried on 3 main bearings, 2 in. (50.8 mm.) diam. by 3} in. (82.55 mm.) long. Big end bearings, 2 in. (50.8 mm.) diam. by 2}in. (57.15 mm.) long. Cast-iron pistons, with 3 compression and 1 oil control piston rings fitted above the piston pin. Side by side valves of special steel alloy. Industrial Tractor has high com- pression cylinder bead for running on petro]. Low compression cylinder head for running on vapourizing oil. Lubrication by splash
