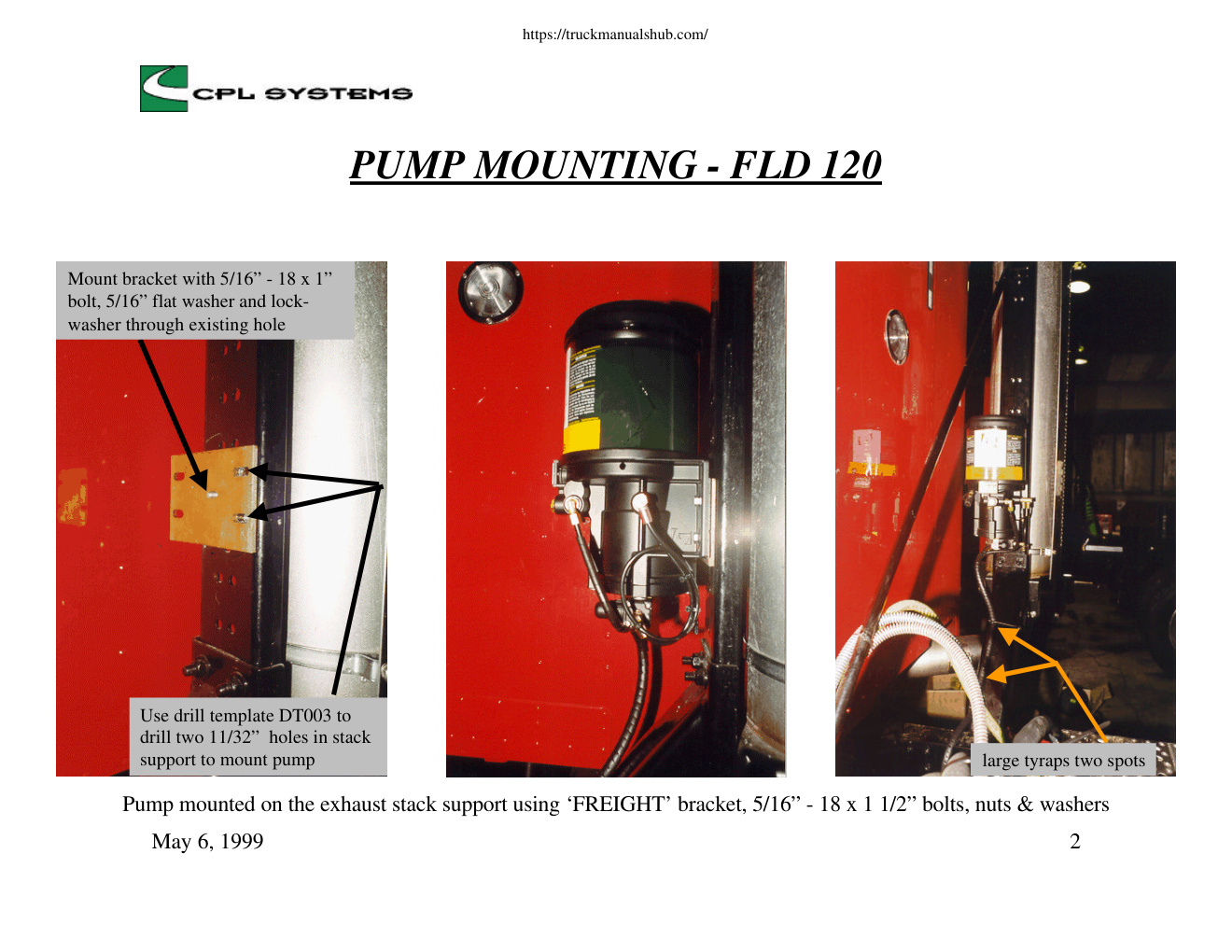

FREIGHTLINERFREIGHTLINER FLDFLD 120120 CPLCPL SYSTEMSSYSTEMS // GROENEVELDGROENEVELD AUTOMATICAUTOMATIC GREASINGGREASING SYSTEMSYSTEM INSTALLATIONINSTALLATION MANUALMANUAL FORFOR CUSTOMERCUSTOMER SERVICESERVICE TECHNICIANSTECHNICIANS PUMP MOUNTING - FLD 120 Mount bracket with 5/16” - 18 x 1” bolt, 5/16” flat washer and lock- washer through existing hole Use drill template DT003 to drill two 11/32” holes in stack support to mount pump large tyraps two spots Pump mounted on the exhaust stack support using ‘FREIGHT’ bracket, 5/16” - 18 x 1 1/2” bolts, nuts & washers

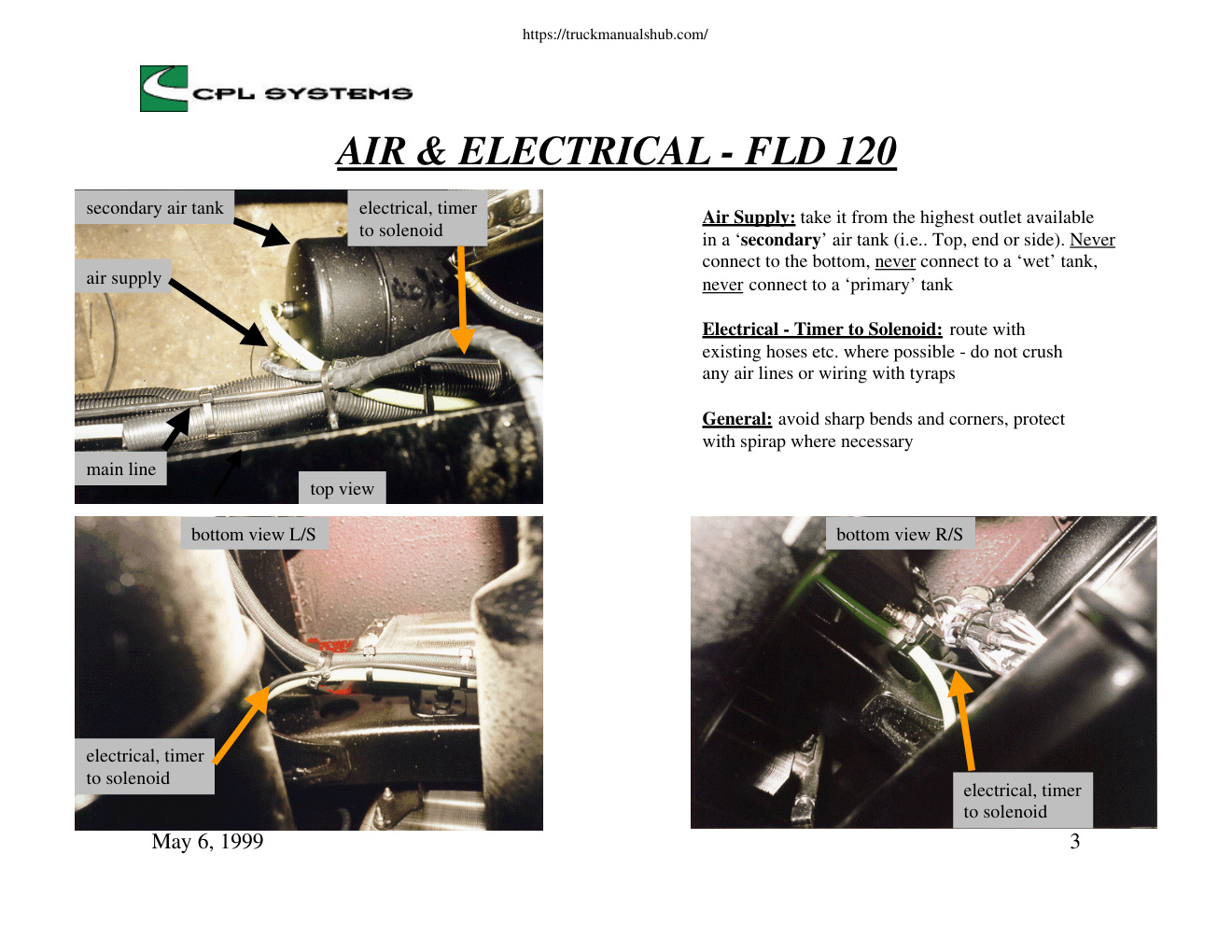

https://truckmanualshub.com/ FREIGHTLINERFREIGHTLINER FLDFLD 120120 CPLCPL SYSTEMSSYSTEMS // GROENEVELDGROENEVELD AUTOMATICAUTOMATIC GREASINGGREASING SYSTEMSYSTEM INSTALLATIONINSTALLATION MANUALMANUAL FORFOR CUSTOMERCUSTOMER SERVICESERVICE TECHNICIANSTECHNICIANS May 6, 1999 1 https://truckmanualshub.com/ PUMP MOUNTING - FLD 120 Mount bracket with 5/16” - 18 x 1” bolt, 5/16” flat washer and lock- washer through existing hole Use drill template DT003 to drill two 11/32” holes in stack support to mount pump large tyraps two spots Pump mounted on the exhaust stack support using ‘FREIGHT’ bracket, 5/16” - 18 x 1 1/2” bolts, nuts & washers May 6, 1999 2 https://truckmanualshub.com/ AIR & ELECTRICAL - FLD 120 secondary air tank electrical, timer Air Supply: take it from the highest outlet available to solenoid in a ‘secondary’ air tank (i.e.. Top, end or side). Never connect to the bottom, never connect to a ‘wet’ tank, air supply never connect to a ‘primary’ tank Electrical - Timer to Solenoid: route with existing hoses etc. where possible - do not crush any air lines or wiring with tyraps General: avoid sharp bends and corners, protect with spirap where necessary main line top view…
