LIGHT COMMERCIAL VEHICLE

GAZelle NEXT. BUS □□ Low cost of ownership and short payback period □□ 19 passenger seats □□ European comfort and safety □□ Large windows □□ Zinc-coated body □□ Spacious compartment of 1900 mm height □□ Modern components from the world’s top manufacturer GAZ-А63R42/А64R42: Parameter А63R42 А64R42 Passenger capacity, ppl 18 19 Including seats, pcs. 18 18 Gross Weigh, kg 4292 4252 Curb weight, kg 3014 2960 Axle load of the fully loaded vehicle, kg: Front 1465 1489 Clearance (under the rear axle housing of a fully loaded vehicle), mm 170 170 Min turning radius of the outer front wheeltread, m 6.6 6.6 Reference fuel consumption at a constant speed, L/100 km: 60 km/h 8.5 8.5 80 km/h 11.5 11.5 Max speed, km/h 110 110 Angle of approach, degrees (under load) 22 22 Angle of departure, degrees (under load) 14 14 Max driving gradient of a fully loaded vehicle, % 25 25 Engine Сummins ISF2.8s4R129 Ty

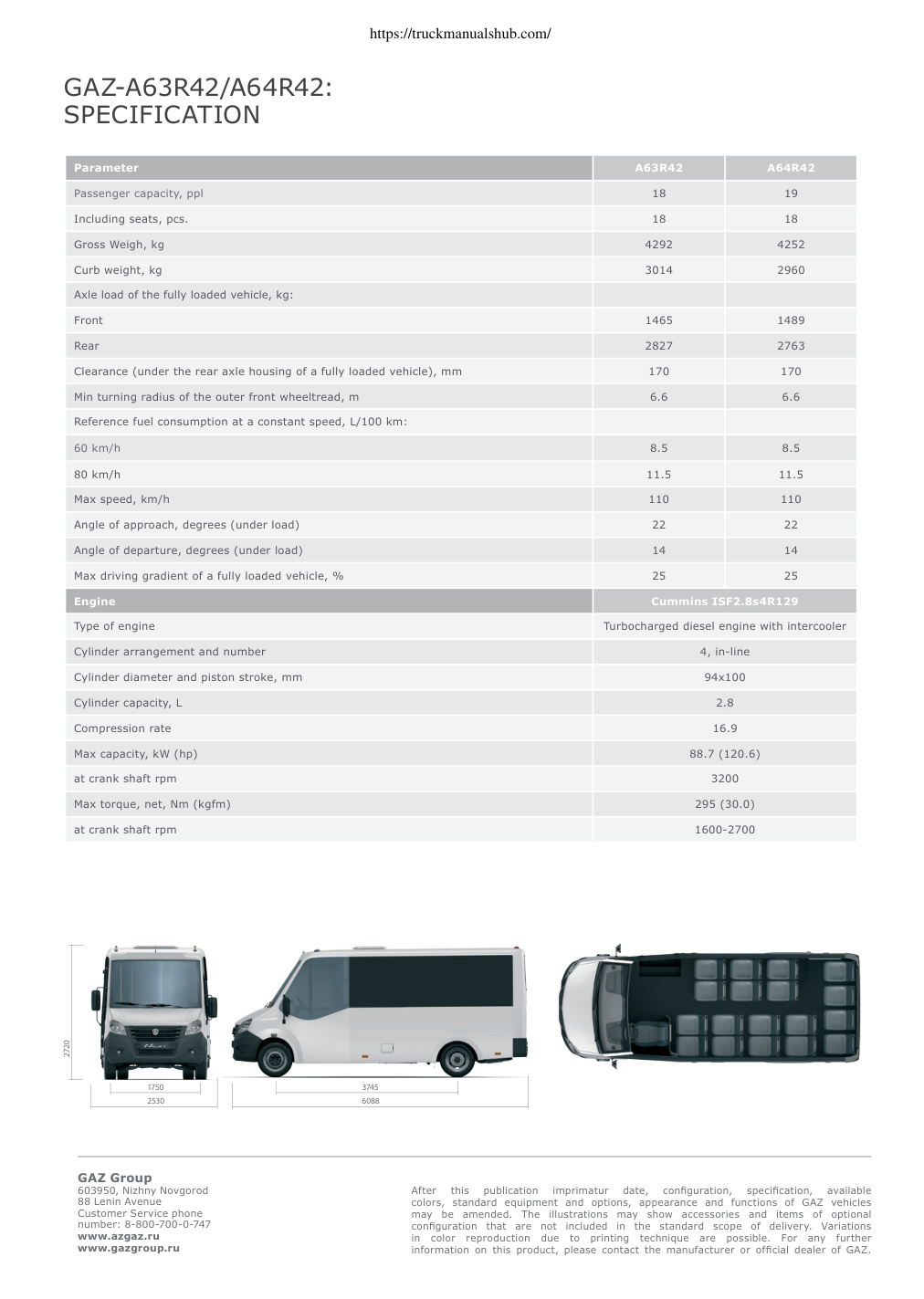

https://truckmanualshub.com/ LIGHT COMMERCIAL VEHICLE GAZelle NEXT. BUS □□ Low cost of ownership and short payback period □□ 19 passenger seats □□ European comfort and safety □□ Large windows □□ Zinc-coated body □□ Spacious compartment of 1900 mm height □□ Modern components from the world’s top manufacturer https://truckmanualshub.com/ GAZ-А63R42/А64R42: SPECIFICATION Parameter А63R42 А64R42 Passenger capacity, ppl 18 19 Including seats, pcs. 18 18 Gross Weigh, kg 4292 4252 Curb weight, kg 3014 2960 Axle load of the fully loaded vehicle, kg: Front 1465 1489 Rear 2827 2763 Clearance (under the rear axle housing of a fully loaded vehicle), mm 170 170 Min turning radius of the outer front wheeltread, m 6.6 6.6 Reference fuel consumption at a constant speed, L/100 km: 60 km/h 8.5 8.5 80 km/h 11.5 11.5 Max speed, km/h 110 110 Angle of approach, degrees (under load) 22 22 Angle of departure, degrees (under load) 14 14 Max driving gradient of a fully loaded vehicle, % 25 25 Engine Сummins ISF2.8s4R129 Type of engine Turbocharged diesel engine with intercooler Cylinder arrangement and number 4, in-line Cylinder diameter and piston stroke, mm 94х100 Cylinder capacity, L 2.8 Compression…
