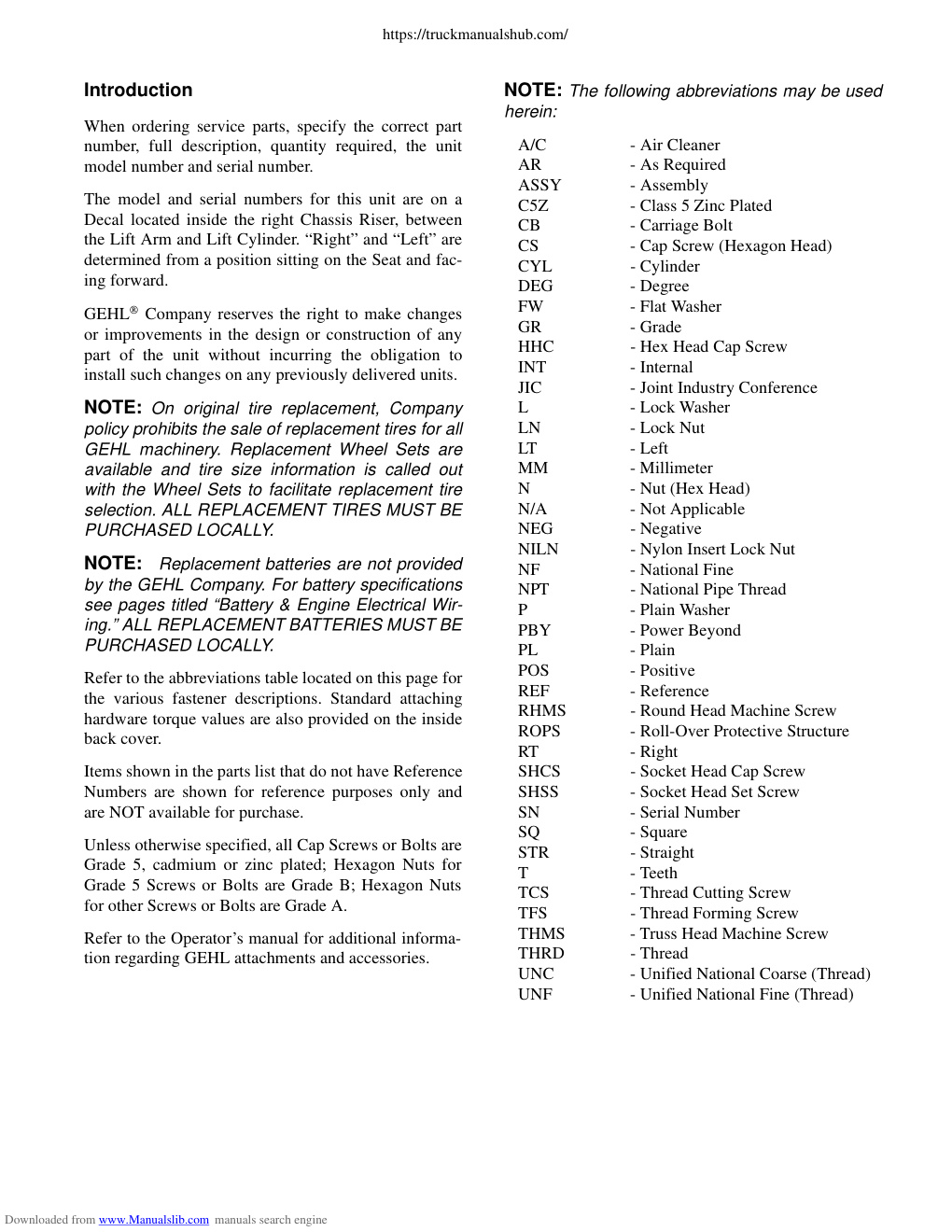

https://truckmanualshub.com/ Form No. 907221 Replaces 904267 5625 Skid Loader  SERVICE PARTS MANUAL Downloaded from www.Manualslib.com manuals search engine https://truckmanualshub.com/ Introduction NOTE: The following abbreviations may be used herein: When ordering service parts, specify the correct part number, full description, quantity required, the unit A/C - Air Cleaner model number and serial number. AR - As Required ASSY - Assembly The model and serial numbers for this unit are on a C5Z - Class 5 Zinc Plated Decal located inside the right Chassis Riser, between CB - Carriage Bolt the Lift Arm and Lift Cylinder. “Right” and “Left” are CS - Cap Screw (Hexagon Head) determined from a position sitting on the Seat and fac- CYL - Cylinder ing forward. DEG - Degree FW - Flat Washer GEHL Company reserves the right to make changes GR - Grade or improvements in the design or construction of any HHC - Hex Head Cap Screw part of the unit without incurring the obligation to INT - Internal install such changes on any previously delivered units. JIC - Joint Industry Conference NOTE: On original tire replacement, Company L - Lock Washer policyprohibitsthesaleofreplacementtiresforall LN…
