Parts Manual

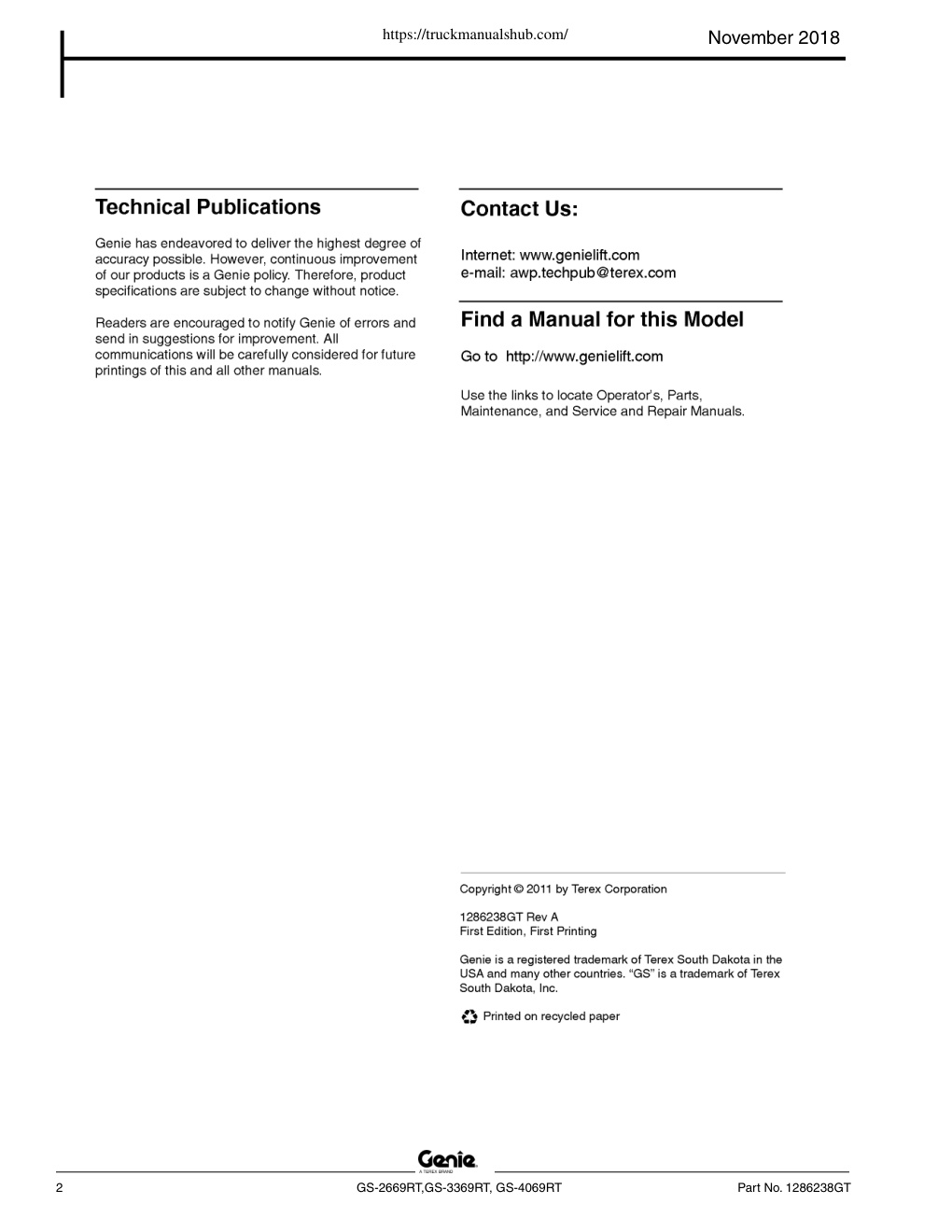

Serial Number Range GS-2669RT from SN GS69F-10500 Part No. 1286238GT Technical Publications Contact Us: Genie has endeavored to deliver the highest degree of. accuracy possible. However, continuous improvement Internet: of our products is a Genie policy. Therefore, product e-mail: specifications are subject to change without notice. Readers are encouraged to notify Genie of errors and Find a Manual for this Model send in suggestions for improvement. will be carefully considered for future Go to http:/ printings of this and all other manuals. Use the links to locate Operator's, Parts, Maintenance, and Service and Repair Manuals. 1286238GT Rev A First Edition, First Printing Genie is a registered trademark of Terex South Dakota in the USA and many other countries. “GS” is a trademark of Terex South Dakota, Inc.

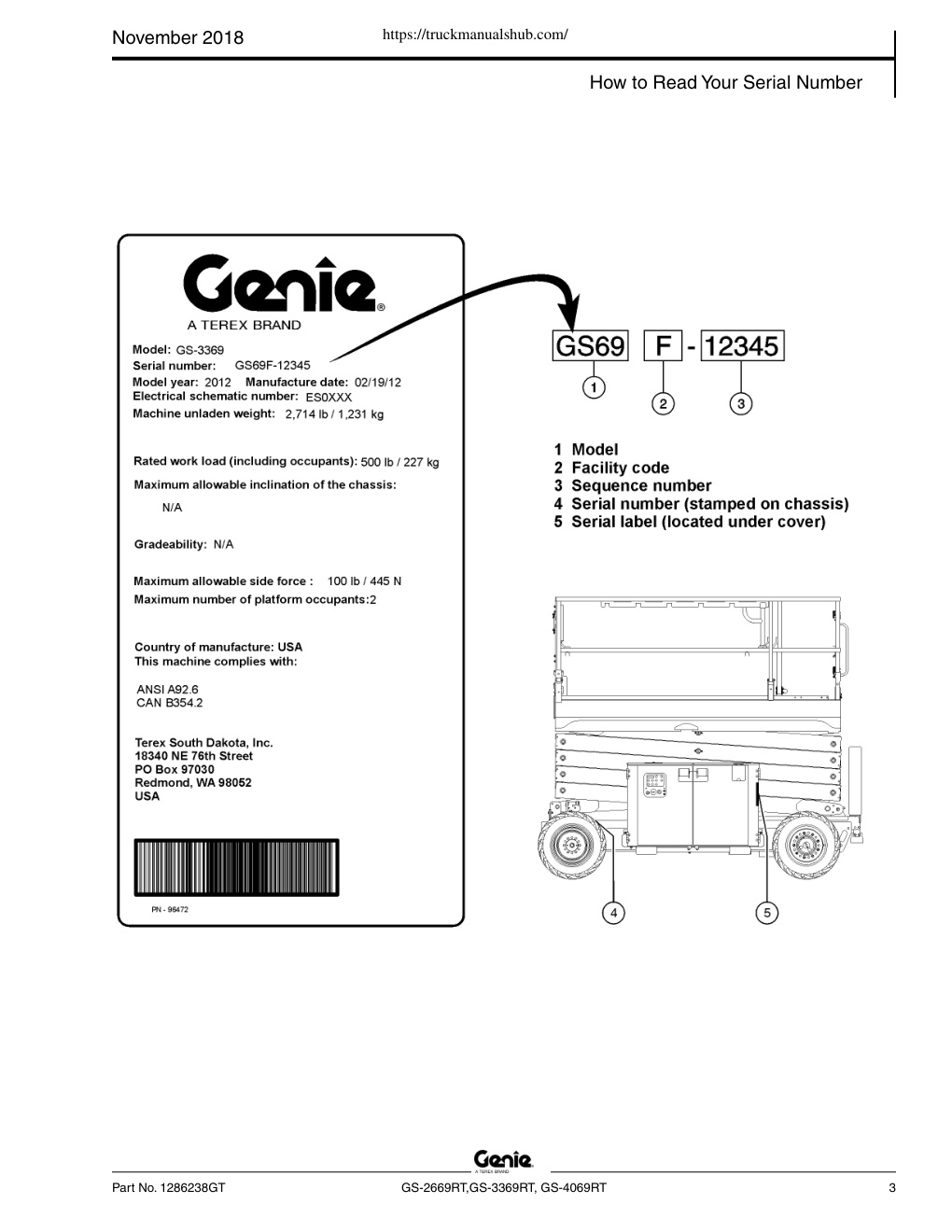

https://truckmanualshub.com/ Serial Number Range from SN GS69F-10500GS-2669RT GS-3369RT GS-4069RT Part No. 1286238GT Rev A3 November 2018 https://truckmanualshub.com/ November 2018 2 GS-2669RT,GS-3369RT, GS-4069RT Part No. 1286238GT November 2018 https://truckmanualshub.com/ How to Read Your Serial Number Part No. 1286238GT GS-2669RT,GS-3369RT, GS-4069RT 3 https://truckmanualshub.com/ November 2018 Table of Contents 123.1 Decals with Symbols, GS-4069 Platform, Asia & South This manual is updated frequently. If you have a America...............................................................................56 printed manual, you can keep it up to date by 124.1 Decals with Symbols, GS-4069 Platform, CE............58 downloading new figures from the Genie website at www.genielift.com. For the most up-to-date parts 200 Drive Chassis Components information, visit the Parts Lookup System on the 201.1 Steer Axle Linkage, Wheels and Drive Motors..........60 Genie website at www.genielift.com. 202.1 Steer Axle Linkage, Oscillation..................................62 203.1 Non-Steer Axle and Drive Motors..............................64 How to Read Your Serial…
